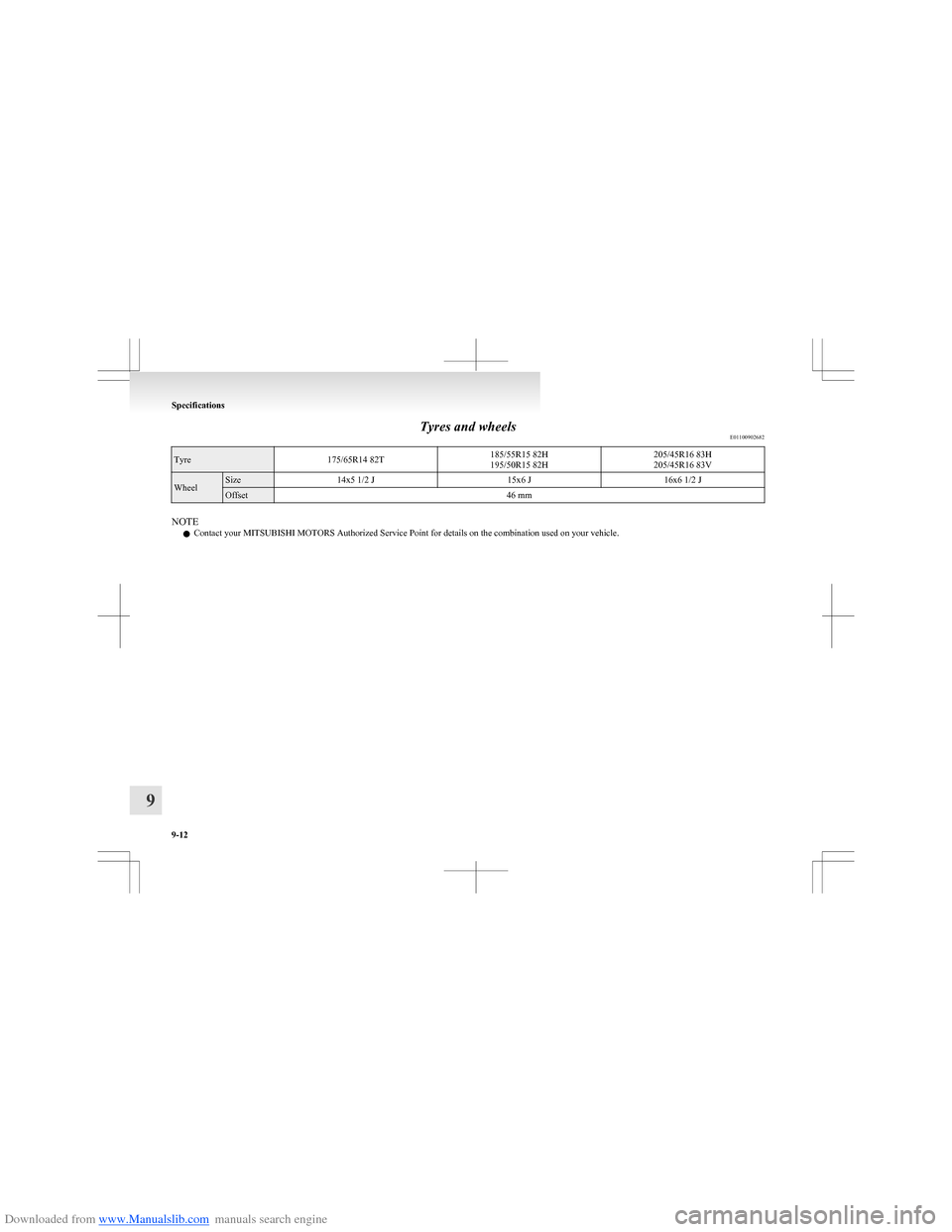

Downloaded from www.Manualslib.com manuals search engine Tyres and wheelsE01100902682Tyre175/65R14 82T185/55R15 82H
195/50R15 82H205/45R16 83H
205/45R16 83VWheelSize14x5 1/2 J15x6 J16x6 1/2 JOffset46 mm
NOTE
l Contact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle.
Specifications
9-12
9

Downloaded from www.Manualslib.com manuals search engine Other specificationsE01101000950Item1100 models, 1300 models1500 modelsFuel systemFuel controlElectric controlled injectionFuel pumpElectric motor typeClutchDry single disc clutch, hydraulic actionSteering systemRack and pinion type, electric power assistedSuspensionFrontIndependent type, MacPherson strut, coil springRearTorsion beam rigid type
Service brakes
TypeHydraulic, dual diagonal circuit with power assistance and anti-lock brake system with electronic brake
force distribution functionFrontVentilated disc brakesRearDrum brakes, Disc brakes*Disc brakesParking brakesParking brake acts mechanically on rear wheels
*: Optional equipment
Specifications
9-13
9

Downloaded from www.Manualslib.com manuals search engine Fuel consumptionE01101100599
Item
CombinedUrban conditionsExtra-urban conditionsCO2 (g/km)Fuel con-
sumption
(L/100 km)CO 2 (g/km)Fuel con-
sumption
(L/100 km)CO 2 (g/km)Fuel con-
sumption
(L/100 km)
1100 models
Except for Clear Tec
With 175/65R14 tyres1255.41566.81074.6With 195/50R15 or
205/45R16 tyres1255.41566.81074.6Clear TecWith 175/65R14 or
185/55R15 tyres1154.91406.01004.3
1300 models
Except for Clear Tec
Manual trans-
mission
With
175/65R14
tyres1305.61677.21094.7With
195/50R15 or
205/45R16
tyres
1305.61677.21094.7Automated
manual trans-
mission
With
175/65R14
tyres1255.41586.81064.5With
195/50R15 or
205/45R16
tyres
1275.51617.01074.6Clear TecWith 175/65R14 or
185/55R15 tyres1195.11486.41024.41500 models1536.61968.51285.5
Specifications
9-14
9

Downloaded from www.Manualslib.com manuals search engine NOTEl The values shown above apply to a vehicle on which optional equipment has not been fitted.
l The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor-
porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and
the standard of maintenance, will all affect its fuel consumption.
Specifications
9-15
9

Downloaded from www.Manualslib.com manuals search engine Refill capacitiesE01101303475
1100 models1300 models1500 models1100 models1300 models1500 models


Specifications
9-16
9

Downloaded from www.Manualslib.com manuals search engine No.ItemQuantityLubricants1Washer fluid5.16 litres—
2Engine oil
1100 modelsOil pan3.0 litres
Refer to page 8-05.
Oil filter0.2 litre1300 modelsOil pan4.0 litresOil filter0.2 litre
1500 models
Oil pan3.3 litresOil filter0.3 litreOil cooler0.1 litre3Brake fluidAs requiredBrake fluid DOT 4 +Clutch fluid
4
Engine coolant
[ includes 0.6 litre in the
reserve tank]1100 models4.2 litres
High-quality ethylene glycol based coolant
1300 models4.6 litres1500 models6.0 litres
5
Manual transmission oil
Except for vehicles with turbocharger1.75 litresDiaQueen WIDE GEAR OIL G-1 or Castrol/ Burmah gear oil BOT328 (or exact equivalents)Vehicles with turbocharger1.75 litresDiaQueen WIDE GEAR OIL G-1 or Castrol/ Burmah gearoil BOT328 (or exact equivalents)Automated manual transmission oil1.75 litresDiaQueen WIDE GEAR OIL G-1 or Castrol/ Burmah gearoil BOT328 (or exact equivalents)6Refrigerant (air conditioning)410 - 450 gHFC-134a
Specifications
9-17
9

Downloaded from www.Manualslib.com manuals search engine

Downloaded from www.Manualslib.com manuals search engine A
Accessory (Installation) 04
Accessory socket 5-37
Active stability control system (ASC) 4-30 Indication lamp 4-31
Additional equipment 8-18
Air conditioning Automatic air conditioning 5-07
Important operation tips for the air condition-
ing 5-11
Air purifier 5-12
Airbag 2-22
Front passenger’s airbag OFF indication
lamp 2-25
Front passenger’s airbag ON-OFF switch 2-25
Antenna 5-33
Anti-lock brake system (ABS) 4-27 Warning lamp 4-28
Audio Error codes 5-30
Handling of compact discs 5-32
LW/MW/FM electronic tuning radio with CD
player 5-12
Auto Stop & Go (AS&G) system 4-13
Automated manual transmission 4-19 Oil 9-16
Automatic air conditioning 5-07
B
Battery 8-10Charge warning lamp 3-19
Discharged battery (Emergency starting) 6-02
Specification 9-11
Bonnet 8-03
Brake Anti-lock brake 4-27
Brake assist system 4-27
Braking 4-25
Fluid 8-09,9-16
Parking brake 4-06
Parking brake lever stroke 8-16
Pedal free play 8-16
Warning lamp 3-17
Bulb capacity 8-23
C
Capacities 9-16
Cargo loads 4-36
Catalytic converter 8-02
Central door locks 1-07
Changing a fuse 8-21
Charge warning lamp 3-19
Chassis number 9-02
Check engine warning lamp 3-18
Child restraint 2-13
Child-protection rear doors 1-09
Cleaning Exterior of your vehicle 7-03
Genuine leather 7-02
Interior of your vehicle 7-02
Plastic, vinyl leather, etc 7-02
Clock 5-34
Clutch Fluid 8-09
Pedal free play 8-15
Coat hooks 5-43
Combination headlamps and dipper switch 3-20
Coming home light 3-22
Compact spare wheel 6-13
Cool box 5-39
Coolant (engine) 8-07,9-16
Cruise control 4-32
Cup holder 5-42
D
Dead Lock System 1-07
Demister (rear window) 3-29
Digital clock 5-34
Dipper (High/Low beam change) 3-21
Door ajar warning lamp 3-19
Doors Central door locks 1-07
Child-protection 1-09
Dead Lock System 1-07
Lock and unlock 1-05
Driving, alcohol and drugs 4-02
E
Economical driving 4-02
Electric power steering system 4-29
Electric remote-controlled outside rear-view mir-
rors 4-09
Electric window control 1-11
Electrical system 9-11
Electronic immobilizer (Anti-theft starting sys-
tem) 1-02
Emergency starting 6-02
Emergency stop signal system 4-26
Engine
Coolant 8-07,9-16
High coolant temperature warning lamp 3-19
Number 9-03
Oil 8-05
Oil and filter 9-16
Overheating 6-04
Specifications 9-09
Used engine oils safety instructions and disposal
information 05
Error codes 5-30
Exterior and interior lamp operation 8-18
