2009 MITSUBISHI COLT engine

Downloaded from www.Manualslib.com manuals search engine Vehicle dimensionsE01100201734
3-door models1Front track1,460 mm2Overall width1,695 mm3Front overhang845 mm4Wheel base2,500 mm5Rear overhang535 mm6Overall length3,880 mm7Ground clearance (unladen)154 mm8Overall height (unladen)1,520 mm9Rear track1,445 mm
Specifications
9-04
9

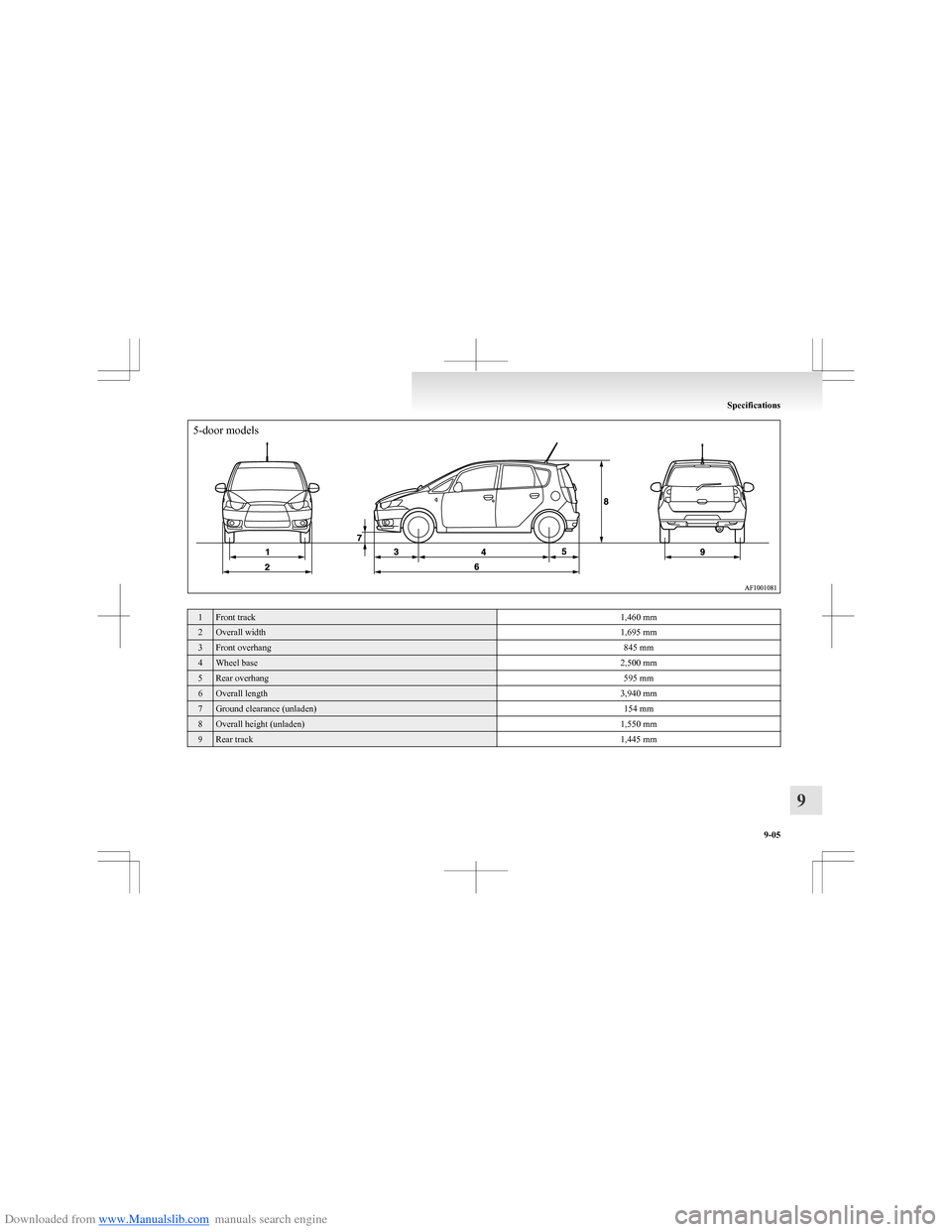

Downloaded from www.Manualslib.com manuals search engine 5-door models1Front track1,460 mm2Overall width1,695 mm3Front overhang845 mm4Wheel base2,500 mm5Rear overhang595 mm6Overall length3,940 mm7Ground clearance (unladen)154 mm8Overall height (unladen)1,550 mm9Rear track1,445 mm
Specifications
9-05
9

Downloaded from www.Manualslib.com manuals search engine Vehicle performanceE01100302022Item1100 models1300 models1500 modelsMaximum speed165 km/h (102 mph)180 km/h (112 mph)210 km/h (130 mph)Minimum turning ra-
diusBody5.4 mWheel5.1 m
Specifications
9-06
9

Downloaded from www.Manualslib.com manuals search engine Vehicle weightE011004043593-door models
Item
1100 models1300 models
1500 models
Manual transmissionAutomated man-
ual transmissionExcept for Clear TecClear TecExcept for ClearTecClear Tec
Kerb weight
Without optional
parts925 kg930 kg930 kg935 kg935 kg1,050 kgWith full optional
parts990 kg993 kg995 kg998 kg1,000 kg1,076 kgMaximum gross vehicle weight1,420 kg, 1,480 kg *1,425 kg, 1,485 kg*1,430 kg, 1,490 kg*1,435 kg, 1,495 kg*1,435 kg, 1,495 kg*1,520 kg, 1,580 kg*Maximum axle
weightFront735 kg740 kg745 kg750 kg745 kg820 kgRear720 kg, 785 kg *Maximum towable
weightWith brake750 kgWithout brake500 kgMaximum trailer-nose weight50 kgMaximum roof load50 kgSeating capacity5 persons* : In case of trailer towing
NOTE
l Trailer specifications indicate the manufacturer’s recommendation.
Specifications
9-07
9

Downloaded from www.Manualslib.com manuals search engine 5-door models
Item
1100 models1300 models
1500 models
Manual transmissionAutomated man-ual transmissionExcept for Clear TecClear TecExcept for ClearTecClear Tec
Kerb weight
Without optional
parts965 kg970 kg970 kg975 kg975 kg1,090 kgWith full optional
parts1,033 kg1,036 kg1,038 kg1,041 kg1,043 kg1,119 kgMaximum gross vehicle weight1,450 kg, 1,510 kg *1,455 kg, 1,515 kg*1,460 kg, 1,520 kg*1,465 kg, 1,525 kg*1,465 kg, 1,525 kg*1,550 kg, 1,610 kg*Maximum axle
weightFront735 kg740 kg745 kg750 kg745 kg830 kgRear745 kg, 810 kg *Maximum towable
weightWith brake750 kg1,000 kgWithout brake500 kgMaximum trailer-nose weight50 kgMaximum roof load50 kgSeating capacity5 persons* : In case of trailer towing
NOTE
l Trailer specifications indicate the manufacturer’s recommendation.
Specifications
9-08
9

Downloaded from www.Manualslib.com manuals search engine Engine specificationsE01100602386Item1100 models1300 models1500 modelsEngine typeThree-cylinder, in line, water cooled
four-cycle, double overhead camshaftFour-cylinder, in line, water cooled
four-cycle, double overhead camshaftFour-cylinder, in line, water cooled four-
cycle, double overhead camshaft with in- tercooler and turbochargerEngine model1349103A911359304A904G15Total displacement1,124 cc1,332 cc1,468 ccBore75.0 mm75.0 mm75.5 mmStroke84.8 mm75.4 mm82.0 mmCompression ratio10.511.010.511.09.0Valve clearanceIntake0.18 - 0.26 mm (cold)AutomaticallyExhaust0.26 - 0.34 mm (cold)AutomaticallyFiring order1-3-21-3-4-2Maximum output (EEC net)55 kW/6.000 r/min70 kW/6.000 r/min110 kW/6.000 r/minMaximum torque (EEC net)100 Nm/4,000 r/min125 Nm/4,000 r/min210 Nm/3,500 r/min
Specifications
9-09
9

Downloaded from www.Manualslib.com manuals search engine Transmission specificationsE01100701478
Item1100 models1300 models
1500 models
Manual transmissionAutomated manual
transmissionEngine model 134910Engine model 3A91Engine model 135930Engine model 4A901st
gear ratio3.3083.3083.3083.3083.0713.5382nd
gear ratio1.9131.9131.9131.9131.9131.9133rd
gear ratio1.2581.2581.2581.2581.2581.3444th
gear ratio0.9430.9430.9430.9430.9431.0275th
gear ratio0.7630.7630.7630.7630.7630.8336th
gear ratio————0.643—Reverse gear ratio3.2313.2313.2313.2313.2313.357Final gear ratio4.3534.1584.1583.8424.5293.737
NOTE
l The engine model is indicated on the vehicle information code plate.
Refer to “Vehicle information code plate” on page 9-02.
Specifications
9-10
9

Downloaded from www.Manualslib.com manuals search engine Electrical systemE01100802157
Item
1100 models1300 models
1500 models
Except for Clear TecClear TecExcept for Clear TecClear TecEngine model
134910Engine model 3A91Engine model135930Engine model 4A90Voltage12 VBattery capacity (DIN type)42 Ah (542),
61 Ah (561) *61 Ah (561)42 Ah (542),
61 Ah (561) *61 Ah (561)42 Ah (542),
61 Ah (561) *Alternator capacity85 A95 A85 A95 A80 A
Spark plug typeBOSCHFR7SE,
FR7NPP33—FR7SE,
FR7NPP33—NGK—LZFR5BI-11—LZFR6BI- 11ILZFR6C-K* : Optional equipment
NOTE
l For Clear Tec models, contact an authorized MITSUBISHI MOTORS dealer when replacing the battery.
l The engine model is indicated on the vehicle information code plate.
Refer to “Vehicle information code plate” on page 9-02.
Specifications
9-11
9
