38 Getting startedThe “Getting started” section provides an
overview of the vehicle’s most basic func-
tions. First-time Mercedes-Benz owners
should pay special attention to the infor-
mation given here.
If you are already familiar with the basic
functions described here, the “Controls in
detail” section will provide you with further
information. The corresponding page
references are located at the end of each
segment.Unlocking
SmartKey with remote control1‹Lock button
2ŠUnlock button for trunk
3ŒUnlock button
4ÂPanic button (
page 81)
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury.

89 Safety and Security
Driving safety systems
The electro-hydraulic brake servo assis-
tance switches off automatically

approximately 2 minutes after you
turned the SmartKey in the starter
switch to position0 or removed the
SmartKey


approximately 20 seconds after you
locked the vehicle from the outside
Notes on driving with the
electro-hydraulic brake system


Following extended periods of only mi-
nor loads to your brake system, you
should occasionally apply the brakes
when traveling at high speeds. This im-
proves the grip of the brake pads and
prevents possible brake noise.


After driving on wet or snow-covered
roads, you should apply your brakes
firmly before parking your vehicle. This
produces heat which serves to dry the
brake disks.


On long and steep grades, shift to a
lower gear (gear range1, 2, or 3) to
prevent the brakes from overheating
and to reduce brake wear. If you need
to brake, do not keep the brake pedal
depressed, instead depress it repeat-
edly in short intervals.


After hard braking, it is advisable to
drive on for some time so that the air
stream will cool down the brakes
faster.


Only Mercedes-Benz approved compo-
nents (e.g. brake pads) should be
installed on your vehicle. Brake pads
not approved by Mercedes-Benz may
impair the safety of your vehicle.
Warning!
G
Have brake pad replacement and other work
on the electro-hydraulic brake system car-
ried out by qualified technicians only. Con-
tact an authorized Mercedes-Benz Center
for further information. The electro-hydrau-
lic brake system must be deactivated prior
to working on the system. High pressure is
intermittently built up in the system as part
of its automatic self-test. In addition, the
system is automatically activated when the
vehicle is unlocked by remote control, when
the driver or passenger door is opened,
when the SmartKey in the starter switch is
turned to position1, when the brake pedal
is depressed or when the parking brake is
released. Failure to deactivate the system
prior to maintenance will cause brake pis-
tons to extend and brake fluid to leak, which
may result in injuries (contusions and acid
burns). Extended brake pistons may also
cause injury.
Warning!
G
Make sure not to endanger any other road
users when carrying out these braking
maneuvers.

98 Controls in detailIn the “Controls in detail” section you will
find detailed information on how to oper-
ate the equipment installed on your vehi-
cle. If you are already familiar with the
basic functions of your vehicle, this section
will be of particular interest to you.
To quickly familiarize yourself with the ba-
sic functions of the vehicle, refer to the
“Getting started” section of this manual.
The corresponding page numbers are
given at the beginning of each segment.Locking and unlocking
SmartKey
Your vehicle comes supplied with two
SmartKeys, each with remote control and
a removable mechanical key.
The SmartKey provides an extended oper-
ating range. To prevent theft, however, it is
advisable to only unlock the vehicle when
you are in close proximity to it.
The SmartKey centrally locks and unlocks:

the doors


the trunk


the fuel filler flap


the storage compartment between the
backrests


the storage compartment under the
armrest
SmartKey with remote control1‹ Lock button
2Š Unlock button for trunk
3Mechanical key locking tab
4ŒUnlock button
5Battery check lamp
6Â Panic button !
To prevent possible malfunction, avoid
exposing the SmartKey to high levels of
electromagnetic radiation.
i
When you unlock the vehicle, the
electro-hydraulic brake system is activated.

105 Controls in detail
Locking and unlocking
Locking and unlocking from the inside
You can lock or unlock the vehicle from in-
side using the central locking switches.
This can be useful, for example, if you want
to unlock the passenger door from the in-
side or want to lock the vehicle before
starting to drive.
The central locking switch does not lock or
unlock the fuel filler flap and the storage
compartments.
You can open a locked door from the in-
side. Open door only when conditions are
safe to do so.The switches are located on the upper part
of the center console.
Central locking switches1Locking
2UnlockingLocking

Press central locking switch1.
If all the doors are closed, the vehicle
locks.
Unlocking

Press central locking switch2.
The vehicle unlocks.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. A child’s
unsupervised access to a vehicle could
result in an accident and/or serious
personal injury.
i
If the vehicle was previously centrally locked
using the SmartKey, it will not unlock using the
central locking switch.
If the vehicle was previously locked with the
central locking switch


while in the global remote control mode, the
complete vehicle is unlocked when a door is
opened from the inside


while in the selective remote control mode,
only the door opened from the inside is
unlocked

223 Controls in detail
Useful features
Step 2:
If you have previously programmed a
signal transmitter button and wish to
retain its programming, proceed to
step 3.
If you are programming the integrated
remote control for the first time, press
and hold the two outer signal transmit-
ter buttons2 and4 and release
them only when indicator lamp1
begins to flash after approximately
20 seconds (do not hold the button for
longer than 30 seconds). This proce-
dure erases any previous settings for
all three channels and initializes the
memory.
If you later wish to program a second
and/or third hand-held transmitter to
the remaining two signal transmitter
buttons, do not repeat this step and
begin directly with step 3.Step 3:

Hold the end of hand-held remote
control5 of the device you wish to
train approximately 2 to 5 in
(5 to12 cm) away from the signal trans-
mitter button (2, 3 or4) to be
programmed, while keeping indicator
lamp1 in view.
Step 4:

Using both hands, simultaneously
press hand-held remote control
button6 and the desired signal trans-
mitter button (2, 3 or4). Do not
release the buttons until step 5 is
completed.
Indicator lamp1 will flash, first slowly
and then rapidly.Step 5:

After indicator lamp1 changes from a
slow to a rapidly flashing light, release
the hand-held remote control button
and the signal transmitter button.
Step 6:

Press and hold the just-trained signal
transmitter button (2, 3 or4) and
observe indicator lamp1.
If the indicator lamp1 stays on
constantly, programming is complete
and your device should activate when
the respective signal transmitter
button (2, 3 or4) is pressed and
released.
Step 7:

To program the remaining two signal
transmitter buttons, repeat the steps
above starting with step 3.
i
Indicator lamp1 flashes immediately the
first time the signal transmitter button is pro-
grammed. If this button has already been
programmed, the indicator lamp will only start
flashing after 20 seconds.
i
If indicator lamp1 flashes rapidly for about
2 seconds and then turns to a constant light,
continue with programming steps 8 through 12
as your garage door opener may be equipped
with the “rolling code” feature.

225 Controls in detail
Useful features
Step 4:
Press and hold the signal transmitter
button (2, 3 or4). Do not release
this button until it has been success-
fully trained.

While still holding down the signal
transmitter button (2, 3 or4),
“cycle” your hand-held remote control
button6 as follows: Press and hold
button6 for 2 seconds, then release
it for 2 seconds, and again press and
hold it for 2 seconds. Repeat this se-
quence on the hand-held remote con-
trol until the frequency signal has been
learned. Upon successful training, indi-
cator lamp1 will flash slowly and then
rapidly after several seconds.

Proceed with programming step 5 and
step 6 to complete.Reprogramming a single signal
transmitter button
To program a device using a signal trans-
mitter button previously trained, follow
these steps:

Switch on the ignition (
page 40).

Press and hold the desired signal
transmitter button (2, 3 or4).
Do not release the button.

Indicator lamp1 will begin to flash af-
ter 20 seconds. Without releasing the
signal transmitter button, proceed with
programming starting with step 3.Operation of integrated remote control

Switch on the ignition (
page 40).

Select and press the appropriate inte-
grated signal transmitter button (2,
3 or4) to activate the remote
controlled device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up to
20 seconds.
Erasing the integrated remote control
memory

Switch on the ignition (
page 40).

Simultaneously press and hold outer
signal transmitter buttons2 and 4,
for approximately 20 seconds, until
indicator lamp1 flashes rapidly. Do
not hold for longer than 30 seconds.
The codes of all three channels are
erased.
i
Upon completion of programming the inte-
grated remote control, make sure you retain the
hand-held remote control that came with the ga-
rage door opener, gate operator or other device.
You may need it for use in other vehicles, for fu-
ture programming of an integrated remote con-
trol, or simply for continued use as a hand-held
remote control to operate the respective device
in other situations.
i
If you sell your vehicle, erase the codes of all
three channels.

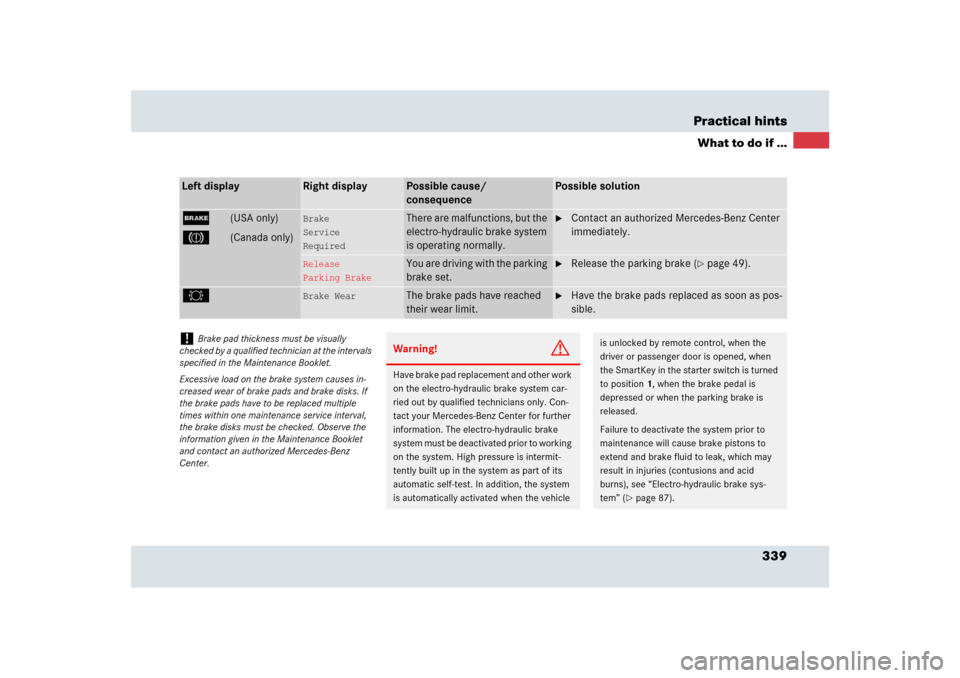

339 Practical hints
What to do if ...
Left display
Right display
Possible cause/
consequence
Possible solution
;
(USA only)
3
(Canada only)
Brake
Service
Required
There are malfunctions, but the
electro-hydraulic brake system
is operating normally.

Contact an authorized Mercedes-Benz Center
immediately.
Release
Parking Brake
You are driving with the parking
brake set.

Release the parking brake (
page 49).
2
Brake Wear
The brake pads have reached
their wear limit.

Have the brake pads replaced as soon as pos-
sible.
!
Brake pad thickness must be visually
checked by a qualified technician at the intervals
specified in the Maintenance Booklet.
Excessive load on the brake system causes in-
creased wear of brake pads and brake disks. If
the brake pads have to be replaced multiple
times within one maintenance service interval,
the brake disks must be checked. Observe the
information given in the Maintenance Booklet
and contact an authorized Mercedes-Benz
Center.
Warning!
G
Have brake pad replacement and other work
on the electro-hydraulic brake system car-
ried out by qualified technicians only. Con-
tact your Mercedes-Benz Center for further
information. The electro-hydraulic brake
system must be deactivated prior to working
on the system. High pressure is intermit-
tently built up in the system as part of its
automatic self-test. In addition, the system
is automatically activated when the vehicle
is unlocked by remote control, when the
driver or passenger door is opened, when
the SmartKey in the starter switch is turned
to position1, when the brake pedal is
depressed or when the parking brake is
released.
Failure to deactivate the system prior to
maintenance will cause brake pistons to
extend and brake fluid to leak, which may
result in injuries (contusions and acid
burns), see “Electro-hydraulic brake sys-
tem” (
page 87).

416 Index
Low beam 107
Messages in the multifunction
display 346
Replacing bulbs 361
Switch 51, 106
Head-thorax air bag 67, 404
High performance driving 239
High-beam flasher 51, 110
Replacing bulbs 361
High-beam headlamps
Indicator lamp 29
Messages in the multifunction
display 346
Replacing bulbs 361
Switching on 110
High-mounted brake lamp 362
High-pressure cleaners 299
Hood 250
Messages in the multifunction
display 353
Horn 27
HVAC see Automatic climate control
Hydroplaning 241I
Identification labels 382
Identification Number, Vehicle (VIN) 382
Ignition 40
Immobilizer 93
Indicator lamps see Lamps, Indicator and
warning
Infant and child restraint systems see Chil-
dren in the vehicle
Inflation pressure see Tires, Inflation pres-
sure
Inside door handle 34
Instrument cluster 28, 114, 405
Illumination brightness 114
Lamps 304
Messages in display see Multifunction
display messages
Multifunction display 117
Instrument lighting see Instrument cluster,
Illumination brightness
Instrument panel see Instrument cluster
Instruments and controls see Cockpit
Interior lighting 112
Delayed switch-off 137
Interior rear view mirror 44Auto-dimming 181
Interior storage spaces see Storage com-
partments
J
Jacking up the vehicle 365
Jump starting 370
K
Key, Mechanical 357
Key, SmartKey
Battery check lamp 100
Checking the batteries 100
Factory setting 99
Locking/unlocking 98
Locking/unlocking, Global setting 99
Locking/unlocking, Selective
setting 100
Loss of 101
Messages in the multifunction
display 345
Positions in starter switch 40
Remote control 98
Replacing the batteries 359
Turning off the engine 56
