4. After you are done pumping fuel, slowly remove the fuel fillernozzle—allow about five seconds after pumping fuel before removing
the fuel filler nozzle. This allows residual fuel to drain back into the
fuel tank and not spill onto the vehicle.
If the Check Fuel Fill Inlet lamp or Check Fuel Fill Inlet message comes
on, the fuel fill inlet may not have properly closed. The inlet may have
stuck open or debris may be preventing the inlet from fully closing. At
the next opportunity, safely pull off the road, turn off the engine, open
the fuel filler door and remove any visible debris from the fuel fill
opening. Insert either the fuel fill nozzle or the fuel fill funnel (see
Refilling with a portable fuel container for funnel location) provided
with the vehicle several times to dislodge any debris and/or allow the
inlet to close properly. If this action corrects the problem, the Check
Fuel Fill Inlet lamp or Check Fuel Fill Inlet message may not reset
immediately. It may take several driving cycles for the Check Fuel Fill
Inlet lamp or Check Fuel Fill Inlet message to turn off. A driving cycle
consists of an engine start-up (after four or more hours with the engine
off) followed by city/highway driving. Continuing to drive with the Check
Fuel Fill Inlet lamp or Check Fuel Fill Inlet message on may cause the
Service Engine Soon lamp to turn on as well.
WARNING: The fuel system may be under pressure. If you hear
a hissing sound near the fuel filler door (Easy Fuel™ “no cap”
fuel system), do not refuel until the sound stops. Otherwise, fuel may
spray out, which could cause serious personal injury.
Choosing the right fuel
Use only UNLEADED fuel or UNLEADED fuel blended with a maximum
of 10% ethanol. Do not use fuel ethanol (E85), diesel, methanol, leaded
fuel or any other fuel. The use of leaded fuel is prohibited by law and
could damage your vehicle.
Your vehicle was not designed to use fuel or fuel additives with metallic
compounds, including manganese-based additives.
Note: Use of any fuel other than those recommended may cause
powertrain damage, a loss of vehicle performance, and repairs may not
be covered under warranty.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Maintenance and Specifications
280

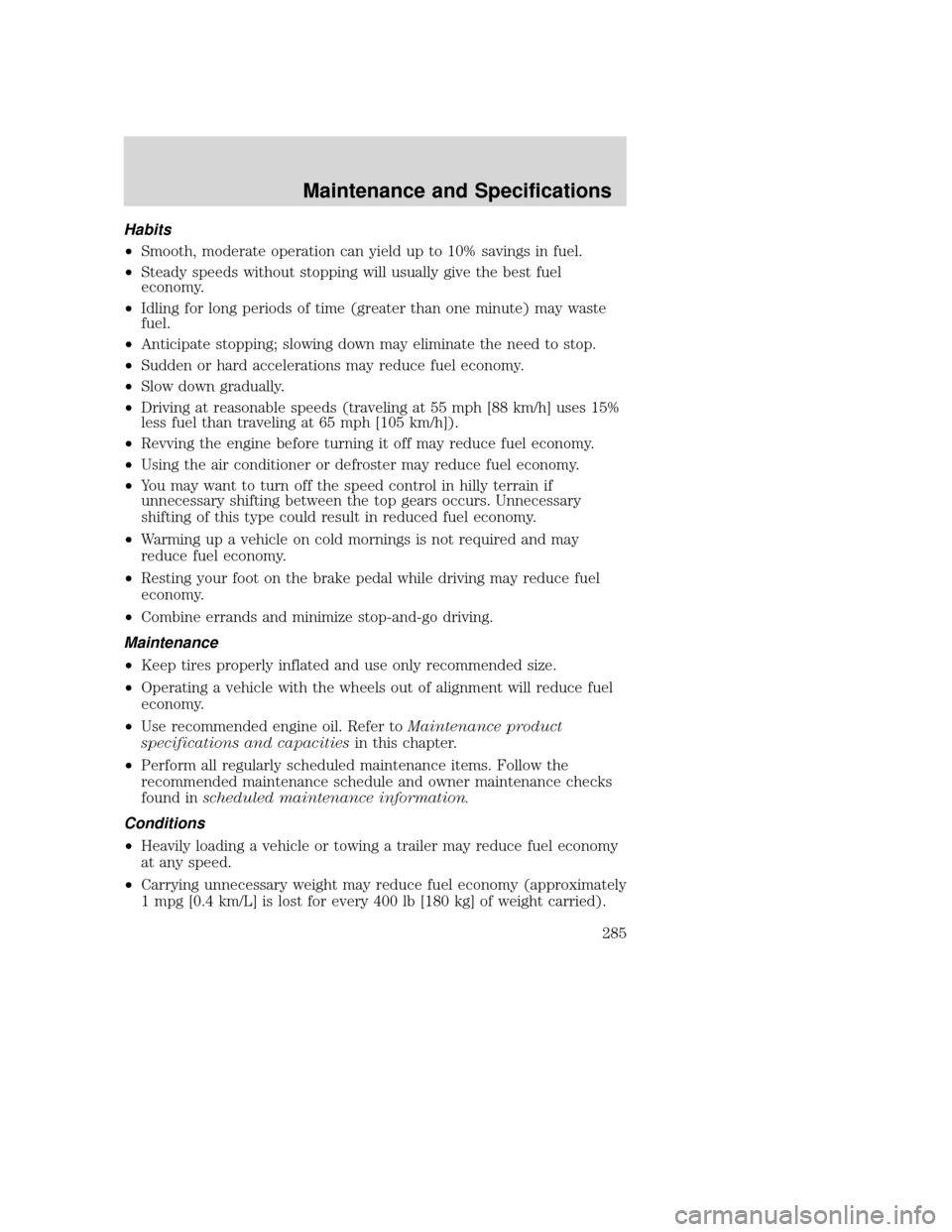

Habits
•Smooth, moderate operation can yield up to 10% savings in fuel.
• Steady speeds without stopping will usually give the best fuel
economy.
• Idling for long periods of time (greater than one minute) may waste
fuel.
• Anticipate stopping; slowing down may eliminate the need to stop.
• Sudden or hard accelerations may reduce fuel economy.
• Slow down gradually.
• Driving at reasonable speeds (traveling at 55 mph [88 km/h] uses 15%
less fuel than traveling at 65 mph [105 km/h]).
• Revving the engine before turning it off may reduce fuel economy.
• Using the air conditioner or defroster may reduce fuel economy.
• You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
• Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
• Resting your foot on the brake pedal while driving may reduce fuel
economy.
• Combine errands and minimize stop-and-go driving.
Maintenance
• Keep tires properly inflated and use only recommended size.
• Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
• Use recommended engine oil. Refer to Maintenance product
specifications and capacities in this chapter.
• Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found in scheduled maintenance information.
Conditions
• Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
• Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Maintenance and Specifications
285

These temporary malfunctions can be corrected by filling the fuel tank
with good quality fuel, properly closing the fuel fill inlet or letting the
electrical system dry out. After three driving cycles without these or any
other temporary malfunctions present, theService engine soon
indicator should stay off the next time the engine is started. A driving
cycle consists of a cold engine startup followed by mixed city/highway
driving. No additional vehicle service is required.
If theService engine soon
indicator remains on, have your vehicle
serviced at the first available opportunity. Although some malfunctions
detected by the OBD-II may not have symptoms that are apparent,
continued driving with the Service engine soon
indicator on can
result in increased emissions, lower fuel economy, reduced engine and
transmission smoothness, and lead to more costly repairs.
Readiness for Inspection/Maintenance (I/M) testing
Some state/provincial and local governments may have
Inspection/Maintenance (I/M) programs to inspect the emission control
equipment on your vehicle. Failure to pass this inspection could prevent
you from getting a vehicle registration. Your vehicle may not pass the I/M
test if the Service engine soon
indicator is on or not working
properly (bulb is burned out), or if the OBD-II system has determined
that some of the emission control systems have not been properly
checked. In this case, the vehicle is considered not ready for I/M testing.
If the Service engine soon
indicator is on or the bulb does not
work, the vehicle may need to be serviced. Refer to the On board
diagnostics (OBD-II) description in this chapter.
If the vehicle’s engine or transmission has just been serviced, or the
battery has recently run down or been replaced, the OBD-II system may
indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the on position
for 15 seconds without cranking the engine. If the Service engine
soon
indicator blinks eight times, it means that the vehicle is not
ready for I/M testing; if the Service engine soon
indicator stays on
solid, it means that the vehicle is ready for I/M testing.
The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by
20 minutes of stop-and-go driving with at least four 30-second idle
periods.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Maintenance and Specifications
288

Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
BRAKE/CLUTCH FLUID
Brake and clutch systems are supplied from the same reservoir.
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
TRANSMISSION FLUID
Checking automatic transmission fluid
Refer to your scheduled maintenance section for scheduled intervals for
fluid checks and changes. Your transmission does not consume fluid.
However, the fluid level should be checked if the transmission is not
working properly, i.e., if the transmission slips or shifts slowly or if you
notice some sign of fluid leakage.
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is warmed up
(approximately 20 miles [30 km]). If your vehicle has been
operated for an extended period at high speeds, in city traffic
during hot weather or pulling a trailer, the vehicle should be
turned off for about 30 minutes to allow fluid to cool before
checking.1. Drive the vehicle 20 miles (30 km) or until it reaches normal operating temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal, start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Maintenance and Specifications
289

4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. Ifnecessary, refer to Identifying components in the engine
compartment in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in the crosshatch zone for normal operating temperature.
Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the dipstick
and the outside temperatures are
above 50°F (10°C).
Correct fluid level
The transmission fluid should be checked at normal operating
temperatures 150°F-170°F (66°C-77°C) on a level surface. The normal
operating temperature can be reached after approximately 20 miles
(30 km) of driving.
The transmission fluid should be in
the crosshatch zone if at normal
operating temperature (150°F-170°F
[66°C-77°C]).
High fluid level
Fluid levels above the
crosshatch zone may result in
transmission failure. An overfill
condition of transmission fluid
may cause shift and/or
engagement concerns and/or
possible damage.
High fluid levels can be caused by an overheating condition.
Adjusting automatic transmission fluid levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is normally indicated on the dipstick and also in the
Maintenance product specifications and capacities section in this
chapter.
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Maintenance and Specifications
290

The Vehicle Identification Number (VIN) contains the following
information:1. World manufacturer identifier
2. Brake system / Gross Vehicle Weight Rating (GVWR) /
Restraint System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label . The following table tells you
which transmission each code
represents.
Description Code
Five-speed manual 3
Six-speed automatic 6
MFD. BY FORD MOTOR CO. IN U.S.A.
EXT PNT:XX RC: XXDSO:
WB BRK INT TR TP/PS R AXLE TR SPR XXXXX
XXX X XX X XX X XX \
XXX
XXXXXXXXXXXXX XXX XXXX-XXXXXXX-XX
THIS VEHICLE CONFORMS TO ALL APPLICABLE FEDERAL MOTOR
VEHICLE SAFETY AND THEFT PREVENTION STANDARDS IN
EFFECT ON THE DATE OF MANUFACTURE SHOWN ABOVE.
VIN: XXXXXXXXXXXXXXXXX XXXXX
TYPE: XXX XXXXX
DATE: XX/XX GVWR:
XXXXXLB/ XXXXXKG
FRONT GAWR: XXXXL REAR GAWR: XXXXLB
AT XXX kPa/XX PSI COLD AT XXX kPa/XX PSI COLD XXXXKG
WITH
XXXX/XXXXXXX TIRES
XXXX.XX RIMSXXXXKG
WITH
XXXX/XXXXXXX TIRES
XXXX.XX RIMS
FOR MAZDA MOTOR CORPORATION
2009 Tribute(j14)
Owners Guide, 1st Printing
USA (fus)
Maintenance and Specifications
297

A
ABS (see Brakes) .....................184
Accessory delay ..........................55
Air cleaner filter ...............291, 293
Air conditioningmanual heating and air
conditioning system .................36
Airbag supplemental restraint
system ........................108, 117, 120 and child safety seats ............110
description ..............108, 117, 120
disposal ....................................123
driver airbag ............110, 118, 121
indicator light .........116, 119, 123
operation .................110, 118, 121
passenger airbag .....110, 118, 121
side airbag ...............................117
All Wheel Drive (AWD),
driving off road .........................200
Ambulance packages ....................7
AM/FM .........................................19
Antifreeze
(see Engine coolant) ................271
Anti-lock brake system
(see Brakes) ......................184–185
Anti-theft system ........................77
Audio system (see Radio) .........19
Automatic transmission ............193 driving an automatic
overdrive .................................195
fluid, refill capacities ..............293
fluid, specification ..................293
Auxiliary input jack (Line in) ....27
Auxiliary power point .................53
Axle lubricant specifications ..........293 refill capacities ........................293
B
Battery .......................................269 acid, treating emergencies .....269
jumping a disabled battery ....228
maintenance-free ....................269
servicing ..................................269
Belt-Minder .............................103
Booster seats .............................137
Brakes ........................................184 anti-lock ...........................184–185
anti-lock brake system (ABS)
warning light ...........................185
fluid, checking and adding ....289
fluid, refill capacities ..............293
fluid, specifications .................293
lubricant specifications ..........293
parking ....................................186
shift interlock ..........................193
Bulbs ............................................44
C
Capacities for refilling fluids ....293
Cargo area shade ........................62
Cargo management system ........63
CD ................................................19
Cell phone warning ...................298
Child safety seats ......................128 attaching with tether straps ..134
in front seat ............................129
in rear seat ..............................129
LATCH .....................................132
recommendations ...................126
Child safety seats - booster
seats ...........................................137
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Index
299

Cleaning your vehicleengine compartment ..............248
instrument panel ....................250
interior .....................................251
Mazda car care products .......252
plastic parts ............................249
washing ....................................247
waxing .....................................247
wheels ......................................248
wiper blades ............................250
Climate control (see Air
conditioning or Heating) ............36
Clock ............................................19
Clutch fluid ..........................................289
operation while driving ..........198
recommended shift speeds ....199
Console ........................................52 overhead ....................................51
Controls power seat .................................86
Coolant checking and adding ..............271
refill capacities ................275, 293
specifications ..........................293
Cruise control .............................57
Cruise control
(see Speed control) ....................57
Customer
Assistance ..................236–237, 240
D
Daytime running lamps
(see Lamps) ................................40
Dipstick automatic transmission
fluid ..........................................289
engine oil .................................265 Driving under special
conditions ..................197, 201, 204
sand .........................................203
snow and ice ...........................205
through water .................203, 206
E
Electronic stability control ......187
Emergencies, roadside jump-starting ..........................228
running out of fuel .........228, 281
Emergency Flashers .................207
Emission control system ..........286
Engine ........................................295 cleaning ...................................248
coolant .....................................271
fail-safe cooling .......................276
idle speed control ...................269
lubrication specifications .......293
refill capacities ........................293
service points ..................261–262
starting after a collision .........207
Engine block heater .................182
Engine oil ..................................265 checking and adding ..............265
dipstick ....................................265
filter, specifications ................268
recommendations ...................268
refill capacities ........................293
specifications ..........................293
Event data recording ....................6
Exhaust fumes ..........................181
F
Fail safe cooling ........................276
Fluid capacities .........................293
Foglamps .....................................39
2009 Tribute (j14)
Owners Guide, 1st Printing
USA (fus)
Index
300
