2009 MAZDA MODEL MAZDASPEED 3 Owners Manual (in English)

Black plate (337,1)
3. Turn the knobs counterclockwise andlower the fuse block.
4. Locate the position of the suspected
fuse by using the chart inside the fuse
block cover.
5. Pull the fuse straight out with the fuse puller provided on the inside of the
engine compartment fuse block cover.
6. Inspect the fuse and replace it if it'sblown.
Normal Blown
7. Insert a new fuse of the same amperage
rating, and make sure it fits tightly. If it
does not fit tightly, have an expert
install it. We recommend an
Authorized Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the MIRROR or CIGAR circuit.
CAUTION
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
Replacing the fuses under the hood
If the headlights or other electrical
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood. If a fuse is blown, it
must be replaced. Follow these steps:
1. Turn off the ignition switch and allother switches.
Maintenance and Care
Owner Maintenance
8-51
Mazda3_8Z87-EA-08F_Edition1 Page337
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (338,1)
2. Remove the fuse block cover.
3. If any fuse but the MAIN fuse isblown, replace it with a new one of the
same amperage rating .
Normal
Blown
WARNING
Do not replace the main fuse by
yourself. Have an Authorized Mazda
Dealer perform the replacement:
Replacing the fuse by yourself is
dangerous because the MAIN fuse is
a high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
Main fuse
8-52
Maintenance and Care
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition1 Page338
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (339,1)
qFuse Panel Description
Fuse block (Engine compartment)
12 3
4 5 6
789
10
11 12 13
1415
16 17 18
19 20 21
22
23
24
25
26
27
28
29
30 31
32
33
34
35
36
Without turbocharger
DESCRIPTION FUSE RATINGPROTECTED COMPONENT
1 FAN 40A Cooling fan
2 P/ST 80A Power steering
3 BTN 40A For protection of various circuits
4 HEAD 40A Headlights
5 PTC ――
6 GLOW/P.SEAT 30A Power seat
7 ABS 1 30A ABS
í, DSCí
8ABS 2 20A ABSí, DSCí
9ENGINE 30A For protection of various circuits
10 ―― ―
11 IG KEY 1 30A Ignition switch
12 STARTER 20A Starter clutch
13 IG KEY 2 30A Ignition switch
14 GLOW 1 ――
15 HEATER 40A Blower motor
16 GLOW 2 ――
17 DEFOG 40A Rear window defroster
Maintenance and Care
Owner Maintenance
8-53íSome models.
Mazda3_8Z87-EA-08F_Edition1 Page339
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (340,1)
DESCRIPTIONFUSE RATINGPROTECTED COMPONENT
18 AUDIO 30AAudio system
(BOSE
®Sound System-equipped model)
19 ABS IG 10A ABSí, DSCí
20FOG 15A Front fog lightsí
21HORN 15A Horn
22 DRL 10A DRLí
23 H/CLEAN ――
24 F/PUMP 15A Fuel pump
25 P/ST IG 10A Power steering
26 A/C MAG 10A Air conditioner
í
27 ALT/TCM15A TCMí
28 GLOW SIG ――
29 P.OUTLET 15A Power outlet
30 ENG +B 10A PCM
31 ROOM 15A Interior lights
32 ENG BAR 4 10A O
2sensorsí
33 ENG BAR 310A O2sensors
34 EGI INJ 10A Injector
35 ENG BAR 1 10A For protection of various circuits
36 ENG BAR 2 10A PCM , Fuel pump
With turbocharger DESCRIPTION FUSE RATINGPROTECTED COMPONENT
1 FAN 70A Cooling fan
2 ―― ―
3 BTN 40A For protection of various circuits
4 HEAD 40A Headlights
5 F/PUMP 30A Fuel pump
6 ―― ―
7 ABS 1 30A ABS, DSC
8 ABS 2 20A ABS, DSC
9 ENGINE 30A For protection of various circuits
10 INJECTOR 30A Fuel injector
11 IG KEY1 30A Ignition switch
12 STARTER 20A Starter clutch
13 IG KEY2 30A Ignition switch
14 ―― ―
15 HEATER 40A Blower motor
16 ―― ―
17 DEFOG 40A Rear window defroster
18 AUDIO 30AAudio system
(BOSE
®Sound System-equipped model)
8-54
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition1 Page340
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (341,1)
DESCRIPTIONFUSE RATINGPROTECTED COMPONENT
19 ABS IG 10A ABS
20 FOG 15A Front fog lights
21 HORN 15A Horn
22 DRL 10A DRL
í
23 H/CLEAN ――
24 ETC 10A Elec. throttle valve
25 ―― ―
26 A/C MAG 10A Air conditioner
27 ―― ―
28 ―― ―
29 P.OUTLET 15A Power outlet
30 ENG +B 10A PCM
31 ROOM 15A Interior lights
32 ―― ―
33 ENG BAR 3 10A O
2sensors
34 ―― ―
35 ENG BAR 1 15A For protection of various circuits
36 ENG BAR 2 10A PCM, Fuel pump
Maintenance and Care
Owner Maintenance
8-55íSome models.
Mazda3_8Z87-EA-08F_Edition1 Page341
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (342,1)
Fuse block (Passenger's side)
37 38 39 4041 42
43 44 45 46
47 48 49 50 51
52 53 54 55 56 57 58
59 60 61 62 63 64
65 66 67 68 69 70
71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86
DESCRIPTION
FUSE RATINGPROTECTED COMPONENT
37 D/LOCK 2 15A Double locking systemí
38 STOP LAMP/HORN10A Stop Lamp, Horn
39 HEAD HIGH L 10A Headlight high beam (LH)
40 HEAD HIGH R 10A Headlight high beam (RH)
41 ―― ―
42 ―― ―
43 CIGAR 15A Lighter
44 RADIO 7.5A Audio system
45 MIRROR 10A Power mirror
í
46TAIL R 7.5ATaillight (RH), Parking light (RH), License
plate lights
47 OBD 10A For protection of various circuits
48 ―― ―
49 TR/LOCK ――
50 ―― ―
51 ―― ―
52 SUN ROOF 20A Moonroof
í
53WASHER 20A Windshield wiper and washer
54 ―― ―
55 P/WIND R ――
8-56
Maintenance and Care
íSome models.
Owner Maintenance
Mazda3_8Z87-EA-08F_Edition1 Page342
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (343,1)
DESCRIPTIONFUSE RATINGPROTECTED COMPONENT
56 P/WIND L ――
57 ALARM ――
58 M/DEF 7.5A Mirror Defroster
í
59―― ―
60 HEAD LOW R 15A Headlight low beam (RH), Headlight leveling
61 HEAD LOW L 15A Headlight low beam (LH)
62 ―― ―
63 ―― ―
64 ―― ―
65 SAS 10A Supplemental restraint system
66 METER 10A Instrument cluster, Immobilizer system
67 IGNITION 20A ABS
í, DSCí, Power steering
68 WIPER 20A Windshield wiper and washer
69 ENGINE 20A For protection of various circuits
70 IG SIG 10A Auto wiper
í, Power window switchí
71SAS 2 7.5A Seat weight sensor
72 ―― ―
73 ―― ―
74 SEAT WARM 20A Seat warmer
í
75 D/LOCK 125A Power door lockí
76A/C 10A Air conditionerí, Heater control unit
77 P/WIND L 30A Power window (LH)í
78 P/WIND R 30A Power window (RH)í
79BACK 10A Reverse lights
80 SUN ROOF 7.5A Moonroofí
81TAIL L 7.5A Taillight (LH), Parking light (LH)
82 ILLUMI 7.5A Illumination
83 ―― ―
84 ―― ―
85 ―― ―
86 ―― ―
Maintenance and Care
Owner Maintenance
8-57íSome models.
Mazda3_8Z87-EA-08F_Edition1 Page343
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F

Black plate (344,1)

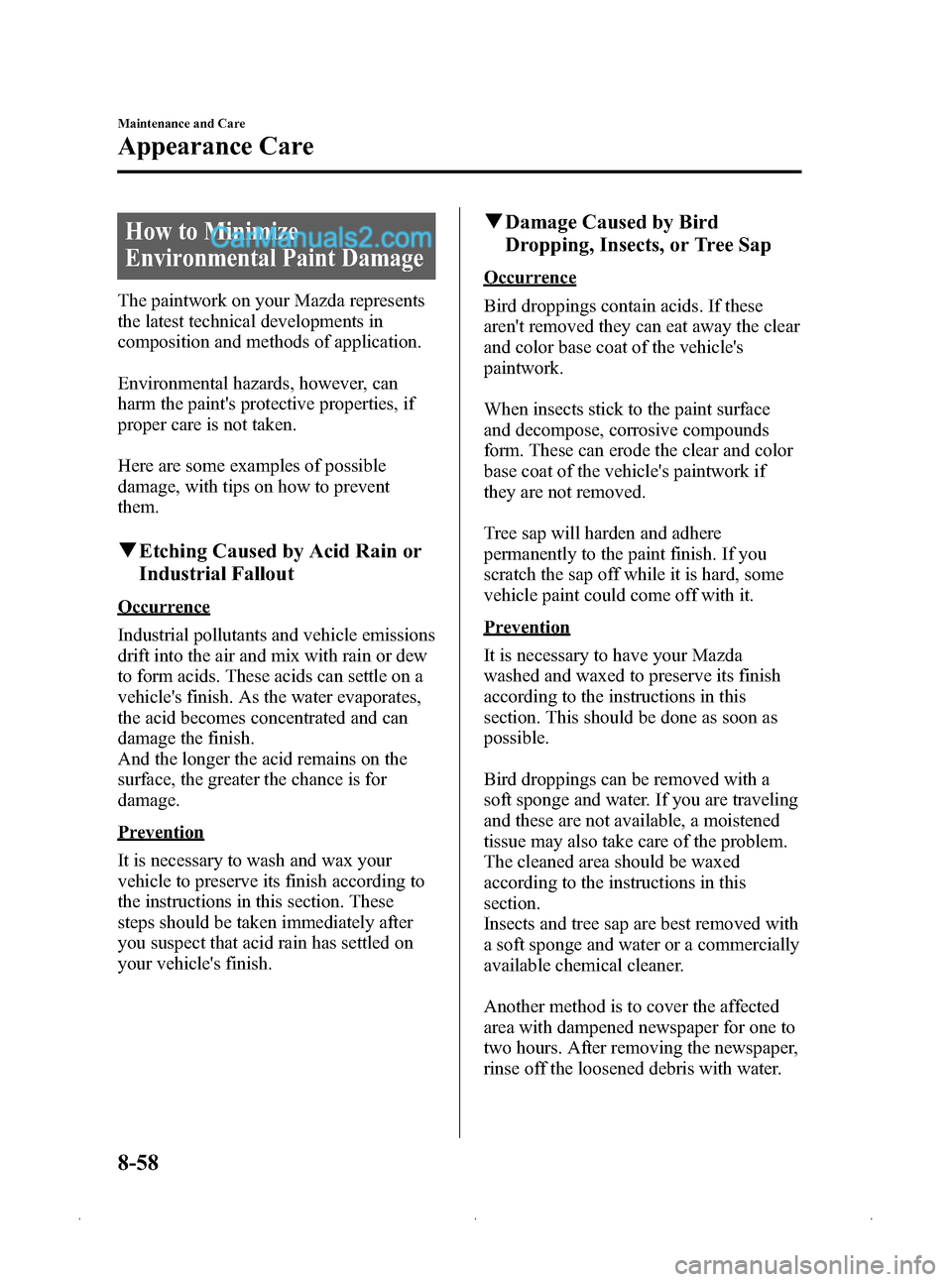

How to Minimize
Environmental Paint Damage
The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.
Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.
Here are some examples of possible
damage, with tips on how to prevent
them.
qEtching Caused by Acid Rain or
Industrial Fallout
Occurrence
Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.
Prevention
It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These
steps should be taken immediately after
you suspect that acid rain has settled on
your vehicle's finish.
qDamage Caused by Bird
Dropping, Insects, or Tree Sap
Occurrence
Bird droppings contain acids. If these
aren't removed they can eat away the clear
and color base coat of the vehicle's
paintwork.
When insects stick to the paint surface
and decompose, corrosive compounds
form. These can erode the clear and color
base coat of the vehicle's paintwork if
they are not removed.
Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.
Prevention
It is necessary to have your Mazda
washed and waxed to preserve its finish
according to the instructions in this
section. This should be done as soon as
possible.
Bird droppings can be removed with a
soft sponge and water. If you are traveling
and these are not available, a moistened
tissue may also take care of the problem.
The cleaned area should be waxed
according to the instructions in this
section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for one to
two hours. After removing the newspaper,
rinse off the loosened debris with water.
8-58
Maintenance and Care
Appearance Care
Mazda3_8Z87-EA-08F_Edition1 Page344
Monday, May 19 2008 9:59 AM
Form No.8Z87-EA-08F
