2009 LINCOLN MKZ check engine

If theService engine soonindicator remains on, have your vehicle
serviced at the first available opportunity. Although some malfunctions
detected by the OBD-II may not have symptoms that are apparent,
continued driving with theService engine soon
indicator on can
result in increased emissions, lower fuel economy, reduced engine and
transmission smoothness, and lead to more costly repairs.
Readiness for Inspection/Maintenance (I/M) testing
Some state/provincial and local governments may have
Inspection/Maintenance (I/M) programs to inspect the emission control
equipment on your vehicle. Failure to pass this inspection could prevent
you from getting a vehicle registration. Your vehicle may not pass the I/M
test if theService engine soon
indicator is on or not working
properly (bulb is burned out), or if the OBD-II system has determined
that some of the emission control systems have not been properly
checked. In this case, the vehicle is considered not ready for I/M testing.
If theService engine soon
indicator is on or the bulb does not
work, the vehicle may need to be serviced. Refer to the On board
diagnostics (OBD-II) description in this chapter.
If the vehicle’s engine or transmission has just been serviced, or the
battery has recently run down or been replaced, the OBD-II system may
indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the on position
for 15 seconds without cranking the engine. If theService engine
soon
indicator blinks eight times, it means that the vehicle is not
ready for I/M testing; if theService engine soon
indicator stays on
solid, it means that the vehicle is ready for I/M testing.
The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by
20 minutes of stop-and-go driving with at least four 30-second idle
periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
2009 MKZ(378)
Owners Guide
USA(fus)
Maintenance and Specifications
274

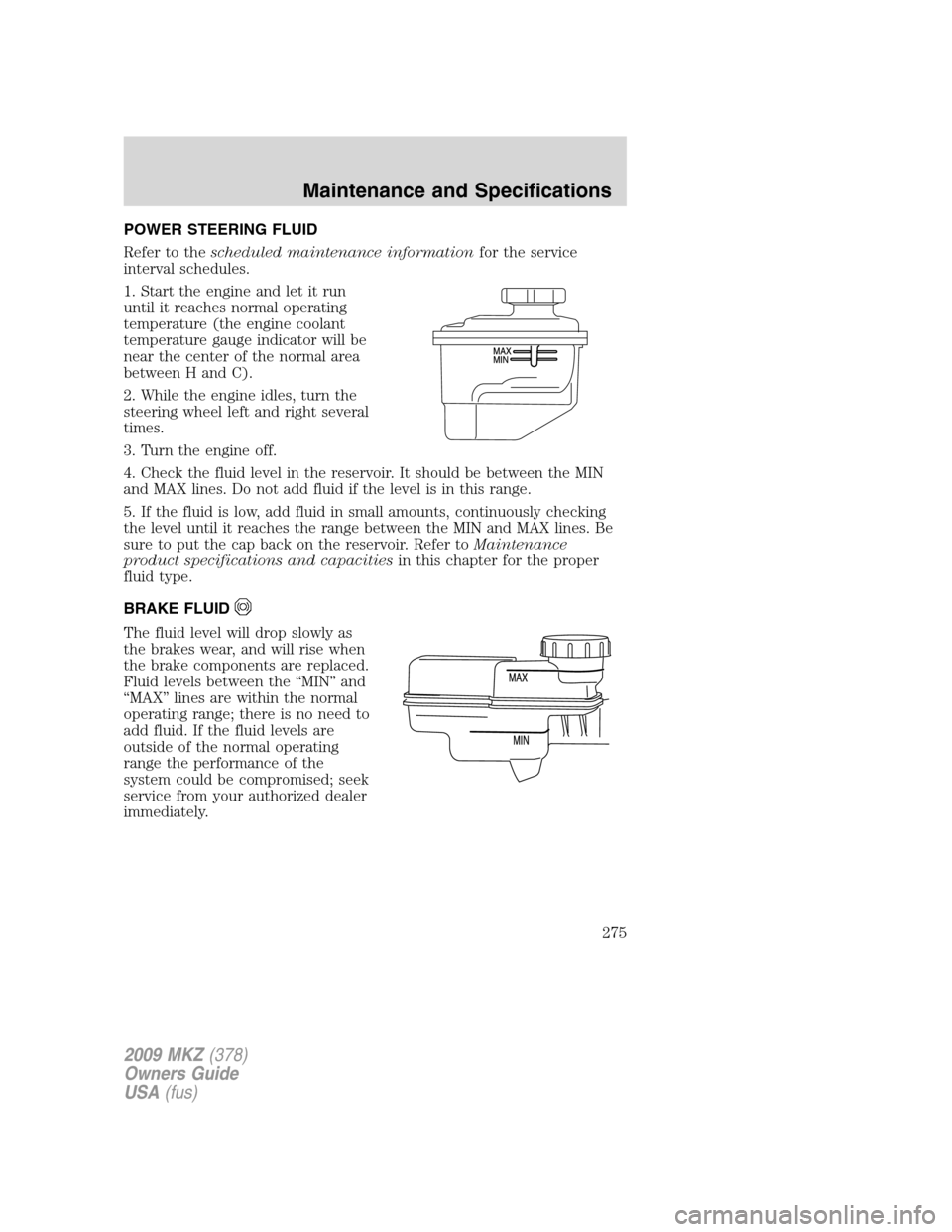

POWER STEERING FLUID
Refer to thescheduled maintenance informationfor the service
interval schedules.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir. Refer toMaintenance
product specifications and capacitiesin this chapter for the proper
fluid type.
BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels between the “MIN” and
“MAX” lines are within the normal
operating range; there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range the performance of the
system could be compromised; seek
service from your authorized dealer
immediately.
2009 MKZ(378)
Owners Guide
USA(fus)
Maintenance and Specifications
275

TRANSMISSION FLUID
Checking 6–speed automatic transmission fluid
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, i.e., if the transmission slips or
shifts slowly or if you notice some sign of fluid leakage.
Checking automatic transmission fluid at normal operating
temperature (140°F-158°F [60°C-70°C])
Automatic transmission fluid expands when warmed. To obtain an
accurate fluid check, drive the vehicle until it is warmed up
(approximately 20 miles [30 km]) until the engine coolant gauge
indicates normal operating temperature. If your vehicle has been
operated for an extended period at high speeds, in city traffic
during hot weather or pulling a trailer, the vehicle should be
turned off for about 30 minutes to allow fluid to cool before
checking.
1. Drive the vehicle 20 miles (30 km) or until the coolant gauge indicates
normal operating temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage (approximately
10–15 seconds in each position).
4. Move the gearshift lever to P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry, lint-free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect
the fluid level. The fluid should read
within the hot range on the dipstick
if at normal operating temperature
(140°F-158°F [60°C-70°C]).
2009 MKZ(378)
Owners Guide
USA(fus)
Maintenance and Specifications
276

Item Capacity Ford part nameFord part number /
Ford specification
Automatic transmission
fluid7.4 quarts (7.0L)
3
Motorcraft Premium
Automatic Transmission
FluidXT-8-QAW /
WSS-M2C924-A
Rear Differential (AWD)
fluid2.4 pints (1.15L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A
Power Transfer Unit
(PTU) fluid (AWD)
4
12 ounces (0.35L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Windshield washer fluid 4.75 quarts (4.5L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank (FWD )17.5 gallons
(66.2L)——
Fuel tank (AWD)16.5 gallons
(62.5L)——
1Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.2Add the coolant type originally equipped in your vehicle.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.4The Power Transfer Unit is lubricated for life with synthetic lube. Lubricant levels are not to be
checked or changed unless a leak is suspected or repair required. Replace Power Transfer Unit
lubricant with specified synthetic lubricant anytime the unit is submerged in water.
See your authorized dealer for fluid level checking or filling of the Power Transfer Unit.
2009 MKZ(378)
Owners Guide
USA(fus)
Maintenance and Specifications
281

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Aisin AW F21 Automatic transmission
(TR-VX)B
2009 MKZ(378)
Owners Guide
USA(fus)
Maintenance and Specifications
284

A
Accessory delay ..........................58
AdvanceTrac ..............................192
Air cleaner filter ...............278–279
Air conditioning ....................31, 33
Airbag supplemental restraint
system ........................126, 135, 138
and child safety seats ............128
description ..............126, 135, 138
disposal ....................................141
driver airbag ............128, 136, 139
indicator light .........134, 137, 140
operation .................128, 136, 139
passenger airbag .....128, 136, 139
side airbag ...............................135
All Wheel Drive (AWD),
driving off road .........................203
Antifreeze
(see Engine coolant) ................258
Anti-lock brake system
(see Brakes) ......................190–191
Anti-theft system ................96, 100
arming the system ..................100
disarming a triggered
system .....................................101
Audio system (see Radio) .........16
Automatic transmission
driving an automatic
overdrive .................................199
fluid, adding ............................276
fluid, checking ........................276
fluid, refill capacities ..............280
fluid, specification ..................280
Auxiliary input jack (Line in) ....23
Axle
lubricant specifications ..........280
B
Battery .......................................256acid, treating emergencies .....256
jumping a disabled battery ....225
maintenance-free ....................256
replacement, specifications ...279
servicing ..................................256
Belt-Minder.............................121
Booster seats .............................154
Brakes ........................................190
anti-lock ...........................190–191
anti-lock brake system (ABS)
warning light ...........................191
fluid, checking and adding ....275
fluid, refill capacities ..............280
fluid, specifications .................280
lubricant specifications ..........280
parking ....................................191
shift interlock ..........................198
Break-in period .............................5
Bulbs ............................................42
C
Capacities for refilling fluids ....280
Cell phone use ..............................7
Changing a tire .........................218
Child safety seats ......................145
attaching with tether straps ..151
in front seat ............................146
in rear seat ..............................146
LATCH .....................................149
recommendations ...................143
Child safety seats - booster
seats ...........................................154
Cleaning your vehicle
engine compartment ..............243
instrument panel ....................245
interior .....................................245
plastic parts ............................244
washing ....................................241
2009 MKZ(378)
Owners Guide
USA(fus)
Index
287

waxing .....................................242
wheels ......................................242
wiper blades ............................244
Climate control (see Air
conditioning or Heating) ......31, 33
Clock ............................................55
Compass, electronic
set zone adjustment .................73
Console
overhead ....................................54
Controls
power seat ...............................105
steering column ........................63
Coolant
checking and adding ..............258
refill capacities ................261, 280
specifications ..........................280
Cruise control
(see Speed control) ....................60
Cupholder(s) .............................112
Customer Assistance ................210
Ford Extended Service
Plan ..........................................237
Getting assistance outside the
U.S. and Canada .....................238
Getting roadside assistance ...210
Getting the service you
need .........................................233
Ordering additional owner’s
literature .................................239
Utilizing the
Mediation/Arbitration
Program ...................................237
D
Daytime running lamps
(see Lamps) ................................38Dipstick
automatic transmission
fluid ..........................................276
engine oil .................................252
Driving under special
conditions ..................201, 204, 207
sand .........................................205
snow and ice ...........................208
through water .................206, 209
E
Electronic message center .........70
Emergencies, roadside
jump-starting ..........................225
Emission control system ..........272
Engine ........................................282
cleaning ...................................243
coolant .....................................258
fail-safe cooling .......................262
idle speed control ...................256
lubrication specifications .......280
refill capacities ........................280
service points ..................250–251
starting after a collision .........212
Engine block heater .................188
Engine oil ..................................252
change oil soon warning,
message center .......................252
checking and adding ..............252
dipstick ....................................252
filter, specifications ........255, 279
recommendations ...................255
refill capacities ........................280
specifications ..........................280
Event data recording ....................6
Exhaust fumes ..........................188
F
Fail safe cooling ........................262
2009 MKZ(378)
Owners Guide
USA(fus)
Index
288

Keys .......................................80, 98
positions of the ignition .........185
L
Lamps
autolamp system .......................37
bulb replacement
specifications chart ..................42
daytime running light ...............38
fog lamps ...................................38
headlamps .................................37
headlamps, flash to pass ..........39
instrument panel, dimming .....39
interior lamps ...........................41
replacing bulbs .........................44
LATCH anchors .........................149
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........191
Load limits .................................178
Locks
autolock .....................................83
childproof ..................................86
doors ..........................................82
Lubricant specifications ...........280
Lug nuts ....................................224
Lumbar support, seats .............107
M
Message center .....................70–71
english/metric button ...............76
system check button ................75
warning messages .....................77
Mirrors ...................................58–59
automatic dimming rearview
mirror ........................................58
heated ........................................60
programmable memory ............91
side view mirrors (power) .......59Moon roof ..............................65, 90
Motorcraft parts ........247, 263, 279
N
Navigation system .......................30
O
Octane rating ............................267
Oil (see Engine oil) ..................252
P
Parking brake ............................191
Parts (see Motorcraft parts) ....279
Passenger Occupant
Classification Sensor .................113
Power distribution box
(see Fuses) ...............................215
Power door locks ........................82
Power mirrors .............................59
Power point .................................55
Power steering ..........................197
fluid, checking and adding ....275
fluid, refill capacity ................280
fluid, specifications .................280
Power Windows ...........................56
Power windows
opening using remote entry
system .......................................90
R
Radio ............................................16
Recommendations for
attaching safety restraints for
children ......................................143
2009 MKZ(378)
Owners Guide
USA(fus)
Index
290
