Fuse/Relay
LocationFuse Amp
RatingProtected Components
46 15A** VPWR2, VPWR3
47 15A** PCM VPWR1
48 15A** VPWR4 Ignition coils
49 10A** Heated mirrors
50 Full ISO relay PCM relay
51 Full ISO relay Blower motor relay
52 Full ISO relay Starter relay
53 Full ISO relay Heated backlite relay
54 Full ISO relay Front wiper relay
55 Full ISO relay Fog deactivation
56 High-current
relayOn/start
57 Full ISO relay Adapt cruise (stop lamps)
58 High-current
relayNot used
* Cartridge Fuses ** Mini Fuses
CHANGING THE TIRES
If you get a flat tire while driving:
•do not brake heavily.
•gradually decrease the vehicle’s speed.
•hold the steering wheel firmly.
•slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare is in use. To restore the full functionality of
the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensor, refer toChanging tires with TPMSin theTires,
Wheels and Loadingchapter. Replace the spare tire with a road tire as
soon as possible.
WARNING:The use of tire sealants may damage your Tire
Pressure Monitoring System and should not be used.
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
248

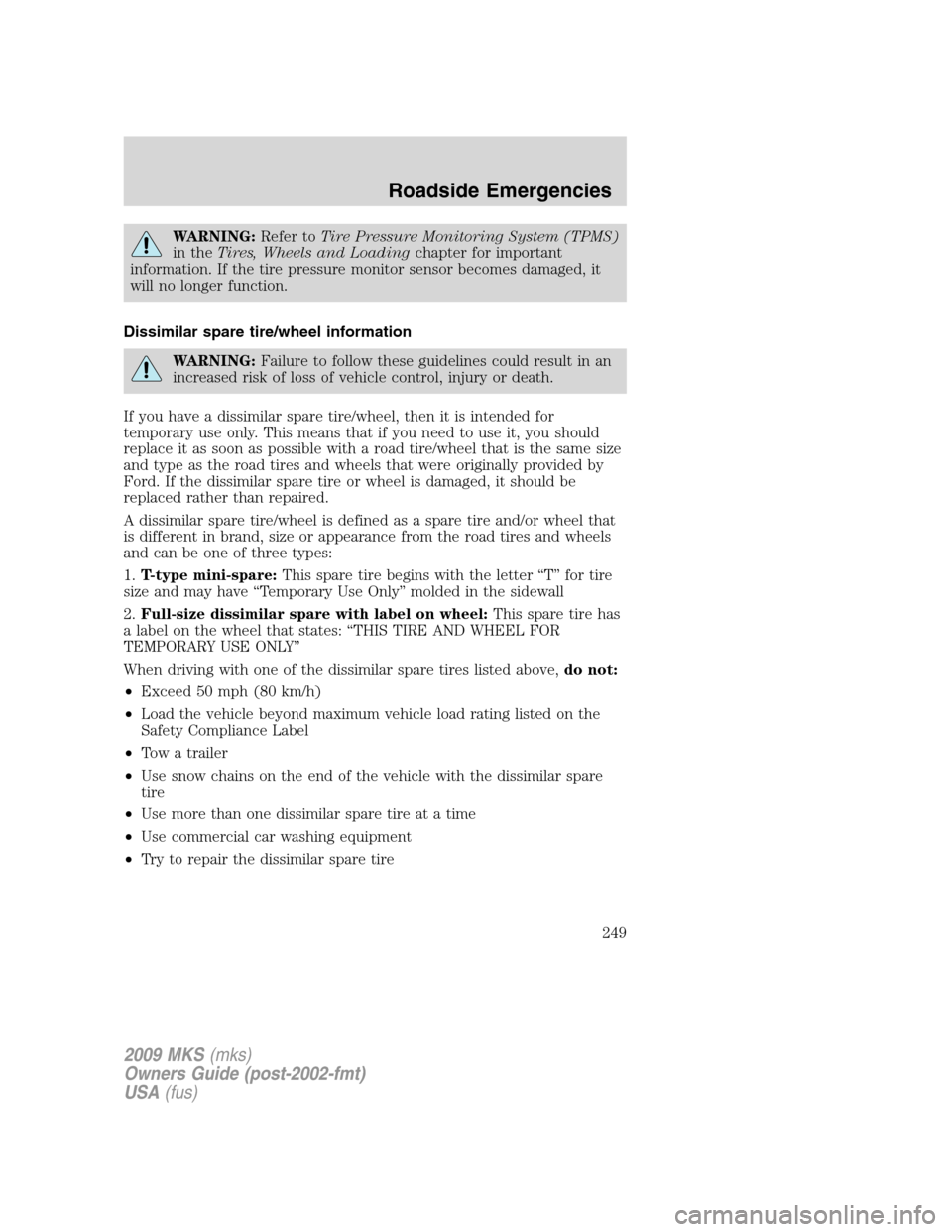

WARNING:Refer toTire Pressure Monitoring System (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare tires listed above,do not:
•Exceed 50 mph (80 km/h)
•Load the vehicle beyond maximum vehicle load rating listed on the
Safety Compliance Label
•Tow a trailer
•Use snow chains on the end of the vehicle with the dissimilar spare
tire
•Use more than one dissimilar spare tire at a time
•Use commercial car washing equipment
•Try to repair the dissimilar spare tire
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
249

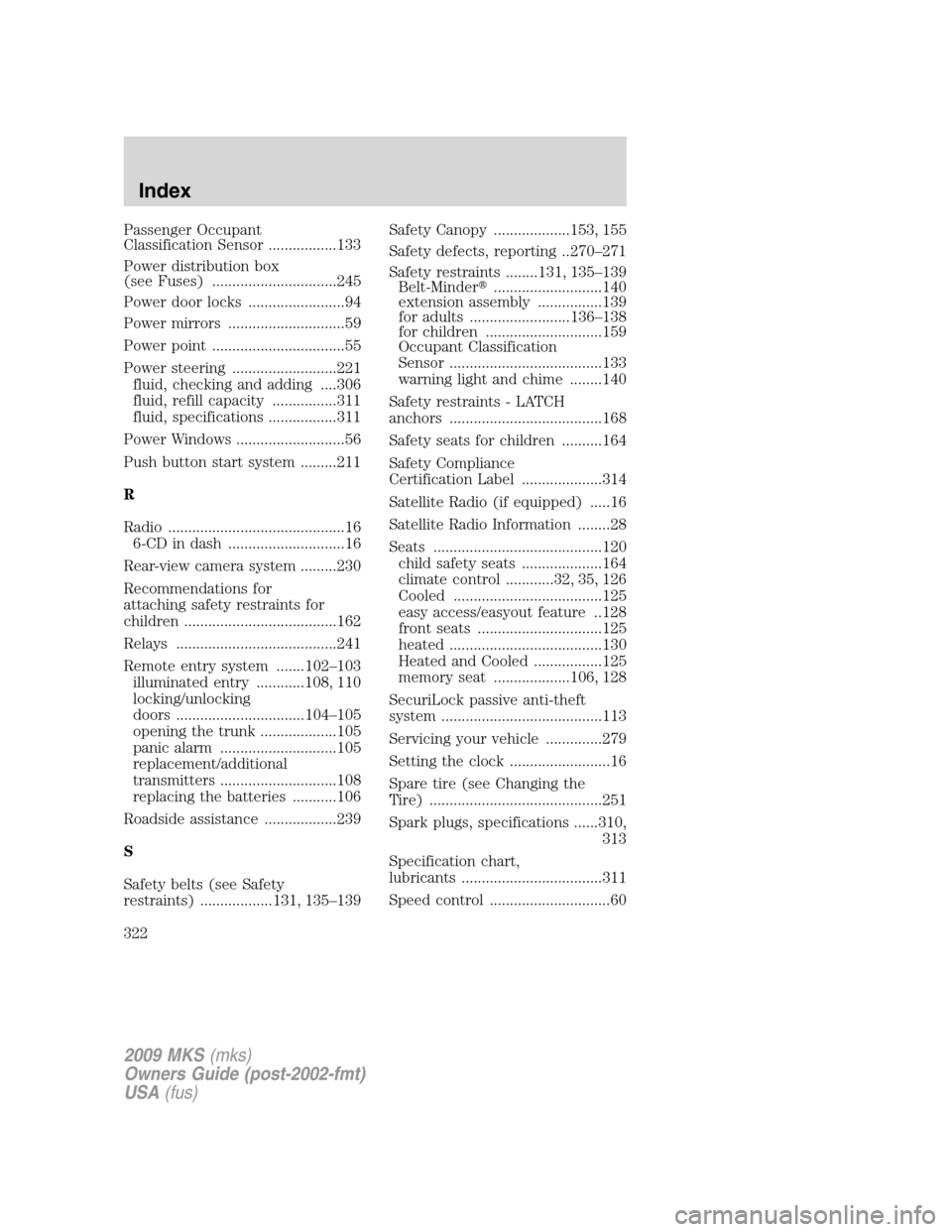

Passenger Occupant
Classification Sensor .................133
Power distribution box
(see Fuses) ...............................245
Power door locks ........................94
Power mirrors .............................59
Power point .................................55
Power steering ..........................221
fluid, checking and adding ....306
fluid, refill capacity ................311
fluid, specifications .................311
Power Windows ...........................56
Push button start system .........211
R
Radio ............................................16
6-CD in dash .............................16
Rear-view camera system .........230
Recommendations for
attaching safety restraints for
children ......................................162
Relays ........................................241
Remote entry system .......102–103
illuminated entry ............108, 110
locking/unlocking
doors ................................104–105
opening the trunk ...................105
panic alarm .............................105
replacement/additional
transmitters .............................108
replacing the batteries ...........106
Roadside assistance ..................239
S
Safety belts (see Safety
restraints) ..................131, 135–139Safety Canopy ...................153, 155
Safety defects, reporting ..270–271
Safety restraints ........131, 135–139
Belt-Minder
...........................140
extension assembly ................139
for adults .........................136–138
for children .............................159
Occupant Classification
Sensor ......................................133
warning light and chime ........140
Safety restraints - LATCH
anchors ......................................168
Safety seats for children ..........164
Safety Compliance
Certification Label ....................314
Satellite Radio (if equipped) .....16
Satellite Radio Information ........28
Seats ..........................................120
child safety seats ....................164
climate control ............32, 35, 126
Cooled .....................................125
easy access/easyout feature ..128
front seats ...............................125
heated ......................................130
Heated and Cooled .................125
memory seat ...................106, 128
SecuriLock passive anti-theft
system ........................................113
Servicing your vehicle ..............279
Setting the clock .........................16
Spare tire (see Changing the
Tire) ...........................................251
Spark plugs, specifications ......310,
313
Specification chart,
lubricants ...................................311
Speed control ..............................60
2009 MKS(mks)
Owners Guide (post-2002-fmt)
USA(fus)
Index
322
