2009 Lexus IS250 towing

1
2
3
4
5
6
7
3
Manual transmission .................... 137
Turn signal lever ............................ 139
Parking brake ................................. 140
Horn...................................................... 141
2-2. Instrument cluster Gauges and meters ..................... 142
Indicators and warning lights................................................. 148
Multi-information display............. 151
2-3. Operating the lights and windshield wipers
Headlight switch ............................ 156
Fog light switch .............................. 159
Windshield wipers and washer............................................. 160
Headlight cleaner switch ........... 165
2-4. Using other driving systems Cruise control ................................ 166
Dynamic radar cruise control............................................. 170
Intuitive parking assist ................. 180
Driving assist systems.................. 186
PCS (Pre-Collision System) ............ 192 2-5. Driving information
Cargo and luggage ...................... 196
Vehicle load limits ......................... 199
Winter driving tips ...................... 200
Trailer towing ................................. 204
Dinghy towing (vehicles with an automatic
transmission) .............................. 205
Dinghy towing (vehicles with a manual transmission) ........... 206
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ............................................. 210
Rear window and outside rear view mirror defoggers ............. 218
3-2. Using the audio system Audio system type ........................ 219
Using the radio.............................. 222
Using the CD player................... 229
Playing back MP3 and WMA discs.................................. 235
Optimal use of the audio system ............................................. 241
Using the AUX adapter ............ 244
Using the steering wheel audio switches ............................ 245
3Interior features

When driving2
115
2-1. Driving proceduresDriving the vehicle................... 116
Engine (ignition) switch ......... 126
Automatic transmission ......... 131
Manual transmission .............. 137
Turn signal lever ....................... 139
Parking brake ........................... 140
Horn ............................................. 141
2-2. Instrument cluster Gauges and meters ................ 142
Indicators and warning lights ......................................... 148
Multi-information display ...... 151
2-3. Operating the lights and windshield wipers
Headlight switch...................... 156
Fog light switch ........................ 159
Windshield wipers and washer ..................................... 160
Headlight cleaner switch...... 165 2-4. Using other driving
systems
Cruise control.......................... 166
Dynamic radar cruise control ..................................... 170
Intuitive parking assist ........... 180
Driving assist systems ............ 186
PCS (Pre-Collision System) ........ 192
2-5. Driving information Cargo and luggage ................ 196
Vehicle load limits ................... 199
Winter driving tips ................. 200
Trailer towing .......................... 204
Dinghy towing (vehicles with
an automatic
transmission) ........................ 205
Dinghy towing (vehicles with a
manual transmission) ......... 206

184
2-4. Using other driving systems
■Sensor detection information
●Certain vehicle conditions and the surrounding environment may affect the
ability of the sensor to correctly detect obstacles. Particular instances where this
may occur are listed below.
• There is dirt, snow or ice on the sensor.
• The sensor is frozen.
• The sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass.
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines,
air brakes of large vehicles, or other loud noises producing ultrasonic waves.
• There is another vehicle equipped with parking assist sensors in the vicinity.
• The sensor is coated with a sheet of spray or heavy rain.
• The vehicle is equipped with a fender pole or wireless antenna.
• Towing eyelets are installed.
• The bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In harsh sunlight or intense cold weather
In addition to the examples above, there are instances in which, because of their
shapes, signs and other object s may be judged by the sensor to be closer than they
are.
●The shape of the obstacle may prevent th e sensor from detecting it. Pay particu-
lar attention to the following obstacles.
• Wires, fences, ropes etc.
• Cotton, snow and other materials that absorb radio waves
• Sharply-angled objects
•Low obstacles
• Tall obstacles with upper sections projec ting outwards in the direction of your
vehicle
■When the display flashes an d a message is displayed
 P. 3 9 2

197
2-5. Driving information
2
When driving
(6)If your vehicle will be towing a trailer, load from your trailer will betransferred to your vehicle. Consul t this manual to determine how this
reduces the available cargo and luggage load capacity of your vehi-
cle.
Lexus does not recommend towing a trailer with your vehicle. Your vehicle is
not designed for trailer towing.
Example on your vehicle
Cargo capacity
Total load capacity
When 2 people with the combined weight of 366 lb. (166 kg) are riding
in your vehicle, which has a total load capacity of 825 lb. (375 kg), the
available amount of cargo and luggag e load capacity will be as follows:
825 lb. — 366 lb. = 459 lb. (375 kg —166 kg = 209 kg)
In this condition, if 3 mo re passengers with the combined weight of 388 lb.
(176 kg) get on, the available cargo and luggage load will be reduced as fol-
lows:
459 lb. — 388 lb. = 71 lb. (209 kg — 176 kg = 33 kg)
As shown in the above example, if the number of occupants increases,
the cargo and luggage load equaling the combined weight of the occu-
pants who got on later, by an amount. In other words, if an increase in the
number of occupants causes an excess of the total load capacity (com-
bined weight of occupants plus cargo and luggage load), you must
reduce the cargo and luggage on your vehicle.

199
2-5. Driving information
2
When driving
Vehicle load limits
■Total load capacity and seating capacity
These details are also described on the tire and loading information label.
(  P. 3 3 6 )
CAUTION
■Overloading the vehicle
Do not overload the vehicle.
It may not only cause damage to the tire s, but also degrade steering and braking
ability, resulting in an accident.
Vehicle load limits include total lo ad capacity, seating capacity, towing
capacity and cargo capacity.
■ Total load capacity: 825 lb. (375 kg)
Total load capacity means the combined weight of occupants, cargo and
luggage.
■Seating capacity: 5 occupants (Front 2, Rear 3)
Seating capacity means the maximum number of occupants whose esti-
mated average weight is 150 lb. (68 kg) per person.
■Towing capacity
Lexus does not recommend towing a trailer with your vehicle.
■Cargo capacity
Cargo capacity may increase or decrease depending on the weight and
the number of occupants.

204
2-5. Driving information

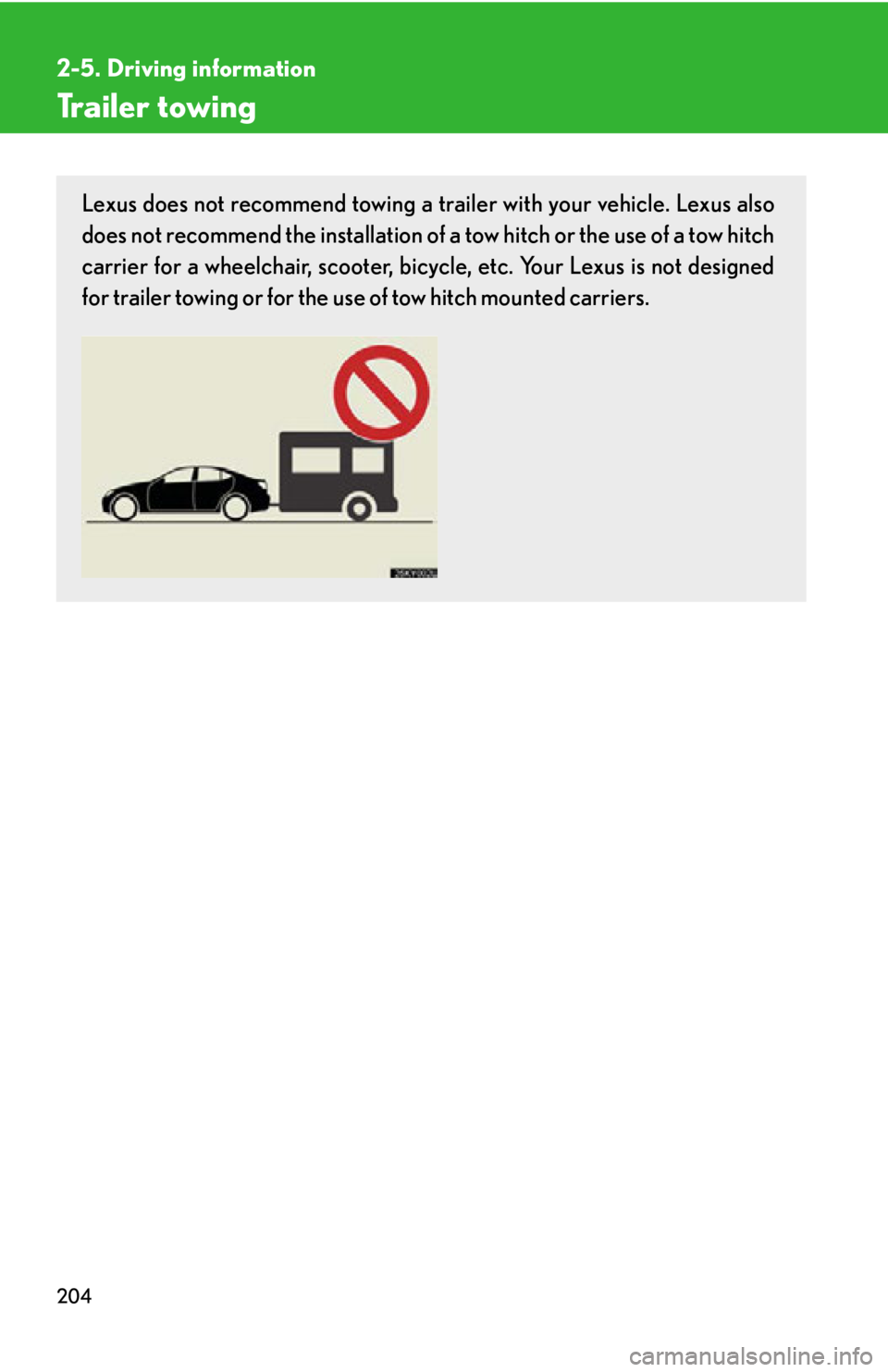

Trailer towing
Lexus does not recommend towing a trailer with your vehicle. Lexus also
does not recommend the installation of a tow hitch or the use of a tow hitch
carrier for a wheelchair, scooter, bicycle, etc. Your Lexus is not designed
for trailer towing or for the us e of tow hitch mounted carriers.

205
2-5. Driving information
2
When driving
Dinghy towing (vehicles with an automatic transmission)
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with four wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels on the
ground) behind a motor home.

206
2-5. Driving information
Dinghy towing (vehicles with a manual transmission)
Towing your vehicle with 4 wheels on the groundTo prevent damage to your vehicle, perform the following procedures
before towing. Shift the shift lever to neutral.
Switch to ACCESSORY mode. ( P. 1 2 8 )
Ensure that the audio system and other powered devices have been
turned off.
Release the parking brake.
After towing, leave the engine in idle for at least 3 minutes before driv-
ing the vehicle.
■Necessary equipment and accessories
Specialized equipment and accessories are required for dinghy towing. Contact
the service branch of the motor home manufacturer regarding recommended
equipment.
Your vehicle can be dinghy towed in a forward direction (with 4 wheels on
the ground) behind a motor home.
STEP1
STEP2
STEP3
