2009 Lexus IS F light

112
2-1. Driving procedures
08_IS F_U_(L/O_0808)
CAUTION
■When the vehicle is stopped
●Do not race the engine.
If the vehicle is in any gear other than P or N, the vehicle may accelerate suddenly
and unexpectedly, and may cause an accident.
●Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and
check that exhaust fumes do not enter the vehicle interior.
●Always keep a foot on the brake pedal while the engine is running to prevent an
accident caused by the vehicle moving.
●To prevent the vehicle from moving and causing an accident, apply the brake
pedal or parking brake when stopping the vehicle on a hill.
■When the vehicle is parked
●Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in the vehi-
cle when it is in the sun.
Doing so may result in the following.
• Gas may leak from a cigarette lighter or spray can, and may lead to a fire.
• The temperature inside the vehicle may cause the plastic lenses and plasticmaterial of eye glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the interior of the vehicle, and may also cause a short circuit in the vehicle's electrical com-
ponents.
●Always apply the parking brake, shift the shift lever to P, stop the engine and lock
the vehicle.
Do not leave the vehicle unattended while the engine is running.
●Do not touch the exhaust pipes or rear bumper exhaust diffusers while the engine
is running or immediately after turning the engine off.
Doing so may cause burns.
●Do not leave the engine running in an area with snow build-up, or where it is
snowing. If snowbanks build up around the vehicle while the engine is running,
exhaust gases may collect and enter the vehicle. This may lead to death or a seri-
ous health hazard.

127
2-1. Driving procedures
2
When driving
08_IS F_U_(L/O_0808)
■If the automatic transmission fluid temperature warning light comes on
■AI-SHIFT
The AI-SHIFT automatically selects the optimal gear according to driver perfor-
mance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in the D position. How-
ever, operating the “-” paddle shift switch will restrict the function’s operation. (Shift-
ing the shift lever to the M position cancels the function.)
CAUTION
■When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this could result in the vehi-
cle skidding to the side or spinning.
If the automatic transmission fluid tempera-
ture warning light comes on while driving,
make sure you return to normal D position
driving and reduce speed by easing off the
accelerator pedal. Stop the vehicle in a safe
place, shift the shift lever to the P position and
let the engine idle until the warning light goes
out.
When the warning light goes out, the vehicle
can be driven again.
If the warning light does not go out after wait-
ing a while, have your vehicle inspected by
your Lexus dealer.

128
2-1. Driving procedures
08_IS F_U_(L/O_0808)
Turn signal lever
■Turn signals can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
Right turn
Left turn
Move and hold the lever part-
way to signal a lane change
The right hand signal will flash
until you release the lever.
Move and hold the lever part-
way to signal a lane change
The left hand signal will flash
until you release the lever.

133
2-2. Instrument cluster
2
When driving
08_IS F_U_(L/O_0808)
Instrument panel light controlThe brightness of the instrument panel lights can be adjusted. Darker
Brighter
CAUTION
■When the temperature of the display is extremely low
Allow the interior of the vehicle to warm up before using the shift position and shift
range/gear display. At extremely low temperatures, the display may respond slowly,
and display changes may be delayed.
For example, there is a lag between the driver’s downshifting and the new gear
number appearing on the display. This lag could cause the driver to downshift again,
causing rapid and excessive engine braking and possibly an accident resulting in
death or serious injury.

135
2-2. Instrument cluster
2
When driving
08_IS F_U_(L/O_0808)
Indicators and warning lights
The indicator and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
Instrument cluster
The units used on the speedometer and the tachometer gauge display may
differ depending on the model/type.

Center panel

136
2-2. Instrument cluster
08_IS F_U_(L/O_0808)
■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator
(→ P. 1 2 8 )Cruise control indicator
(→ P. 150, 153)
Headlight high beam indi-
cator ( →P. 1 4 2 )“AFS OFF” indicator
(→ P. 1 4 3 )
(U.S.A.)
Headlight indicator
(→ P. 1 4 2 )
(if equipped)
Intuitive parking assist
indicator ( →P. 163)
(Canada)
Tail light indicator
(→ P. 1 4 2 ) Slip indicator ( →P. 1 7 0 )
Front fog light indicator
(→ P. 1 4 5 ) “VSC OFF” indicator
(→ P. 171)
“SNOW” indicator
(→ P. 122) SRS airbag on-off indica-
tor (→ P. 8 9 )
“SPORT” indicator
(→ P. 122, 172)
*
*
*
*

137
2-2. Instrument cluster
2
When driving
08_IS F_U_(L/O_0808)
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine, this could mean that these systems are not available to
help protect you in an accident, which could result in death or serious injury. Have
the vehicle inspected by your Lexus dealer immediately if this occurs.
■Warning lights
Warning lights inform the driver of malfunctions in any of the vehi-
cle’s systems. (→ P. 355)
*: These lights turn on when the “ENGINE START STOP” switch is turned
to IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by your Lexus
dealer.
(U.S.A.)(Canada)(Canada)(U.S.A.)
(Canada)(U.S.A.)(if equipped)(for
driver)(for front
passenger)
******
*******

142
08_IS F_U_(L/O_0808)
2-3. Operating the lights and windshield wipers

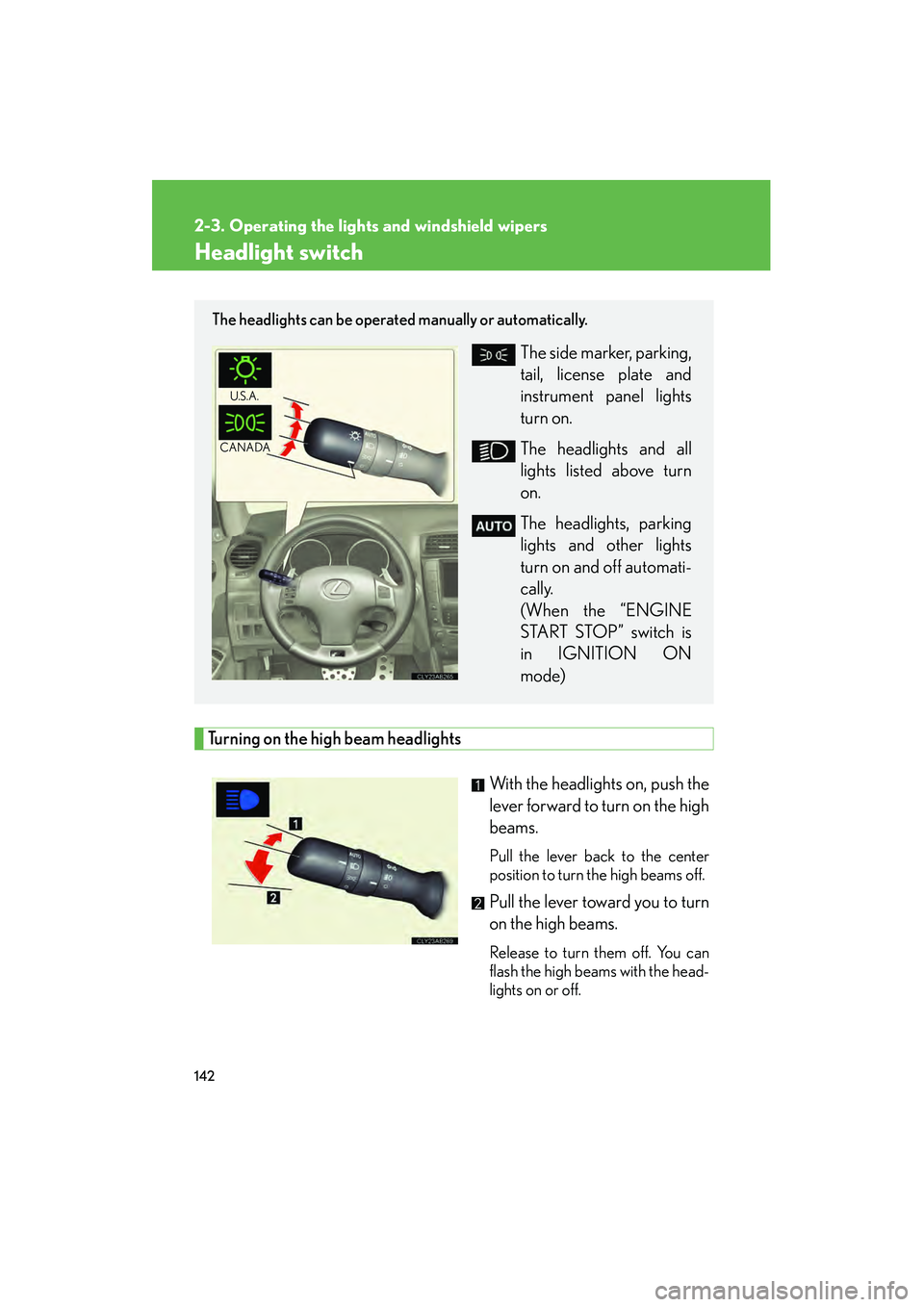

Headlight switch
Turning on the high beam headlightsWith the headlights on, push the
lever forward to turn on the high
beams.
Pull the lever back to the center
position to turn the high beams off.
Pull the lever toward you to turn
on the high beams.
Release to turn them off. You can
flash the high beams with the head-
lights on or off.
The headlights can be operated manually or automatically.
The side marker, parking,
tail, license plate and
instrument panel lights
turn on.
The headlights and all
lights listed above turn
on.
The headlights, parking
lights and other lights
turn on and off automati-
cally.
(When the “ENGINE
START STOP” switch is
in IGNITION ON
mode)
U.S.A.
CANADA
