2009 Lexus IS F light

412
6-1. Specifications
08_IS F_U_(L/O_0808)

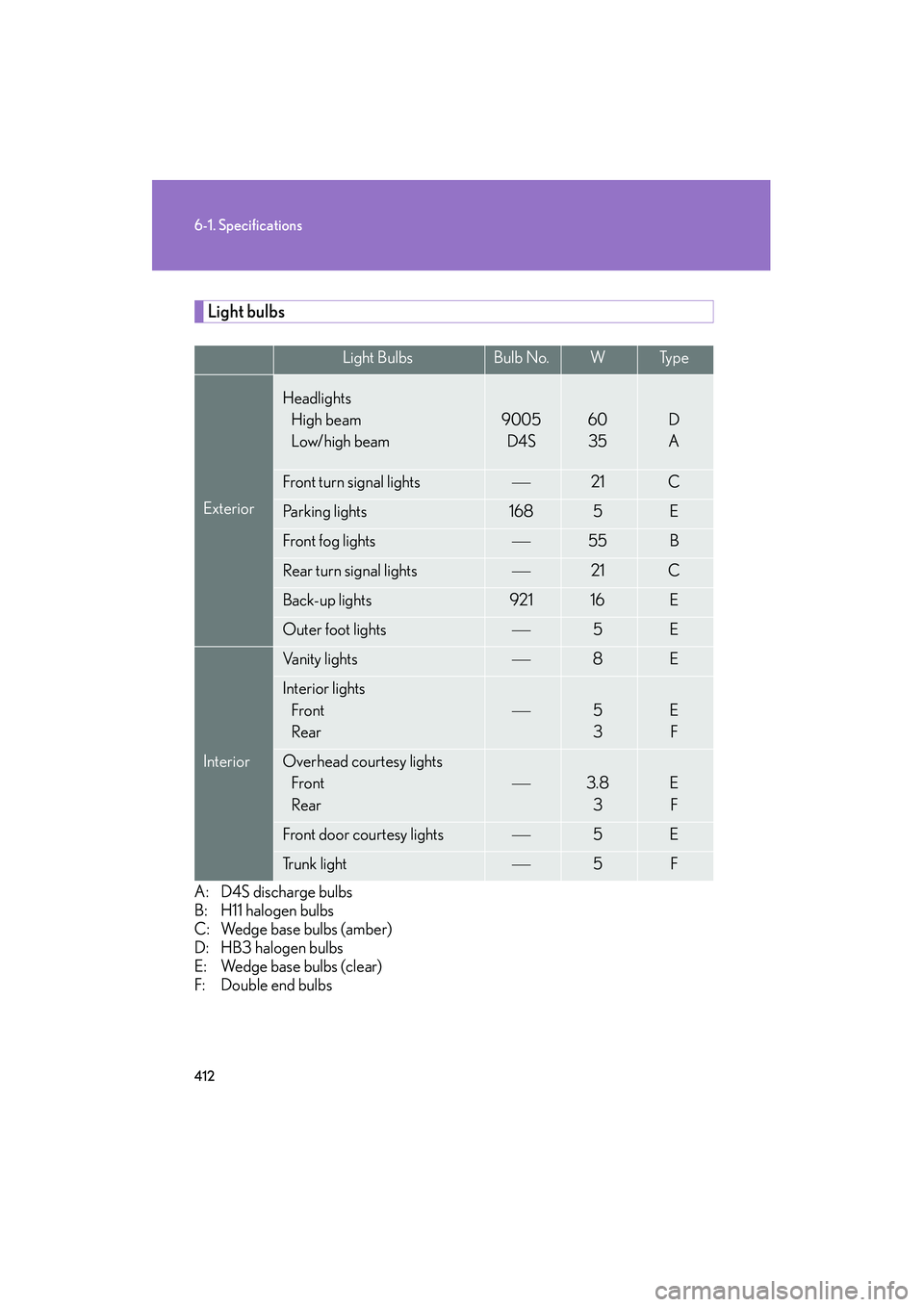

Light bulbs
A: D4S discharge bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (amber)
D: HB3 halogen bulbs
E: Wedge base bulbs (clear)
F: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights
High beam
Low/high beam
9005D4S6035D
A
Front turn signal lights21C
Parking lights1685E
Front fog lights55B
Rear turn signal lights21C
Back-up lights92116E
Outer foot lights5E
Interior
Vanity lights8E
Interior lights
Front
Rear
5
3EF
Overhead courtesy lights Front
Rear
3.8
3EF
Front door courtesy lights5E
Tr u n k l i g h t5F

413
6-1. Specifications
6
Vehicle specifications
08_IS F_U_(L/O_0808)
Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
Your vehicle must use only unleaded gasoline.
Premium unleaded gasoline with an octane rating of 91 (Research Octane
Number 96) or higher required for optimum engine performance. If 91
octane cannot be obtained, you may use unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91). Use of unleaded gaso-
line with an octane rating lower than 91 may result in engine knocking and
significantly reduced performance. Persistent knocking can lead to engine
damage and should be corrected by refueling with higher octane unleaded
gasoline.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.

425
6-1. Specifications
6
Vehicle specifications
08_IS F_U_(L/O_0808)
Tire related termMeaning
Intended outboard side-
wall
(a) The sidewall that contains a whitewall, bears white lettering, or bears manufacturer, brand,
and/or model name molding that is higher or
deeper than the same molding on the other side-
wall of the tire, or
(b) The outward facing sidewall of an asymmetrical tire that has a particular side that must always
face outward when mounted on a vehicle
Light truck (LT) tire
A tire designated by its manufacturer as primarily
intended for use on lightweight trucks or multipur-
pose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry for a
given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum permissible
inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which a tire
may be inflated
Measuring rimThe rim on which a tire is fitted for physical dimension
requirements
Open spliceAny parting at any junction of tread, sidewall, or
innerliner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of the side-
walls of an inflated tire, including elevations due to
labeling, decorations, or protective bands or ribs
Passenger car tire
A tire intended for use on passenger cars, multipur-
pose passenger vehicles, and trucks, that have a
gross vehicle weight rating (GVWR) of 10,000 lb. or
less.
PlyA layer of rubber-coated parallel cords

430
6-2. Customization
08_IS F_U_(L/O_0808)
ItemFunctionDefault settingCustomizedsetting
Power win-
dows
(
→P. 63)
Linked door lock opera-
tionOnOff
Linked door key opera-
tionOpen and closeOpen only
Close only
Wireless remote control
linked operationOnOff
Moon roof
(
→P. 6 5 )
Linked door lock opera-
tionOnOff
Linked door key opera-
tionOpen and closeOpen only
Close only
Linked operation of com-
ponents when door key is
used
Slide onlyTilt only
Wireless remote control
linked operationOnOff
Linked operation of com-
ponents when wireless
remote control is used
Slide onlyTilt only
Automatic
light control
system
(
→P. 1 4 2 )
Light sensor sensitivityLevel 3Level 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Lights
(
→P. 1 4 3 )
Daytime running light sys-
tem (U.S.A. only)OnOff

431
6-2. Customization
6
Vehicle specifications
08_IS F_U_(L/O_0808)
ItemFunctionDefault settingCustomizedsetting
Windshield
wipers and
washer
(
→P. 1 4 6 )
Switching operation when
the vehicle is stationaryOnOff
Drip prevention functionOnOff
Time elapsed before the
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Intuitive park-
ing assist
(
→P. 163)
Back sensor operation
display and buzzerOnOff
Buzzer volumeLevel 3Level 1 to 5
Distance which a sensor
detects4.9 ft. (150 cm)2.0 ft. (60 cm)
Illumination
(
→P. 2 2 7 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedOnOff
Operation after the
“ENGINE START STOP”
switch turned OFF
OnOff
Front foot well lightsOnOff
Shift lever lightOnOff
Outer foot lightOnOff
Seat belt
reminder
(
→P. 3 5 8 )
Vehicle speed linked seat
belt reminder buzzerOnOff

440
08_IS F_U_(L/O_0808)
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
ABSAnti-lock Brake System
AFSAdaptive Front-lighting System
AI-SHIFTArtificial Intelligence Shift
ALRAutomatic Locking Retractor
CALCalibration
CRSChild Restraint System
DISPDisplay
ECUElectronic Control Unit
EDREvent data recorder
ELREmergency Locking Retractor
EPSElectric Power Steering
GAWRGross Axle Weight Rating
I/MEmission inspection and maintenance
LATCHLower Anchors and Tethers for Children
LEDLight Emitting Diode
LSDLimited Slip Differential
MMTMethylcyclopentadienyl Manganese Tricarbonyl
M + SMud and Snow
MTBEMethyl Tertiary Butyl Ether
OBDOn Board Diagnostics
PCSPre-Collision System
SRSSupplemental Restraint System
TINTire Identification Number
TPMSTire Pressure Warning System
TRACTr a c t i o n C o n t r o l

442
08_IS F_U_(L/O_0808)
Alphabetical index
Alphabetical index
A/C ............................................................. 190
ABS.............................................................. 169
ACCESSORY mode ............................ 116
AFS .............................................................. 143
Adaptive front lighting system ......... 143
Air conditioning filter ........................... 317
Air conditioning systemAir conditioning filter ......................... 317
Automatic air conditioning system ................................................... 190
Airbags Airbag operating conditions...........80
Airbag precautions for your child.......................................................... 84
Airbag warning light ........................356
Curtain shield airbag operating conditions................................................ 81
Curtain shield airbag
precautions .......................................... 84
Front passenger occupant
classification system......................... 89
General airbag precautions ........... 84
Locations of airbags............................ 78
Modification and disposal of airbags ....................................................88
Proper driving posture ............. 76, 84
Side airbag operating conditions................................................ 81
Side airbag precautions .................... 84
SRS airbags ............................................. 78 Alarm............................................................ 73
Antenna .................................................... 206
Anti-lock brake system ........................169
Armrest .................................................... 248
Ashtrays.................................................... 243
Audio input.............................................. 224
Audio system
Antenna.................................................. 206
Audio input............................................ 224
Audio visual input............................... 224
AUX adapter ....................................... 224
CD player/changer ......................... 209
MP3/WMA disc................................. 215
Optimal use ............................................221
Portable music player ...................... 224
Radio ....................................................... 202
Steering wheel audio switch.........225
Audio visual input ................................. 224
Automatic air conditioning system ..................................................... 190
Automatic headlight leveling system ......................................................144
Automatic light control system.........142
Automatic transmission Automatic transmission ................... 120
If the shift lever cannot be shifted from P................................... 389
M mode ................................................... 124
AUX adapter ......................................... 224A

443
Alphabetical index
08_IS F_U_(L/O_0808)
Back-up lightsWattage ................................................... 412
Battery Checking ............................................... 296
If the vehicle has discharged battery.................................................. 394
Preparing and checking before winter ......................................184
Bottle holders .........................................236
Brake Fluid .......................................................... 294
Parking brake ........................................ 129
Brake assist ............................................... 169
Care Exterior ................................................... 268
Interior....................................................... 271
Seat belts ................................................ 272
Cargo capacity ...................................... 180
Cargo hooks .......................................... 253
CD changer ........................................... 209
CD player................................................ 209
Chains......................................................... 184 Child restraint system
Booster seats, definition .................... 94
Booster seats, installation ...............100
Convertible seats, definition ............ 94
Convertible seats, installation .......100
Front passenger occupant
classification system .........................89
Infant seats, definition .......................... 94
Infant seats, installation .....................100
Installing CRS with lower
anchorages...........................................99
Installing CRS with seat belts ........ 100
Installing CRS with top straps....... 104
Child safety
Airbag precautions ..............................84
Battery precautions ..............297, 396
Child restraint system ......................... 94
Child-protectors ...................................38
How your child should wear the seat belt ..........................................55
Installing child restraints.....................98
Moon roof precautions...................... 67
Power window lock switch .............. 63
Power window precautions ............ 64
Removed electronic key battery precautions..........................................321
Seat belt comfort guide ..................... 53
Seat belt extender precautions...... 57
Seat belt precautions ..........................56
Seat heater precautions.................. 247
Trunk precautions................................. 43B
C
