2009 Lexus GS350 reset

446
4-3. Do-it-yourself maintenance
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
CAUTION
■Tire pressure warning system operation
The tire pressure warning system may not provide warning immediately if a tire
bursts or if sudden air leakage occurs.
■When inspecting or replacing tires
Observe the following precautions to prevent accidents. Failure to do so may cause
damage to parts of the drive train, as well as dangerous handling characteristics,
which may lead to an accident resulting in death or serious injury.
●Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.
●Do not use tire sizes other than those recommended by Lexus.
●Do not mix differently constructed tires (radial, bias-belted or bias-ply tires).
●Do not mix summer, all season and winter tires.
●Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.
■When initializing the tire pressure warning system
Do not push the tire pressure warning reset switch without first adjusting the tire
inflation pressure to the specified level. Otherwise, the tire pressure warning light
may not come on even if the tire inflation pressure is low, or it may come on when
the tire inflation pressure is actually normal.
GS_U_G.book Page 446 Monday, April 27, 2009 10:50 AM

5
When trouble arises
511
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■Front passenger detection sensor and passenger seat belt reminder
●If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash, even if a passenger is not sitting in
the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
■SRS warning light
This warning light system monitors the following:
●The airbag sensor assembly
●Front airbag sensors
●The curtain shield and rear side airbag sensors
●The side and curtain shield airbag sensors
●The front passenger occupant classification ECU
●“AIR BAG ON” and “AIR BAG OFF” indicator lights
●The pressure sensor
●The belt tension sensor
●The seat belt buckle switches
●The driver’s seat position sensor
●The inflators
●The warning light
●The interconnecting wiring and power sources
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level. Pushing the tire
pressure warning reset switch does not turn off the tire pressure warning light.
GS_U_G.book Page 511 Monday, April 27, 2009 10:50 AM

5
When trouble arises
519
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Wa r n i n g m e s s a g eDetails
(Flashing)
(If equipped)
Malfunction in the radar cruise control system. Stop the vehicle in a safe place. Turn the “ENGINE
START STOP” switch to OFF and then to IGNITION
ON mode again to reset the cruise control system.
Malfunction in the charging system.
Malfunction in the power steering system.
Malfunction in the brake system.
Malfunction in the ABS.
GS_U_G.book Page 519 Monday, April 27, 2009 10:50 AM

5
When trouble arises
523
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Wa r n i n g m e s s a g eDetailsCorrection procedure
The washer fluid level is
low.Add washer fluid.
The engine oil level is low.Check the engine oil level,
and add if necessary.
(U.S.A. only)
The engine oil should be
changed.
Check and change the
engine oil.
Comes on approximately
5000 miles (8000 km)
after the engine oil is
changed (and the oil
maintenance data has
been reset).
GS_U_G.book Page 523 Monday, April 27, 2009 10:50 AM

5
When trouble arises

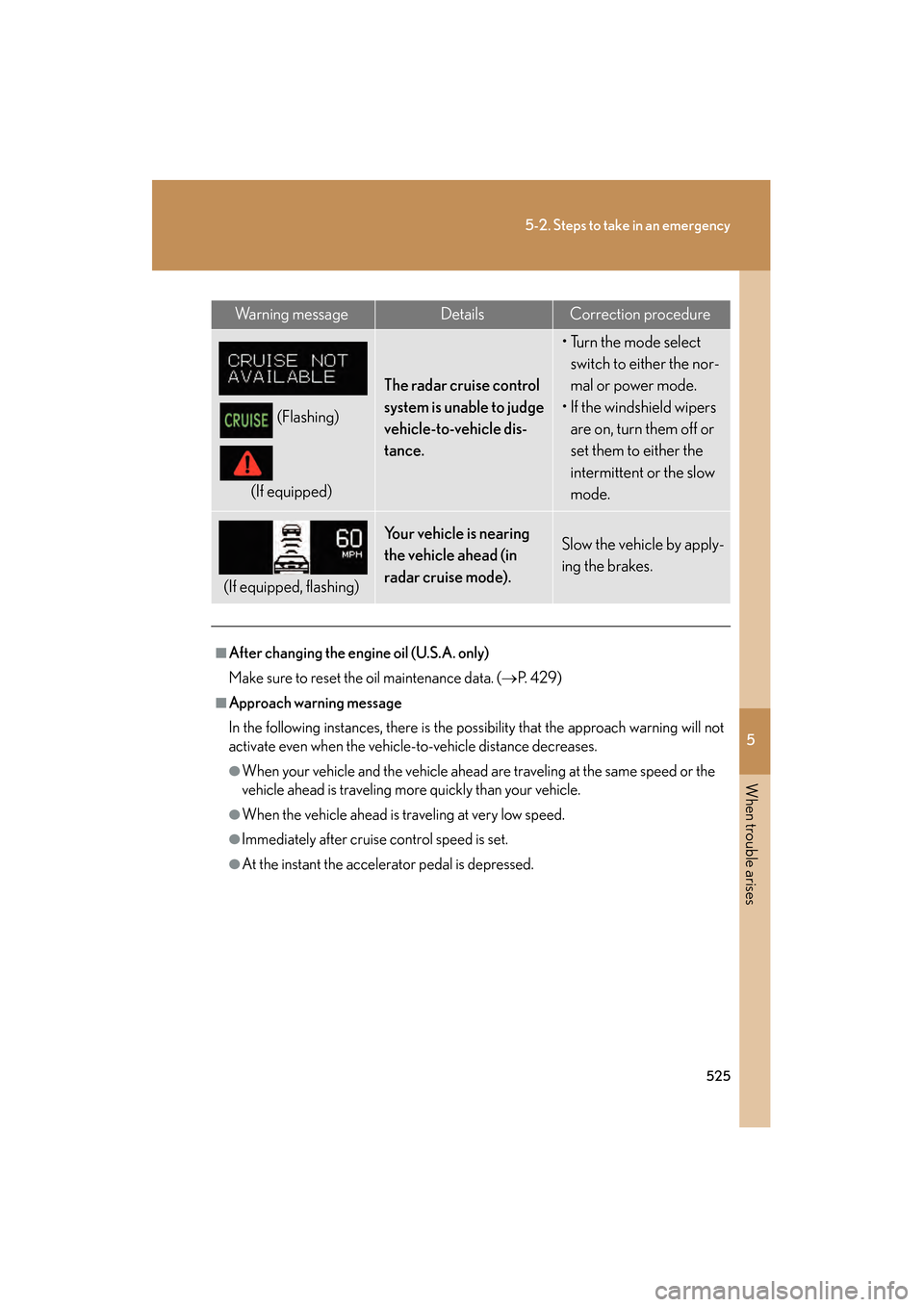

525
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Wa r n i n g m e s s a g eDetailsCorrection procedure
(Flashing)
(If equipped)
The radar cruise control
system is unable to judge
vehicle-to-vehicle dis-
tance.
• Turn the mode select switch to either the nor-
mal or power mode.
• If the windshield wipers are on, turn them off or
set them to either the
intermittent or the slow
mode.
(If equipped, flashing)
Yo u r v e h i c l e i s n e a r i n g
the vehicle ahead (in
radar cruise mode).Slow the vehicle by apply-
ing the brakes.
■After changing the engine oil (U.S.A. only)
Make sure to reset the oil maintenance data. ( →P. 4 2 9 )
■Approach warning message
In the following instances, there is the possibility that the approach warning will not
activate even when the vehicle-to-vehicle distance decreases.
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle.
●When the vehicle ahead is traveling at very low speed.
●Immediately after cruise control speed is set.
●At the instant the accelerator pedal is depressed.
GS_U_G.book Page 525 Monday, April 27, 2009 10:50 AM

5
When trouble arises
537
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Firmly tighten each nut two or
three times in the order shown in
the illustration.
Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools.
STEP4
■If you have a flat rear tire on a road covered with snow or ice
Install the compact spare tire on the front of the vehicle. Perform the following steps
and fit tire chains to the rear tires.
Replace a front tire with the compact spare tire.
Replace the flat rear tire with the tire removed from the front of the vehi-
cle.
Fit tire chains to the rear tires.
■After completing the tire change
The tire pressure warning system must be reset. ( →P. 4 3 9 )
STEP5
STEP1
STEP2
STEP3
GS_U_G.book Page 537 Monday, April 27, 2009 10:50 AM

610
Alphabetical index
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Smart access system with push-button start Antenna location..................................... 31
Entry function.......................................... 29
Starting the engine ..............................133
Spare tire Inflation pressure................................570
Storage location ................................. 532
Spark plug ................................................566
Specifications ........................................ 558
Speedometer........................................... 145
Steering wheel Adjustment................................................. 71
Audio switches ................................... 307
Steering wheel position memory.................................................. 56
Storage compartment ........................363
Storage feature......................................359
Stuck If your vehicle becomes stuck.... 555
Sun visors .................................................366
Switch “ENGINE START STOP” switch .....................................................133
Fog light switch .................................... 158
Ignition switch........................................133
Light switches ....................................... 155
Mode select switch............................ 138
Power door lock switch .................... 44
Power window switch ........................ 75
Tire pressure warning reset switch ....................................... 439
Tire pressure warning select switch..................... 441
Window lock switch ........................... 75
Wipers and washer switch ............ 159 Tachometer ..............................................145
Tail lights
Switch ........................................................ 155
Theft deterrent system Alarm.......................................................... 86
Immobilizer system ............................. 84
Theft prevention labels..........................88
Tire inflation pressure ......................... 570
Tire information Glossary ................................................ 582
Size ........................................................... 579
Tire identification number ............. 578
Uniform Tire Quality Grading ...580
Tires Chains....................................................... 218
Checking............................................... 438
Compact spare tire.......................... 532
If you have a flat tire ................ 531, 541
Inflation pressure ............................... 570
Information ........................................... 576
Replacing ................................................ 531
Rotating tires........................................ 438
Size ........................................................... 570
Snow tires.............................................. 220
Tire pressure warning system..... 438
Tools............................................................ 531
Total load capacity .................................216
Touch screen.......................................... 226
Towing Dinghy towing .....................................223
Emergency towing ............................497
Trailer towing ....................................... 222
Traction control.....................................200
Trip meter ..................................................145T
GS_U_G.book Page 610 Monday, April 27, 2009 10:50 AM
