2009 Lexus GS350 cruise control

176
2-4. Using other driving systems
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
■Vehicle-to-vehicle distance settings
Select a distance from the table below. Note that the distances shown correspond
to a vehicle speed of 50 mph (80 km/h). Vehicle-to-vehicle distance increases/
decreases in accordance with vehicle speed.
■Radar sensor and grille cover
Always keep the sensor and grille cover clean to ensure that the vehicle-to-vehicle
distance control operates properly. (Some obstructions, such as snow, ice or plastic
objects, cannot be detected by the obstruction sensor.)
Dynamic radar cruise control is canceled if an obstruction is detected.
■Approach warning
In the following instances, there is a po ssibility that the warnings will not occur:
●When the speed of the vehicle ahead ma tches or exceeds your vehicle’s speed
●When the vehicle ahead is traveling at an extremely slow speed
●Immediately after the cruise control speed has been set
●At the instant the accelerator is applied
Distance optionsVehicle-to-vehicle distance
LongApproximately 210 ft. (65 m)
MediumApproximately 150 f t. (45 m)
ShortApproximately 100 f t. (30 m)
Grille cover
Radar sensor
GS_U_G.book Page 176 Monday, April 27, 2009 10:50 AM

178
2-4. Using other driving systems
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
CAUTION
■Before using dynamic radar cruise control
Do not overly rely on vehicle-to-vehicle distance control.
Be aware of the set vehicle speed. If au tomatic deceleration/acceleration is not
appropriate, adjust the vehicle speed, as well as the distance between your vehicle
and vehicles ahead by applying the brakes, etc.
■To avoid operating the dynamic radar cruise control by mistake
Keep the “ON-OFF” button off when not in use.
■Situations unsuitable for dynamic radar cruise control
Do not use dynamic radar cruise contro l in any of the following situations.
Doing so may result in inappropriate co ntrol of speed and could cause serious or
fatal accident.
●In heavy traffic
●On roads with sharp bends
●On winding roads
●On slippery roads, such as thos e covered with rain, ice or snow
●On steep downhills, where there are sudden changes between sharp up and
down gradients
Vehicle speed may exceed the set speed when driving down a steep hill.
●At entrances to expressways
●When weather conditions are bad enough that they may prevent the sensors
from functioning correctly (f og, snow, sandstorm, etc.)
●When the approach warning buzzer can be heard often
GS_U_G.book Page 178 Monday, April 27, 2009 10:50 AM

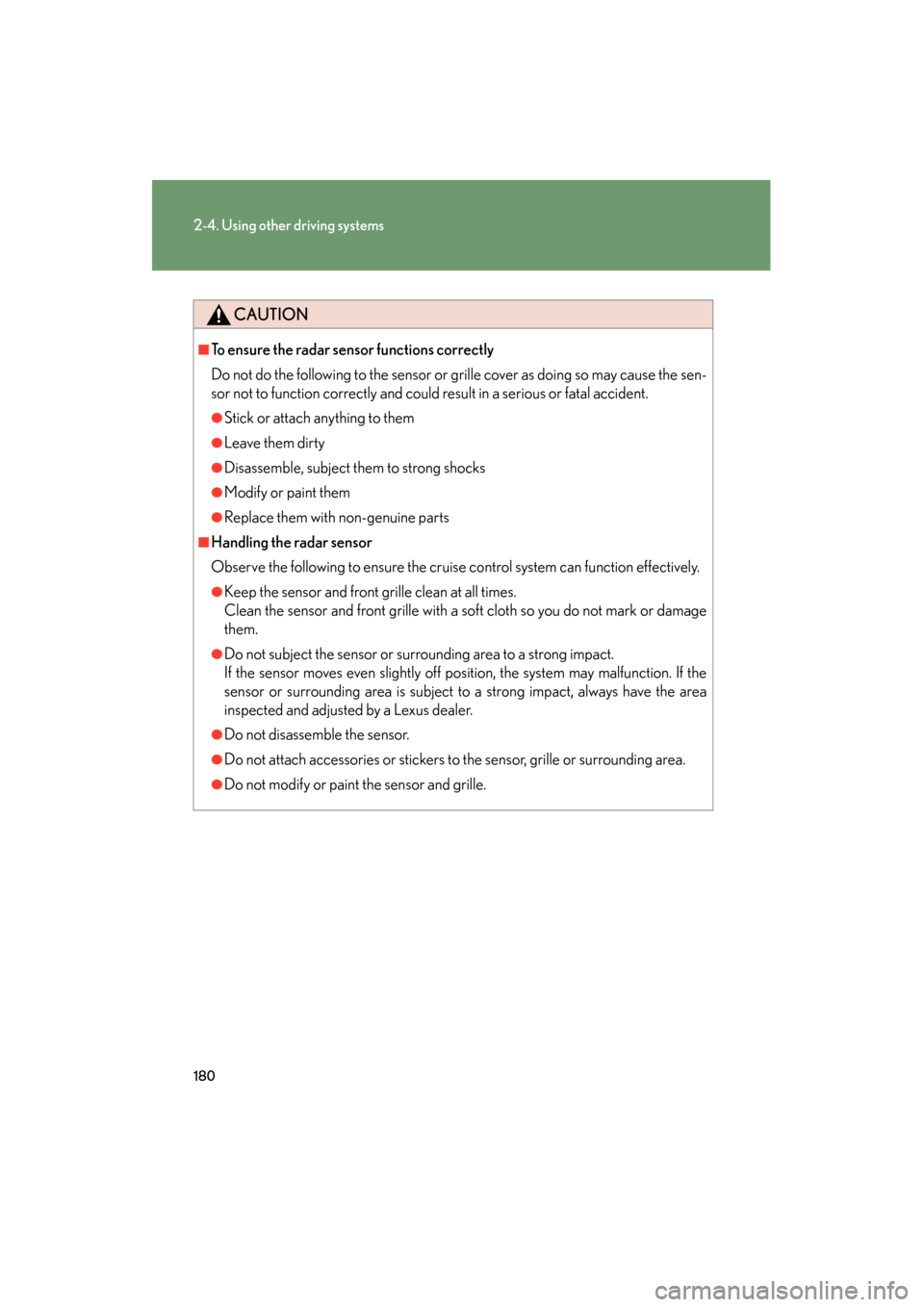

180
2-4. Using other driving systems
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
CAUTION
■To ensure the radar sensor functions correctly
Do not do the following to the sensor or grille cover as doing so may cause the sen-
sor not to function correctly and could result in a serious or fatal accident.
●Stick or attach anything to them
●Leave them dirty
●Disassemble, subject them to strong shocks
●Modify or paint them
●Replace them with non-genuine parts
■Handling the radar sensor
Observe the following to ensure the cruise control system can function effectively.
●Keep the sensor and front grille clean at all times.
Clean the sensor and front grille with a soft cloth so you do not mark or damage
them.
●Do not subject the sensor or surrounding area to a strong impact.
If the sensor moves even slightly off position, the system may malfunction. If the
sensor or surrounding area is subject to a strong impact, always have the area
inspected and adjusted by a Lexus dealer.
●Do not disassemble the sensor.
●Do not attach accessories or stickers to the sensor, grille or surrounding area.
●Do not modify or paint the sensor and grille.
GS_U_G.book Page 180 Monday, April 27, 2009 10:50 AM

477
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
FuseAmpereCircuit
8FUEL OPN10Fuel filler door opener, trunk lid
opener
9ECU-IG LH10
VDIM, electronically controlled
brake system, yaw rate and G sensor,
steering sensor, cruise control sys-
tem, dynamic radar cruise control
system, EPS, VGRS, rear view moni-
tor system, four-wheel drive system,
front controller, moon roof, rain sen-
sor
10FR S/HTR LH15Seat heaters and ventilators
11RR DOOR LH20
Rear left door control system (power
door lock system, door courtesy light,
power window)
12FR DOOR LH20
Front left door control system (power
door lock system, power rear view
mirror control system, door courtesy
light, outside rear view mirror heater,
power window)
13RAD NO.310Audio system
14H-LP LVL7. 5AFS, automatic headlight leveling
control system
GS_U_G.book Page 477 Monday, April 27, 2009 10:50 AM

5
When trouble arises
519
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Wa r n i n g m e s s a g eDetails
(Flashing)
(If equipped)
Malfunction in the radar cruise control system. Stop the vehicle in a safe place. Turn the “ENGINE
START STOP” switch to OFF and then to IGNITION
ON mode again to reset the cruise control system.
Malfunction in the charging system.
Malfunction in the power steering system.
Malfunction in the brake system.
Malfunction in the ABS.
GS_U_G.book Page 519 Monday, April 27, 2009 10:50 AM

524
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Wa r n i n g m e s s a g eDetailsCorrection procedure
(If equipped)
Intuitive parking assist is
dirty or covered with ice.Clean the sensor.
(Flashing)
(If equipped)
The PCS is not currently
functional.
Clean the grille and the
sensor. This message appears
when the pre-collision
system is hot. In this case,
wait until the system
cools down.
(Flashing)
(If equipped)
The radar cruise control
sensor is dirty or covered
with ice.
Clean the sensor.
GS_U_G.book Page 524 Monday, April 27, 2009 10:50 AM

5
When trouble arises
525
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
Wa r n i n g m e s s a g eDetailsCorrection procedure
(Flashing)
(If equipped)
The radar cruise control
system is unable to judge
vehicle-to-vehicle dis-
tance.
• Turn the mode select switch to either the nor-
mal or power mode.
• If the windshield wipers are on, turn them off or
set them to either the
intermittent or the slow
mode.
(If equipped, flashing)
Yo u r v e h i c l e i s n e a r i n g
the vehicle ahead (in
radar cruise mode).Slow the vehicle by apply-
ing the brakes.
■After changing the engine oil (U.S.A. only)
Make sure to reset the oil maintenance data. ( →P. 4 2 9 )
■Approach warning message
In the following instances, there is the possibility that the approach warning will not
activate even when the vehicle-to-vehicle distance decreases.
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle.
●When the vehicle ahead is traveling at very low speed.
●Immediately after cruise control speed is set.
●At the instant the accelerator pedal is depressed.
GS_U_G.book Page 525 Monday, April 27, 2009 10:50 AM

5
When trouble arises
539
5-2. Steps to take in an emergency
GS_G_U (OM30B43U)
April 27, 2009 10:48 am
CAUTION
■When using the compact spare tire
●Remember that your spare tire is specifically designed for use with your vehicle.
Do not use your spare tire on another vehicle.
●Do not use two spare tires simultaneously.
●Replace the spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, deceleration and braking, as well as sharp cornering.
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to observe
this precaution may lead to an accident causing death or serious injury.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may
not operate correctly:
●ABS
●Brake assist
●Enhanced VSC
●TRAC
●EPS
●VGRS (GS460)
●VDIM
●Cruise control (if equipped)
●Dynamic radar cruise control (if equipped)
●Navigation system (if equipped)
●Intuitive parking assist (if equipped)
●Rear view monitor system (if equipped)
●Active stabilizer suspensi on system (if equipped)
●AVS (if equipped)
GS_U_G.book Page 539 Monday, April 27, 2009 10:50 AM
