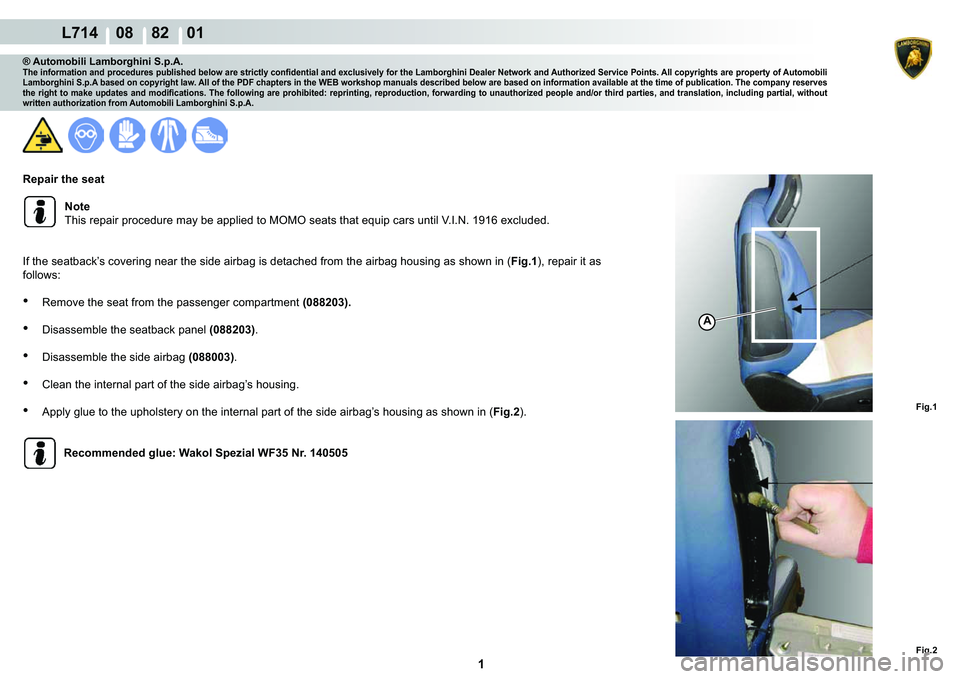

Repair the seat
1 R W H
This repair procedure may be applied to MOMO seats that equip cars until V.I.N. 1916 excluded.
If the seatback’s covering near the side airbag is detached from the airbag housing as shown in ( Fig.1), repair it as
follows:
• Remove the seat from the passenger compartment (088203).
• Disassemble the seatback panel (088203).
• Disassemble the side airbag (088003).
• Clean the internal part of the side airbag’s housing.
• Apply glue to the upholstery on the internal part of the side airbag’s housing as shown in ( Fig.2).
5 H F R P P H Q G H G J O X H : D N R O 6 S H ] L D O : ) 1 U
1
