Your vehicle at a glance22
1
2
3
4
5
6
7
8
9
INTERIOR OVERVIEW
1. Door lock/unlock button
2. Outside rearview mirror control switch*
3. Power window switches*
4. Master power door lock control*
5. Master power window control lock*
6. Vent controls
7. Instrument cluster
8. Steering wheel
9. Steering wheel tilt*
10. Trunk release button
11. Instrument panel illumination*
12. TCS button*
13. Hood release lever
14. Brake pedal
15. Accelerator pedal
16. Fuel filler lid release lever
* : if equipped
OLD006002N

1
2
3
4
5
6
7
8
9
Keys / 3-2
Remote keyless entry / 3-3
Immobilizer system / 3-6
Door locks / 3-8
Windows / 3-13
Seat / 3-16
Safety belts / 3-27
Air bag - supplemental restraint system / 3-50
Trunk / 3-69
Hood / 3-71
Fuel filler lid / 3-73
Mirrors / 3-76
Interior lights / 3-80
Storage compartment / 3-81
Interior features / 3-83
Sunroof / 3-87
Luggage net / 3-90
Antenna / 3-91
Audio system / 3-92
Knowing your vehicle

Knowing your vehicle23
1
2
3
4
5
6
7
8
9
The key code number is stamped on
the plate attached to the key set.
Should you lose your keys, this num-
ber will enable an authorized Kia
Dealer to duplicate the keys easily.
Remove the plate and store it in a
safe place. Also, record the code
number and keep it in a safe and
handy place, but not in the vehicle.
Key operationsMaster keyUsed to start the engine, lock and
unlock the doors, and open the trunk
(if equipped).
KEYS
OUN046100L
OUN026060
WARNING
- Ignition key
Leaving children unattended in
a vehicle with the ignition key is
dangerous even if the key is not
in the ignition. Children copy
adults and they could place the
key in the ignition. The ignition
key would enable children to
operate power windows or other
controls, or even make the vehi-
cle move, which could result in
serious bodily injury or even
death. Never leave the keys in
your vehicle with unsupervised
children.
WARNING
Use only Kia original parts for
the ignition key in your vehicle.
If an aftermarket key is used, the
ignition switch may not return
to ON after START. If this hap-
pens, the starter will continue to
operate causing damage to the
starter motor and possible fire
due to excessive current in the
wiring.

33
1
2
3
4
5
6
7
8
9
Knowing your vehicle
(1) Lock button
(2) Unlock button
(3) Panic button
(4) Trunk lid open button
Lock (1)All doors are locked and the hazard
lamp flash once if the lock button is
pressed.Unlock (2) Driver’s door is unlocked and the
hazard lamp will flash twice if the
unlock button is pressed once. All
doors are unlocked if the unlock but-
ton is pressed twice within 4 sec-
onds.
After depressing this button, the
doors will be locked automatically
unless you open them within 30 sec-
onds.
Panic (3) (if equipped)The horn sounds and hazard lamp
will flash for about 27 seconds if this
button is pressed for more than 0.5
seconds.
To stop the panic operation, press
any button except panic on the trans-
mitter.Trunk lid open (4) (if equipped)The trunk lid opens if this button is
pressed for more than 0.5 seconds.
REMOTE KEYLESS ENTRY (IF EQUIPPED)
OLD027001
Type AType BOLD027002

Knowing your vehicle42
3
1
2
3
4
5
6
7
8
9

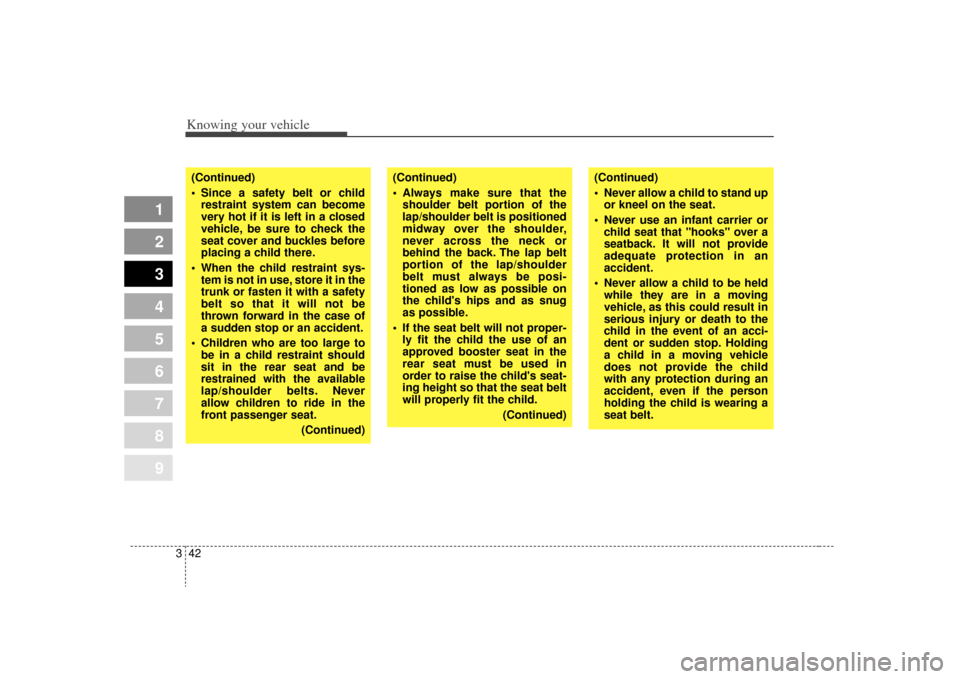

(Continued)
Always make sure that the
shoulder belt portion of the
lap/shoulder belt is positioned
midway over the shoulder,
never across the neck or
behind the back. The lap belt
portion of the lap/shoulder
belt must always be posi-
tioned as low as possible on
the child's hips and as snug
as possible.
If the seat belt will not proper- ly fit the child the use of an
approved booster seat in the
rear seat must be used in
order to raise the child's seat-
ing height so that the seat belt
will properly fit the child.
(Continued)
(Continued)
Never allow a child to stand upor kneel on the seat.
Never use an infant carrier or child seat that "hooks" over a
seatback. It will not provide
adequate protection in an
accident.
Never allow a child to be held while they are in a moving
vehicle, as this could result in
serious injury or death to the
child in the event of an acci-
dent or sudden stop. Holding
a child in a moving vehicle
does not provide the child
with any protection during an
accident, even if the person
holding the child is wearing a
seat belt.
(Continued)
Since a safety belt or childrestraint system can become
very hot if it is left in a closed
vehicle, be sure to check the
seat cover and buckles before
placing a child there.
When the child restraint sys- tem is not in use, store it in the
trunk or fasten it with a safety
belt so that it will not be
thrown forward in the case of
a sudden stop or an accident.
Children who are too large to be in a child restraint should
sit in the rear seat and be
restrained with the available
lap/shoulder belts. Never
allow children to ride in the
front passenger seat.
(Continued)

369
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Outside the vehicle To open the trunk, insert the keyinto the lock and turn it clockwise
(1 ).
To close the trunk, use both hands to push the trunk lid down. Check
to see if the trunk is completely
shut.
Trunk can be opened with transmit- ter (if equipped).
Trunk room lampTrunk room lamp turns on when the
trunk is opened. It remains on until
the trunk is securely closed.
Inside the vehicleTo open the trunk from inside the
vehicle push trunk lid release switch.
TRUNK (IF EQUIPPED)
1LDA2015
OLD026014
CAUTION
Make sure to close the trunksecurely. If it remains openwhile engine is not running, itmay cause battery dischargebecause trunk room lampremains on.
OLD026016N

Knowing your vehicle70
3
1
2
3
4
5
6
7
8
9

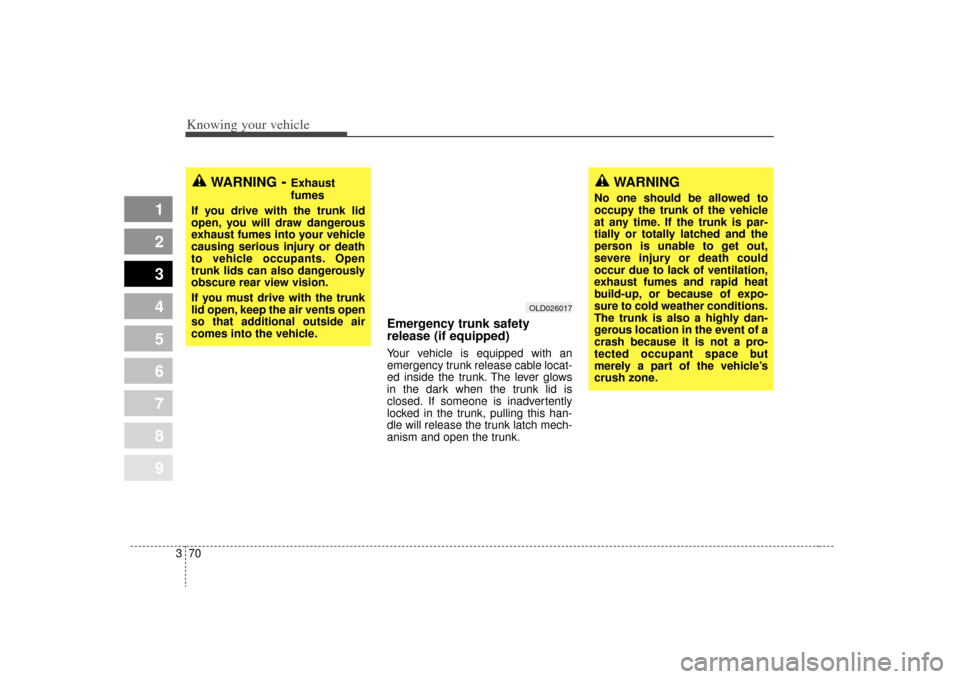

Emergency trunk safety
release (if equipped)Your vehicle is equipped with an
emergency trunk release cable locat-
ed inside the trunk. The lever glows
in the dark when the trunk lid is
closed. If someone is inadvertently
locked in the trunk, pulling this han-
dle will release the trunk latch mech-
anism and open the trunk.
WARNING
- Exhaust
fumes
If you drive with the trunk lid
open, you will draw dangerous
exhaust fumes into your vehicle
causing serious injury or death
to vehicle occupants. Open
trunk lids can also dangerously
obscure rear view vision.
If you must drive with the trunk
lid open, keep the air vents open
so that additional outside air
comes into the vehicle.
OLD026017
WARNING
No one should be allowed to
occupy the trunk of the vehicle
at any time. If the trunk is par-
tially or totally latched and the
person is unable to get out,
severe injury or death could
occur due to lack of ventilation,
exhaust fumes and rapid heat
build-up, or because of expo-
sure to cold weather conditions.
The trunk is also a highly dan-
gerous location in the event of a
crash because it is not a pro-
tected occupant space but
merely a part of the vehicle’s
crush zone.

371
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Opening the hood:1. Pull the release lever on the lowerleft side of the instrument panel to
unlatch the hood. The hood should
pop open slightly. 2. Go to the front of the vehicle,
slightly raise the hood, push the
secondary latch ( 1) inside of the
hood center and lift ( 2) the hood.
WARNING
If a person is locked in the
trunk, they can pull the emer-
gency release to open the
trunk lid.
We recommend that cars be kept locked and keys be kept
out of the reach of children,
and that parents teach their
children about the dangers of
playing in trunks.
HOOD
1LDA2020
OLD026023
