2009 INFINITI QX56 engine

PG
GROUNDPG-37
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N

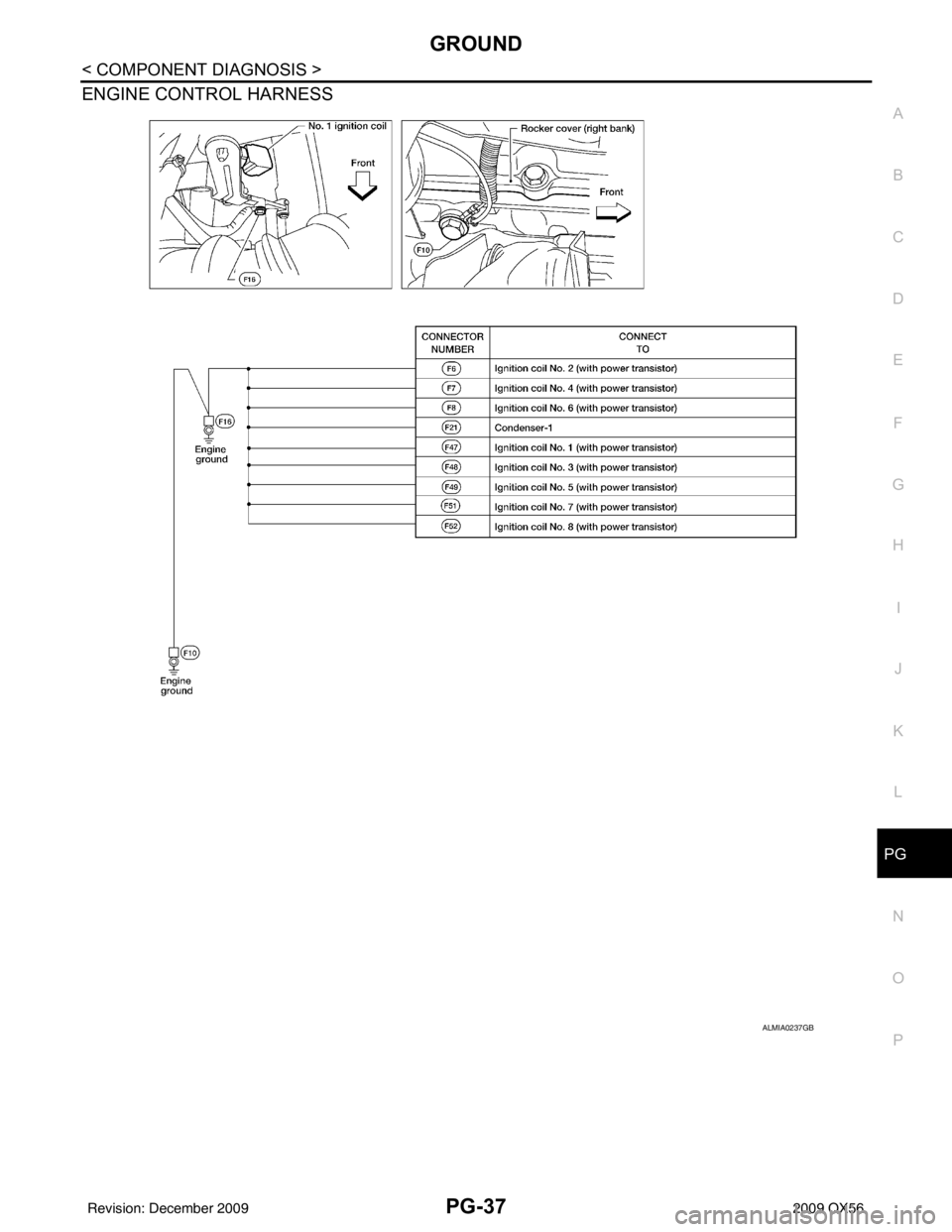

ENGINE CONTROL HARNESS
ALMIA0237GB
Revision: December 20092009 QX56

PG
HARNESSPG-41
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
HARNESS
Harness LayoutINFOID:0000000003776571
HOW TO IDENTIFY TYPE A AND TYPE B MAIN HARNESSES
The differences between Type A and type B harnesses are minimal and mainly consist of differences in the cir-
cuit connections to the fuse block (J/B).

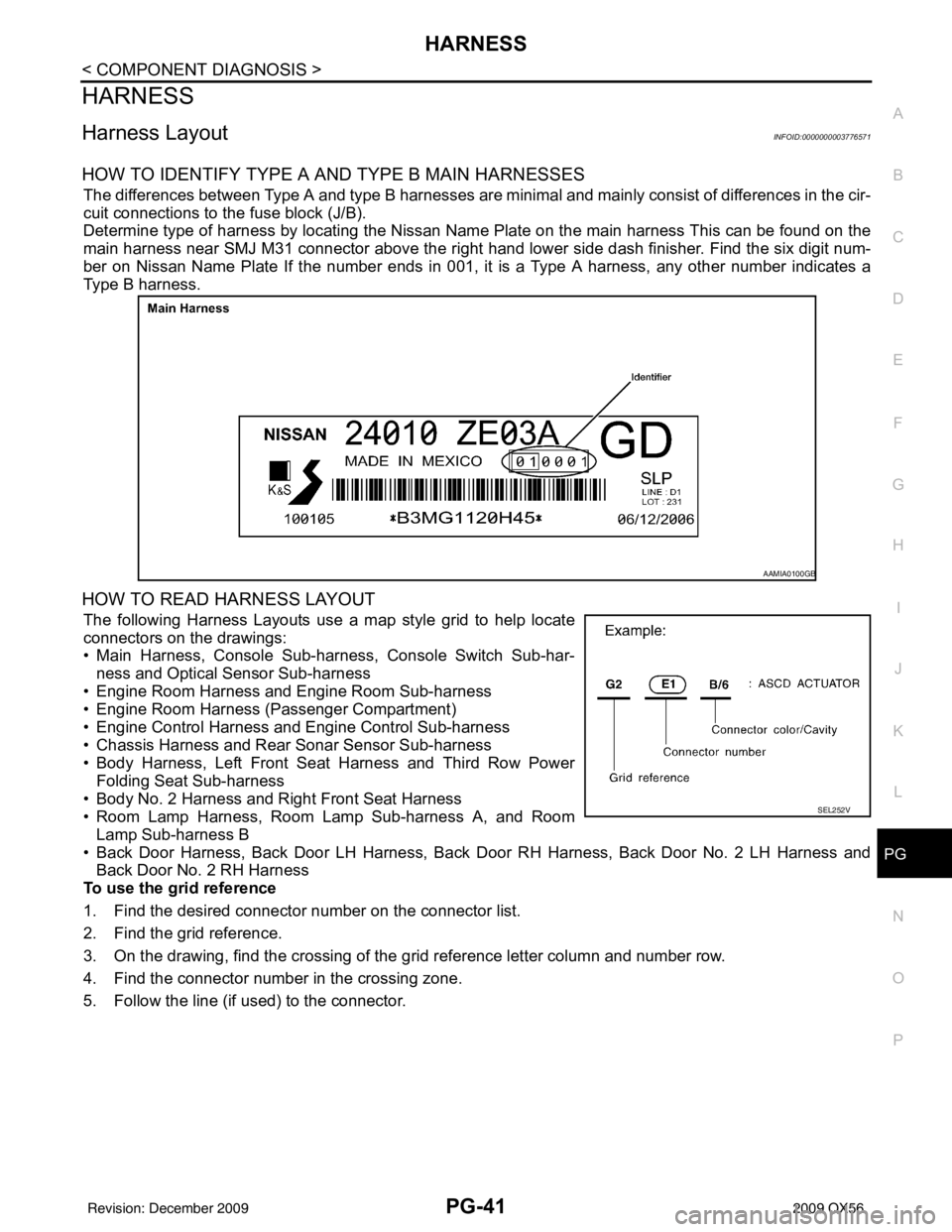

Determine type of harness by locating the Nissan Name Plate on the main harness This can be found on the
main harness near SMJ M31 connector above the right hand
lower side dash finisher. Find the six digit num-
ber on Nissan Name Plate If the number ends in 001, it is a Type A harness, any other number indicates a
Type B harness.
HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate
connectors on the drawings:
• Main Harness, Console Sub-harness, Console Switch Sub-har-
ness and Optical Sensor Sub-harness
• Engine Room Harness and Engine Room Sub-harness
• Engine Room Harness (Passenger Compartment)
• Engine Control Harness and Engine Control Sub-harness
• Chassis Harness and Rear Sonar Sensor Sub-harness
• Body Harness, Left Front Seat Harness and Third Row Power Folding Seat Sub-harness
• Body No. 2 Harness and Right Front Seat Harness
• Room Lamp Harness, Room Lamp Sub-harness A, and Room
Lamp Sub-harness B
• Back Door Harness, Back Door LH Harness, Back Door RH Harness, Back Door No. 2 LH Harness and
Back Door No. 2 RH Harness
To use the grid reference
1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
AAMIA0100GB
SEL252V
Revision: December 20092009 QX56

PG-46
< COMPONENT DIAGNOSIS >
HARNESS

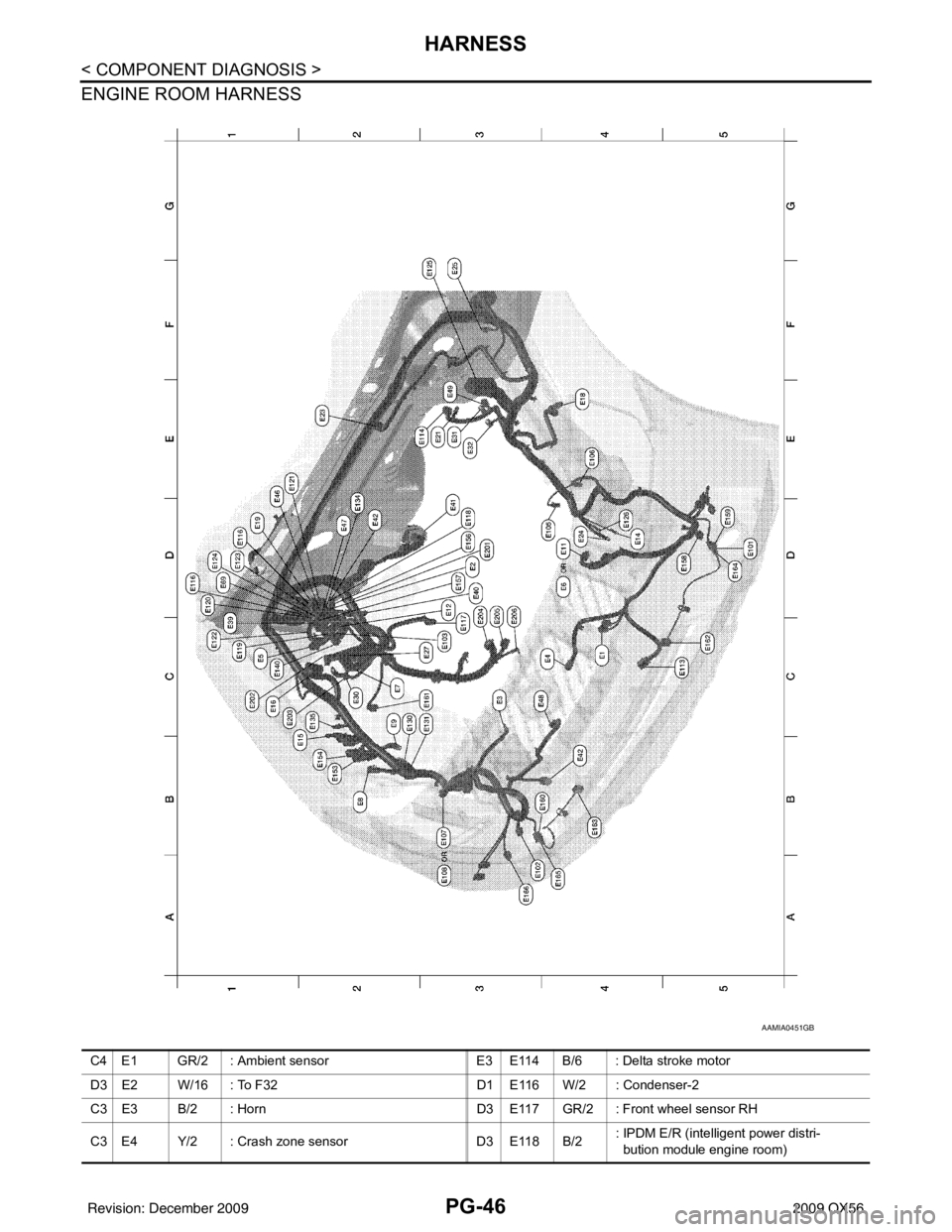

ENGINE ROOM HARNESS
AAMIA0451GB
C4 E1 GR/2 : Ambient sensorE3 E114 B/6 : Delta stroke motor
D3 E2 W/16 : To F32 D1 E116 W/2 : Condenser-2
C3 E3 B/2 : Horn D3 E117 GR/2 : Front wheel sensor RH
C3 E4 Y/2 : Crash zone sensor D3 E118 B/2: IPDM E/R (intelligent power distri-
bution module engine room)
Revision: December 20092009 QX56

PG
HARNESSPG-47
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
C1 E5 W/24 : To F14
C1 E119 W/16: IPDM E/R (intelligent power distri-
bution module engine room)
C2 E7 GR/2 : Fusible link box (battery) D1 E120 W/6: IPDM E/R (intelligent power distri-
bution module engine room)
C2 E9 — : Body ground E1 E121 BR/12: IPDM E/R (intelligent power distri-
bution module engine room)
D4 E6 B/8 : Front combination lamp LH (without
daytime light system) C1 E122 W/12: IPDM E/R (intelligent power distri-
bution module engine room)
B2 E8 W/2 : Hood switch C1 E123 BR/8: IPDM E/R (intelligent power distri-
bution module engine room)
D4 E11 B/8 : Front combination lamp LH (with
daytime light system) D1 E124 B/6
: IPDM E/R (intelligent power distri-
bution module engine room)
D3 E12 B/5 : Stop lamp relay F3 E125 B/47: ABS actuator and electric unit
(control unit)
D4 E14 — : Body ground D4 E126 — : Body ground
C2 E15 — : Body ground C2 E130 W/2 : Compressor motor relay
C1 E16 B/40 : ECM C3 E131 W/2 : Compressor motor relay
E4 E18 GR/2 : Front wheel sensor LH D2 E134 GR/6 : ICC brake hold relay
D1 E19 W/16 : To F33 C2 E135 GR/2 : Transfer dropping resistor
E3 E21 GR/2 : Brake fluid level swit chC1 E140 BR/6 : Trailer tow relay-2
E2 E23 GR/6 : Front wiper motor B2 E153 W/2 : Transfer motor relay
D4 E24 — : Body ground B2 E154 W/2 : Transfer motor relay
F3 E25 BR/3 : Intelligent key warning buzzer D3 E156 L/4 : Trailer turn relay LH
C3 E27 BR/2 : Fusible link box (battery) D3 E157 L/4 : Trailer turn relay RH
C2 E30 /1 : Fusible link box (battery) D5 E158 B/3 : Front sonar sensor LH outer
E3 E31 B/3 : Front pressure sensor D5 E159 GR/3 : To E164
E3 E32 B/3 : Rear pressure sensor B4 E160 GR/3 : To E165
E1 E39 W/2 : To F34 C3 E161 B/3 : Battery current sensor
D3 E40 B/3 : To E201 C5 E162 B/3 : Front sonar sensor LH inner
D3 E41 SMJ : To C1 B4 E163 B/3 : Front sonar sensor RH inner
D2 E42 B/6 : ICC sensor D5 E164 GR/3 : To E159
E1 E46 B/5 : Transfer shift high relay A4 E165 GR/3 : To E160
D2 E47 B/5 : Transfer shift low relay A3 E166 B/3 : Front sonar sensor RH outer
C4 E48 B/3 : Refrigerant pressure sensor Engine room sub-harness
E3 E49 B/6 : Active booster D3 E201 B/3 : To E40
D1 E69 L/4 : Transfer shut off relay C1 E202 /1 : Fusible link box (battery)
D5 E101 B/3 : Front turn-fog lamp LH C2 E203 — : Engine ground
A4 E102 B/3 : Front turn-fog lamp RH C3 E204 /1 : Generator
C3 E103 B/5 : Daytime light relay C3 E205 B/3 : Generator
D4 E105 BR/2 : Front and rear washer motor C3 E206 /1 : Generator
E4 E106 BR/2 : Washer fluid level switch
B3 E107 B/8 : Front combination lamp RH (without
daytime light system)
A3 E108 B/6 : Front combination lamp RH (without
daytime light system)
C5 E113 W/2 : Cooling fan motor
Revision: December 20092009 QX56

PG-48
< COMPONENT DIAGNOSIS >
HARNESS

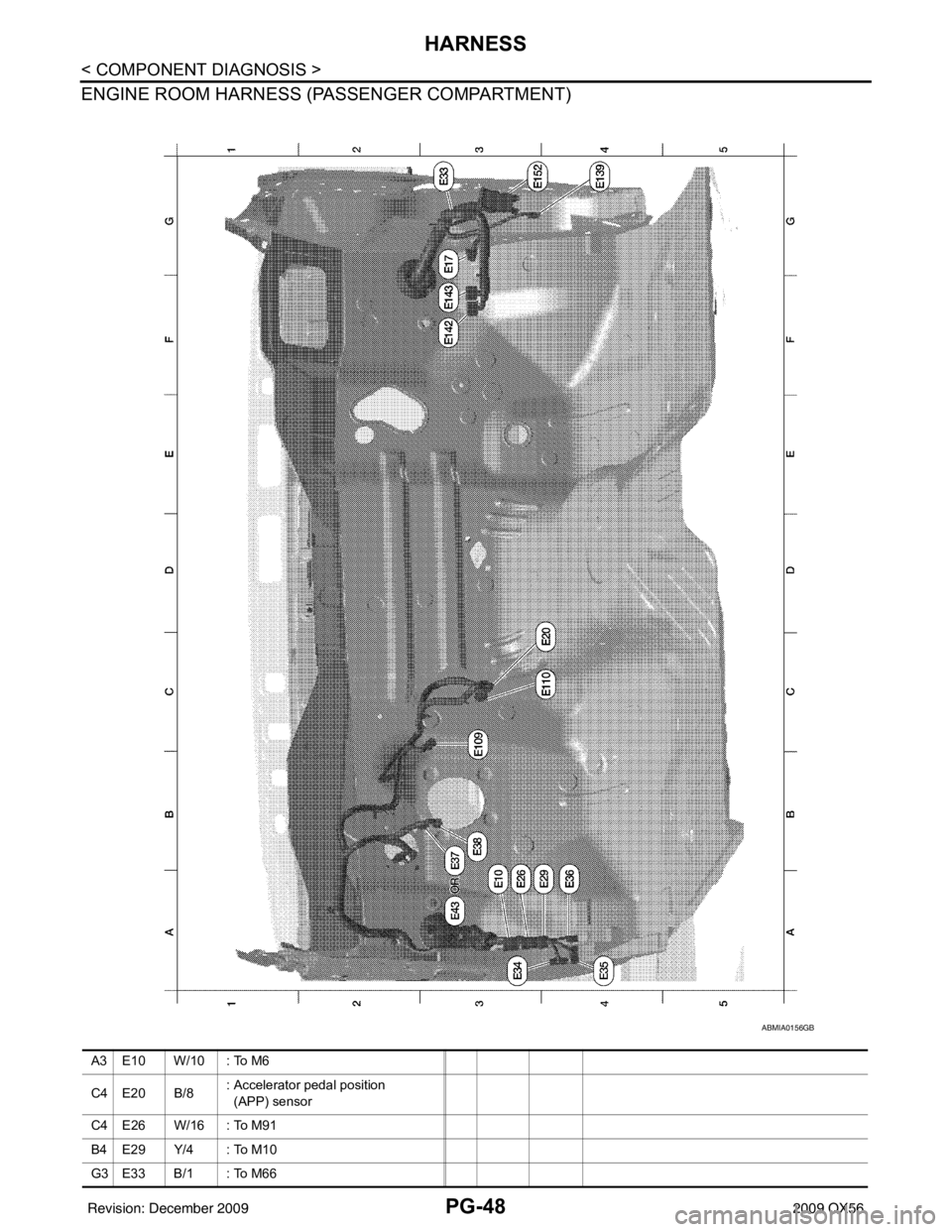

ENGINE ROOM HARNESS (PASSENGER COMPARTMENT)
ABMIA0156GB
A3 E10 W/10 : To M6
C4 E20 B/8: Accelerator pedal position
(APP) sensor
C4 E26 W/16 : To M91
B4 E29 Y/4 : To M10
G3 E33 B/1 : To M66
Revision: December 20092009 QX56

PG-50
< COMPONENT DIAGNOSIS >
HARNESS

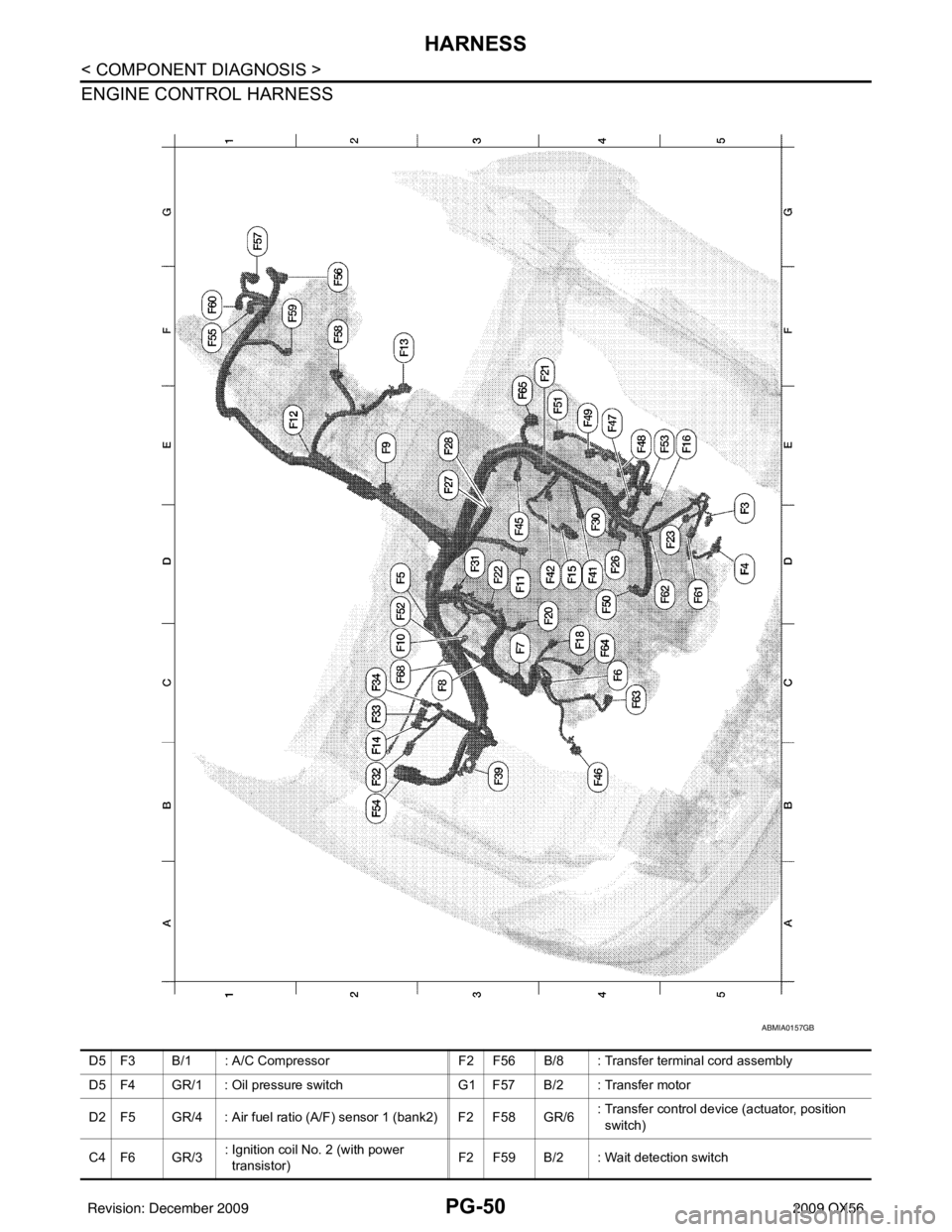

ENGINE CONTROL HARNESS
ABMIA0157GB
D5 F3 B/1 : A/C CompressorF2 F56 B/8 : Transfer terminal cord assembly
D5 F4 GR/1 : Oil pressure switch G1 F57 B/2 : Transfer motor
D2 F5 GR/4 : Air fuel ratio (A/F) sensor 1 (bank2) F2 F58 GR/6 : Transfer control device (actuator, position
switch)
C4 F6 GR/3 : Ignition coil No. 2 (with power
transistor) F2 F59 B/2 : Wait detection switch
Revision: December 20092009 QX56

PG
HARNESSPG-51
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
C3 F7 GR/3
: Ignition coil No. 4 (with power
transistor) F1 F60 GR/2 : Neutral-4LO switch
C3 F8 GR/3 : Ignition coil No. 6 (with power
transistor)
D5 F61 G/2: Intake valve timing control solenoid valve
(bank 1)
E2 F9 G/10 : A/T assembly D5 F62 B/3: Intake valve timing control position sensor
(bank 1)
C3 F10 — : Engine ground C4 F63 G/2: Intake valve timing control solenoid valve
(bank 2)
D3 F11 B/3 : Crankshaft position sensor (POS) C4 F64 B/3 : Intake valve timing control position sensor
(bank 2)
E1 F12 G/4 : Heated oxygen sensor 2 (bank2) E3 F65 GR/4 : Air fuel ratio (A/F) sensor 1 (bank1)
F2 F13 G/4 : Heated oxygen sensor 2 (bank1) C2 F68 GR/2 : Water valve
B2 F14 W/24 : To E5 Engine control sub-harness
D4 F15 GR/2 : EVAP canister purge volume control
solenoid valve C3 F101 B/6 : To F26
E5 F16 — : Engine ground C3 F102 B/2 : Knock sensor (bank 1)
C4 F18 GR/2 : Fuel injector No. 2 C3 F103 GR/2 : Engine coolant temperature sensor
D4 F20 GR/2 : Fuel injector No. 4 C3 F104 B/2 : Knock sensor (bank 2)
F4 F21 GR/2 : Condenser-1
D3 F22 GR/2 : Fuel injector No. 6
D4 F23 B/3 : Camshaft position sensor (phase)
D4 F26 B/6 : To F101
E3 F27 /1 : Starter motor
E3 F28 GR/1 : Starter motor
D4 F30 GR/2 : Fuel injector No. 1
D3 F31 GR/2 : Fuel injector No. 8
B2 F32 W/16 : To E2
C2 F33 W/16 : To E19
C2 F34 W/2 : To E39
B3 F39 /1 : Fusible link box (battery)
D4 F41 GR/2 : Fuel injector No. 3
D4 F42 GR/2 : Fuel injector No. 5
D3 F45 GR/2 : Fuel injector No. 7
B4 F46 B/3 : Power steering pressure sensor
E4 F47 GR/3 : Ignition coil No. 1 (with power
transistor)
E4 F48 GR/3 : Ignition coil No. 3 (with power
transistor)
E4 F49 GR/3 : Ignition coil No. 5 (with power
transistor)
D4 F50 W/6 : Electric throttle control actuator
E4 F51 GR/3 : Ignition coil No. 7 (with power
transistor)
D2 F52 GR/3 : Ignition coil No. 8 (with power
transistor)
E5 F53 B/6 : Mass air flow sensor
B2 F54 B/81 : ECM
F1 F55 B/2 : ATP switch
Revision: December 20092009 QX56

PG-64
< COMPONENT DIAGNOSIS >
ELECTRICAL UNITS LOCATION
ELECTRICAL UNITS LOCATION
Electrical Units LocationINFOID:0000000003776572

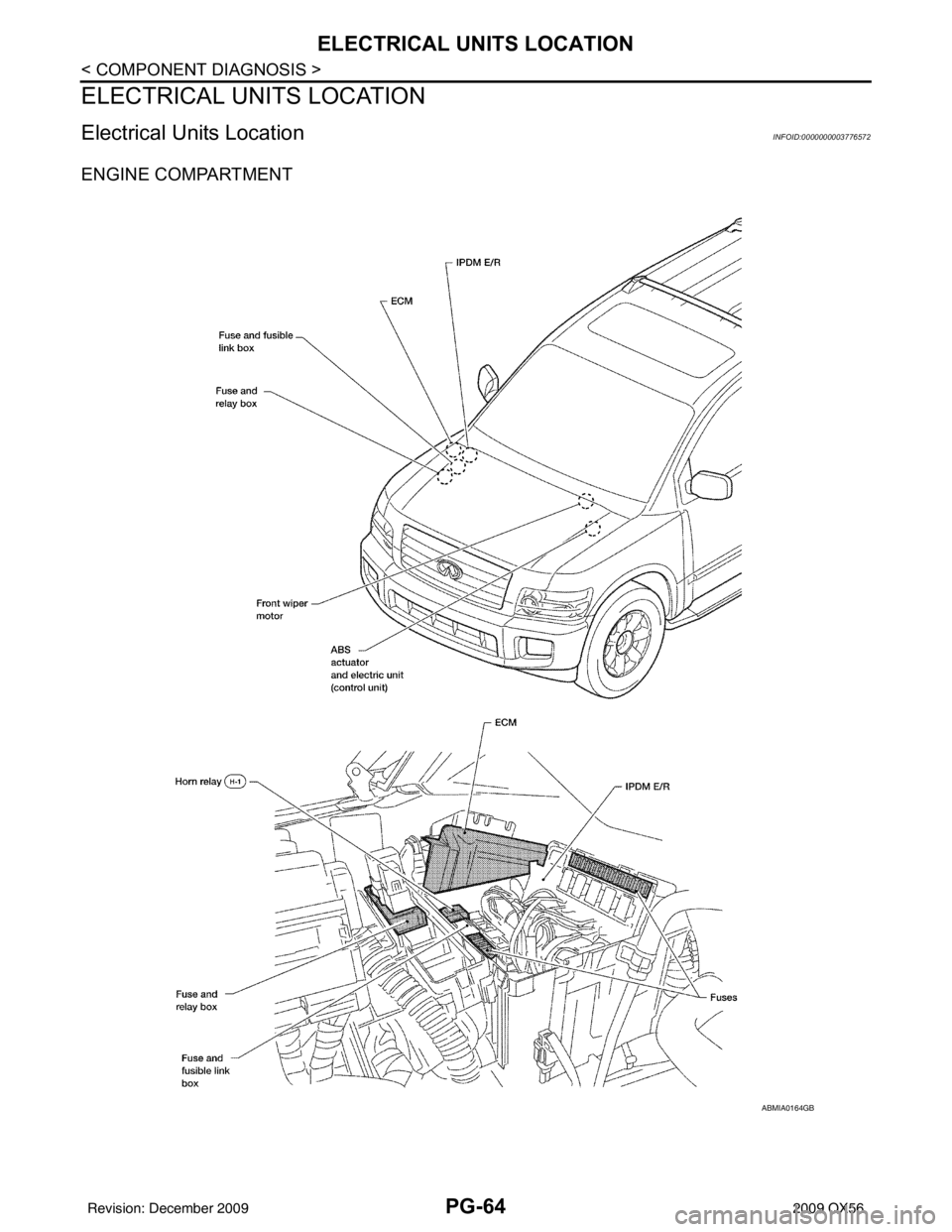

ENGINE COMPARTMENT
ABMIA0164GB
Revision: December 20092009 QX56
