CONTENTS
WIPER & WASHER
BASIC INSPECTION ....... .............................3
DIAGNOSIS AND REPAIR WORKFLOW ..... .....3
Work Flow ........................................................... ......3
FUNCTION DIAGNOSIS ...............................4
FRONT WIPER AND WASHER SYSTEM ..... .....4
System Diagram .................................................. ......4
System Description ...................................................4
Component Parts Location ........................................7
Component Description ............................................7
REAR WIPER AND WASHER SYSTEM ............8
System Diagram .................................................. ......8
System Description ...................................................8
Component Parts Location ......................................10
Component Description ..........................................10
DIAGNOSIS SYSTEM (BCM) ............................11
COMMON ITEM ..................................................... ....11
COMMON ITEM : CONSULT-III Function (BCM -
COMMON ITEM) .....................................................
11
WIPER ................................................................... ....11
WIPER : CONSULT-III Function (BCM - WIPER) ....11
DIAGNOSIS SYSTEM (IPDM E/R) .....................13
Diagnosis Description ......................................... ....13
CONSULT - III Function (IPDM E/R) .......................15
COMPONENT DIAGNOSIS .........................18
WIPER AND WASHER FUSE ........................ ....18
Description .......................................................... ....18
Diagnosis Procedure ...............................................18
FRONT WIPER MOTOR LO CIRCUIT ...............19
Component Function Check ................................ ....19
Diagnosis Procedure ...............................................19
FRONT WIPER MOTOR HI CIRCUIT ................21
Component Function Check ................................ ....21
Diagnosis Procedure ...............................................21
FRONT WIPER AUTO STOP SIGNAL CIR-
CUIT ..................................................................
23
Component Function Check ....................................23
Diagnosis Procedure ...............................................23
FRONT WIPER MOTOR GROUND CIRCUIT ...25
Diagnosis Procedure ...............................................25
WASHER SWITCH ............................................26
Description ...............................................................26
Component Inspection .............................................26
REAR WIPER MOTOR CIRCUIT ......................28
Component Function Check ....................................28
Diagnosis Procedure ...............................................28
REAR WIPER AUTO STOP SIGNAL CIRCUIT
...
30
Component Function Check ................................ ....30
Diagnosis Procedure ...............................................30
FRONT WIPER AND WASHER SYSTEM ........31
Wiring Diagram ........................................................31
REAR WIPER AND WASHER SYSTEM ..........35
Wiring Diagram ........................................................35
ECU DIAGNOSIS .........................................41
BCM (BODY CONTROL MODULE) .................41
Reference Value .................................................. ....41
Terminal Layout .......................................................43
Physical Values ................................................... ....43
Wiring Diagram ........................................................49
IPDM E/R (INTELLIGENT POWER DISTRI-
BUTION MODULE ENGINE ROOM) ................
54
Reference Value ......................................................54
Terminal Layout .......................................................56
Physical Values ................................................... ....56
Revision: December 20092009 QX56

WW-2
Wiring Diagram .......................................................61
Fail Safe .................................................................64
SYMPTOM DIAGNOSIS .............................66
WIPER AND WASHER SYSTEM SYMPTOMS
...
66
Symptom Table ................................................... ...66
NORMAL OPERATING CONDITION ................69
Description ........................................................... ...69
FRONT WIPER DOES NOT OPERATE ............70
Description ........................................................... ...70
Diagnosis Procedure ..............................................70
PRECAUTION .............................................72
PRECAUTION ... .............................................. ...72
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .............................................................. ...
72
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ..................................
72
ON-VEHICLE REPAIR ................................74
FRONT WIPER ARM ...................................... ...74
Front Wiper Arms ................................................ ...74
FRONT WIPER DRIVE ASSEMBLY .................75
Wiper Motor and Linkage ..................................... ...75
FRONT WASHER TUBE ...................................76
Washer Tube Layout ............................................ ...76
FRONT WASHER NOZZLE ..............................77
Washer Nozzle Adjustment .................................. ...77
WASHER TANK ................................................78
Washer Fluid Reservoir ..........................................78
FRONT WASHER PUMP ..................................79
Washer Motor ...................................................... ...79
FRONT WIPER AND WASHER SWITCH .........80
Wiper and Washer Switch .................................... ...80
REAR WIPER AND WASHER SYSTEM ...........81
Rear Wiper Arm ................................................... ...81
Rear Wiper Motor ....................................................81
Rear Washer Nozzle Adjustment ............................82
Rear Washer Tube Layout ......................................83
Rear Washer Nozzle ...............................................83
Rear Wiper and Washer Switch ..............................83
Washer Fluid Reservoir ....................................... ...84
Washer Motor .........................................................84
Revision: December 20092009 QX56

FRONT WIPER AND WASHER SYSTEMWW-31
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P

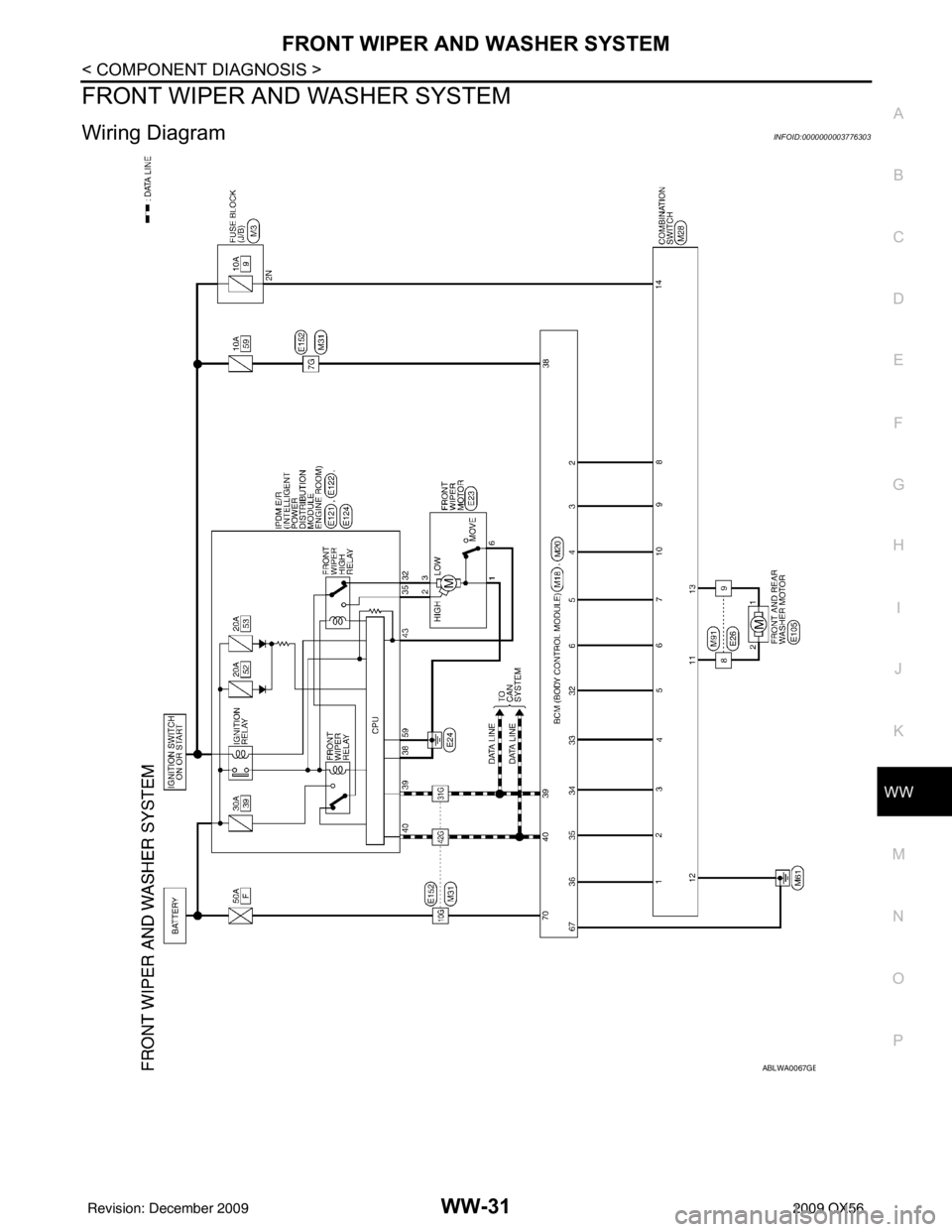

FRONT WIPER AND WASHER SYSTEM
Wiring DiagramINFOID:0000000003776303
ABLWA0067GB
Revision: December 20092009 QX56

REAR WIPER AND WASHER SYSTEMWW-35
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P

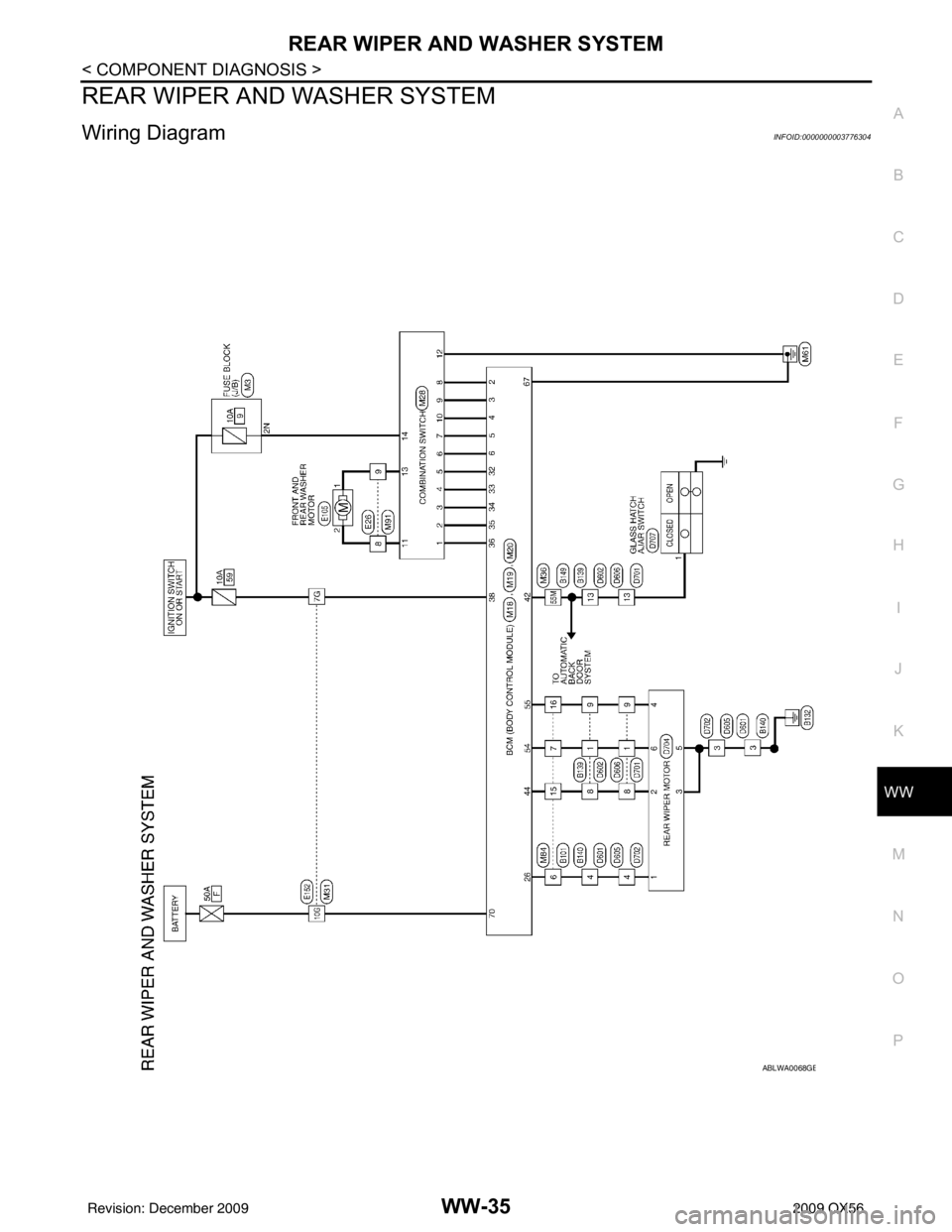

REAR WIPER AND WASHER SYSTEM
Wiring DiagramINFOID:0000000003776304
ABLWA0068GB
Revision: December 20092009 QX56

BCM (BODY CONTROL MODULE)WW-49
< ECU DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
Wiring DiagramINFOID:0000000004115477
AAMWA0236GB
Revision: December 20092009 QX56

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
WW-61
< ECU DIAGNOSIS >
C
D E
F
G H
I
J
K
M A
B
WW
N
O P
Wiring DiagramINFOID:0000000004291612
ABMWA0008GB
Revision: December 20092009 QX56

WW-72
< PRECAUTION >
PRECAUTION
PRECAUTION
PRECAUTION
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000005867715
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and w hether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery, and wait at least 3 minu tes before performing any service.
Precaution Necessary for Steering W heel Rotation After Battery Disconnect
INFOID:0000000005867716
NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-
TEM).
• Remove and install all control units after disconnecting both battery cables with the ignition knob in the
″LOCK ″ position.
• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.
If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery pow er is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables. NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC ″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be rotated.
4. Perform the necessary repair operation.
