EXIT ASSIST FUNCTION : Component Parts LocationINFOID:0000000004055687
Switch inputs
 Power seat switch
 Pedal adjusting switch
 ADP steering switch
 Door mirror remote control switch
 Set switch
 Seat memory switch OFF
(Not operated)
A/T selector lever P position
Item Request status
Order Input Output Control unit condition
1 Front door switch LH — Driver seat control unit receives front door switch LH signal (open)
from BCM via CAN communication.
2— Motors (seat sliding,
tilt)Driver seat control unit operates the seat sliding motor, which recog-
nizes that the front door LH is opened with ignition switch OFF. Driv-
er seat control unit then requests the operation of the tilt motor to the
automatic drive positioner control unit via UART communication.
The automatic drive positioner control unit operates the motor for a
constant amount.
ALJIA0347ZZ
Revision: December 20092009 QX56

ADP-28
< FUNCTION DIAGNOSIS >
DIAGNOSIS SYSTEM (DRIVER SEAT C/U)
DIAGNOSIS SYSTEM (DRIVER SEAT C/U)
Diagnosis DescriptionINFOID:0000000003775514
The auto drive positioner system can be checked and diagnosed for component operation with CONSULT-III.
DIAGNOSTIC MODE
CONSULT-III FunctionINFOID:0000000003775515
SELF-DIAGNOSIS RESULTS
Refer to ADP-127, "DTC Index".
DATA MONITOR
Diagnostic mode
[AUTO DRIVE POS.] Description
WORK SUPPORT Changes the setting of each function.
SELF-DIAG RESULTS Performs self-diagnosis for the auto drive positioner system and displays the results.
DATA MONITOR Displays input signals transmitted from various switches and sensors to driver seat con-
trol unit in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ACTIVE TEST Drive each output device.
ECU PART NUMBER Displays part numbers of driver seat control unit parts.
Monitor Item Unit Main
Signals Selection
From
Menu Contents
SET SW “ON/OFF” ××ON/OFF status judged from the setting switch signal.
MEMORY SW1 “ON/OFF” ××ON/OFF status judged from the seat memory switch 1 sig-
nal.
MEMORY SW2 “ON/OFF” ××ON/OFF status judged from the seat memory switch 2 sig-
nal.
SLIDE SW–FR “ON/OFF” ××ON/OFF status judged from the sliding switch (forward) sig-
nal.
SLIDE SW–RR “ON/OFF” ××ON/OFF status judged from the sliding switch (backward)
signal.
RECLN SW–FR “ON/OFF” ××ON/OFF status judged from the reclining switch (forward)
signal.
RECLN SW–RR “ON/OFF” ××ON/OFF status judged from the reclining switch (backward)
signal.
LIFT FR SW–UP “ON/OFF” ××ON/OFF status judged from the lifting switch front (up) sig-
nal.
LIFT FR SW–DN “ON/OFF” ××ON/OFF status judged from the lifting switch front (down)
signal.
LIFT RR SW–UP “ON/OFF” ××ON/OFF status judged from the lifting switch rear (up) sig-
nal.
LIFT RR SW–DN “ON/OFF” ××ON/OFF status judged from the lifting switch rear (down)
signal.
MIR CON SW–UP “ON/OFF” ××ON/OFF status judged from the mirror switch (up) signal.
MIR CON SW–DN “ON/OFF” ××ON/OFF status judged from the mirror switch (down) signal.
MIR CON SW–RH “ON/OFF” ××ON/OFF status judged from the door mirror remote control
switch (passenger side) signal.
MIR CON SW–LH “ON/OFF” ××ON/OFF status judged from the door mirror remote control
switch (driver
side) signal.
Revision: December 20092009 QX56

DIAGNOSIS SYSTEM (DRIVER SEAT C/U)ADP-29
< FUNCTION DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
ADP
N
O P
ACTIVE TEST
CAUTION:
When driving vehicle, do not perform active test.
MIR CHNG SW–R “ON/OFF” ××ON/OFF status judged from the door mirror remote control
switch (switching to right) signal.
MIR CHNG SW–L “ON/OFF” ××ON/OFF status judged from the door mirror remote control
switch (switching to left) signal.
TILT SW-UP “ON/OFF” ××ON/OFF status judged from the ADP steering switch (UP)
signal.
TILT SW-DOWN “ON/OFF” ××ON/OFF status judged from the ADP steering switch
(DOWN) signal.
PEDAL SW-FR “ON/OFF” ××ON/OFF status judged from the pedal adjusting switch (for-
ward) signal.
PEDAL SW-RR “ON/OFF” ××ON/OFF status judged from the pedal adjusting switch
(backward) signal.
DETENT SW “ON/OFF” ××The selector lever position “OFF (P position) / ON (other
than P position)” judged from the detention switch signal.
STARTER SW “ON/OFF” ××Ignition key switch ON (START, ON) /OFF (ACC, OFF) sta-
tus judged from the ignition switch signal.
SLIDE PULSE — – ×Value (32768) when battery connections are standard. If it
moves backward, the value increases. If it moves forward,
the value decreases.
RECLN PULSE — – ×Value (32768) when battery connections are standard. If it
moves backward, the value increases. If it moves forward,
the value decreases.
LIFT FR PULSE — – ×Value (32768) when battery connections are standard. If it
moves DOWN, the value increases. If it moves UP, the val-
ue decreases.
LIFT RR PULSE — – ×Value (32768) when battery connections are standard. If it
moves DOWN, the value increases. If it moves UP, the val-
ue decreases.
MIR/SEN RH U–D “V” – ×Voltage input from door mirror sensor (passenger side) up/
down is displayed.
MIR/SEN RH R–L “V” – ×Voltage input from door mirror sensor (passenger side) left/
right is displayed.
MIR/SENLHU–D “V” – ×Voltage input from door mirror
sensor (driver side) up/down
is displayed.
MIR/SENLHR–L “V” – ×Voltage input from door mirror sensor (driver side) left/right
is displayed.
PEDAL SEN “V” – ×Pedal position (voltage) judged from the pedal adjusting
sensor signal is displayed.
Monitor Item Unit
Main
Signals Selection
From
Menu Contents
Test item Description
SEAT SLIDE Activates/deactivates the sliding motor.
SEAT RECLINING Activates/deactivates the reclining motor.
SEAT LIFTER FR Activates/deactivates the lifting motor (front).
SEAT LIFTER RR Activates/deactivates the lifting motor (rear).
ADJ PEDAL MOTOR Activates/deactivates the pedal adjusting motor.
TILT MOTOR Activates/deactivates the tilt motor.
MIRROR MOTOR RH Activates/deactivates the mirror motor (passenger side).
Revision: December 20092009 QX56

ADP-44
< COMPONENT DIAGNOSIS >
B2128 UART COMMUNICATION LINE
B2128 UART COMMUNICATION LINE
DescriptionINFOID:0000000003775544
Driver seat control unit performs UART communication with the automatic drive positioner control unit using 2
communication lines, TX and RX line. Driver seat cont rol unit receives the operation signals of pedal adjusting
switch, door mirror remote control switch, set switch and memory switch and the position signals of adjustable
pedal sensor and door mirror sensor from the automatic drive positioner control unit and transmits the opera-
tion request signal.
DTC LogicINFOID:0000000003775545
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1. STEP 1
Turn ignition switch ON.
>> GO TO 2
2. STEP 2
Operate pedal adjusting switch for more than 2 seconds.
>> GO TO 3
3. PROCEDURE 3
Check “Self diagnostic result” with CONSULT-III.
Is the DTC detected?
YES >> Perform diagnosis procedure. Refer to ADP-44, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000003775546
1. CHECK UART COMMUNICA TION LINE CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect driver seat contro l unit and automatic drive posi-
tioner control unit.
3. Check continuity between driver seat control unit harness con- nector and automatic drive positi oner control unit harness con-
nector.
4. Check continuity between driver seat control unit harness connector and ground.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause B2128 UART COMM The communication between driver seat control unit
and automatic drive positioner control unit is interrupt-
ed for a period of time.  UART communication line
(UART communication line is
open or shorted)
 Driver seat control unit
 Automatic drive positioner control unit
Driver seat control unit connector Te r m i n a lAutomatic drive positioner
control unit connector Terminal Continuity
B202 1
M33 10
Ye s
17 26
PIIA4598E
Revision: December 20092009 QX56

ADP-64
< COMPONENT DIAGNOSIS >
DOOR MIRROR REMOTE CONTROL SWITCH
DOOR MIRROR REMOTE CONTROL SWITCH
CHANGEOVER SWITCH
CHANGEOVER SWITCH : DescriptionINFOID:0000000003775581
Changeover switch is integrated into door mirror remote control switch.
Changeover switch has three positions (L, N and R).
It changes door mirror motor operation by transmitting cont rol signal to automatic drive positioner control unit.
CHANGEOVER SWITCH : Component Function CheckINFOID:0000000003775582
1. CHECK CHANGEOVER SWITCH FUNCTION
Check the operation on “MIR CHNG SW-R” or “MIR CHNG SW-L” in “DATA MONITOR” mode with CON-
SULT-III.
Refer to ADP-28, "CONSULT-III Function"
.
Is the inspection result normal?
YES >> Changeover switch function is OK.
NO >> Refer to ADP-64, "CHANGEOVER SW ITCH : Diagnosis Procedure"
.
CHANGEOVER SWITCH : Diagnosis ProcedureINFOID:0000000003775583
1. CHECK CHANGEOVER SWITCH SIGNAL
1. Turn ignition switch to ACC.
2. Check voltage between automatic drive positioner control unit connector and ground.
Is the inspection result normal?
YES >> GO TO 6
NO >> GO TO 2
2. CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive posit ioner control unit and door mir-
ror remote control switch.
3. Check continuity between automat ic drive positioner control unit
connector and door mirror remote control switch connector.
4. Check continuity between automatic driv e positioner control unit connector and ground.
Te r m i n a l s
Change over switch condition Voltage (V)
(Approx.)
(+)
(-)
Automatic drive
positioner control unit connector Te r m i n a l
M33 2
Ground RIGHT 0
Other than above 5
18 LEFT 0
Other than above 5
PIIA4767E
Automatic drive
positioner control unit connector Te r m i n a lDoor mirror re-
mote control
switch connector Terminal Continuity
M33 (A) 2
D10 (B) 11
Ye s
18 10
ALJIA0201ZZ
Revision: December 20092009 QX56

DOOR MIRROR REMOTE CONTROL SWITCHADP-65
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
ADP
N
O P
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace harness.
3. CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT
Check continuity between door mirror remote control switch connec-
tor and ground.
Is the inspection result normal?
YES >> GO TO 4
NO >> Repair or replace harness.
4. CHECK AUTOMATIC DRIVE POSITION ER CONTROL UNIT OUTPUT SIGNAL
1. Connect automatic drive positioner control unit.
2. Turn ignition switch to ACC.
3. Check voltage between automatic drive positioner control unit
connector and ground.
Is the inspection result normal?
YES >> GO TO 5
NO >> Replace automatic drive positioner control unit. Refer to ADP-166, "Removal and Installation"
.
5. CHECK CHANGEOVER SWITCH
Check changeover switch.
Refer to ADP-65, "CHANGEOVER SWITCH : Component Inspection"
.
Is the inspection result normal?
YES >> Refer to GI-38, "Intermittent Incident".
NO >> Replace door mirror remote control switch. Refer to ADP-168, "Removal and Installation"
.
6. CHECK INTERMITTENT INCIDENT
Check intermittent incident.
Refer to GI-38, "Intermittent Incident"
.
Is the inspection result normal?
YES >> Replace automatic drive posit ioner control unit. Refer to ADP-166, "Removal and Installation".
NO >> Repair or replace the malfunctioning parts.
CHANGEOVER SWITCH : Component InspectionINFOID:0000000003775584
1. CHECK CHANGEOVER SWITCH
Automatic drive positioner control
unit connector Te r m i n a l
GroundContinuity
M33 (A) 2
No
18
Door mirror remote control switch
connector Te r m i n a l
GroundContinuity
D10 7 Yes
ALJIA0189ZZ
Te r m i n a l s Voltage (V)(Approx.)
(+)
(-)
Automatic drive positioner
control unit connector Te r m i n a l
M33 2
Ground 5
18
PIIA4767E
Revision: December 20092009 QX56

ADP-66
< COMPONENT DIAGNOSIS >
DOOR MIRROR REMOTE CONTROL SWITCH
Check door mirror remote control switch.
Is the inspection result normal?
YES >> Inspection End.
NO >> Replace door mirror remote control switch. Refer to ADP-168, "Removal and Installation"
.
MIRROR SWITCH
MIRROR SWITCH : DescriptionINFOID:0000000003775585
It operates angle of the door mirror face.
It transmits mirror face adjust operation to automatic drive positioner control unit.
MIRROR SWITCH : Component Function CheckINFOID:0000000003775586
1. CHECK MIRROR SWITCH FUNCTION
Check the operation on “MIR CON SW–UP/DN” and “MI R CON SW–RH/LH” in “DATA MONITOR” mode
with CONSULT-III.
Refer to ADP-28, "CONSULT-III Function"
.
Is the inspection result normal?
YES >> Mirror switch function is OK.
NO >> Refer to ADP-66, "MIRROR SWITCH : Diagnosis Procedure"
.
MIRROR SWITCH : Dia gnosis ProcedureINFOID:0000000003775587
1. CHECK MIRROR SWITCH FUNCTION
1. Turn ignition switch to ACC.
2. Check voltage between automatic drive positioner control unit connector and ground.
Is the inspection result normal?
YES >> GO TO 6
NO >> GO TO 2
2. CHECK HARNESS CONTINUITY
Te r m i n a l Change over switch
condition Continuity
Door mirror remote control switch
10 7LEFT Yes
Other than above No
11 RIGHT Yes
Other than above No

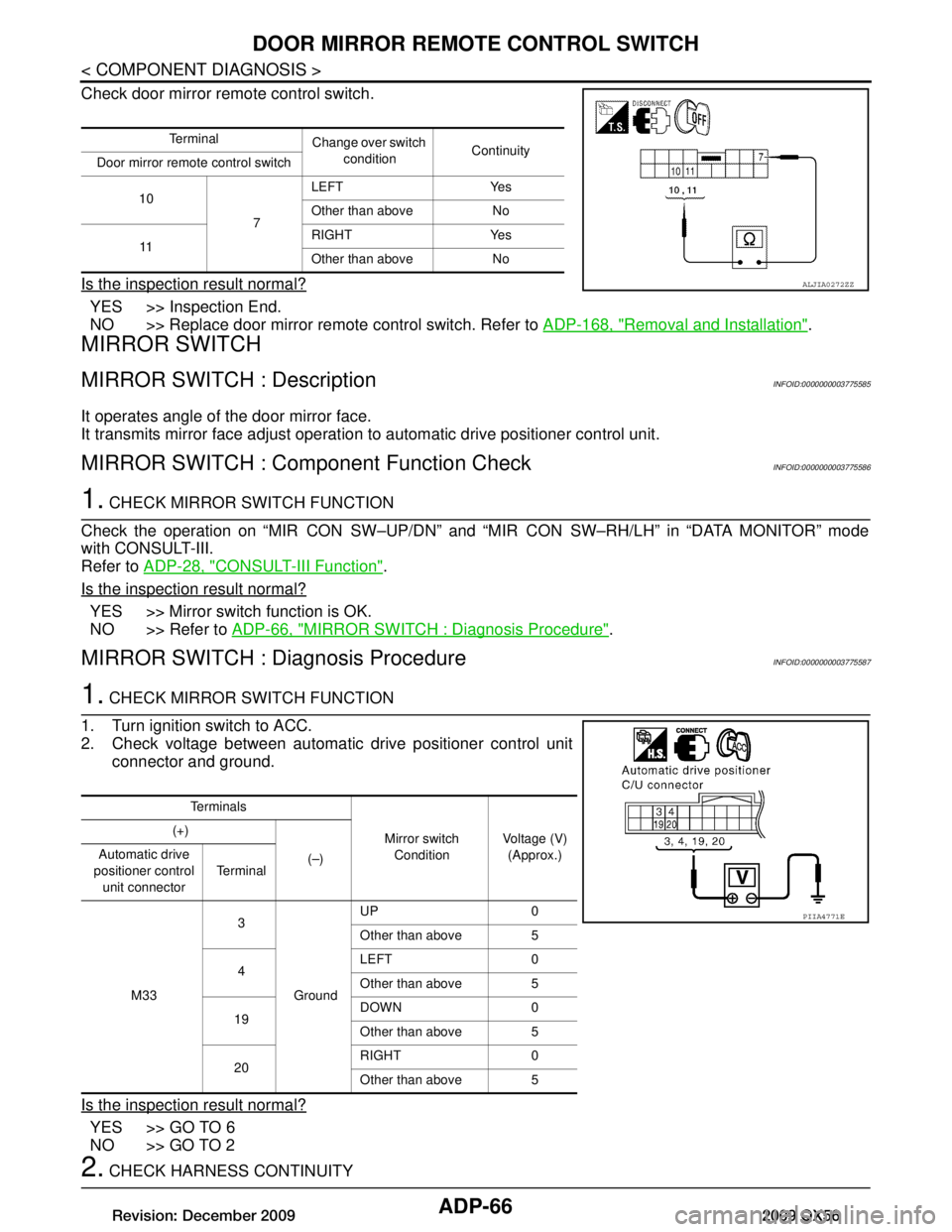

ALJIA0272ZZ
Te r m i n a l s
Mirror switchCondition Voltage (V)
(Approx.)
(+)
(–)
Automatic drive
positioner control unit connector Te r m i n a l
M33 3
Ground UP 0
Other than above 5
4 LEFT 0
Other than above 5
19 DOWN 0
Other than above 5
20 RIGHT 0
Other than above 5
PIIA4771E
Revision: December 20092009 QX56

DOOR MIRROR REMOTE CONTROL SWITCHADP-67
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
K L
M A
B
ADP
N
O P
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mir- ror remote control switch.
3. Check continuity between automat ic drive positioner control unit
connector and door mirror remote control switch connector.
4. Check continuity between automatic driv e positioner control unit connector and ground.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair or replace harness.
3. CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT
Check continuity between door mirror remote control switch connec-
tor and ground.
Is the inspection result normal?
YES >> GO TO 4
NO >> Repair or replace harness.
4. CHECK AUTOMATIC DRIVE POSITION ER CONTROL UNIT OUTPUT SIGNAL
1. Connect automatic drive positioner control unit.
2. Turn ignition switch to ACC.
3. Check voltage between automatic drive positioner control unit
and ground.
Is the inspection result normal?
Automatic drive
positioner control unit connector Te r m i n a lDoor mirror remote
control switch con- nector Terminal Continuity
M33 (A) 3
D10 (B) 15
Ye s
413
19 12
20 4
Automatic drive positioner control unit connector Te r m i n a l
GroundContinuity
M33 (A) 3
No
4
19
20
ALJIA0191ZZ
Door mirror remote control switch connector Terminal
Ground Continuity
D10 7 Yes
ALJIA0189ZZ
Te r m i n a l s Voltage (V)(Approx.)
(+)
(-)
Automatic drive positioner
control unit connector Te r m i n a l
M33 3
Ground 5
4
19
20
PIIA4771E
Revision: December 20092009 QX56
