2009 INFINITI QX56 cooling

VTL-22
< ON-VEHICLE REPAIR >
INTAKE DOOR MOTOR
INTAKE DOOR MOTOR
Removal and InstallationINFOID:0000000003775273
Intake Door Motor - Front Heater and Cooling Unit Assembly
REMOVAL
1. Remove the front heater and cooling unit assembly. Refer to VTL-16, "Removal and Installation".
2. Remove the steering member from the front heater and cooling unit assembly.
3. Disconnect the intake door motor electrical connector.
4. Remove the three screws and remove the intake door motor.
INSTALLATION
Installation is in the reverse order of removal.
LJIA0139E
1. Front heater and cooling unit assembly 2. Intake door motor 3. Air mix door motor (driver)
4. Variable blower control 5. Air mix door motor (passenger) 6. Mode door motor
7. Defroster door motor
Revision: December 20092009 QX56

MODE DOOR MOTORVTL-23
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
VTL
N
O P
MODE DOOR MOTOR
ComponentsINFOID:0000000003775274
Front Mode Door Motor - Front Heater and Cooling Unit Assembly
LJIA0139E
1. Front heater and cooling unit assembly 2. Intake door motor 3. Air mix door motor (driver)
4. Variable blower control 5. Air mix door motor (passenger) 6. Mode door motor
7. Defroster door motor
Revision: December 20092009 QX56

VTL-24
< ON-VEHICLE REPAIR >
MODE DOOR MOTOR
Rear Mode Door Motor - Rear Heater and Cooling Unit Assembly
Removal and InstallationINFOID:0000000003775275
FRONT MODE DOOR MOTOR
Removal
1. Remove the instrument lower panel LH. Refer to IP-15, "Exploded View".
2. Remove the accelerator pedal. Refer to ACC-4, "
Removal and Installation".
3. Remove the BCM. Refer to BCS-56, "
Removal and Installation".
4. Remove the Bose speaker amplifier. Refer to AV-181, "
Removal and Installation".
5. Remove the center console lower cover LH. Refer to IP-20, "
Removal and Installation".
6. Disconnect the front mode door motor connector.
7. Remove the two screws and remove the front mode door motor.
Installation
Installation is in the reverse order of removal.
REAR MODE DOOR MOTOR
Removal
1. Remove the luggage side finisher lower and upper RH. Refer to INT-19, "Removal and Installation".
2. Remove the rear heater and cooling unit assembly. Refer to VTL-16, "
Removal and Installation".
3. Disconnect the rear mode door motor connector.
4. Remove the two screws and remove rear mode door motor.
Installation
Installation is in the reverse order of removal.
ALIIA0065ZZ
1. Variable blower control 2. Mode door motor3. Rear heater and cooling unit assembly
Front
Revision: December 20092009 QX56

AIR MIX DOOR MOTORVTL-25
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
VTL
N
O P
AIR MIX DOOR MOTOR
ComponentINFOID:0000000003775276
Front Air Mix Door Motors - Front Heater and Cooling Unit Assembly
LJIA0139E
1. Front heater and cooling unit assembly 2. Intake door motor 3. Air mix door motor (driver)
4. Variable blower control 5. Air mix door motor (passenger) 6. Mode door motor
7. Defroster door motor
Revision: December 20092009 QX56

VTL-26
< ON-VEHICLE REPAIR >
AIR MIX DOOR MOTOR
Rear Air Mix Door Motor - Rear Heater and Cooling Unit Assembly
Removal and InstallationINFOID:0000000003775277
FRONT AIR MIX DOOR MOTOR (DRIVER)
Removal
1. Remove the front heater and cooling unit assembly. Refer to VTL-16, "Removal and Installation".
2. Remove the steering member from the front heater and cooling unit assembly.
3. Disconnect the air mix door motor electrical connector.
4. Remove the three screws and remove the air mix door motor.
Installation
Installation is in the reverse order of removal.
FRONT AIR MIX DOOR MOTOR (PASSENGER)
Removal
1. Remove the center console lower cover LH. Refer to IP-13, "Removal and Installation".
2. Disconnect the air mix door motor electrical connector.
3. Remove the three screws and remove the air mix door motor.
Installation
Installation is in the reverse order of removal.
REAR AIR MIX DOOR MOTOR
Removal
1. Remove the luggage side lower finisher RH. Refer to INT-19, "Removal and Installation".
ALIIA0066ZZ
1. Air mix door motor2. Heater core 3. Blower motor
4. Variable blower control 5. Rear heater and cooling unit assembly ⇐Front
Revision: December 20092009 QX56

VTL-28
< ON-VEHICLE REPAIR >
VARIABLE BLOWER CONTROL
VARIABLE BLOWER CONTROL
ComponentsINFOID:0000000003775278
Front Variable Blower Control - Front Heater and Cooling Unit Assembly

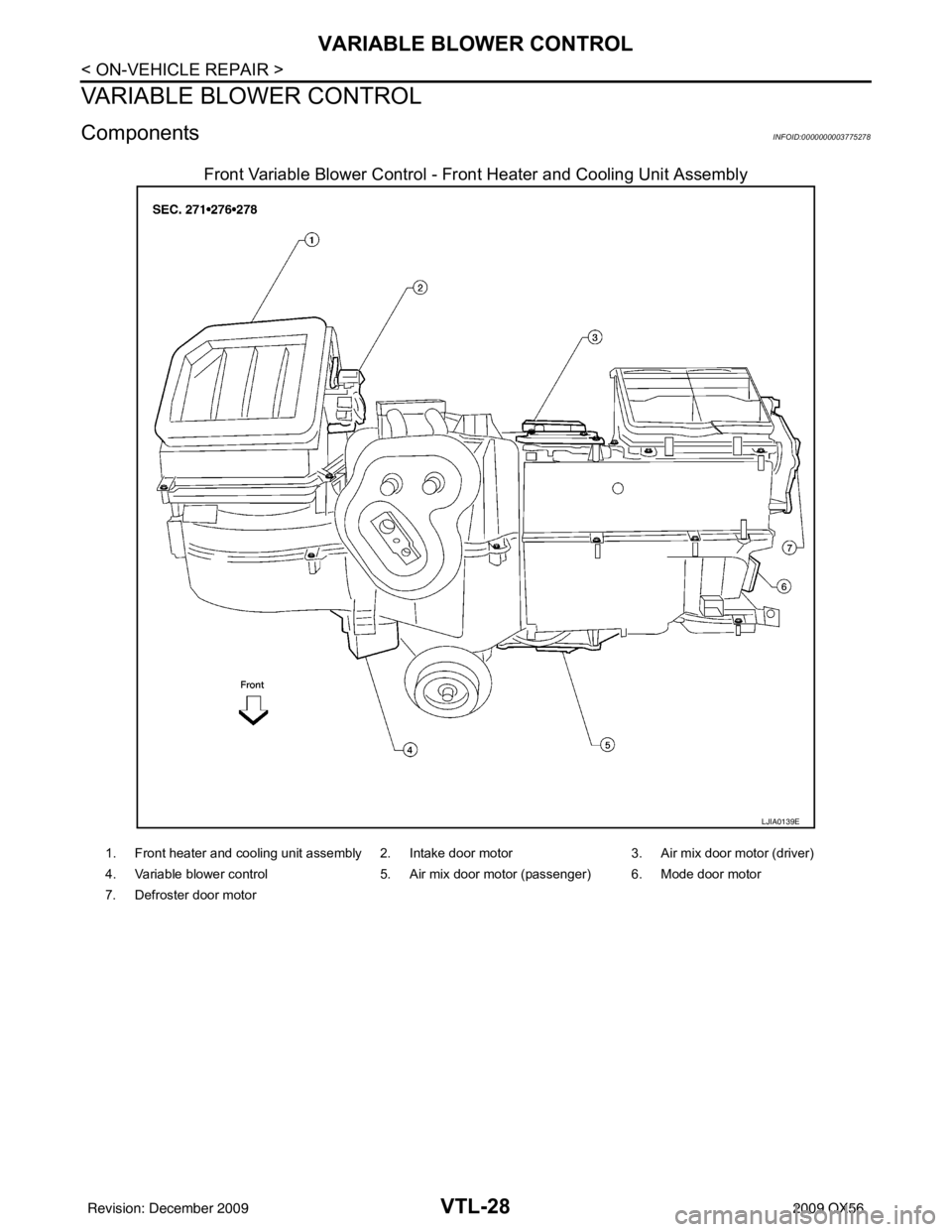

LJIA0139E
1. Front heater and cooling unit assembly 2. Intake door motor3. Air mix door motor (driver)
4. Variable blower control 5. Air mix door motor (passenger) 6. Mode door motor
7. Defroster door motor
Revision: December 20092009 QX56

VARIABLE BLOWER CONTROLVTL-29
< ON-VEHICLE REPAIR >
C
DE
F
G H
J
K L
M A
B
VTL
N
O P
Rear Variable Blower Control - Rear Heater and Cooling Unit Assembly
Removal and InstallationINFOID:0000000003775279
FRONT VARIABLE BLOWER CONTROL
Removal
1. Remove the glove box assembly. Refer to IP-17, "Removal and Installation".
2. Disconnect the variable blower control electrical connector.
3. Remove the two screws and remove the variable blower control.
Installation
Installation is in the reverse order of removal.
REAR VARIABLE BLOWER CONTROL
Removal
1. Remove the luggage side finisher lower RH. Refer to INT-19, "Removal and Installation".
2. Disconnect the rear blower motor resistor electrical connector.
3. Remove the two screws and remove the rear blower motor resistor.
Installation
Installation is in the reverse order of removal.
ALIIA0066ZZ
1. Air mix door motor 2. Heater core 3. Blower motor
4. Variable blower control 5. Rear heater and cooling unit assembly ⇐Front
Revision: December 20092009 QX56

VTL-30
< ON-VEHICLE REPAIR >
DUCTS AND GRILLES
DUCTS AND GRILLES
ComponentINFOID:0000000003775280
Ducts - Front Heater and Cooling Unit Assembly

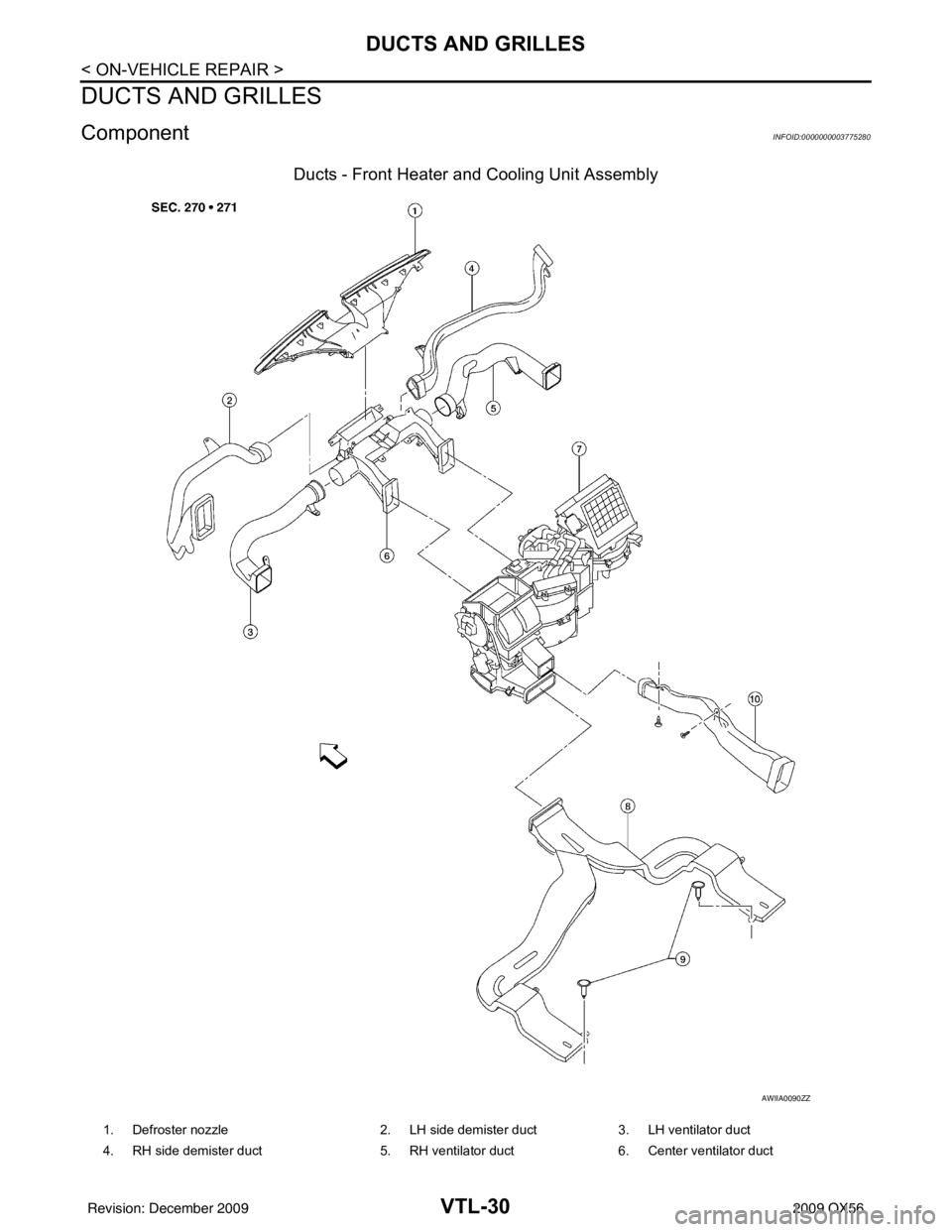

AWIIA0090ZZ
1. Defroster nozzle2. LH side demister duct3. LH ventilator duct
4. RH side demister duct 5. RH ventilator duct6. Center ventilator duct
Revision: December 20092009 QX56
