2009 INFINITI QX56 key

DLK-30
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR OPENER FUNCTION
Auto Back Door Operation Enable Conditions
Control When Operating Enable Condit
ions Not Met During Power Open/Close
Control When Operating Enable Conditions No Longer Met
Operation Power liftgate switch Remote keyless entry Back door handle switch Back door
close switch
Operating direction Fully closed →
open Fully open
→
closed Fully closed →
open Fully open →
closed Fully closed
→
open Fully open
→
closed Fully open
→
closed
Close
switch CANCEL or NEUTRAL
NEUTRALNEUTRAL
Vehicle stop
condition A/T shift selec-
tor in P or N
range and vehi- cle speed less
than 2 km/h or ignition switch
in OFF position —A/T shift selec-
tor in P or N
range and vehi- cle speed less
than 2 km/h or ignition switch
in OFF position —A/T shift selec-
tor in P or N
range and vehi- cle speed less
than 2 km/h or
ignition switch in OFF position ——
Battery volt-
age Approx. 11V or more
Back door
lock status ————U
nlo ck e d——
Glass hatch Closed
ItemsOperation condition Not met caseControl
A/T shift selector P position P or N position with ignition ON
or any position with ignition OFFOther Continue power open or close,
but sounds warning chime.
Back door close sw itch NEUTRAL CANCEL
Cancels power open/close op-
eration or door will release to
manual mode.
Voltage drop
11V or more11 > V > 9
9 > V > reset voltage
Reset voltage > V
No power function available
Handle switch Normal (GND) Error (OPEN) No operation. Cancel power
open/close release to manual.
Glass hatch ClosedOFF Cancels power door open oper-
ation, door will release to manu-
al mode.
Description
Operation Control
Back door close switch turned to CANCEL Warning chime active
→
Shift to manual mode after full open or
close operation is complete
(Recovery to power mode when main
switch turned OFF or door fully closed) → Shift to manual mode
A/T shift selector P or N position with igni-
tion switch ON Warning chime active and one-way opera-
tion continuous
(Warning chime inactive and door fully open
or fully closed or operating conditions re-
covered) Full open: power close operation allowed
Full close: operating conditions not met
→
no power open function.
Voltage drop 11 - 9V One-way operation continued (equivalent
to the case of starting voltage
← 11V for
handle operation with warning chime ac-
tive) Not allowed
Voltage drop less than 9V
(Microcomputer reset voltage - clutch hold
voltage) • Motor stopped
• Clutch may slip
• Control not possible because microcom-
puter being reset Control not possible because microcomput-
er being reset
Revision: December 20092009 QX56

BACK DOOR OPENER FUNCTIONDLK-31
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Warning Chime Active Conditions
The warning chime uses two types of audio warnings, a friendly chime and a warning chime. The friendly
chime consists of dings lasting 0.66 seconds each imm
ediately followed by the next ding. The warning chime
consists of beeps lasting 0.33 seconds wit h a pause of 0.33 seconds between each beep.
Reverse Conditions
Operation statusOperation or conditions Warning chime pattern
When auto operation starts Power liftgate switch operation
Friendly chime
2 seconds, 3 dings
Remote keyless entry operation
Back door handle switch operation
Back door close switch operation
When reverse operation starts When reverse request is detected from
power liftgate switch, remote keyless
entry or back door close switch
Friendly chime
1.3 seconds, 2 dings
When obstacle is detected Warning chime
2 seconds, 3 beeps
Operating at low voltage While opening or closing Warning chime
2 seconds, 3 beeps
A/T shift selector not in P position Back door close operation
Friendly chime
Continuously dings
Back door open operation Warning chime
Continuously beeps
(until close operation is started)
Type Overload reverse
Operation covered Both directions
Detection method Operation speed and motor current change direction
Pinch strips during back door close operation
Non-reversed area • For about 0.5 seconds immediately after drive motor operation
starts
• Between full open and approx. 7 ° from full open
• Closure operation area (half switch - close switch)
Number of times reverse allowed One reversal is allowed (if a second obstacle is detected during a
power open or close operation, the door reverts to manual mode).
Revision: December 20092009 QX56

DLK-32
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR OPENER FUNCTION

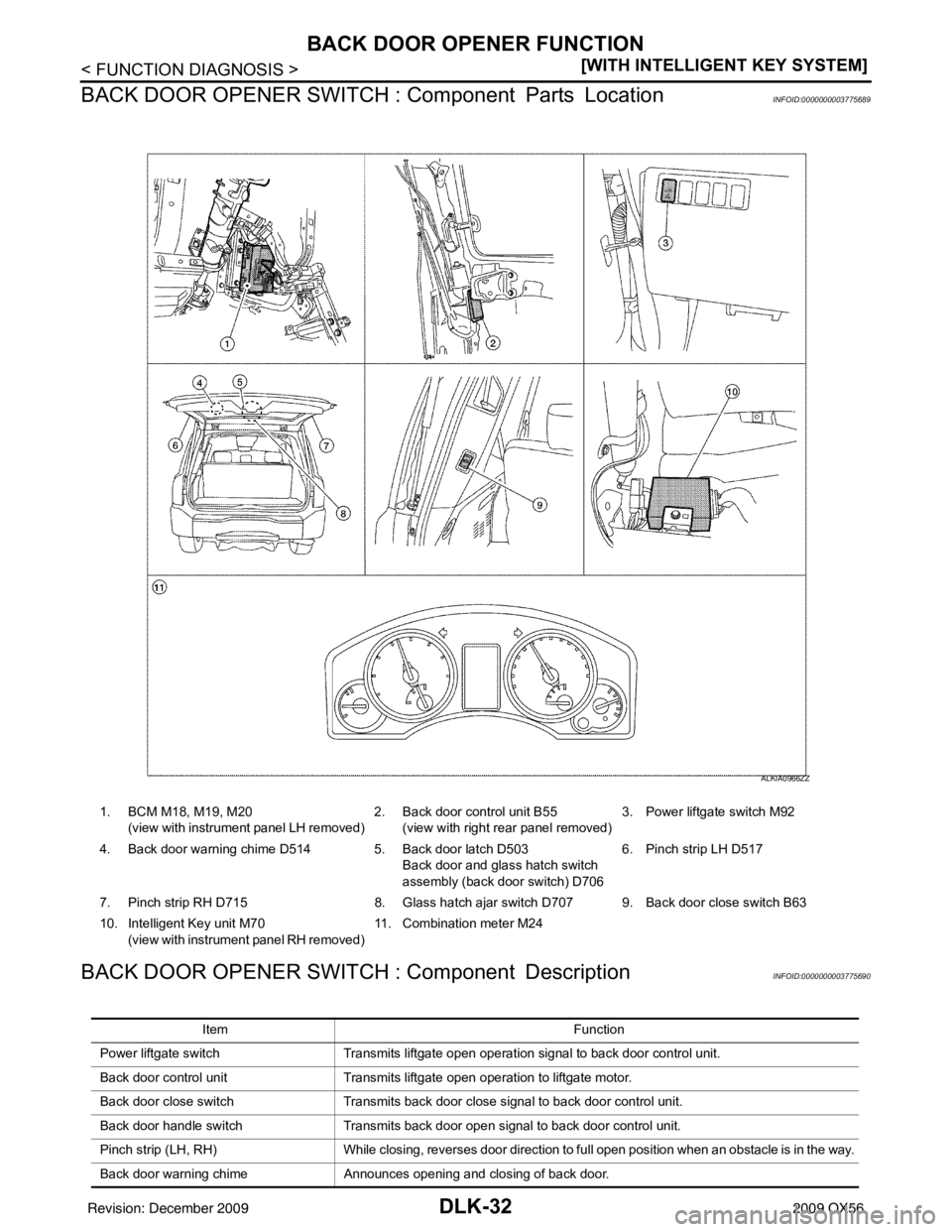

BACK DOOR OPENER SWITCH : Component Parts Location
INFOID:0000000003775689
BACK DOOR OPENER SWITCH : Component DescriptionINFOID:0000000003775690
1. BCM M18, M19, M20 (view with instrument panel LH removed) 2. Back door control unit B55
(view with right re ar panel removed) 3. Power liftgate switch M92
4. Back door warning chime D514 5. Back door latch D503 Back door and glass hatch switch
assembly (back door switch) D706 6. Pinch strip LH D517
7. Pinch strip RH D715 8. Glass hatch ajar switch D707 9. Back door close switch B63
10. Intelligent Key unit M70 (view with instrume nt panel RH removed) 11. Combination meter M24
ALKIA0966ZZ
Item
Function
Power liftgate switch Transmits liftgate open operation signal to back door control unit.
Back door control unit Transmits liftgate open operation to liftgate motor.
Back door close switch Transmits back door close signal to back door control unit.
Back door handle switch Transmits back door open signal to back door control unit.
Pinch strip (LH, RH) While closing, reverses door direction to full open position when an obstacle is in the way.
Back door warning chime Announces opening and closing of back door.
Revision: December 20092009 QX56

BACK DOOR OPENER FUNCTIONDLK-33
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
INTELLIGENT KEY
INTELLIGENT KEY : System DiagramINFOID:0000000003775691
INTELLIGENT KEY : System DescriptionINFOID:0000000003775692
The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the
same manner as the remote controller by operating the back door open button.
OPERATION DESCRIPTION/BACK DOOR OPEN FUNCTION
• When back door button of the Intelligent Key is press ed, the back door open signal is transmitted from the
Intelligent Key to the back door control unit via remote keyless entry receiver and the Intelligent Key unit.
• When back door control unit receives the back door open request signal, it operates the back door motor
and opens the liftgate.
OPERATION CONDITION
OPERATION AREA
• Operating Range
• To ensure the Intelligent Key works effectively, use within 80 cm range of each door, however the operable range may differ according to surroundings.
HAZARD AND HORN REMINDER FUNCTION
When doors are locked or unlocked by Intelligent Key. BCM flashes hazard warning lamps as a reminder and
transmits horn chirp signal to IPDM E/R. IPDM E/R sound horns as a reminder.
The hazard and horn reminder has a horn chirp m ode (C mode) and a non-horn chirp mode (S mode).
Operating function of hazard and horn reminder
Hazard and horn reminders do not operate if any door switch is ON (any door is OPEN).
How to change hazard and horn reminder mode
With CONSULT-III
Refer to DLK-55, "
INTELLIGENT KEY : CONSULT-III F unction (BCM - INTELLIGENT KEY)".
Without CONSULT-III
Refer to Owner's Manual for instructions.
LIST OF OPERATION RELATED PARTS
Parts marked with × are the parts related to operation.
ALKIA0704GB
Remote controller operation Operation conditionOperation
Back door open • Press and hold the back door open button for 0.5 second or more Back door opens
C mode S mode
Intelligent Key operation Lock Unlock Back door open Lock Unlock Back door open
Hazard warning lamp flash Twice Once —Twice ——
Horn sound Once— ——— —
Revision: December 20092009 QX56

DLK-34
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR OPENER FUNCTION
Remote keyless entry functions
Intelligent Key
Ignition key
Back door latch
Back door warning chime
Intelligent Key warning buzzer
CAN communication system
Back door control unit
Combination meter
Hazard warning lamps
Horns
IPDM E/R
Back door open function by remote control button
×××× ××
Hazard and horn reminder function ××××××××
Revision: December 20092009 QX56

BACK DOOR OPENER FUNCTIONDLK-35
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
INTELLIGENT KEY : Co mponent Parts LocationINFOID:0000000004190651
ALKIA0965ZZ
Revision: December 20092009 QX56

DLK-36
< FUNCTION DIAGNOSIS >[WITH INTELLIGENT KEY SYSTEM]
BACK DOOR OPENER FUNCTION
INTELLIGENT KEY : Component Description
INFOID:0000000003775694
ALKIA0579ZZ
1. Horn E3 (view with hood open) 2. IPDM E/R E122, E124
(view with cover removed) 3. Horn relay H-1
4. Remote keyless entry receiver M25 (view with instrume nt panel RH removed) 5. Intelligent key warning buzzer E25 6. Combination meter M23, M24
7. Intelligent Key unit M70 (view with instrument panel LH removed) 8. BCM M18, M19, M20
(view with instrument panel LH removed) 9. Steering lock solenoid M15
(view with steering column removed)
10. Key switch and ignition knob switch M12 11. A/T shift selector (park position switch) M203
(view with center console removed)12. Inside key antenna 3 (front of center
console) M210
(view with center console removed)
13. Inside key antenna 1 (rear of center con- sole) M209 14. Inside key antenna 4 (overhead console
area) R210
(view with overhead console removed) 15. Inside key antenna 2 (luggage com-
partment) B76
(view with rear carpet removed)
16. Rear bumper antenna C7 (view with rear bumper removed) 17. Back door latch D503
18. Front outside antenna LH D15
Front outside antenna RH D115
19. Front door request switch LH D16 Front door request switch RH D116 20. Front door lock assembly LH (door un-
lock sensor) D14 21. Front door switch LH B8
RH B108
22. Rear door switch LH B18 RH B116
Revision: December 20092009 QX56

BACK DOOR OPENER FUNCTIONDLK-37
< FUNCTION DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
DLK
N
O P
Item Function
Remote keyless entry receiver Receives back door open signal from the Intelligent Key, and then transmits to Intelligent Key uni t.
Intelligent Key Transmits button operation to remote keyless entry receiver.
Intelligent Key unit Receives button operation from remote keyless entry receiver and transmits to back door control unit.
Back door control unit Receives button operation from Intelligent Key unit and operates the back door.
Intelligent Key warning buzzer Warns the user of the lock/unlock condition and inappropriate operations with a buzzer sound.
