2009 Hyundai Elantra Owner's Manual

93
Specifications
Inflation pressure
psi (kPa)
Front Rear
P195/65R15 89T 5.5J×15
32 (220) 32 (220)
P205/55R16 89H 6.0J×16
T125/80D15 95M 4.0T×1560 60
(420) (420)
Full size tire
Compact
spare tireWheel lug nut torque lb•ft
(kg N
65~79
(9~11, 88~107)TIRES AND WHEELS
ItemTire
sizeWheel size

Specifications4 9Recommended lubricants and capacities To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.These lubricants and fluids are recommended for use in your vehicle.*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the amount of fuel nec-
essary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost and
energy savings.Lubricant Volume Classification
4.23 US qt. (4.0 l)
Manual transaxle fluid 2.11 US qt. (2.0 l) API Service GL-4 (SAE 75W-85, fill for-life)
HYUNDAI GENUINE ATF SP-III, DIAMOND ATF SP-III,
Automatic transaxle fluid 6.97 US qt. (6.6 l) SK ATF SP-III or other brands metting the SP-III specification
approved by Hyundai Motor Co.
Coolant 6.97 US qt. (6.6 l)MIXTURE, Antifreeze with water
(Ethylene glycol base coolant for aluminum radiator)
Brake/Clutch fluid 0.7~0.8 US qt. (0.7~0.8 l) FMVSS116 DOT-3 or DOT-4
Fuel 14 US gal. (53 l)-Engine oil
*1 *2
(drain and refill)
API Service SM or SL,
ILSAC GF-3 or above

95
Specifications
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operation (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-
ing any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine
and other mechanisms that could
be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *
1°C
(°F)
-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
*1. For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20,5W-30 (API SM, SL / ILSAC GF-3 or above). However, if the engine oil is not available in
your country, select the proper engine oil using the engine oil viscosity chart.
10W-30
5W-20, 5W-30

I
Index

Index2I
Air cleaner ··································································· 7-23
Airbag-advanced supplemental restraint system ········· 3-30
Driver's and passenger's front air bag ······················ 3-39
SRS components and functions ······························· 3-31
Occupant classification system ································ 3-33
Side air bag ······························································· 3-44
Curtain air bag ·························································· 3-45
Air bag warning label ··············································· 3-56
Appearance care ·························································· 7-59
Audio system ······························································· 4-87
M420 ········································································ 4-92
M445 ········································································ 4-97
M465 ······································································ 4-103
Automatic climate control system ······························· 4-69
Automatic transaxle ····················································· 5-10
Ignition key interlock system ··································· 5-14
Automatic transaxle operation ································· 5-11
Transaxle ranges ······················································· 5-12
Shift lock system ······················································ 5-14
Automatic transaxle fluid ············································ 7-20
Battery ········································································· 7-29
Before driving ································································ 5-3
Binding arbitration (U.S.A only) ··································· 8-5
Brake system ······························································· 5-16Anti-lock brake system (ABS) ································· 5-19
Parking brake ··························································· 5-18
Power brakes ···························································· 5-16
Brakes and clutch fluid ················································ 7-19
Bulb wattage ·································································· 9-2
California perchlorate notice ·········································7-67
Child restraint system ·················································· 3-22
Tether anchor system ··············································· 3-26
Child seat lower anchors ·········································· 3-28
Placing a passenger seat belt into the auto lock
mode ········································································· 3-24
Climate control air filter ·············································· 7-25
Consumer information ··················································· 8-4
Cruise control system ·················································· 5-26
Defroster ······································································ 4-59
Dimensions ···································································· 9-2
Door locks ····································································· 4-8
Central door lock switch ············································ 4-9
Child-protector rear door lock ·································· 4-11
Economical operation ·················································· 5-30AB
CDE

I3
Index
Emergency starting ························································ 6-4
Emission control system ·············································· 7-65
Engine compartment ······················································ 7-2
Engine coolant ····························································· 7-16
Engine oil ····································································· 7-15
Explanation of scheduled maintenance items ············· 7-12
Fuel filler lid ································································ 4-20
Fuel requirements ·························································· 1-3
Fuses ············································································ 7-45
Hazard warning flasher ··············································· 4-51
Hood ············································································ 4-18
How to use this manual ················································· 1-2
If the engine overheats ·················································· 6-5
If the engine will not start ············································· 6-3
If you have a flat tire ··················································· 6-12
Changing tires ·························································· 6-13
Removing the spare tire ··········································· 6-13
Storing the spare tire ················································ 6-13
Important - use of compact spare tire ······················ 6-18
In case of an emergency while driving ························· 6-2Indicator symbols on the instrument cluster ················· 1-7
Instrument cluster ························································ 4-37
Gauges ······································································ 4-38
Engine temperature gauge ········································ 4-39
Fuel gauge ································································ 4-40
Instrument panel illumination ·································· 4-38
Odometer/Trip odometer ·········································· 4-40
Speedometer ····························································· 4-38
Tachometer ······························································· 4-38
Instrument panel overview ············································ 2-3
Interior features ··························································· 4-82
Ashtray ····································································· 4-82
Cigarette lighter ························································ 4-82
Clothes hanger ·························································· 4-86
Cup holder ································································ 4-83
Digital clock ····························································· 4-85
Power outlet ····························································· 4-84
Shopping bag holder ················································ 4-85
Sunvisor ···································································· 4-83
Interior light ································································· 4-56
Interior overview ··························································· 2-2
Key positions ································································· 5-4
Keys ··············································································· 4-2FHI
K

Index4I
Label information ·························································· 8-2
Light bulbs ··································································· 7-54
Lighting ······································································· 4-51
Maintenance services ····················································· 7-3
Manual climate control system ··································· 4-60
Manual transaxle ··························································· 5-7
Mirrors ········································································· 4-29
Owner maintenance ······················································· 7-5
Parking brake ······························································· 7-22
Remote keyless entry ····················································· 4-3
Reporting safety defects ················································ 8-5
Road warning ································································· 6-2Scheduled maintenance service ····································· 7-7
Seat ················································································ 3-2
Armrest ······································································· 3-9
Headrest ······································································ 3-5
Front seat adjustment ················································· 3-3
Rear seat adjustment ·················································· 3-8
Seat warmer ································································ 3-7
Seat belts ······································································ 3-12
Seat belt precautions ················································ 3-19
Care of seat belts ······················································ 3-21
Driver's 3-point system ············································ 3-14
Passenger's 3-point system ······································· 3-15
3-point rear center belt ············································· 3-15
Pre-tensioner belt ····················································· 3-16
Special driving conditions ··········································· 5-32
Starting the engine ························································· 5-5
Steering wheel ····························································· 4-27
Storage compartment ··················································· 4-80
Center console storage ············································· 4-80
Glove box ································································· 4-80
Sunglass holder ························································ 4-81
Sunroof ········································································ 4-23
Theft-alarm system ························································ 4-6
Tires and wheels ·························································· 7-32M
S
OPR
T
L

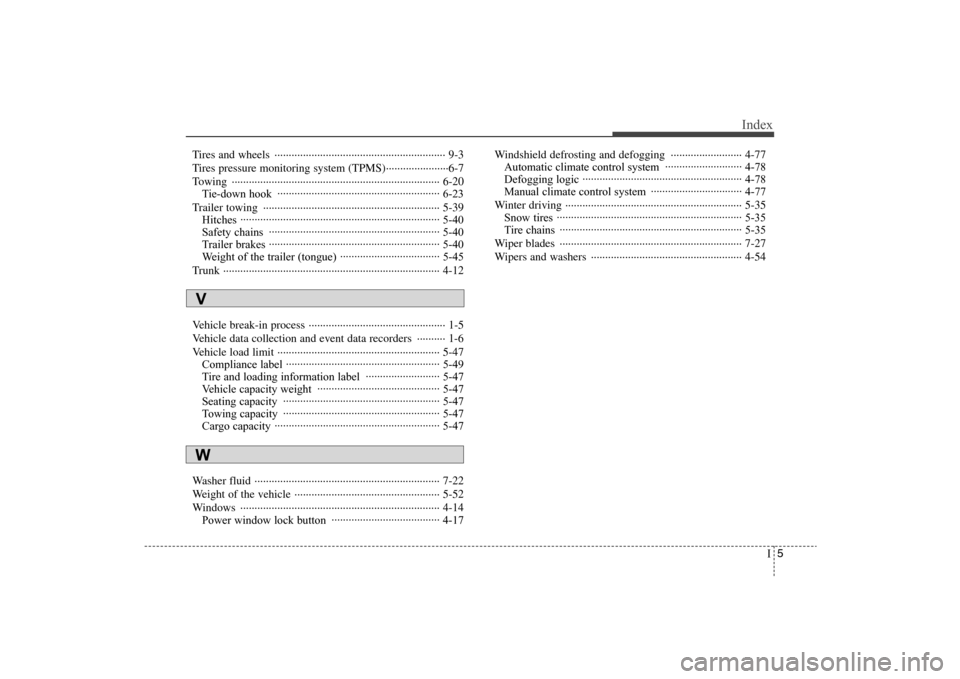

I5
Index
Tires and wheels ···························································· 9-3
Tires pressure monitoring system (TPMS)······················6-7
Towing ········································································· 6-20
Tie-down hook ························································· 6-23
Trailer towing ······························································ 5-39
Hitches ······································································ 5-40
Safety chains ···························································· 5-40
Trailer brakes ···························································· 5-40
Weight of the trailer (tongue) ··································· 5-45
Trunk ············································································ 4-12
Vehicle break-in process ················································ 1-5
Vehicle data collection and event data recorders ·········· 1-6
Vehicle load limit ························································· 5-47
Compliance label ······················································ 5-49
Tire and loading information label ·························· 5-47
Vehicle capacity weight ··········································· 5-47
Seating capacity ······················································· 5-47
Towing capacity ······················································· 5-47
Cargo capacity ·························································· 5-47
Washer fluid ································································· 7-22
Weight of the vehicle ··················································· 5-52
Windows ······································································ 4-14
Power window lock button ······································ 4-17Windshield defrosting and defogging ························· 4-77
Automatic climate control system ··························· 4-78
Defogging logic ························································ 4-78
Manual climate control system ································ 4-77
Winter driving ······························································ 5-35
Snow tires ································································· 5-35
Tire chains ································································ 5-35
Wiper blades ································································ 7-27
Wipers and washers ····················································· 4-54VW
