2009 HONDA S2000 dashboard

Push the f an control level down until
the indicator goes off. A lack of
airf low can cause the windows to f og
up. You should keep the f an on at all
times so stale air and moisture do
not build up in the interior and cause
f ogging.
Select . The system
automatically switches to f resh air
mode.
Select .
Set the f an and temperature
controls to the maximum level. To clear the windows f aster, you can
close the dashboard corner vents
and the vents on both sides of the
instrument panel by rotating the
wheel below the vent. This will send
more warm air to the windshield
def roster vents. Once the windshield
is clear, select f resh air mode to
avoid f ogging the windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
3.
1.
2. To Turn Everything Off
T o Remove Exterior Frost or Ice
From the Windows
Vents and Heating
Features
103
2009 S2000

´
µ If you want to mute the sound
temporarily, push the MUTE button.
The indicator in the button will come
on to indicate the mute f unction is on.
Press the button again to cancel
mute.
The AUDIO CONTROL button
changes the mode. Pressing the
button repeatedly selects FM1, FM2,
AM,CD(if aCDisloaded),CD
changer (if you have the optional CD
changer), or XM1 and XM2 (if you
have the optional satellite radio
f eature).
The CHANNEL button has two
f unctions, depending on whether you
are listening to the radio, or playing a
CD.
If you are listening to the radio, use
the CHANNEL button to change
stations. Each time you press this
button, the system advances to the
next preset station on the band you are listening to. You will see the
number of the selected preset button
in the audio system display.
If youareplayingaCD,thesystem
skips to the beginning of the next
track each time you push the
CHANNEL button.
These controls work only with the
f actory-installed audio system. They
will not f unction if you install any
non-Honda system.
Four controls f or the audio system
areontheleftsideof thedashboard
by the instrument panel. These let
you control basic f unctions without
distracting your attention f rom
driving.
Use the VOLUME bar to adjust the
volume. Push to increase the
volume and to decrease it. Hold
the lever until the volume reaches
the desired level, then release it.
Remote Audio Controls
122
AUDIO CONTROL
BUTTON CHANNEL
BUTTON
MUTE
BUTTON
VOLUME
BAR
2009 S2000

Park the vehicle, and set the
parking brake. Pull the hood
release handle located under the
lower lef t corner of the dashboard.
The hood will pop up slightly.
Screw the fuel fill cap back on
until it clicks at least once. If you
do not properly tighten the cap,
the malf unction indicator lamp
maycomeon(seepage ).You
will also see a ‘‘CHECK FUEL
CAP’’ message on the inf ormation
display.
Push the f uel f ill door closed until
it latches.
Put your f ingers under the f ront
edge of the hood near the center.
Slide your hand to the lef t until
you f eel the hood latch handle.
Push this handle to the lef t to
release the hood. Lif t up the hood.
If the hood latch handle moves
stif f ly, or if you can open the hood
without lifting the handle, the
mechanism should be cleaned and
lubricated.
1.
2.
5.
6.
219
Service Station Procedures
Opening and Closing the Hood
130
RELEASE HANDLE
2009 S2000

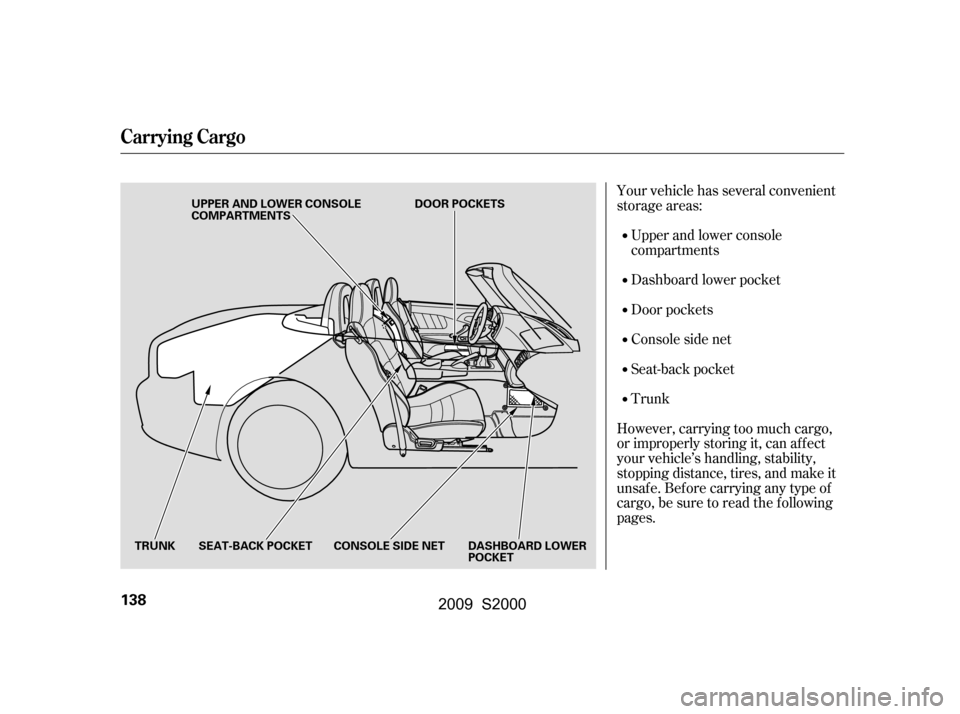

Your vehicle has several convenient
storage areas:Upper and lower console
compartments
Trunk
Seat-back pocket
Consolesidenet
Door pockets
Dashboard lower pocket
However, carrying too much cargo,
or improperly storing it, can af f ect
your vehicle’s handling, stability,
stopping distance, tires, and make it
unsaf e. Bef ore carrying any type of
cargo, be sure to read the f ollowing
pages.
Carrying Cargo
138
UPPER AND LOWER CONSOLE
COMPARTMENTS DOOR POCKETS
TRUNK SEAT-BACK POCKET CONSOLE SIDE NET DASHBOARD LOWER POCKET
2009 S2000

Locate the electrical connector f or
the convertible top motor.
It is under the lower corner of the
dashboard on the passenger’s side.
Disconnect the connector by
pushing the tab and pulling the
connector down.Holding each corner of the
convertible top, raise the top and
push it forward as far as it will go.
Follow steps 4 through 6 of the
closing procedure on page .
Try closing the convertible top. If
the new f use blows immediately or
the convertible top still does not
operate, you can close it manually.
Check the f use f or the convertible
top motor (see page ). If the
f use is blown, replace it with one
of thesameorlowerrating.
If the electric motor will not close
the convertible top, do the f ollowing.
3.
1.
2.
4.
5.76
222
Except CR models
Closing the Convertible Top
T aking Care of t he Unexpect ed
221
CONNECTOR
2009 S2000

The vehicle’s f uses are contained in
threefuseboxes.The primary under-hood f use box is
onthepassenger’ssidenexttothe
battery. To open it, push the two tabs
as shown.The auxiliary under-hood f use box is
on the driver’s side, near the brake
f luid reservoir. To open it, push the
taboneachside,andremovethelid.
The interior f use box is underneath
the dashboard on the driver’s side.
To open it, turn the knob.
Fuses
222
INTERIOR UNDER-HOOD
(PRIMARY)
UNDER-HOOD
(AUXILIARY)
KNOB
2009 S2000

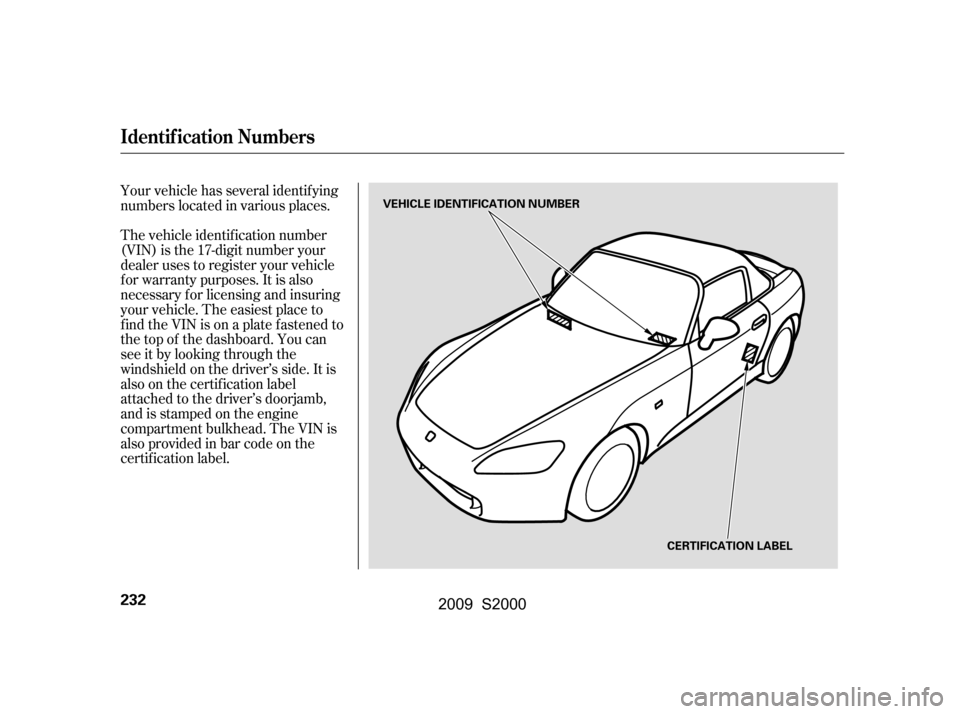

Your vehicle has several identif ying
numbers located in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
232
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL
2009 S2000

µ
µ
µµ µ
µ
Î
Î
Î µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Î
Specif ications
Technical Inf ormation
235
Battery
Lights
Fuses
Tires
Alignment
Air conditioning 55 W
12 V 12 V 36 AH/5 HR
35 W
12 V Capacity
Headlights
Front turn signal lights
Rear turn signal lights
Front side marker/
parking lights
Back-up lights
License plate light
Interior light
Trunk light
Side turn signal lights 12 V
12 V
12 V
12 V
12 V21 W
5W
5W
5W
5W
12 V
12 V
12 V
21 W
21 W
5 W
Under-hood
Interior
0.15 in (3.7 mm)
0.00 in (0.0 mm)
12 V 45 AH/20 HR
60 psi (420 kPa , 4.2 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm)
Size
Pressure 32 psi (220 kPa , 2.2 kgf/cm)
T125/70D16 96M 255/40R17 94W
245/40R17 91W
215/45R17 87W
Toe
Camber
Caster
6°
1°30’
0°30’
0.22 in (5.6 mm)
See page227or the fuse box
cover.
See page226or the fuse label
attached to the inside of the fuse
box door under the dashboard.
Refrigerant type
Charge quantity
Lubricant type SP-10
21.2 22.9 oz (600 650 g) HFC-134a (R-134a)
On vehicles with high voltage discharge type headlights,
replacement of a headlight bulb should be done by your dealer.
12 V 5 W(H1)
(AMBER)
Front
Rear
Spare Tire
Front
Rear
Spare Tirein
High
Low
Front
Rear
Front
Rear
Frontin
1:
2:
3:
1:
2:Except CR models
CR models
Except CR models
CR models
(AMBER)
1
1
1
1
2
1
2
2
3
2009 S2000
