2009 HONDA S2000 audio

Î
Î
Interior Convenience Items
Inst rument s and Cont rols
89
BEVERAGE HOLDER
CONSOLE COMPARTMENT
DASHBOARD LOWER POCKET
DRIVER’S SEAT-BACK POCKET ACCESSORY POWER SOCKET
VANITY MIRROR/SUNVISOR
: If equipped AUDIO PANEL
2009 S2000

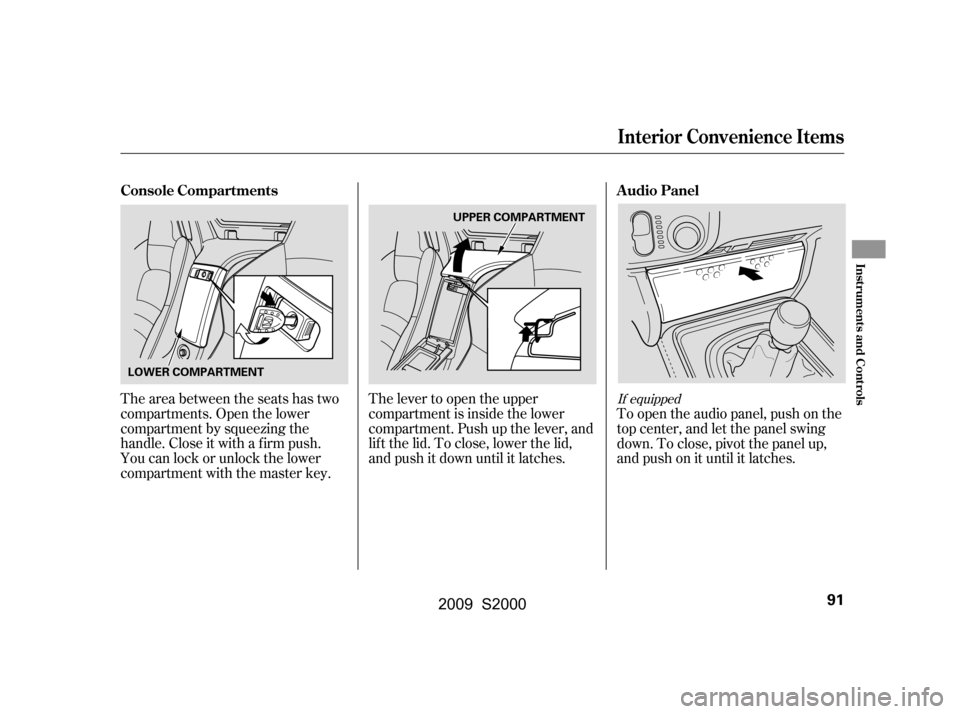

The lever to open the upper
compartment is inside the lower
compartment. Push up the lever, and
lif t the lid. To close, lower the lid,
and push it down until it latches.
The area between the seats has two
compartments. Open the lower
compartment by squeezing the
handle. Close it with a f irm push.
You can lock or unlock the lower
compartment with the master key. To open the audio panel, push on the
top center, and let the panel swing
down.Toclose,pivotthepanelup,
andpushonituntilitlatches.If equipped
Interior Convenience Items
Audio Panel
Console Compartments
Inst rument s and Cont rols
91
LOWER COMPARTMENT UPPER COMPARTMENT
2009 S2000

If the switch is in the center position,
the interior light will come on when
you remove the key f rom the ignition
switch.
The interior light has a three-
position switch: ON, Door Activated,
and OFF. In the Door Activated
(center) position, the light comes on
when you: Open either door.
Unlock the doors with the key or
the remote transmitter.
The dashboard lower pocket is
located next to the audio panel.
Dashboard L ower Pocket
Interior L ight
Interior Convenience Items, Interior L ight
92
DOOR
ACTIVATED
SWITCH
2009 S2000

The standard audio system has
many f eatures. This section
describes those f eatures and how to
use them. (If you have an optional
audio system, ref er to the operating
instructions that came with it.)
The heating and air conditioning
system in your vehicle provides a
comf ortable driving environment in
all weather conditions.
Your vehicle has an anti-theft audio
system that requires a code number
to enable it................
Vents, Heating, and A/C .96
........................
Vents and Heating .100
..........
Playing the AM/FM Radio .104
............
AM/FM Radio Reception .107
.
Playing the XM
Satellite Radio .109
..................................
Playing a CD .114
...................................
CD Changer .116
....................
Protecting Your CDs .117
.........
CD Player Error Messages .120
.....
CD Changer Error Messages .121
................
Remote Audio Controls .122
.................
Radio Thef t Protection .123
...............................
Cruise Control .124
Features
Features
95
2009 S2000

Push this lever up and down to
increase or decrease the f an speed
and airf low. The indicators next to
the lever show you the speed and
airf low selected.
This button turns the air
conditioning on and of f . The
indicator in the button comes on
when the A/C is on.
Turning this dial clockwise increases
the temperature of the airflow.
When the recirculation indicator is
on, air f rom the vehicle’s interior is
sent through the system again
(recirculation mode). When the
indicator is of f , air is brought in f rom
the outside of the vehicle (f resh airmode).
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
This button turns the rear window
def ogger of f and on (see page ).
Do not push the def ogger button
when the convertible top is f olded.
Use the mode control dial to select
the vents the air flows from. Some
air will f low f rom the dashboard
vents in all modes.
Air flows from the vents on
both sides of the instrument panel,
andfromthedashboardventinfront
of the passenger.
Airf low is divided between
the vents in the dashboard and the
f loor vents.
Air flows from the center
vents in the dashboard above the
audio system, the vents on both
sides of the instrument panel, and
f rom the f loor vents. Select this
position when you drive with the
convertible top f olded.
61
CONT INUED
Vents, Heating, and A/C
Fan Control L ever
Air Conditioning (A/C) Button
T emperature Control Dial
A irf low Controls
Recirculation Button Rear Window Def ogger ButtonMode Control Dial
Features
97
2009 S2000

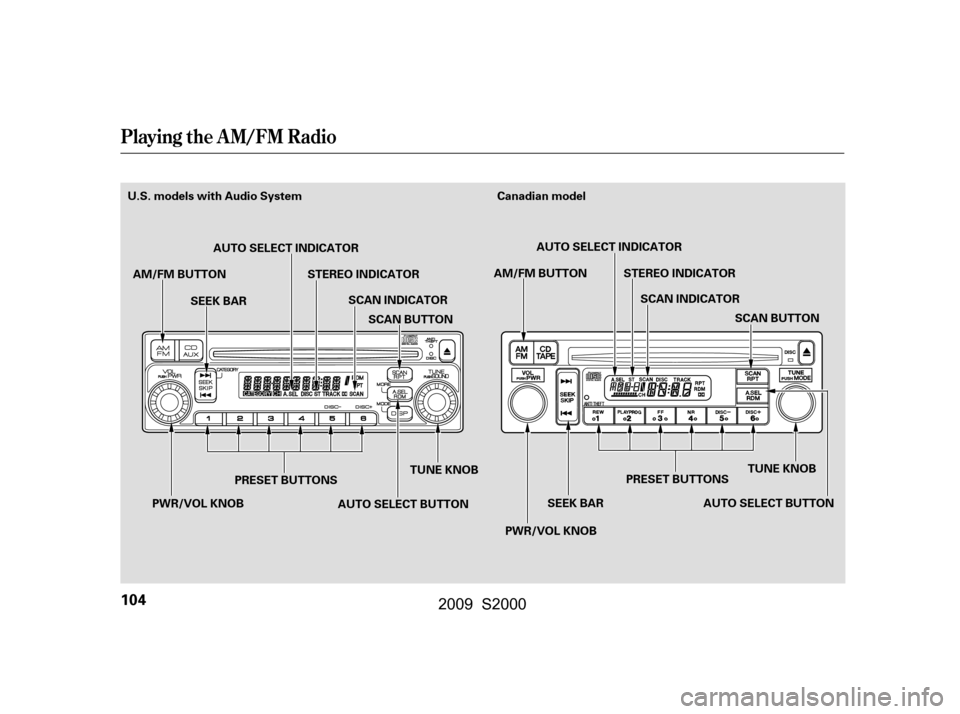

Playing the AM/FM Radio
104
SCAN BUTTON
AM/FM BUTTON
AUTO SELECT INDICATOR
STEREO INDICATORSCAN INDICATOR
PRESET BUTTONS
SEEK BAR
Canadian model
TUNE KNOB
AM/FM BUTTON
AUTO SELECT INDICATOR
STEREO INDICATORSCAN INDICATOR
PRESET BUTTONS
SEEK BAR
SCAN BUTTON
TUNE KNOB
AUTO SELECT BUTTON AUTO SELECT BUTTON
PWR/VOL KNOB
PWR/VOL KNOB
U.S. models with Audio System
2009 S2000

µµ
µµ
µ
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area.
Press the A. SEL button. ‘‘A. SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if auto
select cannot f ind a strong station f or
that preset button. ,pressthe
A. SEL (auto select) button. This
restores the presets you originally
set.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons as previously described. Turn the knob to adjust the setting.
When the level reaches the center,
you will see a ‘‘C’’ in the display. The
system will return to the audio
display in about 5 seconds.
You can use the instrument panel
brightness control buttons to adjust
the illumination of the audio system
(see page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f .
Press the SOUND/MODE (TUNE)
knob repeatedly to display the bass
(BAS), treble (TRE), fader (FAD),
and balance (BAL) setting.
Adjusts the bass in the
sound. Adjusts the treble in the
sound. Adjusts the fader, or the
f ront-to-back strength of the sound. Adjusts the balance, or side-
to-side strength of the sound. 60To turn of f auto selectAUTO SELECT
A udio System L ighting
Adjusting the Sound
BAS
TRE
FAD
BAL
Playing the AM/FM Radio
106
2009 S2000

XMis a registered trademark of
XM Satellite Radio
,Inc.
Satellite radio receives signals f rom
two satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, satellite
radio also allows you to view channel
and category selections in the audio
display.
Your vehicle is capable of receiving
XM
Satellite Radio anywhere in the
United States, except Hawaii and
Alaska.
Optional on U.S. models
Not available on Canadian models
Playing the XMSatellite Radio (Optional on U.S. Models)
Features
109
AM/FM BUTTON
PRESET BUTTONS
POWER/VOLUME
KNOB
CATEGORY BAR DISPLAY/MODE BUTTON
CD/AUX BUTTON
TUNE KNOB
SCAN BUTTON
MORE BUTTON
2009 S2000
