This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .44
............................
Instrument Panel .45
..........
Instrument Panel Indicators .46
.............................................
Gauges .53
.....................................
Odometer .53
....................................
Trip meter .53
...............................
Select Button .53
..................................
Fuel Gauge .54
..........
Check Fuel Cap Message .54
...................
Temperature Gauge .55
Outside Temperature
...................................
Indicator .55
..................
Maintenance Minder .56
............................................
Clock .56
Controls Near the Steering ...........................................
Wheel .57
Windshield Wipers and .......................................
Washers .58
...........
Turn Signal and Headlights .59
........
Instrument Panel Brightness .60
.................
Hazard Warning Button .60
.................
Rear Window Def ogger .61
...............................
Keys and Locks .62
........................
Immobilizer System .63
................................
Ignition Switch .64
..........................
Power Door Locks .65................................................
Trunk .65
........
Emergency Trunk Opener .66
.......................
Remote Transmitter .67
.................................................
Seats .69
..............................
Power Windows .70
..............................
Convertible Top .72
........................
Removable Hardtop .78
.............................................
Mirrors .87
.................................
Parking Brake .88
...........
Interior Convenience Items .89
.........................
Beverage Holder .90
...........
Accessory Power Socket .90
.............
Console Compartments .91
.................................
Audio Panel .91
..........
Dashboard Lower Pocket .92
...................................
Interior Light .92
Instruments and Controls
Inst rument s and Cont rols
43
2009 S2000
Î
Î
ÎÎ
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
1:
2 : Only on CR models. CR models are not available in Canada.
Instrument Panel
Inst rument s and Cont rols
45
TRUNK-OPEN INDICATOR
IMMOBILIZER SYSTEM INDICATOR
ANTI-LOCK BRAKE
SYSTEM (ABS)
INDICATOR
DOOR-OPEN INDICATOR
VEHICLE STABILITY
ASSIST (VSA) SYSTEM
INDICATOR
(P.50)
(P.50)
(P.47)
(P.46) CHARGING SYSTEM INDICATORLOW OIL PRESSURE INDICATOR MALFUNCTION INDICATOR LAMP CRUISE CONTROL INDICATOR (P.47)
(P.47) (P.47)
(P.49) (P.47)
(P.48)
(P.49)
SUPPLEMENTAL RESTRAINT SYSTEM
INDICATOR
VSA ACTIVATION INDICATOR
OUTSIDE TEMPERATURE INDICATOR
TURN SIGNAL AND HAZARD WARNING
INDICATORS
MAINTENANCE MINDER INDICATOR(P.50)
INFORMATION DISPLAY
HIGH BEAM INDICATORTPMS INDICATOR
(P.48) DAYTIME RUNNING
LIGHTS INDICATOR
LOW TIRE PRESSURE
INDICATOR (P.49)
LOW FUEL
INDICATOR
SEAT BELT REMINDER
INDICATOR
ELECTRIC
POWER
STEERING (EPS)
INDICATOR
(P.48)
PARKING BRAKE AND
BRAKE SYSTEM INDICATOR (P.51)
(P.51)
(P.52)
PEAK POWER INDICATOR (P.53,161)
(P.55)
(P.46,220) (P.46,218)
(P.46,218) (P.47,219)
1 2
2009 S2000
This indicator comes on as a
reminder that you must ref uel soon.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
then go of f if you have inserted a
properly coded ignition key. If it is
not a properly coded key, the
indicator will blink, and the engine
will not start (see page ).
This indicator also blinks several
times when you turn the ignition
switch f rom the ON (II) position to
the ACCESSORY (I) or LOCK (0)
position.
This indicator comes on with the
high beam headlights. For more
inf ormation, see page .
When the daytime running lights
(DRL) are on, this indicator comes
on with reduced brightness.
When the indicator comes on, there
is about 2.22 US gal (8.4
)of fuel
remaining in the tank.
When the needle reaches E, there is
a very small amount of f uel in the
tank.
59
63
Instrument Panel Indicators
Low Fuel Indicator
Immobilizer System
Indicator
High Beam Indicator
Inst rument s and Cont rols
49
2009 S2000
The valet key works only in the
ignition and the door locks. You can
keep the trunk and the lower console
compartment locked when you leave
your vehicle and the valet key at a
parking f acility.
Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a key replaced. Use only
Honda-approved key blanks.These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.
Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.
The keys do not contain batteries.
Do not try to take them apart.
The master key fits all the locks on
your vehicle.
Keys and Locks
62

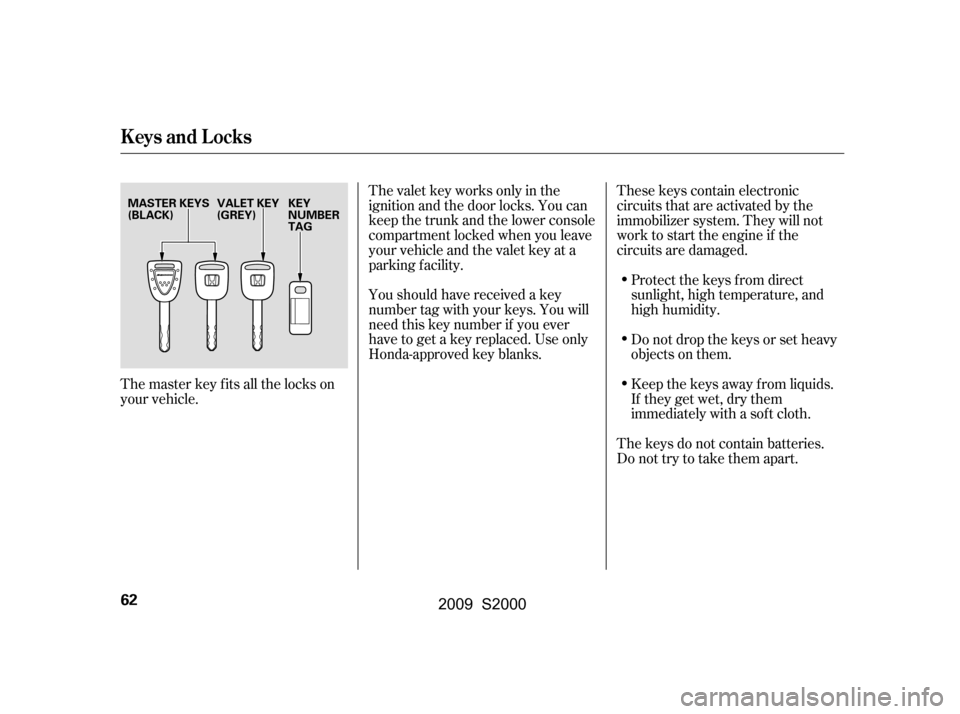

VALET KEY
(GREY)
KEY
NUMBER
TAG
MASTER KEYS
(BLACK)
2009 S2000
When you turn the ignition switch to
the ON (II) position, the immobilizer
system indicator should come on f or
a f ew seconds, then go of f . If the
indicator starts to blink, it means the
system does not recognize the
coding of the key. Turn the ignition
switch to the LOCK (0) position,
remove the key, reinsert it, and turn
the ignition switch to the ON (II)
position again.If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.
If you lose your key and cannot start
the engine, contact your dealer.
The immobilizer system protects
your vehicle f rom thef t. If an
improperly coded key (or other
device) is used, the engine’s f uel
system is disabled.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
chain) is near the ignition switch
when you insert the key.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Immobilizer System
Inst rument s and Cont rols
63
Always take the ignition key with you
whenever you leave the vehicle alone.
2009 S2000
Apply the parking brake.
In cold weather, turn of f all
electrical accessories to reduce
the drain on the battery.
Push the clutch pedal down all the
way. The ENGINE START button
has no ef f ect unless the clutch
pedal is pressed.
Turn the ignition key to the ON
(II) position.
Without touching the accelerator
pedal, push the ENGINE START
button. Do not hold the ENGINE
START button for more than 15
seconds at a time. If the engine
does not start right away, pause
f or at least 10 seconds bef ore
trying again.If the engine fails to start, press
the accelerator pedal all the way
downandholdittherewhile
starting to clear flooding. If the
engine still does not start, return
to step 6.
If theenginedoesnotstartwithin
15 seconds, or starts but stalls
right away, repeat step 5 with the
accelerator pedal pressed halfway
down. If the engine starts, release
pressure on the accelerator pedal
so the engine does not race.
1.
2.
3.
4.
5. 6.
7.
Starting the Engine
146

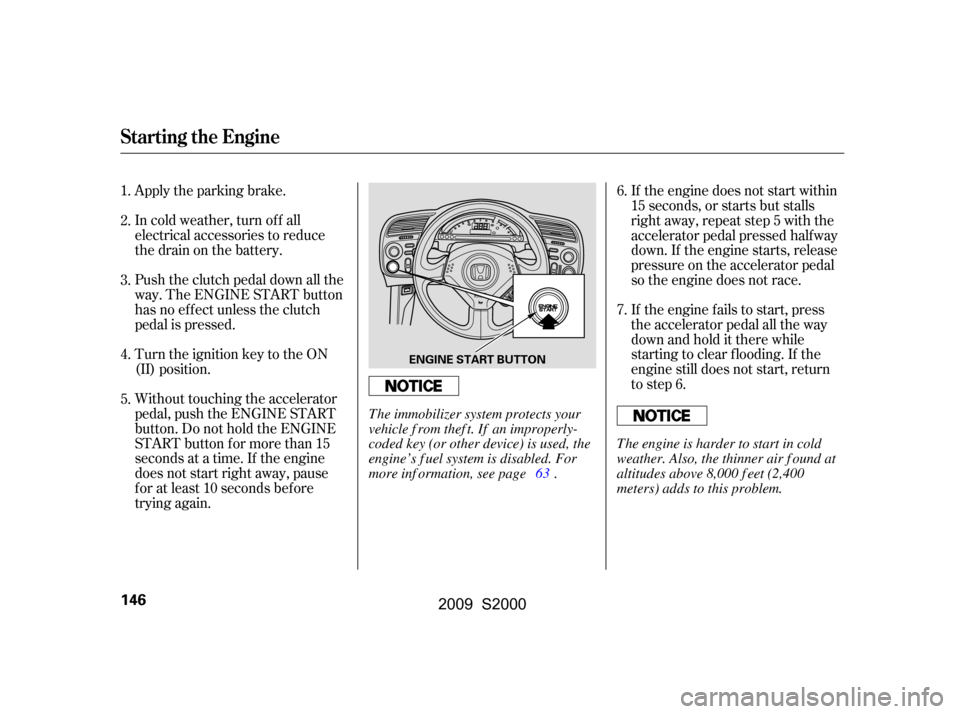

ENGINE START BUTTON
The engine is harder to start in cold
weather. Also, the thinner air f ound at
altitudes above 8,000 f eet (2,400
meters) adds to this problem.
T he immobilizer system protects your
vehicle f rom thef t. If an improperly-
coded key (or other device) is used, the
engine’s f uel system is disabled. For
more inf ormation, see page .
63
2009 S2000
If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is
discharged or the connections are
corroded. Check the condition of the
battery and terminal connections
(see page ). You can then try
jump starting the vehicle from a
booster battery (see page ).In this case, the starter motor’s
speed sounds normal, or even f aster
than normal, when you press the
ENGINE START button, but the
engine does not run.
There may be an electrical
problem, such as no power to the
f uel pump. Check all the f uses
(see page ).
Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page ).
Are you using the proper starting
procedure? Ref er to on page .
Do you have f uel? Check the f uel
gauge; the low f uel indicator may
not be working. If youfindnothingwrong,youwill
need a qualif ied mechanic to f ind the
problem. See
on page .
63
146
196
214 228222
T he Starter Operates Normally
Starting the
Engine Emergency T owing
If theEngineWon’tStart
T aking Care of t he Unexpect ed
213
