2009 HONDA ODYSSEY diagram

Auxiliary input jacks and headphone
connectors f or the rear
entertainment system are under the
third row seat armrest on the driver’s
side. To access these connectors,
open the cover by pulling up on the
lever.
Remove the battery. Install the new
battery in the earpiece as shown in
the diagram next to the battery slot.
Slide the cover back into place on the
earpiece, then press down on the
back edge to lock it in place.
An improperly disposed of battery
can hurt the environment.
Always conf irm local regulations f or
battery disposal.

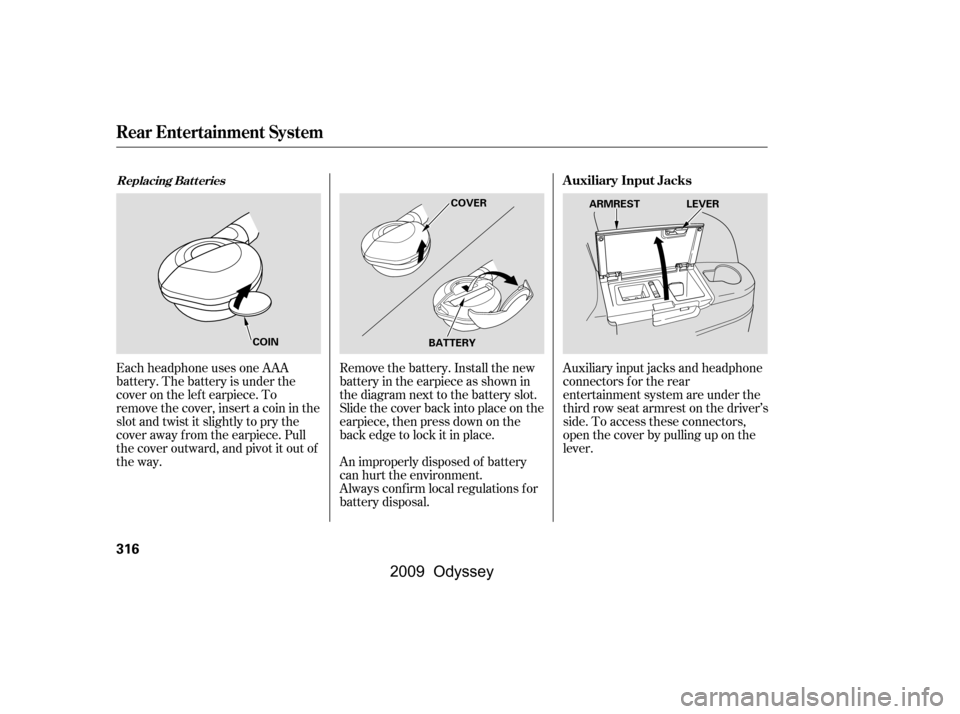

Each headphone uses one AAA
battery. The battery is under the
cover on the lef t earpiece. To
remove the cover, insert a coin in the
slot and twist it slightly to pry the
cover away f rom the earpiece. Pull
the cover outward, and pivot it out of
the way.
Rear Entertainment System
Auxiliary Input JacksReplacing Bat t eries
316
COVER
BATTERY LEVER
ARMREST
COIN
\f—\f—
y

y
(\fy\f
y
2009 Odyssey

To help increase tire lif e and
distribute wear more evenly, rotate
the tires according to the
maintenance messages displayed on
the inf ormation display or multi-
inf ormation display (depending on
models). Move the tires to the
positions shown in the diagram each
time they are rotated. If you
purchase directional tires, rotate
only f ront-to-back.
In addition to proper inf lation,
correct wheel alignment helps to
decrease tire wear. If you f ind a tire
is worn unevenly, have your dealer
check the wheel alignment.
Have your dealer check the tires if
you f eel a consistent vibration while
driving. A tire should always be
rebalanced if it is removed f rom the
wheel. When you have new tires
installed, make sure they are
balanced. This increases riding
comf ort and tire lif e. For best results,
have the installer perform a dynamic
balance.
The service lif e of your tires is
dependent on many f actors,
including, but not limited to, driving
habits, road conditions, vehicle
loading, inf lation pressure,
maintenance history, speed, and
environmental conditions (even
when the tires are not in use).
The last f our digits of the TIN (tire
identif ication number) are f ound on
the sidewall of the tire and indicate
the date of manufacture (See
on page ).
In addition to your regular
inspections and inf lation pressure
maintenance, it is recommended that
you have annual inspections
perf ormed once the tires reach f ive
years old. It is also recommended
that all tires, including the spare, be
removed from service after 10 years
from the date of manufacture,
regardless of their condition or state
of wear.
498
If equipped
Tires
Tire Rotation
T ire Maintenance
Tire Service Lif e
Tire
Labeling
Maint enance
453
Front Front
(For Non-directional
Tires and Wheels) (For Directional
Tires and Wheels)
Improper wheel weights can damage
your vehicle’s aluminum wheels. Use
only genuine Honda wheel weights f or
balancing.
\f—\f—
y

\fy
(\fy\fy
2009 Odyssey

Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse boxes by
pulling out each f use with the f use
puller provided in the primary
under-hood f use box.
Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f . Check each of the large f uses in
the primary under-hood f use box
by looking through the top at the
wire inside. Removing these f uses
requires a Phillips-head
screwdriver.
If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pages
through , or the diagram on
thefuseboxlid,whichfuseorfuses
control that device. The diagram f or
theinteriordriver’ssidefuseboxis
on the kick panel below the f use box.
Check those f uses f irst, but check all
the f uses bef ore deciding that a
blown f use is the cause. Replace any
blown f uses, and check if the device
works.
Remove the cover f rom the f use
box.
1.
2. 3.
4.
485487
CONT INUED
Checking and Replacing Fuses
Fuses
T aking Care of t he Unexpect ed
483
FUSE
BLOWN FUSE PULLER
\f—\f—
y
\f\fy
(\fy\fy
2009 Odyssey

µ
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.
................
Identif ication Numbers .492
................................
Specif ications .494
DOT Tire Quality Grading .......................
(U.S Vehicles) .496
Unif orm Tire Quality ..................................
Grading .496
.................................
Treadwear .496
......................................
Traction .496
.............................
Temperature .497
.................................
Tire Labeling .498
Tire Pressure Monitoring System (TPMS) Required Federal ............................
Explanation .500
.......................
Emissions Controls .503
.....................
The Clean Air Act .503
Crankcase Emissions Control ....................................
System .503
Evaporative Emissions Control ....................................
System .503
Onboard Ref ueling Vapor ................................
Recovery .503
...
Exhaust Emissions Controls .504
....................
PGM-FI System .504
Ignition Timing Control ................................
System .504Exhaust Gas Recirculation
...................
(EGR) System .504
Three Way Catalytic ...........................
Converter .504
....................
Replacement Parts .504
..
Three Way Catalytic Converter .505
........................
Emissions Testing .506
....
Testing of Readiness Codes .506
T echnical Inf ormation
Technical Inf ormation
491
\f—\f—
y
\fy
(\fy\fy
2009 Odyssey
