2009 HONDA ODYSSEY navigation

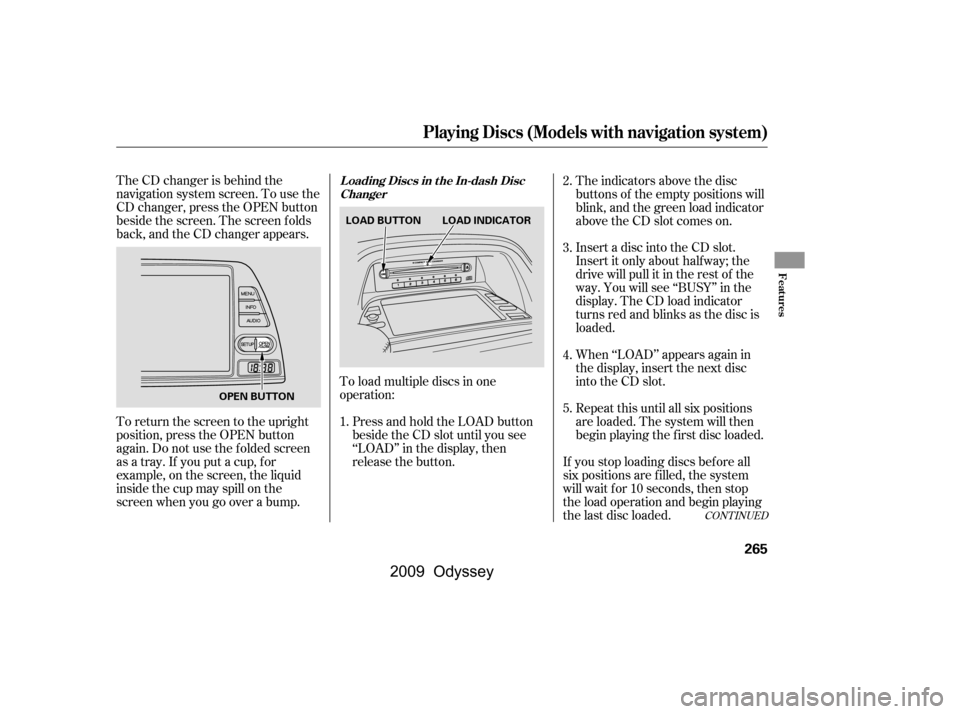

The CD changer is behind the
navigation system screen. To use the
CD changer, press the OPEN button
beside the screen. The screen f olds
back, and the CD changer appears.To load multiple discs in one
operation:Press and hold the LOAD button
beside the CD slot until you see
‘‘LOAD’’ in the display, then
release the button. The indicators above the disc
buttons of the empty positions will
blink, and the green load indicator
above the CD slot comes on.
Insert a disc into the CD slot.
Insert it only about halfway; the
drive will pull it in the rest of the
way. You will see ‘‘BUSY’’ in the
display. The CD load indicator
turns red and blinks as the disc is
loaded.
Repeat this until all six positions
are loaded. The system will then
begin playing the f irst disc loaded.
When ‘‘LOAD’’ appears again in
the display, insert the next disc
into the CD slot.
If you stop loading discs bef ore all
six positions are f illed, the system
will wait f or 10 seconds, then stop
the load operation and begin playing
the last disc loaded.
To return the screen to the upright
position, press the OPEN button
again. Do not use the f olded screen
as a tray. If you put a cup, f or
example, on the screen, the liquid
inside the cup may spill on the
screen when you go over a bump.
1.2.
3.
4.
5.
CONT INUED
Playing Discs (Models with navigation system)
L oading Discs in the In-dash Disc
Changer
Features
265
LOAD BUTTON LOAD INDICATOR
OPEN BUTTON
\f—\f—
y

y
(\fy\f\fy
2009 Odyssey

To load a single disc:Press and release the LOAD
button.
TheindicatorsabovetheDisc
buttons of the empty positions will
blink, and the green CD load
indicator comes on. When you see
‘‘LOAD’’ in the display, insert the
disc into the CD slot. Insert it only
about half way; the drive will pull it
in the rest of the way.
The system will load the disc and
begin playing it. If you press the LOAD button while
a disc is playing, the system will stop
playing that disc and start the
loading sequence. It will then play
the disc just loaded.
You can also load a disc into an
empty position while a disc is playing
by pressing the appropriate disc
button. Select an empty disc button
(the indicator above the button is
of f ), and press the button. The
system will stop playing the current
disc and start the loading sequence.
It will then play the disc just loaded.
You cannot load and play 3-inch
(8-cm)discsinthissystem. Each time you press the DISP button,
the display shows you the text data
on a disc, if the disc was recorded
with text data.
You can see the album, artist, and
track name in the display. If a disc is
recorded in MP3 or WMA, you can
see the f older and f ile name, and the
album, artist, and track tag.
With the f older name, you will see
the FOLDER indicator in the display.
The TRACK indicator is shown with
the file or track name.
When you press and release the
DISP button while a disc without text
data is playing, you will see ‘‘NO
INFO’’ on the display.
The display shows up to 16
characters of selected text data (the
f older name, f ile name, etc.).
2.
1.
3.
Playing Discs (Models with navigation system)
T ext Data Display Function
266
\f—\f—
y

\f\fy
(\fy\f
y
2009 Odyssey

µ´
µ
¼
If the text data has more than 16
characters, you will see the first 15
characters and the indicator in
the display. Press and hold the DISP
button until the next 16 characters
are shown. You can see up to 31
characters of the text data.
If youpressandholdtheDISP
button again, the display shows the
f irst 16 characters again.
If any letter is not available, it is
replaced with ‘‘ . ’’ (dot) in the display.
When the disc has no text data, you
will see ‘‘NO INFO’’ on the display.
You will also see some text data
under these conditions:
When a new f older, f ile, or track is
selected.
When you change the audio mode
to play a disc with text data or in
MP3 or WMA. When you insert a disc, and the
system begins to play.
When playing a CD-DA with text
data, the album and track name are
showninthedisplay.Withadiscin
MP3 or WMA, the display shows the
f older and f ile name.
When you turn on the audio system
next time, the system keeps your
selection with the DISP button. You can use the SKIP bar while a
disc is playing to select passages and
change tracks (f iles in MP3/WMA
mode).
Each time you press and
release the SKIP bar, the player
skips forward to the beginning of the
next track (f ile in MP3 or WMA
mode). Press and release the
SKIPbartoskipbackwardtothe
beginning of the current track. Press
itagaintoskiptothebeginningof
the previous track.
To move rapidly within a track, press
andholdthe or SKIPbar.
Playing Discs (Models with navigation system)
T o Change or Select T racks/Files
SK IPFeatures
267
\f—\f—
y

\f
y
(\fy\fy
2009 Odyssey

µµ µ
µ
In MP3 or WMA mode
In MP3 or WMA mode
To
select a different folder, turn the
TUNE knob to move to the
beginning of the next f older. Turn
the knob to the right until it clicks
once to skip to the next folder, and to
the lef t to move to the beginning of
the current f older. Turn it again to
skip to the beginning of the previous
f older. Turning the TUNE knob
more than two clicks skips several
folders.
The scan f unction samples all tracks
(f iles in MP3 or WMA) on the disc in
the order they are recorded on the
disc. To activate scan, press and hold
the SCAN/RPT button. You will see
SCAN in the display. You will get a
10 second sampling of each track/
f ile on the disc. Press and hold the
SCAN/RPT button f or about 2
seconds to get out of scan mode and
play the last track/f ile sampled. This
feature, when activated, samples the
f irst f ile of each f older on the disc.
To activate f older scan, press and
hold the SCAN/RPT button to select
SCAN, then press and release the
button again to select f older scan.
You will see F-SCAN in the display.
The system plays the f irst f ile in the
f irst f older f or about 10 seconds. If
you do nothing, the system will then
play the f irst f iles in the next f olders
for 10 seconds. After playing the first
file of the last folder, the system
plays normally.
Press and hold the SCAN/RPT
button f or 2 seconds to get out of
scan mode and play the last f ile
sampled. This f eature, when
activated, samples the first track (file
in MP3 or WMA) in each disc. To
activate the DISC SCAN feature,
press and hold the SCAN/RPT
button to select SCAN, then press
and release the button twice to select
disc scan. You will see D-SCAN in
the display. The system will then
play the f irst track/f ile in the disc f or
about 10 seconds. If you do nothing,
the system will then play the first
track/f ile in the remaining discs f or
10 seconds each. Af ter playing the
f irst track/f ile of the last disc, the
system plays normally.
Each time you press and release the
SCAN/RPT button, the mode
changes f rom scan, to f older scan, to
disc scan, then to normal playing.
Playing Discs (Models with navigation system)
FOLDER SELECTION
SCA N (T RA CK /FIL E SCA N) F-SCAN (FOLDER SCAN)
DISC SCAN
268
\f—\f—
y

\fy
(\fy\fy
2009 Odyssey

µµ
µ µ
µ
To continuously replay
a track (f ile in MP3 or WMA mode),
press and release the SCAN/RPT
button. You will see RPT in the
display. Press and hold the SCAN/
RPT button for 2 seconds to turn it
off. This
feature, when activated, plays all
f iles on the selected f older in random
order. To activate f older random,
press the RDM button. You will see
F-RDM in the display. The system
will then select and play f iles
randomly. This continues until you
deactivate f older random by pressing
and holding the RDM button f or 2
seconds.
Each time you press and release the
RDM button, the mode changes
f rom f older random play to random
play (within a disc random play),
then to normal play.
This feature,
when activated, replays all f iles on
the selected f older in the order they
are compressed. To activate folder
repeat, press the SCAN/RPT button
twice. You will see F-RPT in the
display. The system continuously
replays the current f older. Press and
hold the SCAN/RPT button for 2
seconds to turn it off. Each time you press and release the
SCAN/RPT button, the mode
changes f rom f ile repeat, to f older
repeat, to disc repeat, then to normal
playing.To activate the
DISC REPEAT f eature, press the
SCAN/RPT button three times. You
will see ‘‘D-RPT’’ in the display as a
reminder. The system continuously
replays the current disc. Press the
SCAN/RPT button again to turn it
off.
This f eature plays the
tracks (the files in MP3 or WMA
mode) within a disc in random order.
To activate random play, press and
release the RDM button. In MP3 or
WMA mode, press the RDM button
twice to select RDM (within a disc
random play). You will see RDM in
the display. Press the RDM button
again to turn it off.
In MP3 or WMA mode In MP3 or WMA mode
Playing Discs (Models with navigation system)
REPEAT (TRACK/FILE
REPEAT)
FOLDER-RANDOM
FOL DER-REPEA T DISC REPEAT
RANDOM (Random within a
disc)
Features
269
\f—\f—
y

\f
y
(\fy\fy
2009 Odyssey

For inf ormation on how to handle
and protect compact discs, see page.
To remove the disc that is currently
playing, press the eject button. You
will see ‘‘EJECT’’ in the display.
When you remove the disc f rom the
slot, the system automatically begins
the load sequence so you can load
another disc in that position. If you
do not load another disc af ter 15
seconds, the system selects the
previous mode (AM, FM, or XM).
If you do not remove the disc f rom
the slot, the system will reload the
disc af ter 10 seconds, and select the
previous mode (AM, FM, or XM). To
begin playing the disc, press the CD
button.
To remove a different disc from the
changer,firstselectitwiththe
appropriate preset button. When that
disc begins playing, press the eject
button. If you press the eject button while
listening to the radio, or with the
audio system turned of f , the disc
that was last selected is ejected.
Af ter that disc is ejected, pressing
the eject button again will eject the
next disc in numerical order. By
doing this six times, you can remove
all the CDs f rom the changer.
In any mode, if you press the eject
button and hold it until you hear a
beep, the system will eject all of the
discs in the changer.
You can also eject discs when the
ignition switch is of f . The disc that
was last selected is ejected f irst. You
can eject up to six discs, one at a
time.
272
Playing Discs (Models with navigation system)
Protecting Compact DiscsRemoving Discs f rom t he In-dash
Disc Changer
270
\f—\f—
y

\fy
(\fy\fy
2009 Odyssey

If you see an error message in the
display while playing a disc, press
the eject button. After ejecting the
disc, check it for damage or
deformation. If there is no damage,
insert the disc again.
For additional information on
damaged discs, see page .
Theaudiosystemwilltrytoplaythe
disc. If there is still a problem, the
error message will reappear. Press
the eject button, and pull out the disc.
Insert a dif f erent disc. If the new
disc plays, there is a problem with
the f irst disc. If the error message
cycle repeats and you cannot clear it,
take your vehicle to a dealer.
Thechartontherightexplainsthe
error messages you may see in the
display while playing a disc.Solution
Error Message Cause
273
Will disappear when the temperature returns to
normal.
Current track will be skipped. The next
supported track or file plays automatically.
Press the EJECT button and pull out the disc(s).
Check the disc for serious damage, signs of
deformation, excessive scratches, and/or dirt
(see page273). Insert the disc again. If the
code does not disappear, or the disc(s) cannot
be removed, consult your dealer. Do not try to
force the disc out of the player.
High temperature
Track/File format not
supported
Mechanical Error
Servo Error
Disc Changer Error Messages (Models with navigation system)
Features
271
HEAT ERROR
UNSUPPORTED FORMAT
BAD DISC
PLEASE CHECK OWNER’S
MANUAL PUSH EJECT
BAD DISC
PLEASE CHECK OWNER’SMANUAL
\f—\f—
y

\fy
(\fy\fy
2009 Odyssey

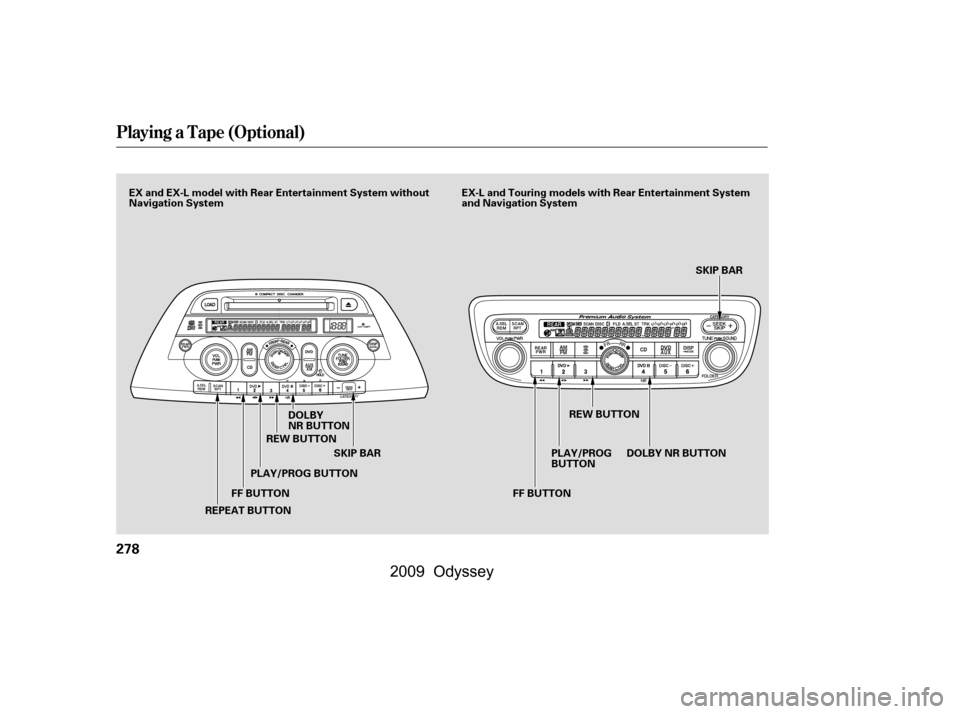

Playing a T ape (Optional)
278
FF BUTTONSKIP BAR SKIP BAR
DOLBY
NR BUTTON
REPEAT BUTTON PLAY/PROG BUTTON
REW BUTTON
PLAY/PROG
BUTTONREW BUTTON
DOLBYNRBUTTON
FF BUTTON
EX and EX-L model with Rear Entertainment System without
Navigation System
EX-L and Touring models with Rear Entertainment System
and Navigation System
\f—\f—
y


y
(\fy\fy
2009 Odyssey
