2009 HONDA ODYSSEY Engine

This indicator comes on when you
turn on the cruise control system by
pressing the CRUISE button on the
steering wheel (see page ).
This indicator comes on when you
set the cruise control. See pagef or inf ormation on operating the
cruise control.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. If it
comes on at any other time, there is
a problem in the power sliding door
system. With this indicator on, move
themainswitchonthedashboardto
the OFF position, and have the
system checked by your dealer as
soon as possible. You can still open
or close each sliding door manually.
For more inf ormation on the power
sliding doors, see page .
The appropriate light comes on in
this indicator if the tailgate or any
door is not closed tightly.
All the lights in the indicator come
on f or a f ew seconds when you turn
the ignition switch to the ON (II)
position.
While the engine is operating in its
most economical range, this
indicator may come on and stay on.
It goes of f when your vehicle uses
extra f uel.
The door and tailgate open indicator
also appears on the multi-inf ormation
display.
You will also see a ‘‘CHECK LEFT
SLIDING DOOR’’ or ‘‘CHECK
RIGHT SLIDING DOOR’’ message
on the multi-information display (see
page ). 161 319
319
89
On EX and EX-L models
On Touring models On EX-L and Touring models
On Touring models
Instrument Panel Indicators
Cruise Main Indicator
Cruise Control Indicator
Fuel Economy Indicator
Power Sliding
Door Indicator
Door and Tailgate Open Indicator
Inst rument s and Cont rols
75
U.S. Canada
——
y

y
(yy
2009 Odyssey

This shows how much f uel you have.
It may show slightly more or less
than the actual amount. The needle
returns to the bottom after you turn
of f the ignition.
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise to
about the middle of the gauge. In
severe driving conditions, the pointer
may rise to the upper zone. If it
reaches the red (hot) mark, pull
safely to the side of the road. For
instructions and precautions on
checking the engine’s cooling
system, see page .477
Temperature Gauge
Fuel Gauge
Gauges
Inst rument s and Cont rols
77
SPEEDOMETER
TEMPERATURE
GAUGE
FUEL GAUGE
TEMPERATURE
GAUGE
TACHOMETER
SELECT/RESET KNOB
SELECT/RESET KNOB
TACHOMETER SPEEDOMETER
FUEL GAUGE
MULTI-INFORMATION DISPLAY INFORMATION DISPLAY
LX, EX, EX-L and Canadian DX models
Touring models
Avoid driving with an extremely low
f uel level. Running out of f uel could
cause the engine to misf ire, damaging
the catalytic converter.
\f—\f—
y

y
(\fy\f\fy
2009 Odyssey

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
To switch the display, press and
release the select/reset knob
repeatedly. When you turn the
ignition switch to the ON (II)
position, your last selection is
displayed. This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it.
There are two trip meters: Trip A
and Trip B. Switch between these
displays by pressing the select/reset
knob repeatedly.
Each trip meter works independently,
so you can keep track of two
dif f erent distances.
To reset a trip meter, display it, and
then press and hold the select/reset
knob until the number resets to ‘‘0.0’’.
The inf ormation display shows the
odometer, trip meter, engine oil lif e,
outside temperature (if equipped),
and maintenance item code(s).
For inf ormation about the multi-
inf ormation display, see page .81
On LX, EX, EX-L and Canadian DX
models
On Touring models
Gauges
Odometer
Inf ormation Display Trip Meter
78

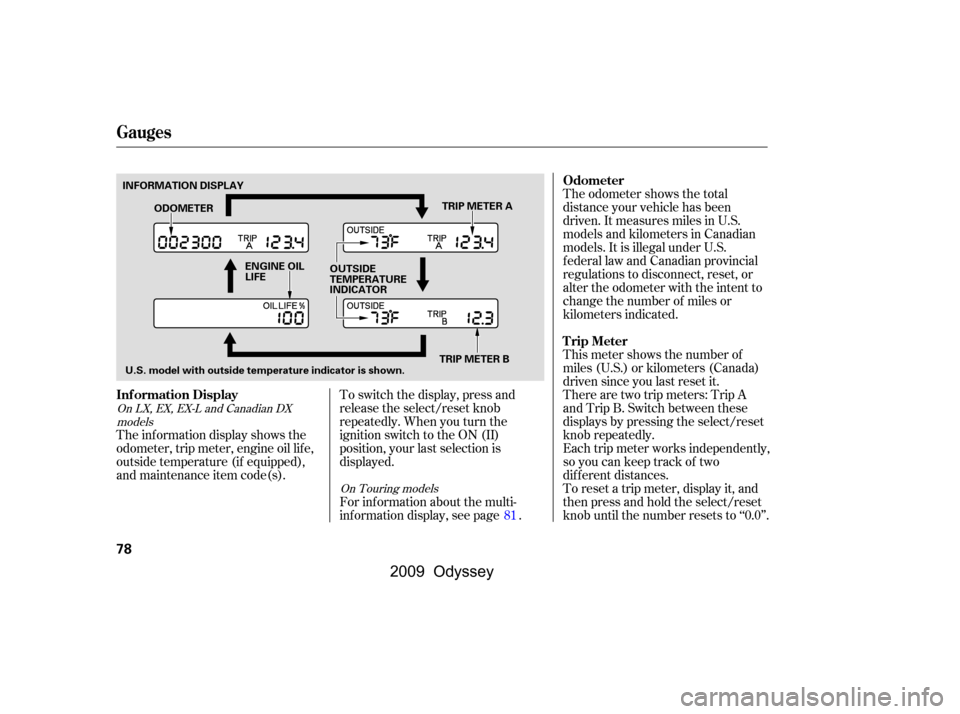

INFORMATION DISPLAY
TRIP METER A
ENGINE OIL
LIFE OUTSIDE
TEMPERATURE
INDICATOR
ODOMETER
U.S. model with outside temperature indicator is shown. TRIP METER B
\f—\f—
y

y
(\fy\f\fy
2009 Odyssey

¶¶µµ
µµµ
µµµ
This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Celsius (Canadian
models). To see the outside
temperature, press and release the
select/reset knob until the
temperature is displayed.
The temperature sensor is in the
f ront bumper. The temperature
reading can be affected by heat
ref lection f rom the road surf ace,
engine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your vehicle speed is under
19 mph (30 km/h). When you start
your trip, the sensor is not f ully
acclimatized, theref ore it may take
several minutes until the proper
temperature is displayed. In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F in U.S. models ( 3°C
in Canadian models) warmer or
cooler.
The temperature must be
stabilized bef ore doing this
procedure. To adjust the outside temperature
indicator, press and hold the select/
reset knob f or 10 seconds. The
f ollowing sequence will appear f or 1
secondeach:0,1,2,3,4,5, 5, 4,
3, 2, 1, 0 (U.S.) or 0, 1, 2, 3,
3, 2, 1, 0 (Canada).
When the temperature reaches the
desired value, release the select/
reset knob. You should see the new
outside temperature displayed.
CONT INUED
On EX and EX-L models
Gauges
Outside Temperature Indicator
Inst rument s and Cont rols
79
NOTE:
\f—\f—
y

y
(\fy\f\fy
2009 Odyssey

The inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation.Your vehicle’s onboard diagnostic
system will detect a loose or missing
f uel f ill cap as an evaporative system
leak. The f irst time a leak is detected
a ‘‘CHECK FUEL CAP’’ message
appears on the information display.
Turn the engine of f , and conf irm the
f uel f ill cap is installed. If it is, loosen
it, then retighten it until it clicks at
least once. The message should go
off after several days of normal
driving once you tighten or replace
the f uel f ill cap. To scroll to another
display, press the select/reset knob.
The ‘‘CHECK FUEL CAP’’ message
will appear each time you restart the
engine until the system turns the
message of f .If the system still detects a leak in
your vehicle’s evaporative emissions
system, the malf unction indicator
lamp (MIL) comes on. If the f uel f ill
cap was not already tightened, turn
the engine of f , and check or
retighten the f uel f ill cap until it
clicks at least once. The MIL should
go off after several days of normal
driving once the cap is tightened or
replaced. If the MIL does not go of f ,
have your vehicle inspected by a
dealer. For more inf ormation, see
page .
415
480
Gauges
Maintenance MinderCheck Fuel Cap Message
80
\f—\f—
y

y
(\fy\f\fy
2009 Odyssey

The multi-inf ormation display
consists of two segments: an upper
segment and a lower segment.To change the display, press the
INFObuttononthesteeringwheel
repeatedly until the desired
information appears (see page ).Messages in the trip computer
include:
In normal display mode, the upper
segment displays the trip computer.
The lower segment displays the
odometer, Trip A/B, outside
temperature, compass, and engine
oil lif e and maintenance message. INST.MPG(U.S.models)/
INST.L/100 km (Canadian
models): Your vehicle’s current
f uel mileage.
When you turn of f the engine,
INST. MPG or INST. L/100 km is
also reset.
RANGE: The estimated distance
you can travel on the fuel
remaining in the tank. This
distance is estimated from the fuel
economy you received over the
last several miles, so it will vary
withchangesinspeed,traffic,etc.
When the battery is disconnected,
or you ref uel, RANGE is also reset.
84
Multi-Inf ormation Display
82
LOWER SEGMENT UPPER SEGMENT
INFO BUTTON
SEL/RESET BUTTON
\f—\f—
y

\fy
(\fy\f\fy
2009 Odyssey

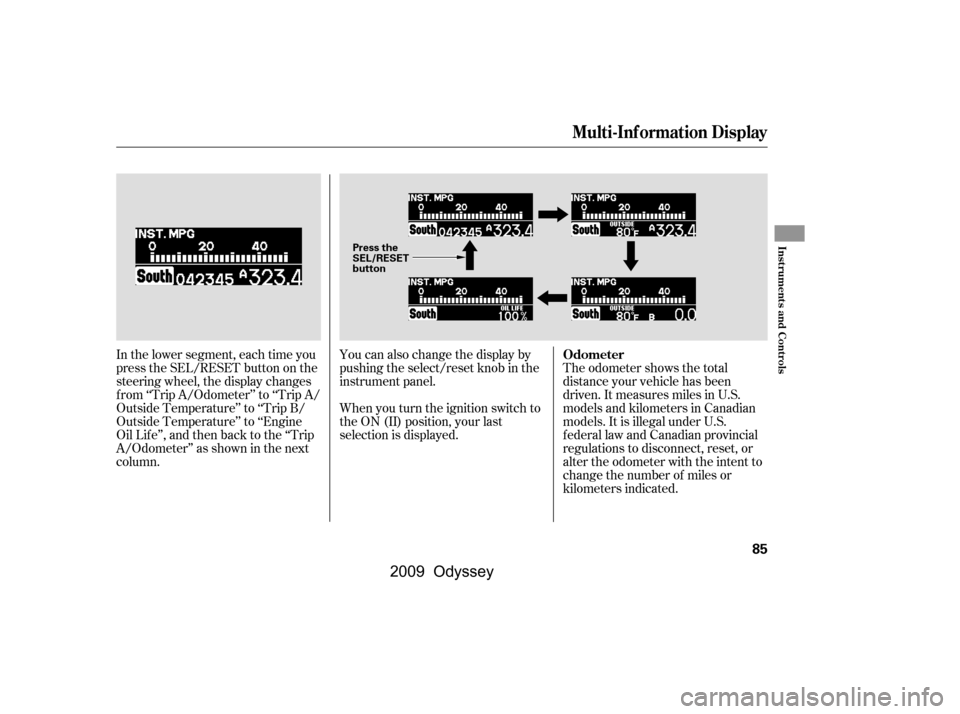

In the lower segment, each time you
press the SEL/RESET button on the
steering wheel, the display changes
f rom ‘‘Trip A/Odometer’’ to ‘‘Trip A/
Outside Temperature’’ to ‘‘Trip B/
Outside Temperature’’ to ‘‘Engine
Oil Lif e’’, and then back to the ‘‘Trip
A/Odometer’’ as shown in the next
column.You can also change the display by
pushing the select/reset knob in the
instrument panel.
When you turn the ignition switch to
the ON (II) position, your last
selection is displayed.
The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.
Multi-Inf ormation Display
Odometer
Inst rument s and Cont rols
85
Press the
SEL/RESET
button
\f—\f—
y

y
(\fy\f\f\fy
2009 Odyssey

In the lef t corner of the lower
segment, a compass indicates which
direction your vehicle is pointed.The multi-inf ormation display in the
instrument panel shows you the
engine oil lif e and maintenance
service items when the ignition
switch is in the ON (II) position. This
inf ormation helps to keep you aware
of the periodic maintenance your
vehicle needs f or continued trouble-
f ree driving. Ref er to page f or
more inf ormation.
You can customize the Trip A and
AVERAGE FUEL A reset condition
on the multi-information display (see
page ).
When you reset Trip A, AVERAGE
FUEL A is reset at the same time.
When you reset Trip B, AVERAGE
FUEL B is reset.
To reset a trip meter, display it, then
press and hold the SEL/RESET
button until the number resets to
‘‘0.0’’.
While a trip meter is displayed, you
can change the display between
‘‘Trip A’’ and ‘‘Trip B’’ by pressing
the SEL/RESET button on the
steering wheel, or the select/reset
knob in the instrument panel.
112 415
Multi-Inf ormation Display
CompassMaintenance Minder
Trip Meter
86
COMPASS
ENGINE OIL LIFE
MAINTENANCE
SERVICE ITEM (S)
\f—\f—
y

y
(\fy\f\f
y
