When you pair your phone to HFL,
the HFL system will automatically
select a pairing code at random or in
order. You can customize this setting
mode between Random and Fixed. If
you select the f ixed mode, the HFL
system will select a pairing code
sequentially.Press and release the Talk button.
Af ter the beep, say ‘‘Set Pairing
Code.’’
HFL responds ‘‘Each time a phone
is paired with HandsFreeLink, a
pairing code is used f or security.
This code can be randomly
generated by HandsFreeLink, or
f ixed, which is needed f or some
Bluetooth devices with a preset
pairing code. Would you like to set
the pairing code as Random or
Fixed?’’
Press and release the Talk button.
Af ter the beep, to select the f ixed
mode, say ‘‘Fixed.’’
HFL responds ‘‘What is the f our-
digit number you would like to see
as the pairing code? Press the Talk
button and say the number.’’Press and release the Talk button.
Af ter the beep, say a desired f our-
digit number. For example, say
‘‘1000.’’
HFL responds ‘‘1000. Is this
correct? Press the Talk button and
say Yes or No.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Phone setup.’’
HFL responds ‘‘Phone setup
options are pair, edit, delete, list,
status, next phone, and set pairing
code. Press the Talk button and
say a command.’’ If the number is not correct, say
‘‘No.’’ HFL goes back to step 3.
HFL responds ‘‘HandsFreeLink
willusethiscodewhenpairingtoa
Bluetooth device.’’
Press and release the Talk button.
Af ter the beep, if the number is
correct, say ‘‘Yes.’’
1. 2.
3.4.
5.
6.
To change the setting mode, do this:
BluetoothHandsFreeL ink
Set t ing a Pairing Code
228
\f—\f—
y\fy
(#\fy\fy
2009 Civic Hybrid

CONT INUED
You can select or change some
settings for the HFL system. Here
are the settings you can select or
change. To do this, make sure your
vehicle is parked safely, with your
phone on and the ignition switch in
the ACCESSORY (I) or ON (II)
position.You can set a f our-digit security
passcode to lock the HFL system
f or security purposes.
If you f orget your passcode, you
cannot activate HFL. Consult your
dealer to cancel the passcode. The incoming notif ication can be
set to a ring tone, a prompt, or no
notif ication. The def ault setting is
aprompt.
Press and release the Talk button.
Af ter the beep, say ‘‘System setup.’’
HFL responds ‘‘System setup
options are security, change
passcode, call notif ication, auto
transf er, and clear. Press the Talk
button and say a command.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Security.’’
HFL responds ‘‘Security is
disabled. Would you like to enable
security? Press the Talk button
and say Yes or No.’’Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’
HFL responds ‘‘What is the f our-
digit number you would like to set
as your security passcode? Press
the Talk button and say the
number.’’
If you say ‘‘No,’’ HFL returns to
idle.
Press and release the Talk button.
Af ter the beep, say the f our-digit
passcode you want to use. For
example,say‘‘1,2,3,4.’’
HFLresponds‘‘1,2,3,4.Isthis
correct? Press the Talk button and
say Yes or No.’’
You can also select a ‘‘System
Clear’’ command to reset HFL
(see page ).
You can change the security
passcode. 3.
1.
2. 4.
250
To set a security passcode, do this:
BluetoothHandsFreeL ink
Setting Up the System
Setting a security passcode Selecting the incoming
notif ication
Changing a security passcode
Features
229
\f—\f—
y\fy
(#\fy\fy
2009 Civic Hybrid

Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’
HFL responds ‘‘Security is on.
Each time the vehicle is turned on,
the passcode will be required to
use the system. If you f orget this
passcode, you must either go to
the dealer to have it reset, or clear
the entire system using the
System Clear command.’’Press and release the Talk button.
Af ter the beep, HFL prompts ‘‘The
system is locked. What is the f our-
digit passcode?’’
Press and release the Talk button.
Af ter the beep, say your f our-digit
passcode.Forexample,say‘‘1,2,3,
4.’’
If thepasscodeiscorrect,HFL
responds ‘‘System is unlocked.’’Press and release the Talk button.
Af ter the beep, say ‘‘System setup.’’
HFL responds ‘‘System setup
options are security, change
passcode, call notif ication, auto
transf er, and clear. Press the Talk
button and say a command.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Change
passcode.’’
HFL responds ‘‘What is the f our
digit number you would like to see
as your security passcode? Press
the Talk button and say the
number.’’
If thepasscodeisnotcorrect,please
try again according to the HFL’s
guidance.
Once a passcode is set, HFL will
prompt you f or your passcode each
time the ignition switch is turned to
the ON (II) position and you press
the Talk button. You will only be
askedforthepasscodeonceper
ignition cycle.
You can also select a ‘‘System Clear’’
command to reset HFL (see page). Press and release the Talk button.
Af ter the beep, say your f our-digit
passcode,forexample,say‘‘1,2,3,
4.’’
1.
2.
3.
1.
2.
3.
5.
250To enter your passcode, do this; To change your security passcode, do
this:
BluetoothHandsFreeL ink
230
\f—\f—
y\f\fy
(#\fy\fy
2009 Civic Hybrid

µµ
Fill the f uel tank until the nozzle automatically clicks of f .
Reset trip counter to zero.
Record the total gallons (liters) needed to ref ill.
Follow one of the simple calculations above.
Direct calculation is the
recommended source of inf ormation
about your actual f uel economy.
Using f requency of f ill-ups or taking
f uel gauge readings are NOT
accurate measures of f uel economy.
Fuel economy may improve over the
f irst several thousand miles. The A/C
puts an extra load on the engine
which makes it use more f uel. Use
the f resh-air ventilation when
possible.
Combine several short trips into
one. A warmed-up engine is more
f uel ef f icient than a cold one.
1)
2)
3)
4)

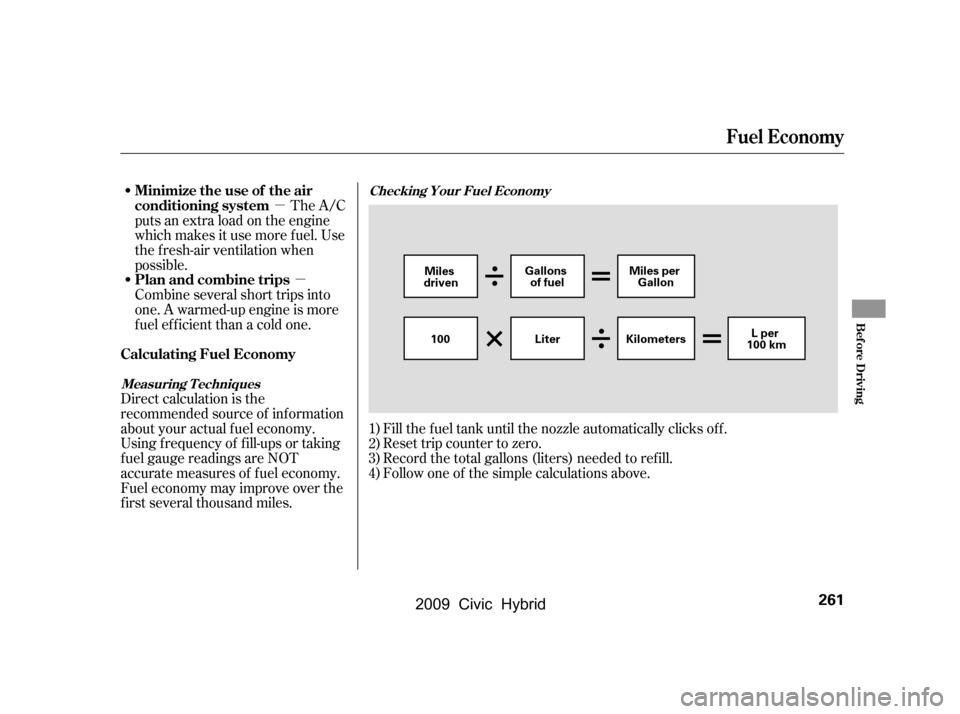

Checking Your Fuel Economy
Measuring T echniques
Calculating Fuel Economy Minimize the use of the air
conditioning system
Plan and combine trips
Fuel Economy
Bef ore Driving
261
Miles
driven Gallons
of fuel Miles per
Gallon
100 KilometersLper
100 km
Liter
\f—\f—
y
\f\f
y
(#\fy\fy
2009 Civic Hybrid

When VSA activates, you will see the
VSA Activation indicator blink.
If this indicator comes on while
driving, pull to the side of the road
when it is saf e, and turn of f the
engine. Reset the system by
restarting the engine. If the VSA
system indicator stays on or comes
back on while driving, have the VSA
system inspected by your dealer.
If the indicator does not come on
when the ignition switch is turned to
the ON (II) position, there may be a
problem with the VSA system. Have
your dealer inspect your vehicle as
soon as possible.The main f unction of the
VSA system is generally known as
Electronic Stability Control (ESC).
The system also includes a traction
control f unction.
The vehicle stability assist (VSA)
system helps to stabilize the vehicle
during cornering if the vehicle turns
more or less than desired. It also
assists you in maintaining traction
while accelerating on loose or
slippery road surf aces. It does this
by regulating the engine’s output and
by selectively applying the brakes.
When VSA activates, you may notice
that the engine does not respond to
the accelerator in the same way it
does at other times. There may also
be some noise f rom the VSA
hydraulic system. You will also see
the VSA activation indicator blink.
The VSA system cannot enhance the
vehicle’s driving stability in all
situations and does not control your
vehicle’s entire braking system. It is
still your responsibility to drive and
corner at reasonable speeds and to
leave a sufficient margin of safety. If the low tire pressure indicator or
TPMS indicator comes on, the VSA
system automatically turns on even if
the VSA system is turned of f by
pressing the VSA OFF switch (see
page ). If this happens, you
cannot turn the VSA system of f by
pressing the VSA OFF switch again.
Without VSA, your vehicle will have
normal braking and cornering ability,
but it will not have VSA traction and
stability enhancement.
279
If equipped
On U.S. modelsVSA A ctivation Indicator
Vehicle Stability Assist
(VSA ) System Indicator
Vehicle Stability A ssist (VSA), aka Electronic Stability Control (ESC), System
Driving
285
NOTE:
\f—\f—
y
\f\f
y
(#\fy\f\fy
2009 Civic Hybrid

µ
µ
µ
µ
µ
µ
µ
µ
µ
µ µ
µ
CONT INUED
Calculated Engine Oil Lif e (%)
100 % 91 % 90 % 81 %
80 % 71 %
70 % 61 %
60 % 51 %
50 % 41 %
40 % 31 %
30 % 21 %
20 % 16 %
15 % 11 %10 % 6 % 5% 1% 0% Displayed
Engine Oil Lif e (%) 100 %90 %
80 %
70 %
60 %
50 %
40 %
30 %
20 %
15 %
10 %5%
0%
Based on the engine operating
conditions and accumulated engine
revolutions, the onboard computer in
your vehicle calculates the remaining
engine oil lif e and displays it as a
percentage. The remaining engine oil lif e is
shownonthedisplayaccordingto
this table:
To see the current engine oil lif e,
turn the ignition switch to the ON
(II) position, and press the SEL/
RESET button repeatedly until the
engine oil lif e display appears (see
page ).
Your vehicle displays engine oil lif e
and maintenance service items on
the inf ormation display to show you
when you should have your dealer
perf orm engine oil replacement and
indicated maintenance service.
65
Maintenance Minder
Engine Oil L if e Display
Maint enance
289
SEL/RESET BUTTONENGINE OIL LIFE DISPLAY
\f—\f—
y
\f\fy
(#\fy\fy
2009 Civic Hybrid

If you still do not perf orm the
indicated maintenance, you will see
negative mileage. It is displayed
when you drive more than 10 miles
(f or U.S. models) or 10 km (f or
Canadian models) af ter seeing the 0
percent message. Af terward, it
shows your driving distance if you
continue to drive. Immediately have
the indicated maintenance done by
your dealer.
When the remaining engine oil lif e is
0 percent, the engine oil lif e indicator
will blink. The display comes on
everytimeyouturntheignition
switch to the ON (II) position. When
you see this message, have the
indicated maintenance perf ormed by
your dealer as soon as possible. You can change the inf ormation
display f rom the engine oil lif e
display to the odometer, the trip
meter, or the outside temperature
every time you press and release the
SEL/RESET button.
When the engine oil lif e is 0 percent
or negative mileage, the
maintenance minder indicator
remainsonevenif youchangethe
inf ormation display.
Immediately have the service done,
and make sure to reset the display as
described on the next page.
Maintenance Minder
Maint enance
291
——
y

y
(#yy
2009 Civic Hybrid

Your dealer will reset the display
af ter completing the required
maintenance service. You will see
‘‘OIL LIFE 100%’’ on the inf ormation
display the next time you turn the
ignition switch to the ON (II)
position.Press the SEL/RESET button
repeatedly until the engine oil lif e
is displayed.
All maintenance items displayed on
the inf ormation display are in code.
For an explanation of these
maintenance codes, see page . Press the SEL/RESET button f or
about 10 seconds. The engine oil
lif e and the maintenance item
code(s) will blink.
If maintenance service is done by
someone other than your dealer,
reset the maintenance minder as
f ollows:
Turn the ignition switch to the ON
(II) position.
1.
2. 3.
295
Maintenance Minder
Maintenance Main Items and Sub
Items Resetting the Engine Oil Lif e
Display
292
MAINTENANCE MAIN ITEM
MAINTENANCE
SUB ITEM
\f—\f—
y
\f\f\fy
(#\fy\fy
2009 Civic Hybrid
