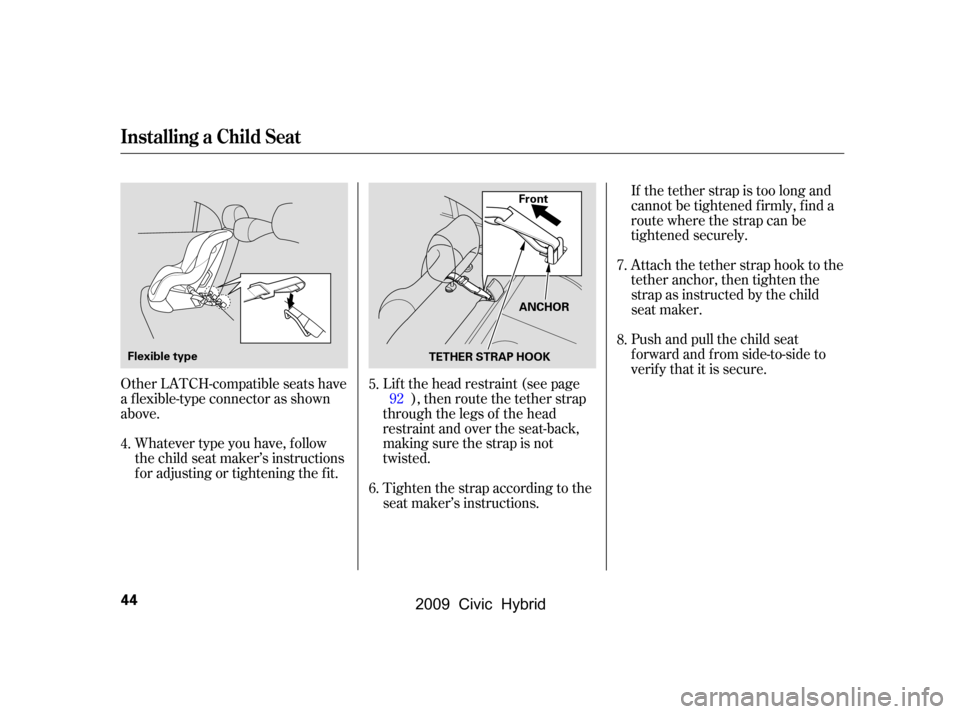

Other LATCH-compatible seats have
a f lexible-type connector as shown
above.Whatever type you have, f ollow
the child seat maker’s instructions
f or adjusting or tightening the f it. Lif t the head restraint (see page
), then route the tether strap
through the legs of the head
restraint and over the seat-back,
making sure the strap is not
twisted. Attach the tether strap hook to the
tether anchor, then tighten the
strap as instructed by the child
seat maker.
Pushandpullthechildseat
f orward and f rom side-to-side to
verify that it is secure.
If the tether strap is too long and
cannot be tightened f irmly, f ind a
route where the strap can be
tightened securely.
Tighten the strap according to the
seat maker’s instructions.
6.
5.
4. 7.
8.
92
Installing a Child Seat
44
Front
ANCHOR
TETHER STRAP HOOK
Flexible type
\f—\f—
y\f\f
y
(#\fy\f\fy
2009 Civic Hybrid

When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/

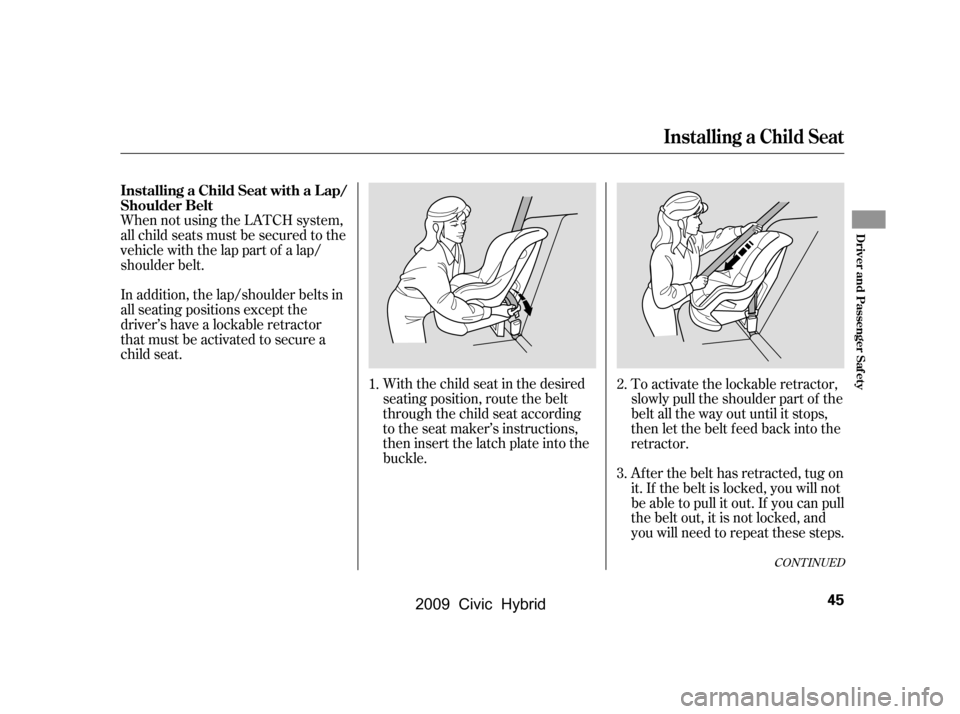

shoulder belt.With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the
buckle.To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feed back into the
retractor.
Af ter the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps.
In addition, the lap/shoulder belts in
all seating positions except the
driver’s have a lockable retractor
that must be activated to secure a
child seat.
1.2.
3.
CONT INUED
Installing a Child Seat with a L ap/
Shoulder Belt
Installing a Child Seat
Driver and Passenger Saf ety
45
\f—\f—
y\f\fy
(#\fy\f\f\fy
2009 Civic Hybrid

Af ter conf irming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract f ully, then repeat these
steps.
To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while

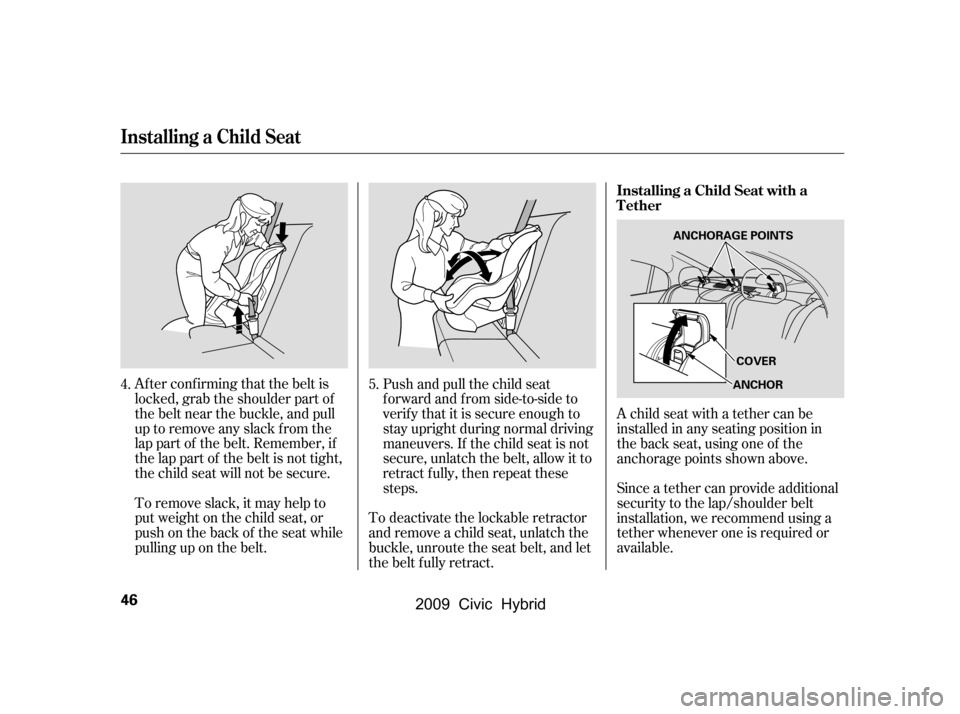

pulling up on the belt. To deactivate the lockable retractor
and remove a child seat, unlatch the
buckle, unroute the seat belt, and let
the belt fully retract. A child seat with a tether can be
installed in any seating position in
the back seat, using one of the
anchorage points shown above.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available.
4.
5. Installing a Child Seat with a
Tether
Installing a Child Seat
46
COVER
ANCHORAGE POINTS
ANCHOR
\f—\f—
y\f
y
(#\fy\f\f
y
2009 Civic Hybrid

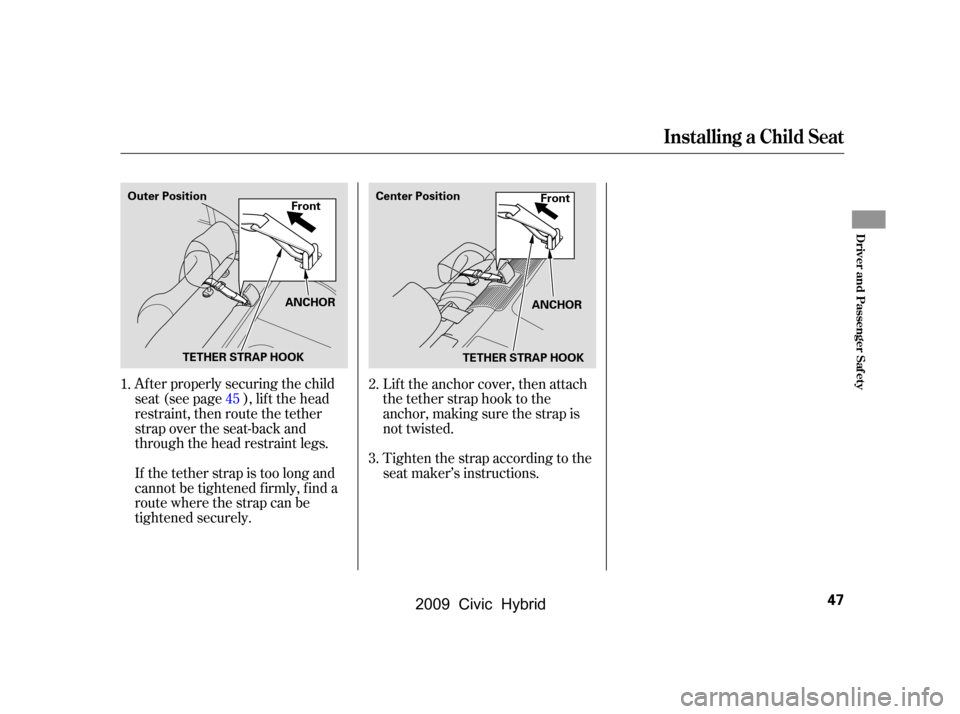

Af ter properly securing the child
seat (see page ), lif t the head
restraint, then route the tether
strap over the seat-back and
through the head restraint legs.
If the tether strap is too long and
cannot be tightened f irmly, f ind a
route where the strap can be
tightened securely.Lift the anchor cover, then attach
the tether strap hook to the
anchor, making sure the strap is
not twisted.
Tighten the strap according to the
seat maker’s instructions.
1.
2.
3.
45
Installing a Child Seat
Driver and Passenger Saf ety
47
Front
ANCHOR
ANCHOR Front
Outer Position
Center Position
TETHER STRAP HOOK TETHER STRAP HOOK
\f—\f—
y\fy
(#\fy\f\fy
2009 Civic Hybrid

If the passenger’s front airbag
inf lates in a moderate to severe
f rontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
A side airbag also poses risks. If any
part of a larger child’s body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries.Physically, a child must be large
enough f or the lap/shoulder belt to
properly f it (see pages and ). If
the seat belt does not f it properly,
with or without the child sitting on a
booster seat, the child should not sit
in f ront.
To saf ely ride in f ront, a child must
be able to f ollow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.If you decide that a child can saf ely
ride up f ront, be sure to:
Caref ully read the owner’s manual,
and make sure you understand all
seat belt instructions and all saf ety
inf ormation.
Move the vehicle seat to the rear-
most position.
Have the child sit up straight, back
against the seat, and feet on or
near the f loor.
Check that the child’s seat belt is
properly and securely positioned.
Of course, children vary widely. And
while age may be one indicator of
when a child can saf ely ride in f ront,
there are other important f actors you
should consider.
The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
age 12 and under be properly
restrained in a back seat.
Supervise the child. Even mature
children sometimes need to be
reminded to f asten the seat belts
or sit properly.
1448
When Can a L arger Child Sit in
Front
Physical Size
Maturity
Protecting L arger Children
50
\f—\f—
y\f\fy
(#\fy\f\fy
2009 Civic Hybrid

Î
Î
Î
Î
Î
Î

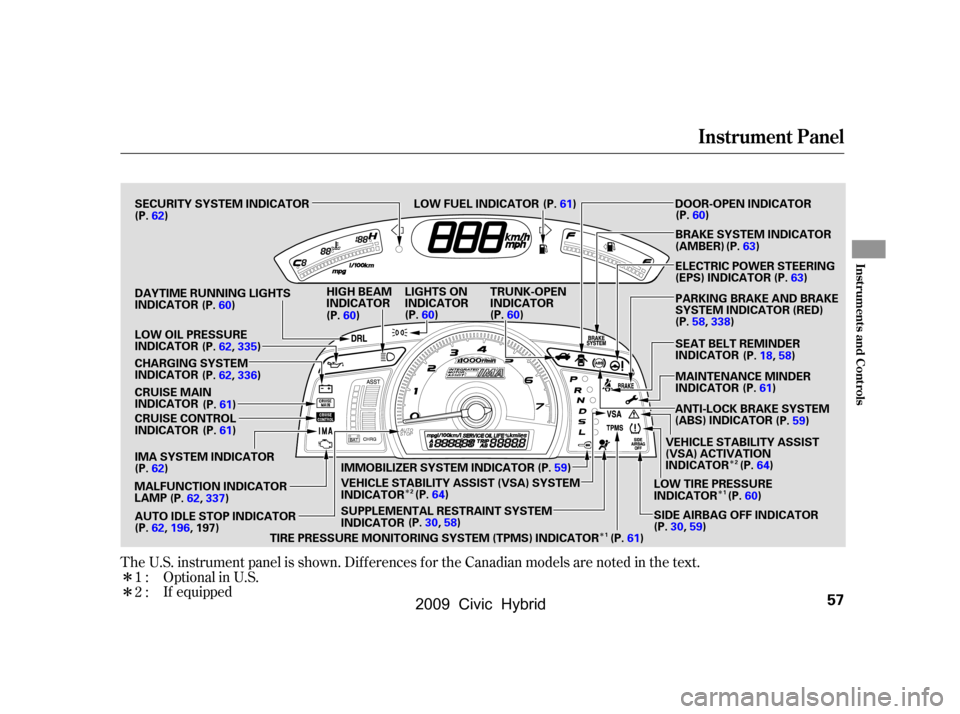

The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Optional in U.S.
1:
2: If equipped
Instrument Panel
Inst rument s and Cont rols
57
TRUNK-OPEN
INDICATOR
DAYTIME RUNNING LIGHTS
INDICATOR LIGHTS ON
INDICATOR
(P.60)
(P.60)
HIGH BEAM
INDICATOR
(P.60)
(P.60)
CRUISE MAIN
INDICATOR (P.61)
CRUISE CONTROL
INDICATOR (P.61)
CHARGING SYSTEM
INDICATOR
LOW OIL PRESSURE
INDICATOR
IMA SYSTEM INDICATOR
(P.62)
AUTO IDLE STOP INDICATOR
SECURITY SYSTEM INDICATOR LOW FUEL INDICATOR (P.61)
(P.62)
(P.63)
(P.63)
(P.59)
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
(P.60)
(P.62,196,197)
MALFUNCTION INDICATOR
LAMP
(P.30,59)
SIDE AIRBAG OFF INDICATOR
LOW TIRE PRESSURE
INDICATORBRAKE SYSTEM INDICATOR
(AMBER)
ELECTRIC POWER STEERING
(EPS) INDICATOR
PARKING BRAKE AND BRAKE
SYSTEM INDICATOR (RED)
DOOR-OPEN INDICATOR
(P.60)
SEAT BELT REMINDER
INDICATOR
MAINTENANCE MINDER
INDICATOR
IMMOBILIZER SYSTEM INDICATOR
SUPPLEMENTAL RESTRAINT SYSTEM
INDICATOR
TIRE PRESSURE MONITORING SYSTEM (TPMS) INDICATOR (P.59)
(P.30,58) (P.61)(P.18,58)
(P.61)
(P.62,335)
(P.62,336)
(P.62,337) (P.58,338)
(P.64)
VEHICLE STABILITY ASSIST (VSA) SYSTEM
INDICATOR VEHICLE STABILITY ASSIST
(VSA) ACTIVATION
INDICATOR
(P.64)
1
1
2
2
\f—\f—
y\f\fy
(#\fy\f\fy
2009 Civic Hybrid

The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running. For
more information, see page .
If this indicator comes on when the
engine is running, the battery is not
being charged. For more inf ormation,
see page . See page .This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, it indicates a problem in the
integrated motor assist (IMA)
system. With the IMA indicator on,
the vehicle may not accelerate as it
normally does. Have the vehicle
checked by the dealer as soon as
possible.
See pages and .

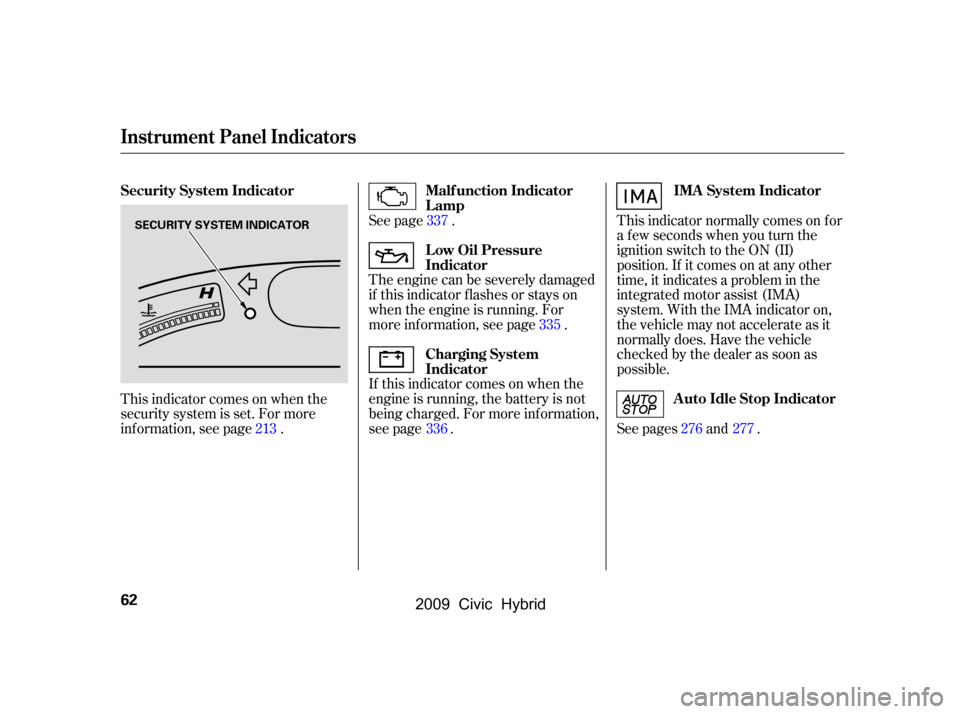

This indicator comes on when the
security system is set. For more
inf ormation, see page .
213 337
335
336 277
276
Instrument Panel Indicators
Security System Indicator Malf unction Indicator
Lamp
L ow Oil Pressure
Indicator
Charging System
IndicatorIMA System Indicator
A uto Idle Stop Indicator
62
SECURITY SYSTEM INDICATOR
——
yy
(#yy
2009 Civic Hybrid

Push the lever up to lock the
steering wheel in that position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up, down, in,
and out.
Push the lever under the steering
column all the way down.
Make any steering wheel adjustment
bef ore you start driving.
Move the steering wheel up or
down, and in or out, so it points
toward your chest, not toward
your f ace. Make sure you can see
the instrument panel gauges and
indicators.
1. 4.
2. 3.
Steering Wheel A djustment
Inst rument s and Cont rols
77
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.
