2009 HONDA ACCORD COUPE headlights

* Check the owner’s manual for additional information and instructions. Dash View/
Need to Know
Key/Remote
Transmitter
HornHeadlights/
Turn SignalsInstrument Panel
Brightness/
Trip MeterWindshield
Wipers/Washers
Cruise
ControlSteering Wheel
Adjustment
VSA Button
Navigation
Voice Controls
**
Remote Audio
Controls
**If equipped
Things You Need to Know
• See About This Quick Start Guide on the rear cover.
• See the owner’s manual for detailed information and instructions marked with an asterisk (*).
• Always check tire pressures when the tires are cold.
• Tire Pressure Monitoring System (TPMS) indicators.
• The malfunction indicator lamp may come on if the gas cap is not tighten\
ed at least 1 click.
• Location of the hood release lever (see Dash View).
09 AccordCoupe:09 Accord Coupe.qxd 6/19/2008 1:42 PM Page 2

PASSENGERAIRBAG
OFF
Immobilizer system indicator:
Flashes if an improperly coded key is
used in the ignition switch.
Cruise main indicator: Cruise
control is on and is waiting to be set.
Cruise control indicator: Cruise
control is set.
Lights on indicator: Indicates
parking lights or headlights are on.
ECO indicator (V6 models with
automatic transmission): Comes on
when the engine is performing at its
most economical level.
Turn signal/hazard warning
indicators
Fog lights on indicator (if equipped)
High beam indicator
Outside temperature indicator (if
equipped)/odometer: Displays
outside temperature or odometer
when Select/Reset knob is pressed.Low tire pressure indicator: One or
more of the vehicle’s tires is significantly
under-inflated. Stop, inspect all tires, and
add air as required.
Tire pressure monitoring system
(TPMS) indicator: TPMS malfunction;
have dealer inspect the vehicle.
Side airbag cutoff indicator*:
Passenger’s side airbag is off and will
not deploy during a crash.
Passenger airbag cutoff indicator*:
Passenger’s front airbag is off and will
not deploy during a crash.
Anti-lock brake system (ABS)
indicator: ABS malfunction; see your
dealer as soon as possible.
Vehicle stability assist (VSA
®)
activation indicator: A reminder that
the VSA is turned off. Flashes when
VSA is active.
Vehicle stability assist (VSA) system
indicator*: Possible VSA system
problem.
Daytime running lights (DRL)
indicator
ECO
* Check the owner’s manual for additional information and instructions.
09 Accord Coupe 03ab:ExtraPages.qxd 6/16/2008 1:42 PM Page a3

Driver Controls
Headlights/Turn Signals Lever
Auto Lighting Off
The headlights, all exterior lights and all the instrument
panel lights turn off within 15 seconds after you remove
the key and close the driver's door.
Auto Lighting On (EX-L, EX-L V6 models)
Turns on the headlights and all other exterior lights when
low ambient lighting is detected.1.MIST
2. OFF
3. ADJ ring: Rotate to adjust wiper
interval speed.
4. Wiper ON: Push the lever down:
a. INT (1st detent): Wipers operate
intermittently.
b. LO (2nd detent): Long sweep
intervals.
c. HI(3rd detent): Short
sweep intervals.
5. Wiper and Washer ON : Pull back
and hold to clean the front windshield.
A
B
C
Windshield Wipers/Washers Lever
Pull up to apply.
To release, pull up
slightly, push button,
and lower completely.
Note: If you start to
drive with the parking
brake applied, a beep
sounds.
1. Turn signal
2. Off
3. Parking/indicator lights
4. AUTO (if equipped)
5. Headlights
6. High beams
7. Flash high beams
8. Fog lights OFF (if equipped)
9. Fog lights ON (if equipped)
Parking Brake
09 AccordCoupe:09 Accord Coupe.qxd 6/16/2008 3:20 PM Page 5

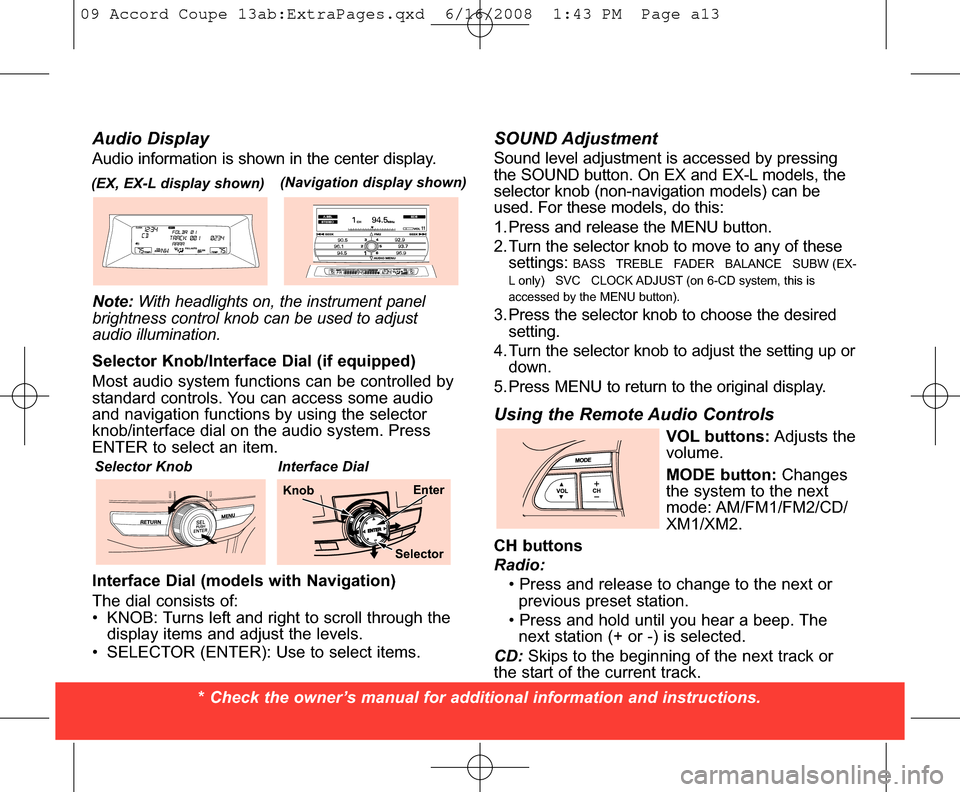

SOUND AdjustmentSound level adjustment is accessed by pressing
the SOUND button. On EX and EX-L models, the
selector knob (non-navigation models) can be
used. For these models, do this:
1. Press and release the MENU button.
2. Turn the selector knob to move to any of these settings:
BASS TREBLE FADER BALANCE SUBW (EX-
L only) SVC CLOCK ADJUST (on 6-CD system, this is
accessed by the MENU button).
3. Press the selector knob to choose the desired setting.
4. Turn the selector knob to adjust the setting up or down.
5. Press MENU to return to the original display.
Using the Remote Audio Controls
VOL buttons: Adjusts the
volume.
MODE button: Changes
the system to the next
mode: AM/FM1/FM2/CD/
XM1/XM2.
CH buttons
Radio: • Press and release to change to the next or previous preset station.
• Press and hold until you hear a beep. The next station (+ or -) is selected.
CD: Skips to the beginning of the next track or
the start of the current track.
* Check the owner’s manual for additional information and instructions.
(EX, EX-L display shown)
Audio DisplayAudio information is shown in the center display.
Note: With headlights on, the instrument panel
brightness control knob can be used to adjust
audio illumination.
Selector Knob/Interface Dial (if equipped)
Most audio system functions can be controlled by
standard controls. You can access some audio
and navigation functions by using the selector
knob/interface dial on the audio system. Press
ENTER to select an item.
Interface Dial (models with Navigation)
The dial consists of:
• KNOB: Turns left and right to scroll through the display items and adjust the levels.
• SELECTOR (ENTER): Use to select items.
(Navigation display shown)
Selector KnobInterface Dial
Enter
Knob
Selector
09 Accord Coupe 13ab:ExtraPages.qxd 6/16/2008 1:43 PM Page a13
