2009 HONDA ACCORD COUPE Owners Manual

The automatic climate control
system in your vehicle picks the
proper combination of air
conditioning, heating, and ventilation
to maintain the interior temperature
you select. The system also adjusts
the fan speed and airflow levels.The system automatically selects
the proper mix of conditioned
and/or heated air that will, as
quickly as possible, raise or lower
the interior temperature to your
pref erence.
The climate control system can also
be operated by voice control. See the
Navi section in your quick start
guide f or an overview of this system,
and the navigation system manual
f or complete details.
Press the Auto button. The
indicator in the button also comes
on as a reminder. You will see
AUTO on the display (in the
center display on models with
navigation system).
Set the desired temperature with
the temperature control switch.
You can set the driver’s side
temperature and the passenger’s
side temperature separately.The driver’s side temperature and
the passenger’s side temperature can
be set separately. Push up the switch
of the appropriate temperature
control to increase the temperature
of airflow. Push down the switch to
decrease it. Each set temperature is
showninthedisplay(inthecenter
display on models with navigation
system).
1.
2.On models with navigation system
Using A utomatic Climate Control
Voice Control System
T emperat ure Cont rol
Climate Control System
126
\f—\f—\fy
y
)\f
\fy\f

y
2009 Accord Sedan

When the indicator in the dual
button is on, the driver’s side and
passenger’s side temperature can be
controlled independently (see page).
When you set the temperature to its
lower limit ( ) or its upper limit
( ), the system runs at f ull
cooling or heating only. It does not
regulate the interior temperature.
When you adjust a f an control, the
f an is taken out of AUTO mode.
In AUTO mode, the vehicle’s interior
temperature is independently
regulated f or the driver and f ront
passenger according to each
adjusted temperature. The system
also regulates each temperature
basedontheinformationof thesun
light sensor and the sun’s position
which is updated automatically by
the navigation’s global positioning system (GPS). If one side of the
vehicle is getting too much sun, the
system lowers the temperature only
on that side.
You can set the temperatures for the
driver’s side and the passenger’s side
separately when this button is
pressed (indicator is on). When the
indicator in the DUAL button is of f ,
the temperatures for both sides are
synchronized to the driver’s side set
temperature. When def rost mode is
selected, dual mode operation is
canceled.
If you press the OFF button, the
climate control system shuts of f
completely.
Keep the system completely of f
f or short periods only.
To keep stale air and mustiness
f rom collecting, you should have
the f an running at all times.
130
On models with navigation system
Climate Control System
Dual Button
To Turn Everything Off
Features
127
\f—\f—\fy
y
)\f
\fy\f
y
2009 Accord Sedan

Û
ÝWhen the indicator in the button is
on, air f rom the vehicle’s interior is
sent through the system again.
When the indicator is off, air is
brought in f rom the outside of the
vehicle (fresh air mode).
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.
Thesystemshouldbeleftinfresh
air mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C of f ,
can cause the windows to fog up.
The outside air intakes f or the
climate control system are at the
base of the windshield. Keep this
area clear of leaves and other debris.
You can manually select various
f unctions of the climate control
system when it is in f ully automatic
mode. All other f eatures remain
automatically controlled. Making any
manual selection causes the word
AUTO in the display to go out.
Push the switch up to increase the
fanspeedandairflow.Pushthe
switch down to decrease them. This button turns the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set the
temperature control below the
outside temperature.
Press the side of the bar to
increase the f an speed and airf low.
Press the side of the bar to
decrease them.
On models without navigation system On models with navigation system Recirculat ion But t on
A ir Condit ioning (A /C) But t on
Semi-automatic Operation
Fan Control
Climate Control System
128
\f—\f—\fy
y
)\f
\fy\f
y
2009 Accord Sedan

This button turns the rear window
def ogger of f and on (see page ).
Pushing this button also turns the
power mirror heaters on and of f .
Use the mode control button to
select the vents the air flows from.
Some air will flow from the
dashboard vents in all modes.To remove f og f rom the inside of the
windows, set as follows:
Airf low is divided between
the f loor and corner vents and the
defroster vents at the base of the
windshield. Air flows from the center
and corner vents in the dashboard.
Air f lows f rom the f loor
vents.
Airf low is divided between
the vents in the dashboard and the
f loor vents. This button directs the main airflow
to the windshield for faster
def rosting. It also overrides any
mode selection you may have made.
When you select , the system
automatically switches to f resh air
mode and turns on the A/C. For
f aster def rosting, manually set the
fanspeedtohigh.Youcanalso
increase airf low to the windshield by
closing the corner vents on the
dashboard. To close the vents, rotate
the wheel under each corner vent.
When you turn of f by
pressing the button again, the
system returns to its former settings.
Select . The system
automatically switches to f resh air
mode and turns on the A/C.
Adjust the temperature with the
driver’s side temperature control
so the airf low f eels warm.
Select to help clear the
rear window.
To increase airf low to the
windshield, close the corner vents.
For f aster def ogging, manually set
the fan speed to high.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
When the indicator in the button is
on, the f ront passenger’s
temperature cannot be set separately
f rom the driver’s. 1.
2.
3.
4.
74
Rear Window Def ogger But t on
Mode Cont rol Windshield Def rost er But t on
Climate Control System
Features
129
——y
y
)
y
y
2009 Accord Sedan

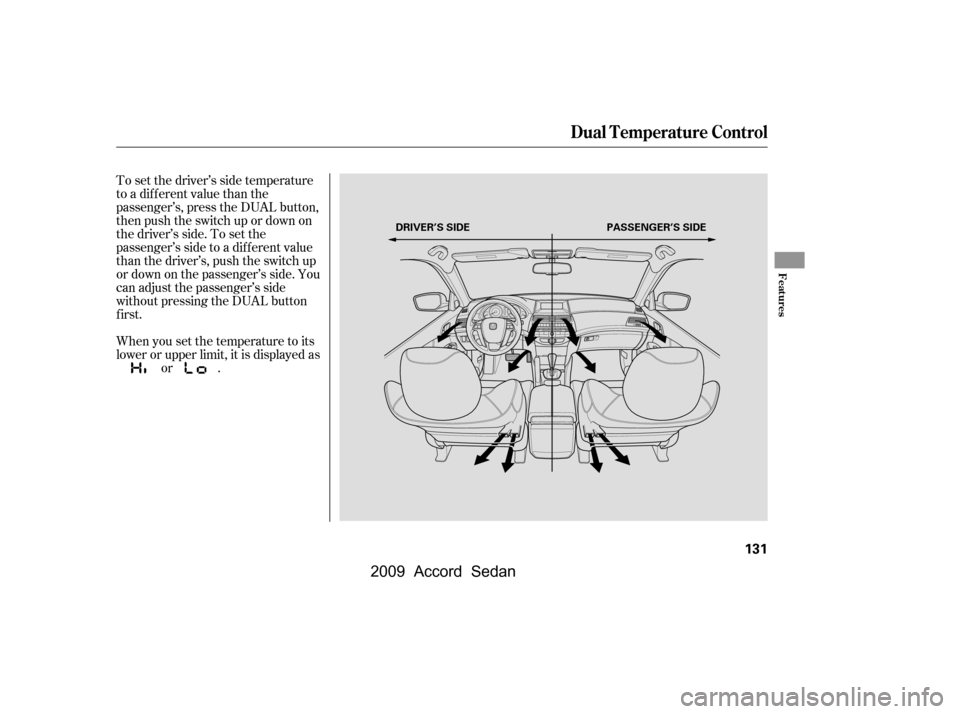

Your vehicle has two temperature
control switches, one f or the driver,
and one f or the f ront passenger.
Thedriver’ssideandthepassenger’s
side temperature can be controlled
independently by adjusting these
switches when the green indicator in
the DUAL button is on.
Push AUTO or . The selected
temperatures appear in the display
(in the center display on models with
navigation system). When the
indicator in the DUAL button is of f ,
you can adjust both sides to the
same temperature by pushing the
driver’s side temperature control
switch up or down.
EX-L and EX-L V6

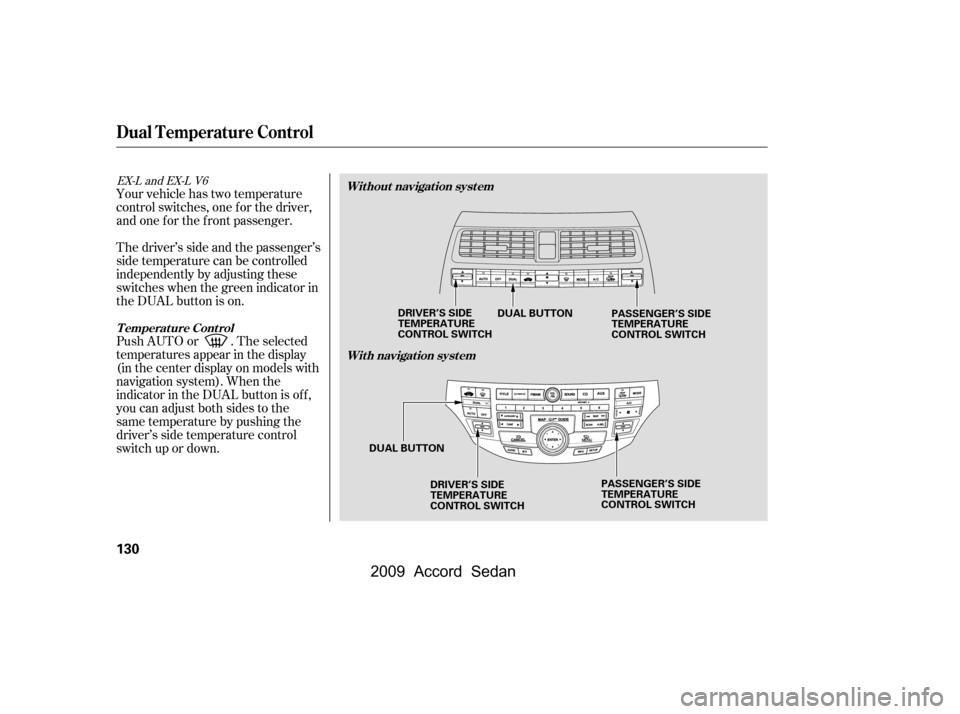

Dual Temperature Control
T emperat ure Cont rolWithout navigation system
With navigation system
130
DUAL BUTTON DUAL BUTTON
PASSENGER’S SIDE
TEMPERATURE
CONTROL SWITCH
DRIVER’S SIDE
TEMPERATURE
CONTROL SWITCH PASSENGER’S SIDE
TEMPERATURE
CONTROL SWITCH
DRIVER’S SIDE
TEMPERATURE
CONTROL SWITCH
\f—\f—\fy


y
)\f
\fy\f
y
2009 Accord Sedan

To set the driver’s side temperature
to a different value than the
passenger’s, press the DUAL button,
then push the switch up or down on
the driver’s side. To set the
passenger’s side to a dif f erent value
than the driver’s, push the switch up
or down on the passenger’s side. You
can adjust the passenger’s side
without pressing the DUAL button
first.
When you set the temperature to its
lower or upper limit, it is displayed asor .
Dual Temperature Control
Features
131
DRIVER’S SIDE PASSENGER’S SIDE
\f—\f—\fy

y
)\f
\fy\f
y
2009 Accord Sedan

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
On models with climate control system
Sunlight Sensor/T emperature
Sensor
Climat e Cont rol Sensors
132
SUNLIGHT SENSORTEMPERATURE SENSOR
\f—\f—\fy

y
)\f
\fy\f
y
2009 Accord Sedan

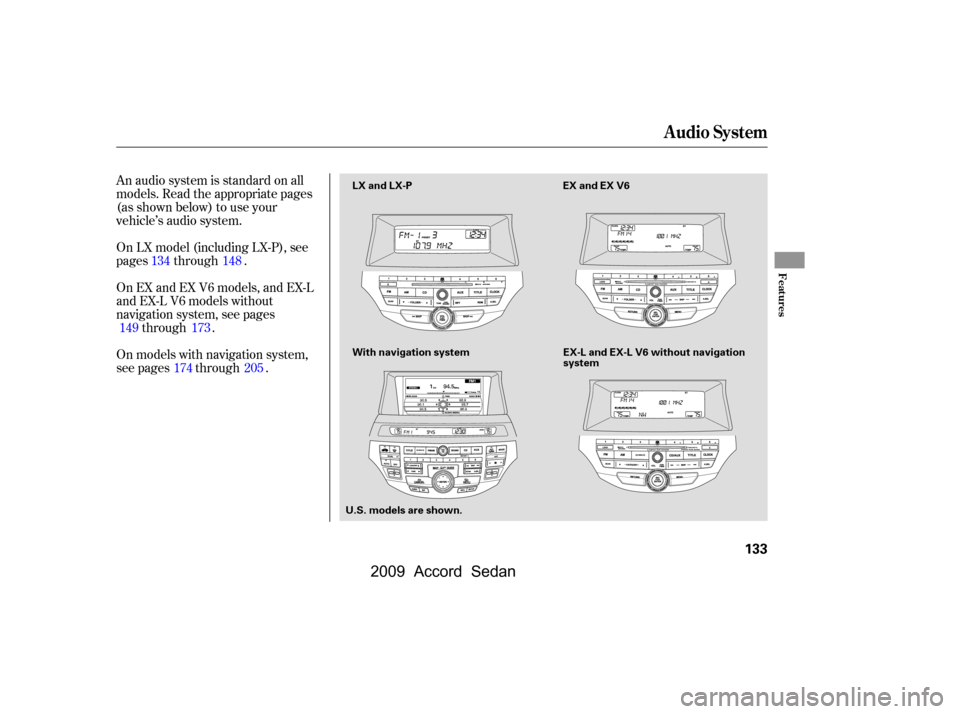

An audio system is standard on all
models. Read the appropriate pages
(as shown below) to use your
vehicle’s audio system.
On models with navigation system,
see pages through .
On EX and EX V6 models, and EX-L
and EX-L V6 models without
navigation system, see pagesthrough .
On LX model (including LX-P), see
pages through .
149173 174205148
134
Audio System
Features
133
With navigation system
U.S. models are shown. LX and LX-P
EX and EX V6
EX-L and EX-L V6 without navigation
system
\f—\f—\fy
y
)\f
\fy\f
y
2009 Accord Sedan
