5B(CD):Press to play a CD while listening to the
radio. The CD symbol displays when a CD is loaded.
RPT (Repeat):With the repeat setting, one track or an
entire CD can be repeated.
To use repeat, do the following:
To repeat a track, press and release the RPT button.
RPT displays. Press again to turn off repeat play.
To repeat the CD, press and hold the RPT button for
two seconds. RPT displays. Press again to turn off
repeat play.
6 RDM (Random) (Base Radio or MP3 Radio):Press
to hear the tracks in random, rather than sequential,
order. RDM ON displays. RDM T or RDM and the track
number displays when each track starts to play.
Press again to turn off random play. RDM OFF displays.
RDM (Random):With the random setting, tracks can
be listened to in random, rather than sequential,
order, on one CD or on all of the CDs. To use random,
do one of the following:
To play the tracks on the CD in random order,
press and release the RDM button. RANDOM ONE
displays. Press again to turn off random play.
To play the tracks on all of the CDs that are loaded
in random order, press and hold RDM for more
than two seconds. A beep sounds and RANDOM
ALL displays. Press again to turn off random play.
AUTO EQ (Automatic Equalization):Press to select
the equalization setting while playing a CD. The
equalization is stored when a CD is played. For more
information on AUTO EQ, see “AUTO EQ” listed
previously in this section.
©¨/opSEEK:Press the left arrow to go to the
start of the current or to the previous track.
On some radios, pressing the left arrow, if more than
10 seconds have played, goes to the start of the
current track.
Press the right arrow to go to the start of the next track.
If either arrow is pressed more than once, the player
continues moving backward or forward through the CD.
On some radios, pressing either arrow for more than
two seconds scans the previous or next tracks at ve to
eight seconds per track. SCAN and the track number
displays.
©SCAN¨:To scan one CD, press and hold either
SCAN, or depending on the radio, the TYPE arrow
for more than two seconds until SCAN or TRACK SCAN
displays and a beep is heard. The radio goes to the
3-76

next track, plays for 10 seconds, then goes to the next
track. Press either SCAN or depending on the radio,
TYPE arrow again, to stop scanning.
To scan all loaded CDs, press and hold either SCAN
arrow for more than four seconds until ALL CD SCAN
displays and a beep sounds. Use this feature to listen to
10 seconds of the rst track of each loaded CD.
Press either SCAN arrow again, to stop scanning.
oTUNEp(MP3 Radio):Turning this knob fast tracks
reverse or advances through tracks. The track number
displays for each track.
DISPL (Display) or INFO (Information):Press to see
how long the current track has been playing. ET and/or
the elapsed time displays. To change the default on
the display, track, or elapsed time, press until the
desired display appears, then press and hold briey
until a beep sounds. The selected display becomes
the default.
BAND:Press to listen to the radio when a CD is
playing. The inactive CD(s) remains inside the radio for
future listening.
CD AUX (Auxiliary):Press to play a CD while listening
to the radio, or to listen to an auxiliary source (such as
rear seat entertainment, if equipped).
Using Song List Mode
The six-disc CD changer has a feature called song list.
This feature is capable of saving 20 track selections.
To save tracks into the song list feature:
1. Turn the CD player on and load it with at least
one CD. See “LOAD CD” listed previously in this
section for more information.
2. Check to see that the CD changer is not in song list
mode. S-LIST should not appear on the display.
If S-LIST displays, press the SONG LIST button to
turn it off.
3. Select the desired CD by pressing the numbered
pushbutton and then use the right SEEK or TYPE
arrow to locate the track to be saved. The track
begins to play.
4. Press and hold the SONG LIST button to save the
track into memory. When SONG LIST is pressed,
one beep sounds. After two seconds of continuously
pressing the SONG LIST button, two beeps
sound to conrm the track has been saved.
5. Repeat Steps 3 and 4 for saving other selections.
3-77

S-LIST FULL displays if more than 20 selections
are saved.
To play the song list, press the SONG LIST button.
One beep sounds and S-LIST displays. The recorded
tracks begin to play in the order they were saved.
Seek through the song list by using either SEEK or
TYPE arrow. Seeking past the last saved track returns
to the rst saved track.
To delete tracks from the song list:
1. Turn the CD player on.
2. Press the SONG LIST button to turn song list on.
S-LIST displays.
3. Press either SEEK or TYPE arrow to select the
desired track to be deleted.
4. Press and hold the SONG LIST button for
two seconds. When SONG LIST is pressed,
one beep sounds. After two seconds of continuously
pressing the SONG LIST button, two beeps sound
to conrm that the track has been deleted.
After a track has been deleted, the remaining tracks are
moved up the list. When another track is added to
the song list, the track is added to the end of the list.To delete the entire song list:
1. Turn the CD player on.
2. Press the SONG LIST button to turn song list on.
S-LIST displays.
3. Press and hold the SONG LIST button for more
than four seconds. One beep sounds, followed by
two beeps after two seconds, and a nal beep
sounds after four seconds. S-LIST EMPTY displays
indicating the song list has been deleted.
If a CD is ejected, and the song list contains saved
tracks from that CD, those tracks are automatically
deleted from the song list. Any tracks saved to the song
list again are added to the bottom of the list.
To end song list mode, press the SONG LIST button.
One beep sounds and S-LIST is removed from the
display.
Playing an MP3/WMA CD-R Disc
The vehicle’s radio system may have the MP3/WMA
feature. If it has this feature, it is capable of playing an
MP3/WMA CD-R disc. For more information on how
to play an MP3/WMA CD-R disc, seeUsing an MP3
on page 3-80later in this section.
3-78

CD Messages
CHECK CD:If this message displays and/or the CD
ejects, it could be for one of the following reasons:
It is very hot. When the temperature returns
to normal, the CD should play.
The road is very rough. When the road becomes
smoother, the CD should play.
The CD is dirty, scratched, wet, or upside down.
The air is very humid. If so, wait about an hour
and try again.
There could have been a problem while burning
the CD.
The label could be caught in the CD player.
If the CD is not playing correctly, for any other reason,
try a known good CD.
If any error occurs repeatedly or if an error cannot be
corrected, contact your dealer/retailer. If the radio
displays an error message, write it down and provide it
to your dealer/retailer when reporting the problem.
Listening to a DVD
If the vehicle has the Rear Seat Entertainment (RSE)
system and a DVD is playing, the DVD symbol displays
indicating that the DVD is available and can be
listened to through the vehicle’s speakers.
To listen to the DVD, press the CD AUX button until
RSE displays. The current radio source stops and the
DVD sound comes through the speakers.
To stop listening to the DVD, press the CD AUX button,
if a CD is loaded, or press the BAND button to select
a different source.
When the RSE system is turned off, the DVD symbol
goes off of the radio display and RSE OFF displays.
The radio returns to the last radio source that was
playing. SeeRear Seat Entertainment (RSE) System
on page 3-96for more information.
3-79

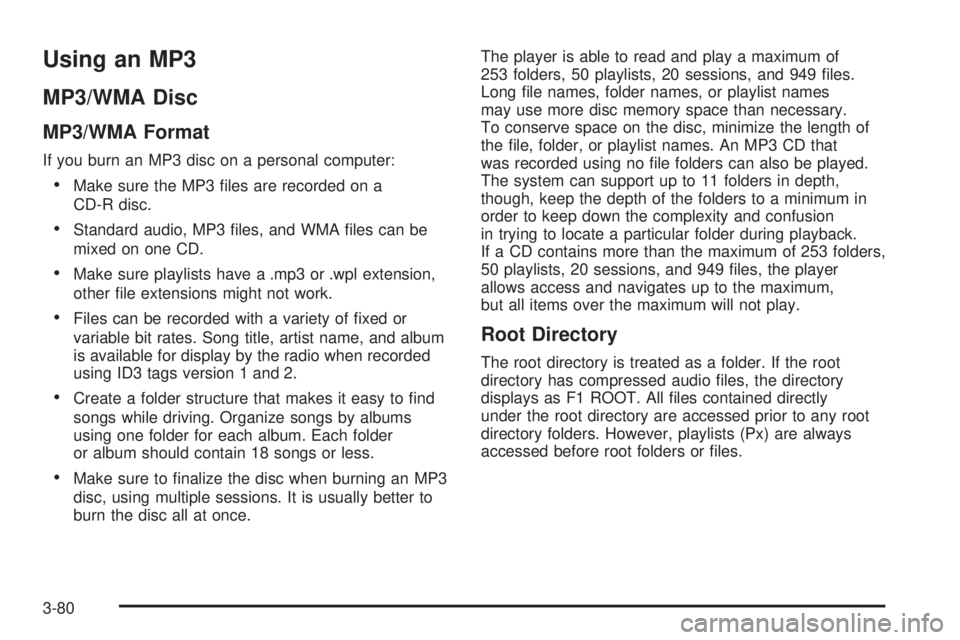

Using an MP3
MP3/WMA Disc
MP3/WMA Format
If you burn an MP3 disc on a personal computer:
Make sure the MP3 les are recorded on a
CD-R disc.
Standard audio, MP3 les, and WMA les can be
mixed on one CD.
Make sure playlists have a .mp3 or .wpl extension,
other le extensions might not work.
Files can be recorded with a variety of xed or
variable bit rates. Song title, artist name, and album
is available for display by the radio when recorded
using ID3 tags version 1 and 2.
Create a folder structure that makes it easy to nd
songs while driving. Organize songs by albums
using one folder for each album. Each folder
or album should contain 18 songs or less.
Make sure to nalize the disc when burning an MP3
disc, using multiple sessions. It is usually better to
burn the disc all at once.The player is able to read and play a maximum of
253 folders, 50 playlists, 20 sessions, and 949 les.
Long le names, folder names, or playlist names
may use more disc memory space than necessary.
To conserve space on the disc, minimize the length of
the le, folder, or playlist names. An MP3 CD that
was recorded using no le folders can also be played.
The system can support up to 11 folders in depth,
though, keep the depth of the folders to a minimum in
order to keep down the complexity and confusion
in trying to locate a particular folder during playback.
If a CD contains more than the maximum of 253 folders,
50 playlists, 20 sessions, and 949 les, the player
allows access and navigates up to the maximum,
but all items over the maximum will not play.
Root Directory
The root directory is treated as a folder. If the root
directory has compressed audio les, the directory
displays as F1 ROOT. All les contained directly
under the root directory are accessed prior to any root
directory folders. However, playlists (Px) are always
accessed before root folders or les.
3-80

Empty Directory or Folder
If a root directory or a folder exists somewhere in the
le structure that contains only folders/subfolders and
no compressed les directly beneath them, the player
advances to the next folder in the le structure that
contains compressed audio les. The empty folder
does not display.
No Folder
When the CD contains only compressed les, the les
are located under the root folder. The next and previous
folder functions do not function on a CD that was
recorded without folders or playlists. When displaying
the name of the folder the radio displays ROOT.
When the CD contains only playlists and compressed
audio les, but no folders, all les are located under the
root folder. The folder down and the folder up buttons
search playlists (Px) rst and then goes to the root
folder. When the radio displays the name of the folder
the radio displays ROOT.
Order of Play
Tracks are played in the following order:
If CD audio tracks are available they will be played
rst, otherwise play begins from the rst track in
the rst playlist and continues sequentially through
all tracks in each playlist. When the last track of
the last playlist has played, play continues from the
rst track of the rst playlist.
If the CD does not contain any playlists, then play
begins from the rst track under the root directory.
When all tracks from the root directory have
played, play continues from les according to their
numerical listing. After playing the last track
from the last folder, play begins again at the rst
track of the rst folder or root directory.
When play enters a new folder, the display does not
automatically show the new folder name unless the
folder mode has been chosen as the default display.
See DISPL (display) later in this section for more
information. The new track name displays.
3-81

File System and Naming
The song name that displays is the song name that is
contained in the ID3 tag. If the song name is not present
in the ID3 tag, then the radio displays the le name
without the extension (such as .mp3) as the track name.
Track names longer than 32 characters or four pages
are shortened. Parts of words on the last page of
text and the extension of the le name does not display.
Preprogrammed Playlists
Preprogrammed playlists that were created using
WinAmp™, MusicMatch™, or Real Jukebox™ software
can be accessed, however, they cannot be edited
using the radio. These playlists are treated as special
folders containing compressed audio song les.
Playing an MP3/WMA
Insert a CD partway into the slot, label side up. The
player pulls it in, and READING displays. The CD should
begin playing and the CD symbol displays. To insert a
CD while the ignition is off, rst press the
Zbutton
or the DISPL knob.If the ignition or radio is turned off with a CD in the
player it stays in the player. When the ignition or radio
is turned on, the CD starts to play where it stopped, if it
was the last selected audio source.
As each new track starts to play, the track number and
song title displays.
1 FLD
x(Previous Folder):Press to go to the rst
track in the previous folder. Press 1 FLD
xwhile
in folder random mode to go to the rst track in the
previous folder and random the tracks in that folder.
2 FLD
w(Next Folder):Press to go to the rst track in
the next folder. Press 2 FLD
wwhile in folder random
mode to go to the rst track in the next folder and
random the tracks in that folder.
3 REV (Reverse):Press and hold to reverse quickly
within a track. Press and hold 3 REV for less than
two seconds to reverse at 10 times the normal
playing speed. Press and hold 3 REV for more than
two seconds to reverse at 20 times the normal playing
speed. Release 3 REV to play the passage. REV and
the elapsed time of the track displays.
3-82

4 FWD (Forward):Press and hold to advance quickly
within a track. Press and hold 4 FWD for less than
two seconds to advance at 10 times the normal
playing speed. Press and hold 4 FWD for more than
two seconds to advance at 20 times the normal playing
speed. Release 4 FWD to play the passage. FWD and
the elapsed time of the track displays.
6 RDM (Random):Press and release to play the
tracks of a current folder or playlist, in random order.
FLDR RDM displays. Once all of the tracks a current
folder or playlist have played the system moves on
to the next folder or playlist and play all of the tracks in
random order.
To play all tracks on the CD in random order, press and
hold 6 RDM for two seconds. A beep sounds and
DISC RDM displays. This feature does not work
with playlists.
When in random, press and release either SEEK arrow
to go to the next or previous random track.
Press and release 6 RDM again to turn off random play.
NO RDM displays.oSEEKp:Press the left SEEK arrow to go to the
start of the previous track. Press the right SEEK arrow
to go to the start of the next track. Press either SEEK
arrow for more than two seconds to search the previous
or next tracks at two tracks per second. Release the
button to stop searching and to play the track.
oTUNEp:Turn to fast track reverse or advance
through the tracks in all folders or playlists. The track
number and le name displays for each track.
Turn
oTUNEpwhile in random to fast track reverse
or advance the tracks in sequential order.
DISPL (Display):Press to switch between track mode,
folder/playlist mode, and time of day mode. The display
shows only eight characters, but there can be up to
four pages of text. If there are more than eight characters
in the song, folder, or playlist name, they are displayed
if DISPL is not pressed again, pressing DISPL within
two seconds goes to the next display mode.
Track mode displays the current track number and
the ID3 tag song name.
Folder/playlist mode displays the current folder or
playlist number and the folder/playlist name.
Time of day mode displays the time of day and the
ID3 tag song name.
3-83
