2009 GMC ACADIA headrest

3. Place folding armrests in the
upright position.
4. Ensure that the safety belt is
unfastened and in the stowed
position.
5. Pull the sliding seat lever (C)
forward and move the seatback
forward. The seat cushion
will fold, and the entire seat will
slide forward.
Returning the Seat to the
Seating Position
To return the second row seat to its
normal seating position:
1. Remove objects on the oor
behind the second row seat
or in the seat tracks on the oor.
2. Pull the seatback rearward until it
is locked in place.3. Slide the seat rearward by
pushing on the seatback until it is
locked into place.
4. Push down on the rear of the
seat cushion until it is locked
in place.
5. Push and pull on the seatback
and seat cushion to make sure
they are locked in place.
6. Check that the safety belt is not
under the seat cushion.
Reclining the Seatbacks
To recline the seatback:
1. Leaning forward in the seat, pull
the reclining seatback strap (B).
2. Move the seatback to the desired
position, then release the strap
to lock the seatback in place.
3. Push and pull on the seatback to
make sure it is locked.
Folding the Rear Seat
To fold the second row seats:
1. Remove anything on or under
the seat.
2. Place the armrest in the upright
position, and unfasten the
safety belt.
3. Pull forward on the reclining
seatback strap (B) and push
down on the seatback.
If the headrest hits the front seat,
slide the second row seat
rearward.
To return the seatback to the
seating position, lift the upper corner
of the seatback and push it
rearward until it locks into place.
Push and pull on the seatback
to make sure it is locked.
Seats and Restraint System 1-11

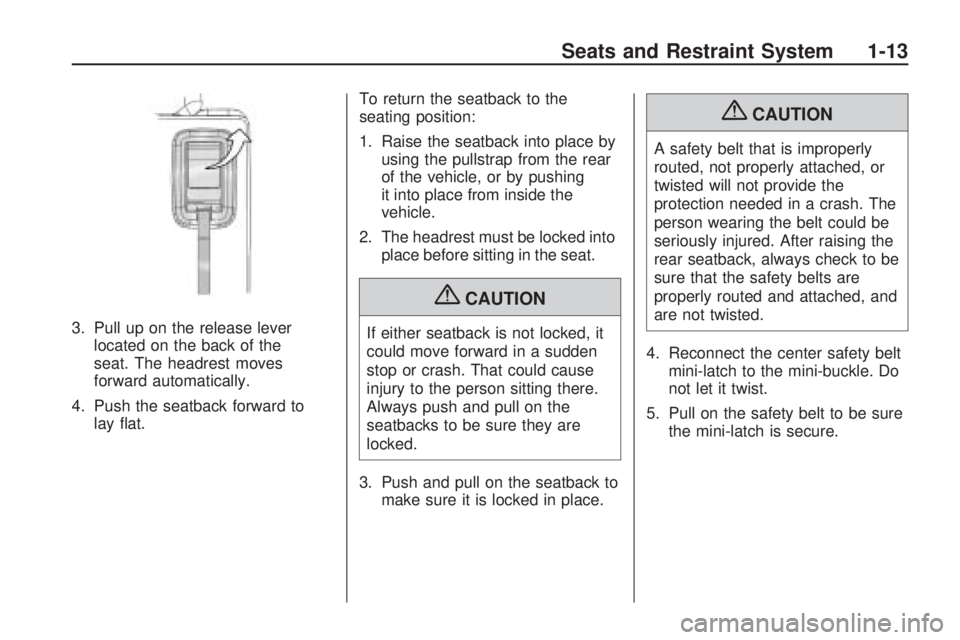

3. Pull up on the release lever
located on the back of the
seat. The headrest moves
forward automatically.
4. Push the seatback forward to
lay at.To return the seatback to the
seating position:
1. Raise the seatback into place by
using the pullstrap from the rear
of the vehicle, or by pushing
it into place from inside the
vehicle.
2. The headrest must be locked into
place before sitting in the seat.
{CAUTION
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
3. Push and pull on the seatback to
make sure it is locked in place.
{CAUTION
A safety belt that is improperly
routed, not properly attached, or
twisted will not provide the
protection needed in a crash. The
person wearing the belt could be
seriously injured. After raising the
rear seatback, always check to be
sure that the safety belts are
properly routed and attached, and
are not twisted.
4. Reconnect the center safety belt
mini-latch to the mini-buckle. Do
not let it twist.
5. Pull on the safety belt to be sure
the mini-latch is secure.
Seats and Restraint System 1-13

Removing the Third Row
Seats
1. Remove the cargo management
system, if it is in the vehicle. See
Cargo Management System
on page 2-52.
2. Remove anything on or under
the seat.
Notice:Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle the
safety belts and return them to
their normal stowed position
before folding a rear seat.
3. Fold the seatback down. See
“Folding the Seatback” earlier
in this section.
4. Remove the rear bolts located on
the oor on each side of the seat.5. Remove the seat by tilting it
slightly upward, and then
pulling it out of the rear of the
vehicle in one motion.
6. Replace the bolts in the oor
holes for storage.
Installing the Third Row Seats
1. Before installing the seat the
seatback must be folded
forward. See “Folding the
Seatback” earlier in this section.
The seats must be placed in
the proper locations for the legs
to attach correctly. The wider
seat must be installed on
the driver side and the narrower
seat on the passenger side.
Remove the bolts from the holes
in the oor before installing
the seats.2. Place the seat on the vehicle
oor so that the front seat
hooks are on the vehicle bars.
3. Reinstall the bolts, and torque to
55Y(41 lb ft). Pull up on the
seat to make sure it is locked
in place.
4. Raise the seatback to its upright
position. Push and pull on the
seatback to make sure it is
locked into place.
5. Push the headrest up into
position. Push and pull on
the headrest to make sure it is
locked into place.
6. Reconnect the center safety belt
mini-latch to the mini-buckle. Do
not let it twist.
1-14 Seats and Restraint System

You can move the height adjuster
up by pushing up on the shoulder
belt guide.
After the adjuster is set to the desired
position, try to move it down without
pushing the button to make sure it
has locked into position.
Safety Belt Pretensioners
This vehicle has safety belt
pretensioners for the front outboard
occupants. Although the safety belt
pretensioners cannot be seen, they
are part of the safety belt assembly.
They can help tighten the safety belts
during the early stages of a moderate
to severe frontal, near frontal, or rear
crash if the threshold conditions for
pretensioner activation are met. And,
for vehicles with side impact airbags,
safety belt pretensioners can help
tighten the safety belts in a side
crash or a rollover event.Pretensioners work only once. If the
pretensioners activate in a crash,
they will need to be replaced, and
probably other new parts for the
vehicle’s safety belt system. See
Replacing Restraint System Parts
After a Crash on page 1-62.
Rear Safety Belt Comfort
Guides
Rear shoulder belt comfort guides
may provide added safety belt
comfort for older children who have
outgrown booster seats and for
some adults. When installed on a
shoulder belt, the comfort guide
positions the shoulder belt away
from the neck and head.
There is a guide for each
outboard passenger position
in the second row seat and all
passenger positions in the third row.Here is how to install a comfort
guide to the safety belt:
1. For the outboard positions,
remove the guide from its storage
clip on the interior body.
For the third row center position,
locate the comfort guide which
is located in a storage pocket,
at the top of the seat, under
the headrest on the driver’s
side of the vehicle.Outboard Positions
Seats and Restraint System 1-25

To access the comfort guide,
you will rst need to move
the headrest forward by pulling
on the handle behind the
seatback. The comfort guide will
now be accessible.
Pull the comfort guide out of
its storage location and
then return the headrest to
its upright position.The elastic cord on the comfort
guide is adjustable. You can
make it longer or shorter
by squeezing both ends of
the plastic adjuster.
2. Place the guide over the belt and
insert the two edges of the belt
into the slots of the guide.3. Be sure that the belt is not twisted
and it lies at. The elastic cord
must be under the belt and the
guide on top.
Third Row Center Position
1-26 Seats and Restraint System

CAUTION (Continued)
Pull the shoulder belt all the way
out of the retractor to set the lock,
if your vehicle has one, after the
child restraint has been installed.
Notice:Do not let the LATCH
attachments rub against the
vehicle’s safety belts. This may
damage these parts. If necessary,
move buckled safety belts to avoid
rubbing the LATCH attachments.
Do not fold the empty rear seat
with a safety belt buckled. This
could damage the safety belt or
the seat. Unbuckle and return the
safety belt to its stowed position,
before folding the seat.
1. Attach and tighten the lower
attachments to the lower
anchors. If the child restraint
does not have lower attachments
or the desired seating position
does not have lower anchors,
secure the child restraint with thetop tether and the safety belts.
Refer to your child restraint
manufacturer instructions and the
instructions in this manual.
1.1. Find the lower anchors for
the desired seating position.
1.2. Recline the seatback to the
full reclined position.
Make sure the second row
bench seatbacks are
aligned at the same angle
before placing the child
restraint on the seat. Make
sure the third row bench
seatbacks are both upright
before placing the child
restraint on the seat.
1.3. Put the child restraint on
the seat.
1.4. Attach and tighten the lower
attachments on the child
restraint to the lower
anchors.
2. If the child restraint manufacturer
recommends that the top tether
be attached, attach and tighten
the top tether to the top tether
anchor, if the vehicle has one.Refer to the child restraint
instructions and the following
steps:
2.1. Find the top tether anchor.
2.2. If the anchor is covered,
ip open the cover to
expose the anchor.
2.3. Route, attach and tighten
the top tether according to
your child restraint
instructions and the
following instructions:
If the position you are using
does not have a headrest or
head restraint and you are
using a single tether, route
the tether over the seatback.
Seats and Restraint System 1-41

If the position you are using
does not have a headrest or
head restraint and you are
using a dual tether, route the
tether over the seatback.If the position you are using
has a xed headrest or head
restraint and you are using a
dual tether, route the tether
around the headrest or head
restraint.If the position you are using
has a xed headrest or head
restraint and you are using a
single tether, route the tether
over the headrest or head
restraint.
3. Push and pull the child restraint
in different directions to be sure
it is secure.
1-42 Seats and Restraint System
