2009 FORD TAURUS set clock

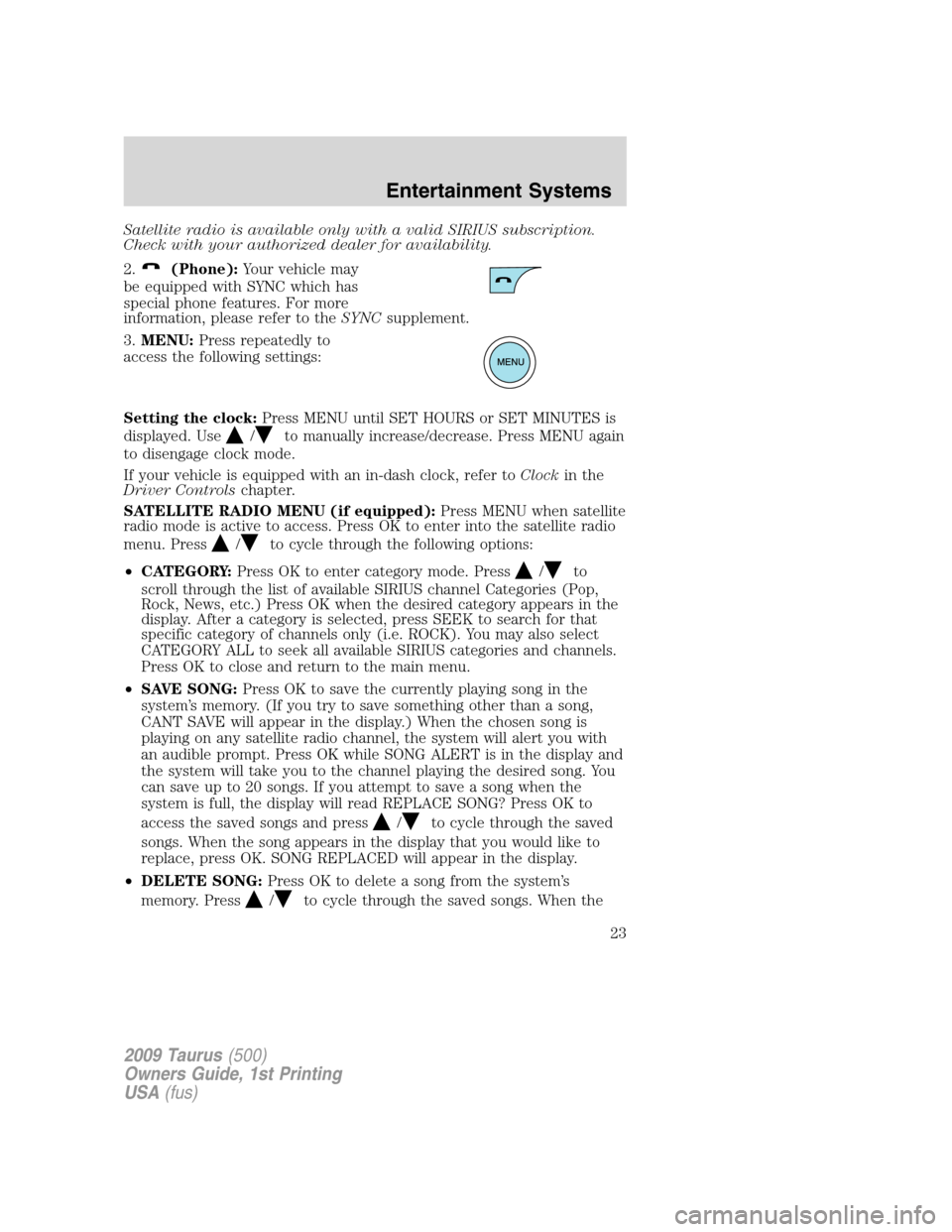

Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.
2.
(Phone):Your vehicle may
be equipped with SYNC which has
special phone features. For more
information, please refer to theSYNCsupplement.
3.MENU:Press repeatedly to
access the following settings:
Setting the clock:Press MENU until SET HOURS or SET MINUTES is
displayed. Use
/to manually increase/decrease. Press MENU again
to disengage clock mode.
If your vehicle is equipped with an in-dash clock, refer toClockin the
Driver Controlschapter.
SATELLITE RADIO MENU (if equipped):Press MENU when satellite
radio mode is active to access. Press OK to enter into the satellite radio
menu. Press
/to cycle through the following options:
•CATEGORY:Press OK to enter category mode. Press
/to
scroll through the list of available SIRIUS channel Categories (Pop,
Rock, News, etc.) Press OK when the desired category appears in the
display. After a category is selected, press SEEK to search for that
specific category of channels only (i.e. ROCK). You may also select
CATEGORY ALL to seek all available SIRIUS categories and channels.
Press OK to close and return to the main menu.
•SAVE SONG:Press OK to save the currently playing song in the
system’s memory. (If you try to save something other than a song,
CANT SAVE will appear in the display.) When the chosen song is
playing on any satellite radio channel, the system will alert you with
an audible prompt. Press OK while SONG ALERT is in the display and
the system will take you to the channel playing the desired song. You
can save up to 20 songs. If you attempt to save a song when the
system is full, the display will read REPLACE SONG? Press OK to
access the saved songs and press
/to cycle through the saved
songs. When the song appears in the display that you would like to
replace, press OK. SONG REPLACED will appear in the display.
•DELETE SONG:Press OK to delete a song from the system’s
memory. Press
/to cycle through the saved songs. When the
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
23

1./(Tune/Disc selector):
In radio mode,press to manually
go up (
) or down ()the
radio frequency. Press and hold for
a fast advance through radio frequencies.
In menu mode,use to select various settings.
In CD/MP3 mode,press to select the desired disc.
In CATEGORY mode (if equipped),press to scroll through the list of
available SIRIUS channel categories.
Satellite radio is available only with a valid SIRIUS radio
subscription. Check with your authorized dealer for availability.
2.
(Phone):Your vehicle may be
equipped with the SYNC system
which has special phone features.
For further information, refer to theSYNCsupplement.
3.MENU:Press repeatedly to
access to the following settings:
Setting the clock:Press until SELECT HOURS or SELECT MINS is
displayed. Press
/to adjust the hours/minutes. Press MENU again
to disengage clock mode.
If your vehicle is equipped with an in-dash clock, refer toClockin the
Driver Controlschapter.
SATELLITE RADIO MENU (if equipped):Press MENU when satellite
radio mode is active to access. Press OK to enter into the satellite radio
menu. Press
/to cycle through the following options:
•CATEGORY:Press OK to enter category mode. Press
/to
scroll through the list of available SIRIUS channel Categories (Pop,
Rock, News, etc.) Press OK when the desired category appears in the
display. After a category is selected, press SEEK to search for that
specific category of channels only (i.e. ROCK). You may also select
CATEGORY ALL to seek all available SIRIUS categories and channels.
Press OK to close and return to the main menu.
•SAVE SONG:Press OK to save the currently playing song in the
system’s memory. (If you try to save something other than a song,
CANT SAVE will appear in the display.) When the chosen song is
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Entertainment Systems
30

Stopping and securing the vehicle
1. Park on a level surface, set the
parking brake and activate hazard
flashers.
2. Place gearshift lever in P (Park)
and turn engine off.
Removing the spare tire and jack
1. Lift the trunk cargo cover, and
remove the wing nut that secures
the spare tire by turning it
counterclockwise.
2. Lift and remove the spare tire
from the trunk.
3. Remove the second wing nut that
secures the jack retention bracket
by turning it counterclockwise,
remove the jack kit from the
vehicle.
4. Remove the jack and the wrench
from the felt bag. Fold down the
wrench socket to use to loosen the
lug nuts and to operate the jack.
Tire change procedure
WARNING:When one of the front wheels is off the ground, the
transmission alone will not prevent the vehicle from moving or
slipping off the jack, even if the vehicle is in P (Park).
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
265

WARNING:To help prevent the vehicle from moving when you
change a tire, be sure to place the transmission in P (Park), set
the parking brake and block (in both directions) the wheel that is
diagonally opposite (other side and end of the vehicle) to the tire
being changed.
WARNING:If the vehicle slips off the jack, you or someone else
could be seriously injured.
WARNING:Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off the road to
avoid the danger of being hit when operating the jack or changing the
wheel.
1. Block the diagonally opposite
wheel.
2. Remove wheel cover (if
equipped) with the lug wrench tip
and loosen each wheel lug nut
one-half turn counterclockwise but
do not remove them until the wheel
is raised off the ground.
WARNING:To lessen the risk of personal injury, do not put any
part of your body under the vehicle while changing a tire. Do not
start the engine when your vehicle is on the jack. The jack is only
meant for changing the tire.
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Roadside Emergencies
266

Because your vehicle’s engine is electronically controlled by a computer,
some control conditions are maintained by power from the battery. When
the battery is disconnected or a new battery is installed, the engine must
relearn its idle and fuel trim strategy for optimum driveability and
performance. To begin this process:
1. With the vehicle at a complete stop, set the parking brake.
2. Put the gearshift in P (Park), turn off all accessories and start the
engine.
3. Run the engine until it reaches normal operating temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for at least one minute.
6. Release the parking brake. With your foot on the brake pedal and with
the A/C on, put the vehicle in D (Drive) and allow the engine to idle for
at least one minute.
7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
L
E
A
D
RETURN
RECYCLE
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
301

Fuel filler cap
Your fuel tank filler cap has an indexed design with a 1/4 turn on/off
feature.
When fueling your vehicle:
1. Turn the engine off.
2. Carefully turn the filler cap counterclockwise until it spins off.
3. Pull to remove the cap from the fuel filler pipe.
4. To install the cap, align the tabs on the cap with the notches on the
filler pipe.
5. Turn the filler cap clockwise 1/4 of a turn until it clicks at least once.
If the check fuel cap light
or a “check fuel cap” message comes on,
the fuel filler cap may not be properly installed. The light or message can
come on after several driving events after you’ve refueled your vehicle.
At the next opportunity, safely pull off of the road, remove the fuel filler
cap, align the cap properly and reinstall it. The check fuel cap
light
or “check fuel cap” message may not reset immediately; it may
take several driving cycles for the check fuel cap light
or “check fuel
cap” message to turn off. A driving cycle consists of an engine start-up
(after four or more hours with the engine off) followed by city and
highway driving.
Continuing to drive with the check fuel cap light
or “check fuel cap”
message on may cause the
light to turn on as well.
If you must replace the fuel filler cap, replace it with a fuel filler
cap that is designed for your vehicle. The customer warranty may
be void for any damage to the fuel tank or fuel system if the
correct genuine Ford, Motorcraft or other certified fuel filler cap
is not used.
WARNING:The fuel system may be under pressure. If the fuel
filler cap is venting vapor or if you hear a hissing sound, wait
until it stops before completely removing the fuel filler cap. Otherwise,
fuel may spray out and injure you or others.
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
310

plastic parts ............................288
washing ....................................285
waxing .....................................286
wheels ......................................286
wiper blades ............................288
Climate control (see Air
conditioning or Heating) ......76, 78
Clock ............................................95
Clock adjust
6-CD in dash .............................30
AM/FM/CD .................................23
Compass, electronic
set zone adjustment ...............114
Console
overhead ....................................95
Controls
power seat ...............................148
steering column ......................105
Coolant
checking and adding ..............302
refill capacities ................305, 324
specifications ..........................324
Cruise control
(see Speed control) ..................102
Cupholder(s) .............................153
Customer Assistance ................253
Ford Extended Service Plan...281
Getting assistance outside
the U.S. and Canada ..............282
Getting roadside assistance ...253
Getting the service you
need .........................................277
Ordering additional owner’s
literature .................................283
Utilizing the
Mediation/Arbitration
Program ...................................281D
Daytime running lamps
(see Lamps) ................................84
Dipstick
automatic transmission
fluid ..........................................320
engine oil .................................296
Driving under special
conditions ..........................248, 250
sand .........................................249
snow and ice ...........................251
through water .................250, 252
DVD system .................................45
E
Electronic message center .......111
Emergencies, roadside
jump-starting ..........................270
Emission control system ..........316
Engine ........................................326
cleaning ...................................287
coolant .....................................302
fail-safe cooling .......................306
idle speed control ...................299
lubrication specifications .......324
refill capacities ........................324
service points ..................294–295
starting after a collision .........255
Engine block heater .................232
Engine oil ..................................296
change oil soon warning,
message center .......................296
checking and adding ..............296
dipstick ....................................296
filter, specifications ........298, 323
recommendations ...................298
refill capacities ........................324
specifications ..........................324
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Index
332

fluid, specifications .................324
Power Windows ...........................97
R
Radio ................................18, 22, 29
Rear seat entertainment
system ..........................................45
Recommendations for attaching
safety restraints for children.....184
Relays ........................................255
Remote entry system .......131–132
illuminated entry ............136–137
locking/unlocking doors..132–133
opening the trunk ...................133
panic alarm .............................133
replacement/additional
transmitters .............................135
replacing the batteries ...........134
Reverse sensing system ...........245
Roadside assistance ..................253
S
Safety belts (see Safety
restraints) ..................153, 157–160
Safety Canopy ...................176, 178
Safety defects, reporting ..283–284
Safety restraints ........153, 157–161
Belt-Minder...........................162
extension assembly ................161
for adults .........................158–160
for children .............................182
Occupant Classification
Sensor ......................................155
warning light and
chime ...............................161–162
Safety restraints - LATCH
anchors ......................................190Safety seats for children ..........186
Safety Compliance
Certification Label ....................327
Satellite Radio Information ........42
Seats ..........................................145
child safety seats ....................186
front seats .......................145, 147
heated ................................78, 150
memory seat ...................133, 151
SecuriLock passive anti-theft
system ........................................139
Servicing your vehicle ..............292
Setting the clock
AM/FM single CD .....................23
AM/FM/In-dash 6 CD ................30
Spare tire
(see Changing the Tire) ...........265
Spark plugs,
specifications .....................323, 326
Specification chart,
lubricants ...................................324
Speed control ............................102
Starting your vehicle ........229–231
jump starting ..........................270
Steering wheel
controls ....................................105
tilting .........................................94
SYNC ............................................73
T
Tilt steering wheel ......................94
Tire Pressure Monitoring
System (TPMS)
Roadside Emergencies ...........262
Tires, Wheels and Loading ....214
2009 Taurus(500)
Owners Guide, 1st Printing
USA(fus)
Index
335
