Item Capacity Ford part nameFord part number /
Ford specification
Windshield washer fluid 3.5 quarts (3.3L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32–A /
WSB-M8B16–A2
1Add 8 oz. (236 ml) of Additive Friction Modifier XL-3 or equivalent meeting Ford Specification
EST-M2C118–A for complete refill of limited slip Ford axles. Ford design rear axles contain a
synthetic lubricant that does not require changing unless the axle has been submerged in water.2Add the coolant type originally equipped in your vehicle.3Ensure the correct automatic transmission fluid is used. Transmission fluid requirements are
indicated on the dipstick blade or the dipstick handle. Check the container to verify the fluid being
added is of the correct type. Refer to yourscheduled maintenance informationto determine the
correct service interval.
Automatic transmissions that require MERCON
LV should only use MERCON
LV fluid.
Use of any fluid other than the recommended fluid may cause transmission damage.4Service refill capacity is determined by filling the transmission to the bottom of the filler hole with
the vehicle on a level surface. The 6–speed manual transmission is equipped with an in-tank cooler.
Verify the fluid level after operating vehicle to ensure correct fluid level.5Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.6Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.
2009 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
407

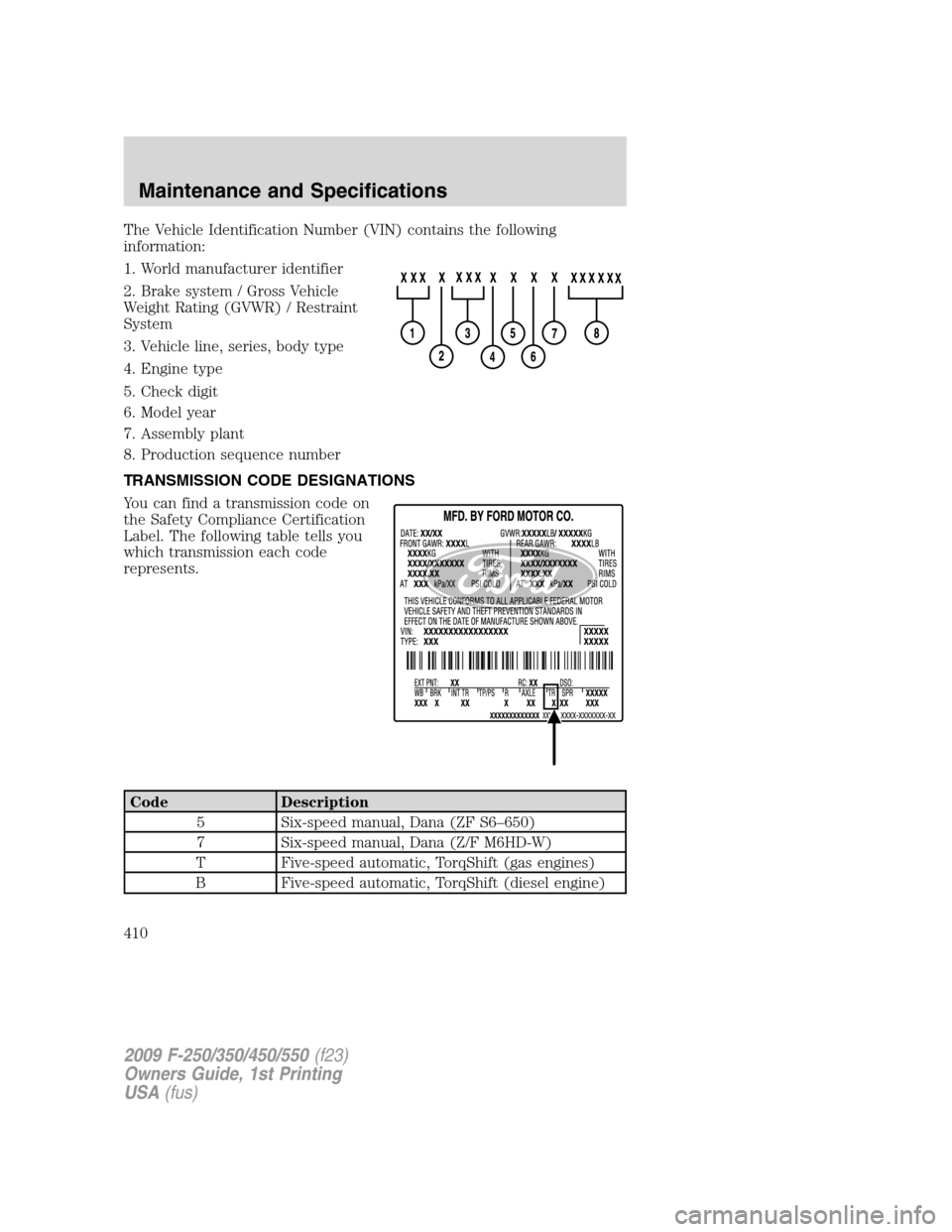

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Code Description
5 Six-speed manual, Dana (ZF S6–650)
7 Six-speed manual, Dana (Z/F M6HD-W)
T Five-speed automatic, TorqShift (gas engines)
B Five-speed automatic, TorqShift (diesel engine)
2009 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
410

A
Accessory delay ........................110
Air cleaner filter ...............401, 403
Air conditioning ..........................84
Airbag supplemental restraint
system ........................................190
and child safety seats ............192
description ..............................190
disposal ....................................195
driver airbag ............................193
indicator light .........................194
operation .................................193
passenger airbag .....................193
passenger deactivation
switch ......................................195
Ambulance packages ..................10
Antifreeze (see Engine
coolant) .....................................377
Anti-lock brake system
(see Brakes) ......................277–278
Anti-theft system ..............165, 168
arming the system ..........166, 168
disarming a triggered
system .....................................168
triggering .................................168
Audio system
(see Radio) ......................26, 28, 35
Automatic transmission ............282
driving an automatic
overdrive .................................284
fluid, adding ............................396
fluid, checking ........................396
fluid, refill capacities ..............404
Auxiliary Input Jack ...................42
Auxiliary power point ...............107
Axle
refill capacities ........................404B
Battery .......................................375
acid, treating emergencies .....375
jumping a disabled battery ....342
maintenance-free ....................375
replacement, specifications ...403
servicing ..................................375
Belt-Minder
.............................186
Booster seats .............................218
Brakes ........................................277
anti-lock ...........................277–278
anti-lock brake system (ABS)
warning light ...........................278
fluid, checking and adding ....395
fluid, refill capacities ..............404
parking ....................................278
shift interlock ..........................282
trailer .......................................264
Bulbs ............................................95
C
Capacities for refilling fluids ....404
Cassette tape player ...................26
Cell phone use ..............................9
Child safety seats ......................204
attaching with tether straps ..212
in front seat ....................204, 208
in rear seat ..............204, 208, 212
LATCH .....................................212
Child safety seats - booster
seats ...........................................218
Cleaning your vehicle
engine compartment ..............359
instrument panel ............361–362
interior .....................................363
plastic parts ............................360
safety belts ..............................363
