Avoid sudden applications of power and quick changes of direction on
snow and ice. Apply the accelerator slowly and steadily when starting
from a full stop.
Avoid sudden braking as well. Although a 4WD vehicle may accelerate
better than a two-wheel drive vehicle in snow and ice, it won’t stop any
faster, because as in other vehicles, braking occurs at all four wheels. Do
not become overconfident as to road conditions.
Make sure you allow sufficient distance between you and other vehicles
for stopping. Drive slower than usual and consider using one of the lower
gears. In emergency stopping situations, avoid locking of the wheels. Use
a “squeeze” technique, push on the brake pedal with a steadily increasing
force which allows the wheels to brake yet continue to roll so that you
may steer in the direction you want to travel. If you lock the wheels,
release the brake pedal and repeat the squeeze technique. If your vehicle
is equipped with a Four Wheel Anti-Lock Brake System (ABS), apply the
brake steadily. Do not “pump” the brakes. Refer to theBrakessection of
this chapter for additional information on the operation of the anti-lock
brake system.
Never drive with chains on the front tires of 4WD vehicles without also
putting them on the rear tires. This could cause the rear to slide and
swing around during braking.
Maintenance and Modifications
The suspension and steering systems on your vehicle have been designed
and tested to provide predictable performance whether loaded or empty
and durable load carrying capability. For this reason, Ford Motor
Company strongly recommends that you do not make modifications such
as adding or removing parts (such as lift kits or stabilizer bars) or by
using replacement parts not equivalent to the original factory equipment.
Any modifications to a vehicle that raise the center of gravity can make
it more likely the vehicle will roll over as a result of a loss of control.
Ford Motor Company recommends that caution be used with any vehicle
equipped with a high load or device (such as ladder racks or pickup box
cover).
Failure to maintain your vehicle properly may void the warranty, increase
your repair cost, reduce vehicle performance and operational capabilities
and adversely affect driver and passenger safety. Frequent inspection of
vehicle chassis components is recommended if the vehicle is subjected to
heavy off-road usage.
2009 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
Driving
308

VEHICLE USED AS A STATIONARY POWER SOURCE
Auxiliary equipment called power take-off, or PTO, is often added to the
engine or transmission to operate utility equipment. Examples include a
wheel-lift for tow trucks, cranes, tools for construction or tire service,
and pumping fluids. PTO applications draw auxiliary horsepower from
the powertrain, often while the vehicle is stationary. In this condition,
there is limited cooling air flow through the radiator and around the
vehicle that normally occurs when a vehicle is moving. The aftermarket
PTO system installer, having the most knowledge of the final application,
is responsible for determining whether additional chassis heat protection
or powertrain cooling is required, and alerting the user to the safe and
proper operation.
Ford Super Duty Vehicles are qualified for use as a stationary power
source, within limits detailed in theFord Truck Body Builders Layout
Book,found at www.fleet.ford.com/truckbbas, and through the Ford
Truck Body Builders Advisory Service.
Gas engine vehicles are qualified for up to 10 minutes of continuous
operation as a stationary power source, due to the potential for the
normal venting of fuel vapors. For stationary PTO operation of extended
duration (beyond 10 minutes), diesel engine is recommended. Further
consult your aftermarket PTO installer, since the duration of operation
limit for the aftermarket PTO may be less than the vehicle is capable of.
DRIVING THROUGH WATER
If driving through deep or standing
water is unavoidable, proceed very
slowly especially when the depth is
not known. Never drive through
water that is higher than the bottom
of the wheel rims (for cars) or the
bottom of the hubs (for trucks).
When driving through water, traction or brake capability may be limited.
Also, water may enter your engine’s air intake and severely damage your
engine or your vehicle may stall.Driving through deep water where
the transmission vent tube is submerged may allow water into the
transmission and cause internal transmission damage.
Once through the water, always dry the brakes by moving your
vehicle slowly while applying light pressure on the brake pedal.
Wet brakes do not stop the vehicle as quickly as dry brakes.
2009 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
Driving
309

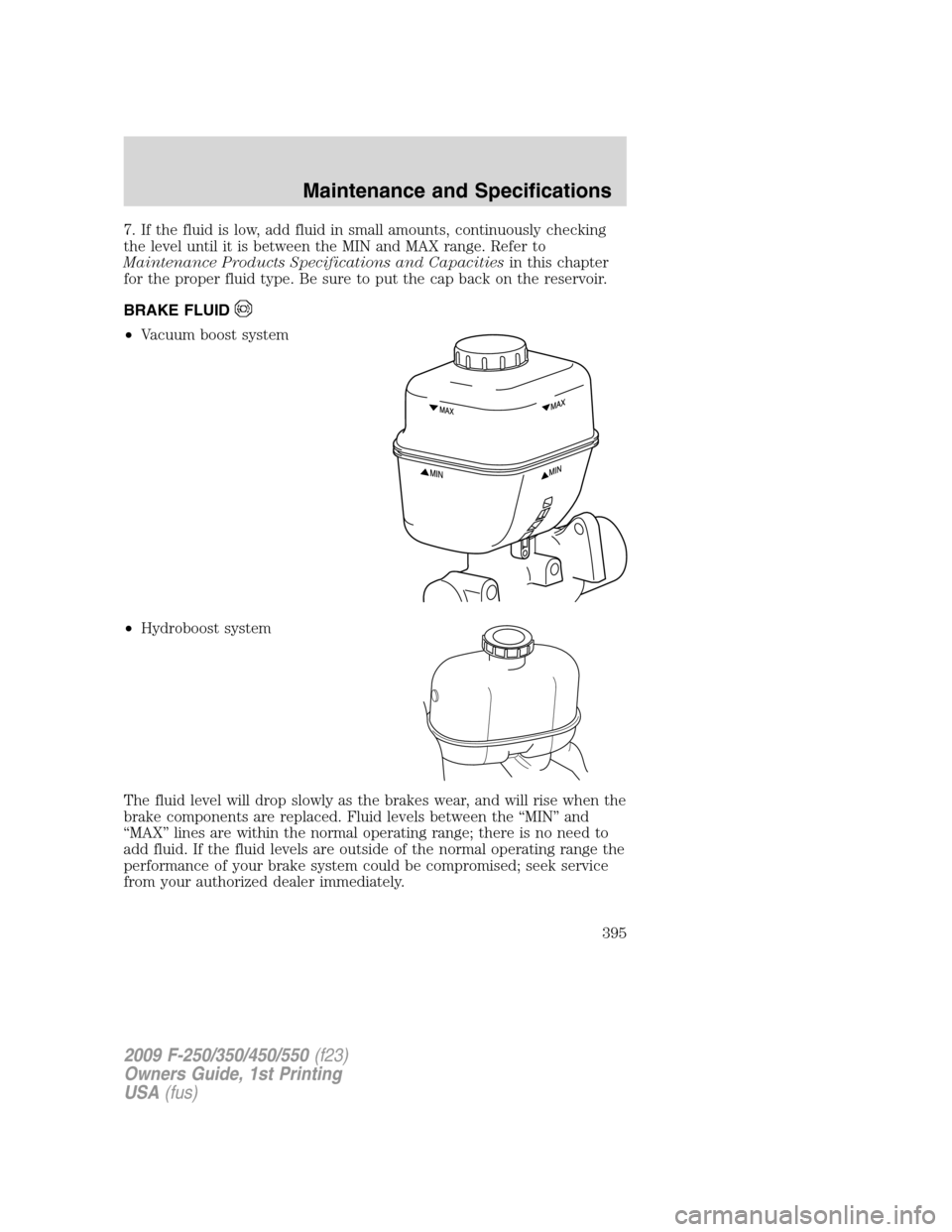

7. If the fluid is low, add fluid in small amounts, continuously checking
the level until it is between the MIN and MAX range. Refer to
Maintenance Products Specifications and Capacitiesin this chapter
for the proper fluid type. Be sure to put the cap back on the reservoir.
BRAKE FLUID
•Vacuum boost system
•Hydroboost system
The fluid level will drop slowly as the brakes wear, and will rise when the
brake components are replaced. Fluid levels between the “MIN” and
“MAX” lines are within the normal operating range; there is no need to
add fluid. If the fluid levels are outside of the normal operating range the
performance of your brake system could be compromised; seek service
from your authorized dealer immediately.
2009 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
395

A
Accessory delay ........................110
Air cleaner filter ...............401, 403
Air conditioning ..........................84
Airbag supplemental restraint
system ........................................190
and child safety seats ............192
description ..............................190
disposal ....................................195
driver airbag ............................193
indicator light .........................194
operation .................................193
passenger airbag .....................193
passenger deactivation
switch ......................................195
Ambulance packages ..................10
Antifreeze (see Engine
coolant) .....................................377
Anti-lock brake system
(see Brakes) ......................277–278
Anti-theft system ..............165, 168
arming the system ..........166, 168
disarming a triggered
system .....................................168
triggering .................................168
Audio system
(see Radio) ......................26, 28, 35
Automatic transmission ............282
driving an automatic
overdrive .................................284
fluid, adding ............................396
fluid, checking ........................396
fluid, refill capacities ..............404
Auxiliary Input Jack ...................42
Auxiliary power point ...............107
Axle
refill capacities ........................404B
Battery .......................................375
acid, treating emergencies .....375
jumping a disabled battery ....342
maintenance-free ....................375
replacement, specifications ...403
servicing ..................................375
Belt-Minder
.............................186
Booster seats .............................218
Brakes ........................................277
anti-lock ...........................277–278
anti-lock brake system (ABS)
warning light ...........................278
fluid, checking and adding ....395
fluid, refill capacities ..............404
parking ....................................278
shift interlock ..........................282
trailer .......................................264
Bulbs ............................................95
C
Capacities for refilling fluids ....404
Cassette tape player ...................26
Cell phone use ..............................9
Child safety seats ......................204
attaching with tether straps ..212
in front seat ....................204, 208
in rear seat ..............204, 208, 212
LATCH .....................................212
Child safety seats - booster
seats ...........................................218
Cleaning your vehicle
engine compartment ..............359
instrument panel ............361–362
interior .....................................363
plastic parts ............................360
safety belts ..............................363
2009 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
Index
413

Instrument panel
cleaning ...........................361–362
cluster ........................................14
lighting up panel and
interior .......................................91
J
Jump-starting your vehicle ......342
K
Keyless entry system
autolock ...................................154
keypad .....................................164
locking and unlocking doors ..165
programming entry code .......164
Keys ...................................166–167
positions of the ignition .........272
L
Lamps
autolamp system .......................89
daytime running light ...............90
fog lamps ...................................89
headlamps .................................89
headlamps, flash to pass ..........90
instrument panel, dimming .....91
interior lamps ...........................95
replacing bulbs .................97–102
LATCH anchors .........................212
Lights, warning and indicator ....14
anti-lock brakes (ABS) ..........278
Limited-slip axle .......................281
Load limits .................................253
Loading instructions .................259
Locks
autolock ...................................154
childproof ................................157doors ........................................153
Lug nuts ....................................341
Lumbar support, seats .............173
M
Manual transmission .................287
fluid capacities ........................404
reverse .....................................289
Message center .................127, 136
english/metric button .............140
system check button ..............139
warning messages ...........130, 142
Mirrors ...............................110–111
automatic dimming rearview
mirror ......................................110
fold away .........................112, 114
side view mirrors (power) .....111
signal .......................................115
Moon roof ..................................122
Motorcraft parts ................383, 403
N
Navigation system .......................79
O
Octane rating ............................387
Oil (see Engine oil) ..................372
Overdrive ...................................104
P
Parking brake ............................278
Parts (see Motorcraft parts) ....403
Pedals (see Power adjustable
foot pedals) ...............................115
Power adjustable foot pedals ...115
2009 F-250/350/450/550(f23)
Owners Guide, 1st Printing
USA(fus)
Index
416
