Page 41 of 103

FORD SUPER DUTY 2009 2.G Diesel Supplement Manual •E-Series
F-Super Duty
3. Rotate drain lever to the outward position. Allow the HFCM/FCM to
drain for approximately 25 seconds or until clean fuel is observed. Rotate
the lever towards the housing u

Page 43 of 103

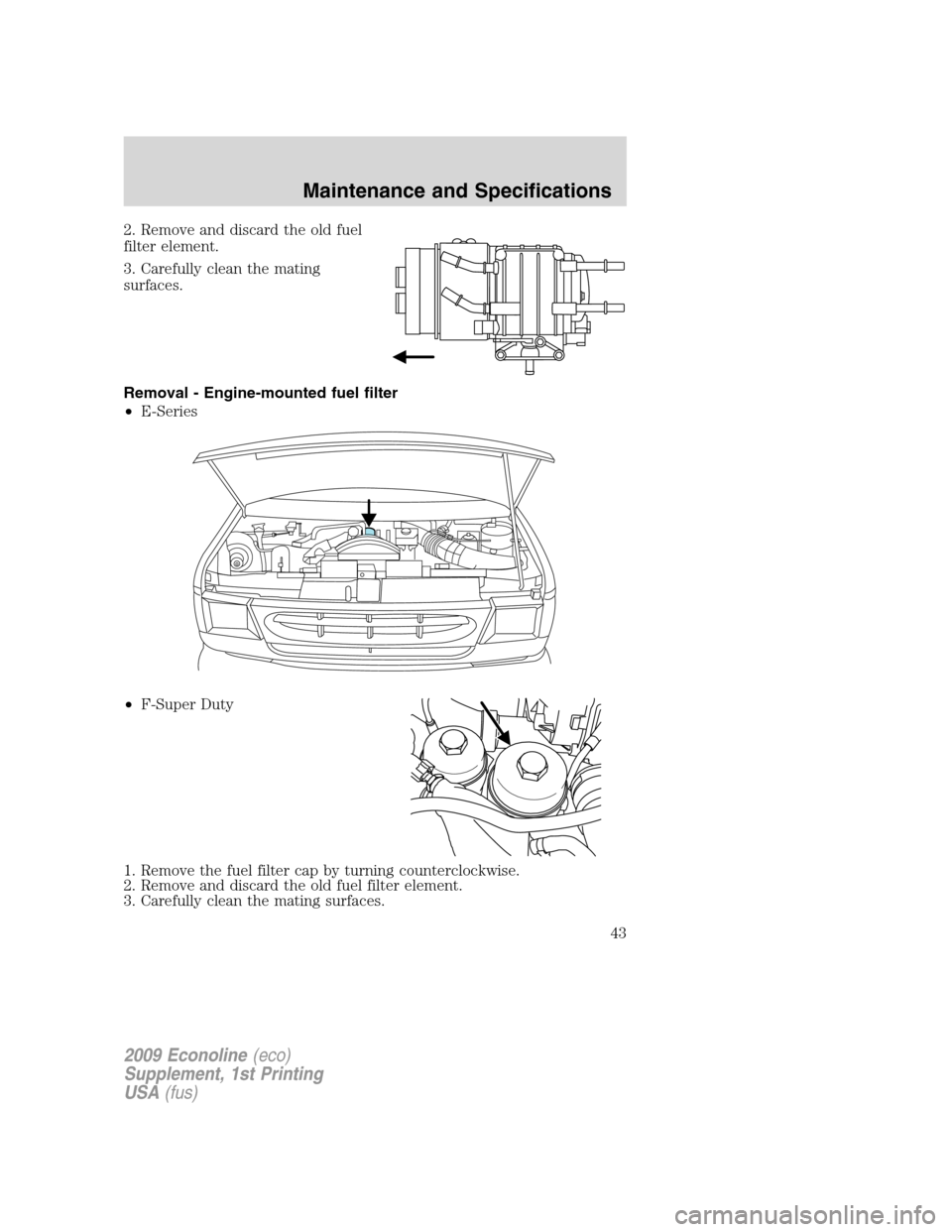

FORD SUPER DUTY 2009 2.G Diesel Supplement Manual 2. Remove and discard the old fuel
filter element.
3. Carefully clean the mating
surfaces.
Removal - Engine-mounted fuel filter
•E-Series
•F-Super Duty
1. Remove the fuel filter cap by turning cou

Page 44 of 103

FORD SUPER DUTY 2009 2.G Diesel Supplement Manual Installation - both
The engine will not run properly if the fuel filter is not installed
in housing.
1. Install the new fuel filter and cap seal into the fuel filter housing.
Refer toMotorcraft Part N

Page 45 of 103

FORD SUPER DUTY 2009 2.G Diesel Supplement Manual distance from MIN to MAX or ADD to OPERATING RANGE on the
dipstick represents 2.0 quarts (1.9L). Do not overfill. If the oil level
exceeds MAX or OPERATING RANGE, oil consumption may result.
Engine oi

Page 46 of 103

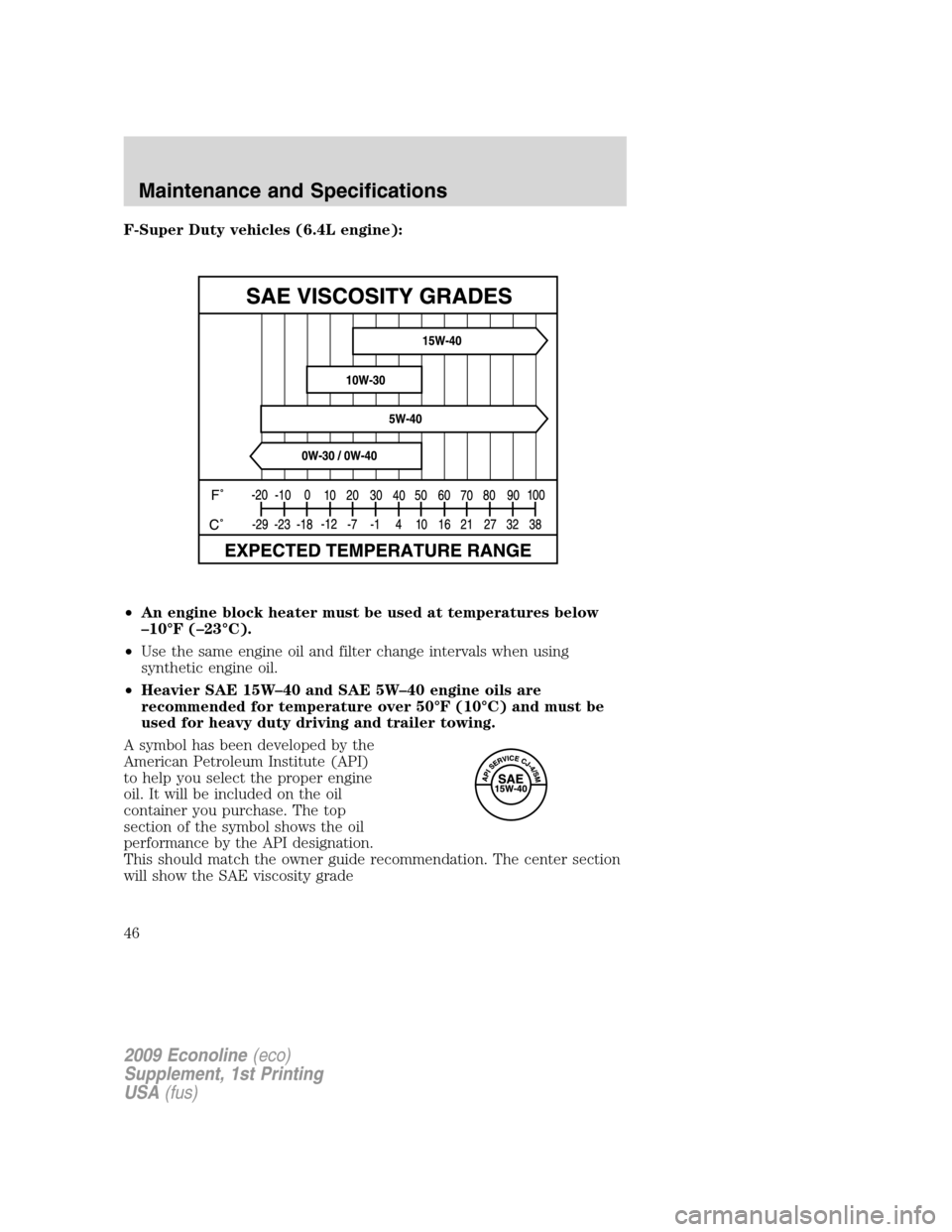

FORD SUPER DUTY 2009 2.G Diesel Supplement Manual F-Super Duty vehicles (6.4L engine):
•An engine block heater must be used at temperatures below
–10°F (–23°C).
•Use the same engine oil and filter change intervals when using
synthetic engin

Page 47 of 103

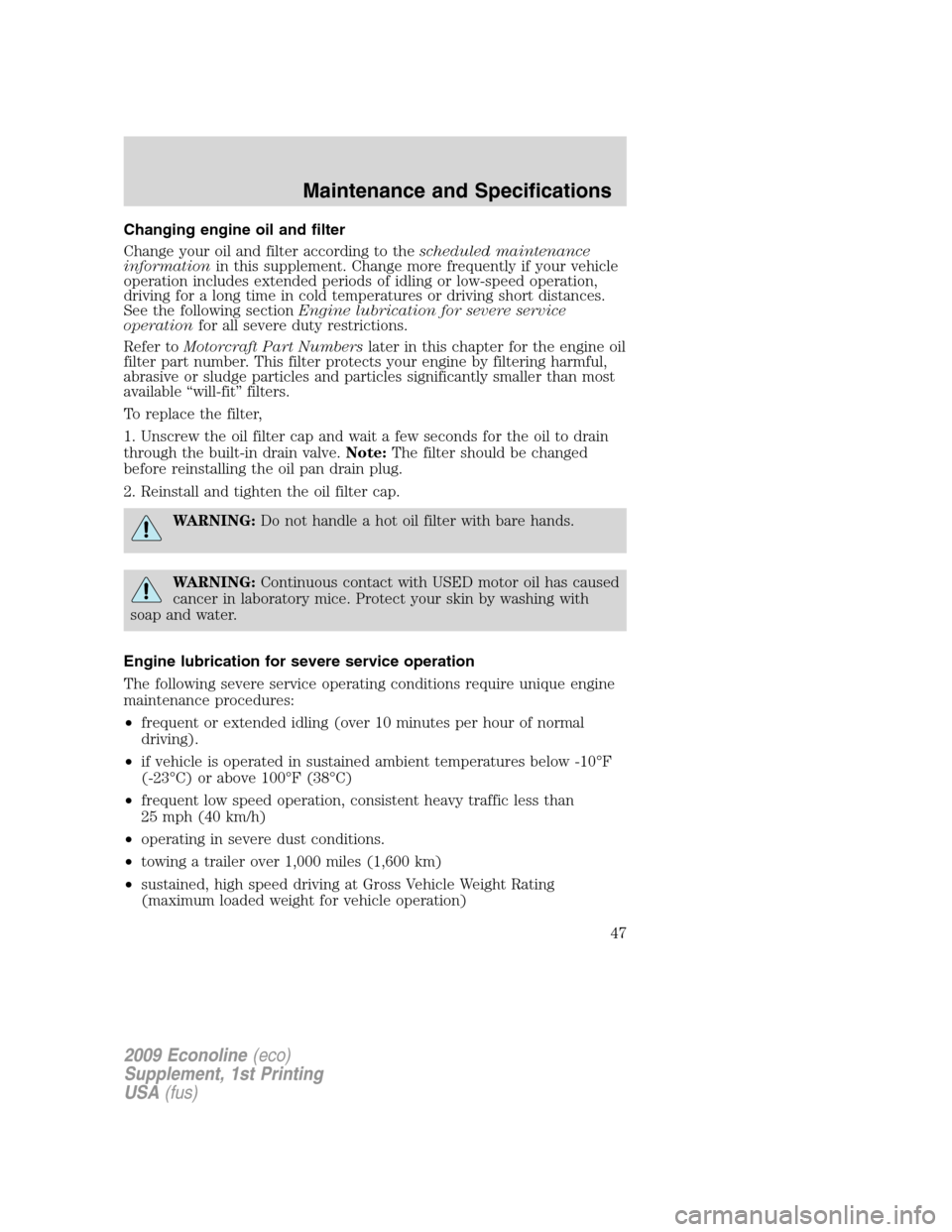

FORD SUPER DUTY 2009 2.G Diesel Supplement Manual Changing engine oil and filter
Change your oil and filter according to thescheduled maintenance
informationin this supplement. Change more frequently if your vehicle
operation includes extended period

Page 48 of 103

FORD SUPER DUTY 2009 2.G Diesel Supplement Manual •use of biodiesel, up to and including 5% Biodiesel (B5)
•use of high sulfur diesel fuel
If you are operating your vehicle under any of these conditions, change
engine oil and filter every 5,000 m

Page 49 of 103

FORD SUPER DUTY 2009 2.G Diesel Supplement Manual After installation of the new filter
element, reset the gauge by pressing
the reset button on top of the
gauge.
Note:Vehicle operation in heavy
snowfall or extreme rain conditions
may feed excessive a
