GAUGES
Some of the gauges shown are optional based on vehicle equipment; your
vehicle may not have some of the gauges shown in this section.
Speedometer:Indicates the
current vehicle speed.
Tachometer:Indicates the engine
speed in revolutions per minute.
Driving with your tachometer
pointer continuously at the top of
the scale may damage the engine.
Odometer:Registers the total miles
(kilometers) of the vehicle.
2009 F-650/750(f67)
Supplement
USA(fus)
Instrument Cluster
28

Trip odometer:Registers the miles
(kilometers) of individual journeys.
To reset, depress the control.
Fuel gauge:Indicates
approximately how much fuel is left
in the fuel tank (when the ignition
is in the on position). If your vehicle
is equipped with dual fuel tanks, the
engine will draw fuel from the
driver-side fuel tank only. With dual
fuel tanks, the vehicle will be
equipped with a fuel transfer pump system that will draw fuel from the
passenger-side fuel tank and send fuel to the driver-side fuel tank. The
driver-side fuel tank must have fuel in it at all times otherwise the
vehicle may stall and may be difficult to re-start. The fuel gauge reads
the fuel level only from the driver-side fuel tank.
Engine coolant temperature
gauge:Indicates engine coolant
temperature. At normal operating
temperature, the needle will be in
the normal range (as indicated by
the arrows).If it enters the red
section, the engine is
overheating. Stop the vehicle as
soon as safely possible, switch
off the engine and let the engine
cool.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot. The contents may be under pressure,
and could cause burns or other serious injury.
H
C
2009 F-650/750(f67)
Supplement
USA(fus)
Instrument Cluster
29

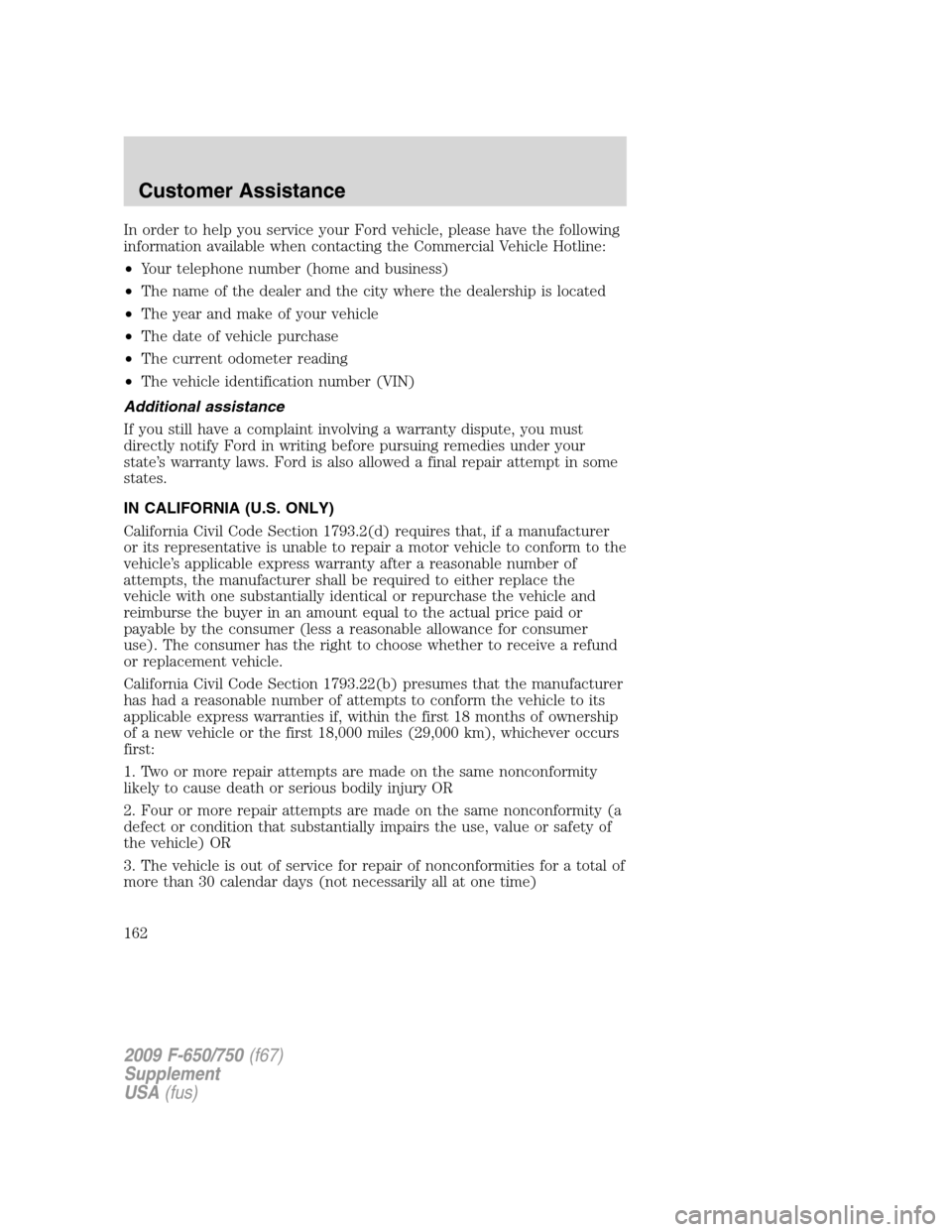

In order to help you service your Ford vehicle, please have the following
information available when contacting the Commercial Vehicle Hotline:
•Your telephone number (home and business)
•The name of the dealer and the city where the dealership is located
•The year and make of your vehicle
•The date of vehicle purchase
•The current odometer reading
•The vehicle identification number (VIN)
Additional assistance
If you still have a complaint involving a warranty dispute, you must
directly notify Ford in writing before pursuing remedies under your
state’s warranty laws. Ford is also allowed a final repair attempt in some
states.
IN CALIFORNIA (U.S. ONLY)
California Civil Code Section 1793.2(d) requires that, if a manufacturer
or its representative is unable to repair a motor vehicle to conform to the
vehicle’s applicable express warranty after a reasonable number of
attempts, the manufacturer shall be required to either replace the
vehicle with one substantially identical or repurchase the vehicle and
reimburse the buyer in an amount equal to the actual price paid or
payable by the consumer (less a reasonable allowance for consumer
use). The consumer has the right to choose whether to receive a refund
or replacement vehicle.
California Civil Code Section 1793.22(b) presumes that the manufacturer
has had a reasonable number of attempts to conform the vehicle to its
applicable express warranties if, within the first 18 months of ownership
of a new vehicle or the first 18,000 miles (29,000 km), whichever occurs
first:
1. Two or more repair attempts are made on the same nonconformity
likely to cause death or serious bodily injury OR
2. Four or more repair attempts are made on the same nonconformity (a
defect or condition that substantially impairs the use, value or safety of
the vehicle) OR
3. The vehicle is out of service for repair of nonconformities for a total of
more than 30 calendar days (not necessarily all at one time)
2009 F-650/750(f67)
Supplement
USA(fus)
Customer Assistance
162

Filling the tank
For consistent results:
•Use the same fill rate setting (low - medium - high) each time during
filling.
•Allow three automatic click-offs when filling.
•Always use fuel of a known quality, preferably a national brand.
•Have the vehicle loading and distribution the same every time.
•When refueling a vehicle equipped with dual fuel tanks, if the two
tanks are not filled equally, the fuel gauge reading may fluctuate
slightly until the fuel level between the two tanks balance out and
become equal.
Your results will be most accurate if your filling method is consistent.
Note:For vehicles equipped with dual fuel tanks, engine performance
may degrade if fuel is not added to both tanks when refueling.
Calculating fuel economy
1. Fill the fuel tank(s) completely and record the initial odometer
reading (in miles or kilometers).
2. Each time you fill the tank(s), record the amount of fuel added (in
gallons or liters).
3. After at least three to five tank fill-ups, fill the fuel tank(s) and record
the current odometer reading.
4. Subtract your initial odometer reading from the current odometer
reading.
5. Follow one of the simple calculations in order to determine fuel
economy:
•Divide total miles traveled by total gallons used.
•Multiply liters used by 100, then divide by total kilometers traveled.
Keep a record for at least one month and record the type of driving (city
or highway). This will provide an accurate estimate of the vehicle’s fuel
economy under current driving conditions. Additionally, keeping records
during summer and winter will show how temperature impacts fuel
economy. In general, lower temperatures give lower fuel economy.
Driving style - good driving and fuel economy habits
Give consideration to the lists that follow and you may be able to change
a number of variables and improve your fuel economy.
2009 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
191

Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
268

Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
269

Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
270

Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
Date:
Odometer reading:
R.O.#:Dealer’s Stamp:
2009 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
271
