WARNING:Never adjust the steering wheel when the vehicle is
moving.
AUXILIARY POWER POINT
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
The power point is an additional
power source for electrical
accessories. The power points are
located on the instrument panel and
inside the center console storage
bin.
Do not use the power point for
operating the cigarette lighter
element (if equipped).
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12 VDC/180W/15A. If the power point or
cigar lighter socket is not working, a fuse may have blown. Refer to
Fuses and relaysin theRoadside Emergencieschapter for information
on checking and replacing fuses.
To have full capacity usage of your power point, the engine is required to
be running (in a safe manner) to avoid unintentional discharge of the
battery. To prevent the battery from being discharged:
•do not use the power point longer than necessary when the engine is
not running,
•do not leave battery chargers, video game adapters, computers and
other devices plugged in overnight or when the vehicle is parked for
extended periods.
Always keep the power point caps closed when not being used.
Cigarette/Cigar lighter (if equipped)
Do not plug optional electrical accessories into the cigarette lighter
socket.
Do not hold the lighter in with your hand while it is heating, this will
damage the lighter element and socket. The lighter will be released from
its heating position when it is ready to be used.
POWER POINT
2009 F-650/750(f67)
Supplement
USA(fus)
Driver Controls
55

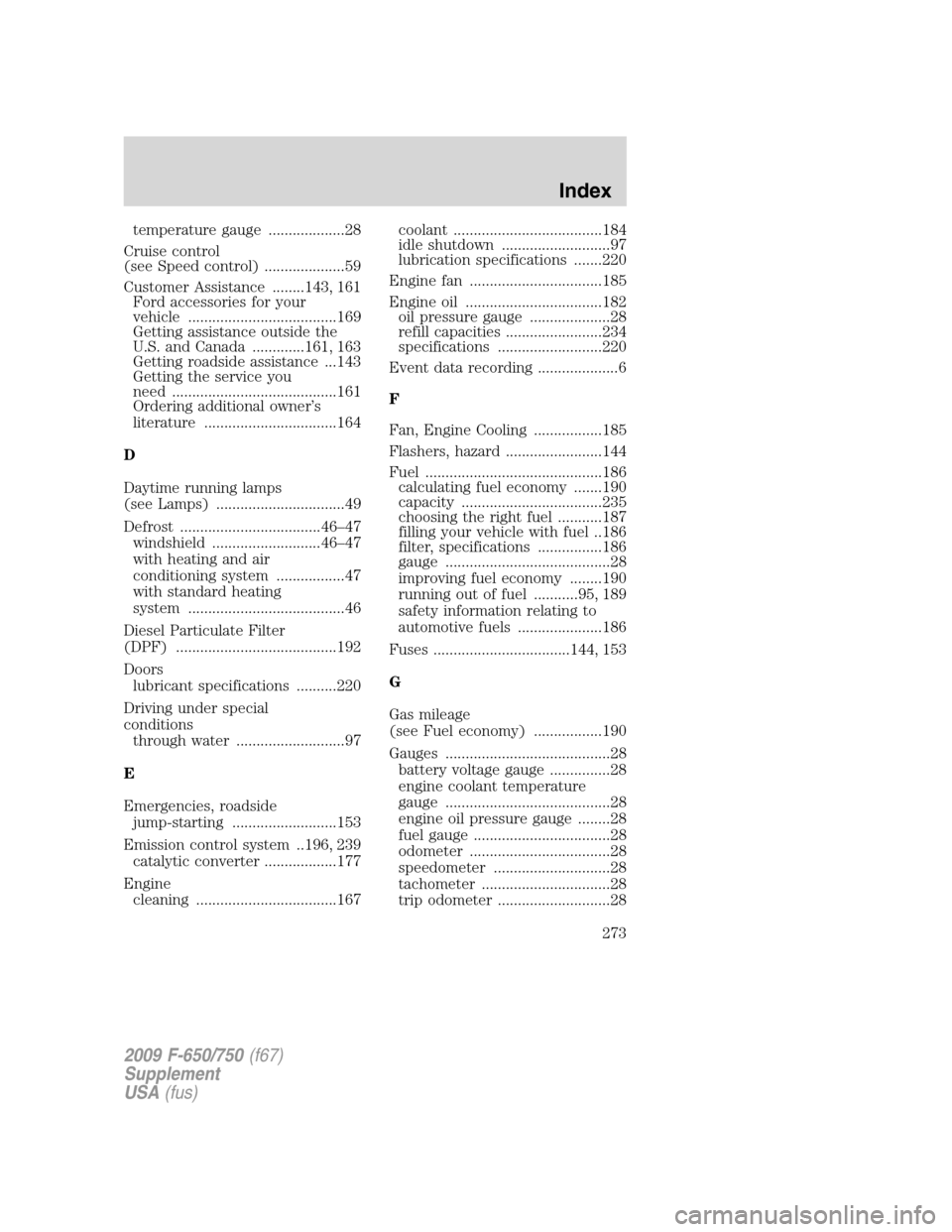

temperature gauge ...................28
Cruise control
(see Speed control) ....................59
Customer Assistance ........143, 161
Ford accessories for your
vehicle .....................................169
Getting assistance outside the
U.S. and Canada .............161, 163
Getting roadside assistance ...143
Getting the service you
need .........................................161
Ordering additional owner’s
literature .................................164
D
Daytime running lamps
(see Lamps) ................................49
Defrost ...................................46–47
windshield ...........................46–47
with heating and air
conditioning system .................47
with standard heating
system .......................................46
Diesel Particulate Filter
(DPF) ........................................192
Doors
lubricant specifications ..........220
Driving under special
conditions
through water ...........................97
E
Emergencies, roadside
jump-starting ..........................153
Emission control system ..196, 239
catalytic converter ..................177
Engine
cleaning ...................................167coolant .....................................184
idle shutdown ...........................97
lubrication specifications .......220
Engine fan .................................185
Engine oil ..................................182
oil pressure gauge ....................28
refill capacities ........................234
specifications ..........................220
Event data recording ....................6
F
Fan, Engine Cooling .................185
Flashers, hazard ........................144
Fuel ............................................186
calculating fuel economy .......190
capacity ...................................235
choosing the right fuel ...........187
filling your vehicle with fuel ..186
filter, specifications ................186
gauge .........................................28
improving fuel economy ........190
running out of fuel ...........95, 189
safety information relating to
automotive fuels .....................186
Fuses ..................................144, 153
G
Gas mileage
(see Fuel economy) .................190
Gauges .........................................28
battery voltage gauge ...............28
engine coolant temperature
gauge .........................................28
engine oil pressure gauge ........28
fuel gauge ..................................28
odometer ...................................28
speedometer .............................28
tachometer ................................28
trip odometer ............................28
2009 F-650/750(f67)
Supplement
USA(fus)
Index
273
