MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord Part Name
or equivalentFord Part Number / Ford
Specification
Brake fluidBetween MIN
and MAX on
reservoirMotorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or WSS-M6C65-A1
Body hinges,
latches, door
striker plates and
rotors, seat tracks,
fuel filler door
hinge and spring,
hood latch,
auxiliary latch, seat
tracks—Multi-Purpose
GreaseXG-4 or XL-5 /
ESB-M1C93-B
Door weatherstrips —Silicone Spray
LubricantXL-6 /
ESR-M13P4-A
Lock cylinders —Motorcraft
Penetrating and
Lock LubricantXL-1 /
None
Engine coolant
4.0L engine12.2 quarts
(11.5L)Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
1
VC-7-B /
WSS-M97B51-A1
Engine coolant
4.6L engine13.9 quarts
(13.2L)
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
337

Item CapacityFord Part Name
or equivalentFord Part Number / Ford
Specification
Cooling system
stop leak pellets—Motorcraft Cooling
System Stop Leak
PelletsVC-6 /
WSS-M99B37-B6
Engine oil 4.0L
engine5.0 quarts
(4.7L)Motorcraft SAE
5W-30 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-30 Super
Premium Motor Oil
(Canada)
2
XO-5W30-QSP (US)
CXO-5W30-LSP12 (Canada) /
WSS-M2C929-A with API
Certification Mark
Engine oil 4.6L
engine6.0 quarts
(5.7L)Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor Oil
(Canada)
2
XO -5W20-QSP (US)
CXO-5W20-LSP12 (Canada) /
WSS-M2C930-A with API
Certification Mark
Automatic
transmission
(5R55S) fluid12.4 quarts
(11.7L)
3
Motorcraft
MERCONVATF
5
XT-5-QM /
MERCONV
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
338

Item CapacityFord Part Name
or equivalentFord Part Number / Ford
Specification
Automatic
transmission
(6R80) fluid11.2 quarts
(10.6L)
3
Motorcraft
MERCONLV AT F
5
XT-10-QLV /
MERCONLV
Rear axle fluid 3.5 pints (1.7L)Motorcraft SAE
75W-140 Synthetic
Rear Axle LubricantXY-75W140-QL /
WSL-M2C192-A
Front axle fluid
(4WD & AWD)2.7 pints (1.3L)Motorcraft SAE
80W-90 Premium
Rear Axle LubricantXY-80W90-QL /
WSP-M2C197-A
Transfer case fluid
(4WD)1.5 quarts
(1.4L)Motorcraft Transfer
Case FluidXL–12 /
—
Transfer case fluid
(AWD)1.3 quarts
(1.25L)Motorcraft Transfer
Case FluidXL–12 /
—
Power steering
fluidFill between
the MIN and
MAX lines on
reservoirMotorcraft
MERCONVATFXT-5-QM /
MERCONV
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
339

Item CapacityFord Part Name
or equivalentFord Part Number / Ford
Specification
Windshield washer
fluid4.2 quarts
(4.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank22.5 gallons
(85.2L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only have the API
Certification mark and meet the requirements of Ford specification WSS-M2C929-A (4.0L) or
WSS-M2C930-A (4.6L).3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be
checked by a qualified technician.4Use of a dual usage fluid in an automatic transmission requiring MERCONLV may cause
transmission damage. Use of any fluid other than the recommended fluid may cause transmission
damage. Refer toscheduled maintenance informationto determine the correct service interval.5Use of a dual usage fluid in an automatic transmission requiring MERCONV may cause
transmission damage. Use of any fluid other than the recommended fluid may cause transmission
damage. Refer toscheduled maintenance informationto determine the correct service interval.
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
340

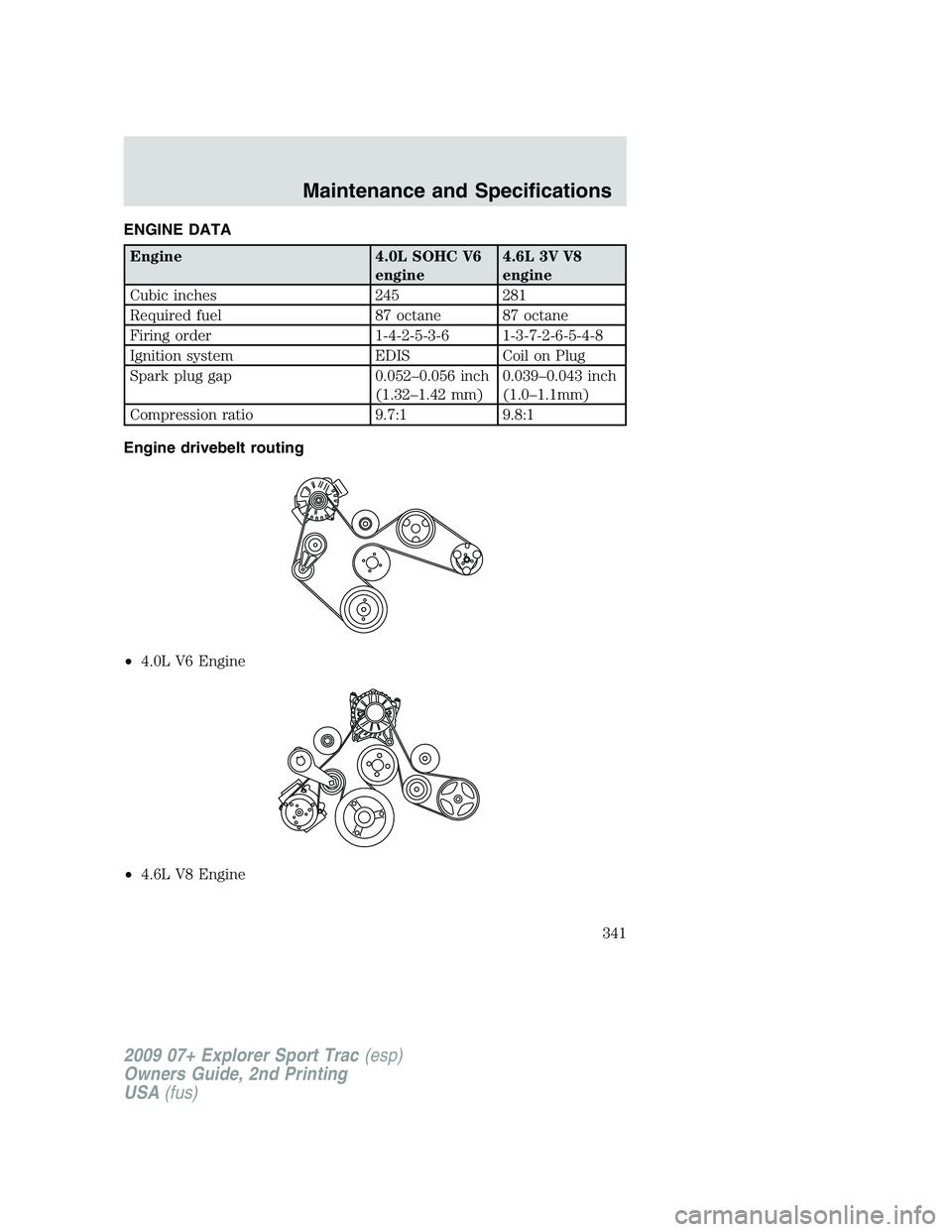

ENGINE DATA
Engine 4.0L SOHC V6
engine4.6L 3V V8
engine
Cubic inches 245 281
Required fuel 87 octane 87 octane
Firing order 1-4-2-5-3-6 1-3-7-2-6-5-4-8
Ignition system EDIS Coil on Plug
Spark plug gap 0.052–0.056 inch
(1.32–1.42 mm)0.039–0.043 inch
(1.0–1.1mm)
Compression ratio 9.7:1 9.8:1
Engine drivebelt routing
•4.0L V6 Engine
•4.6L V8 Engine
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
341

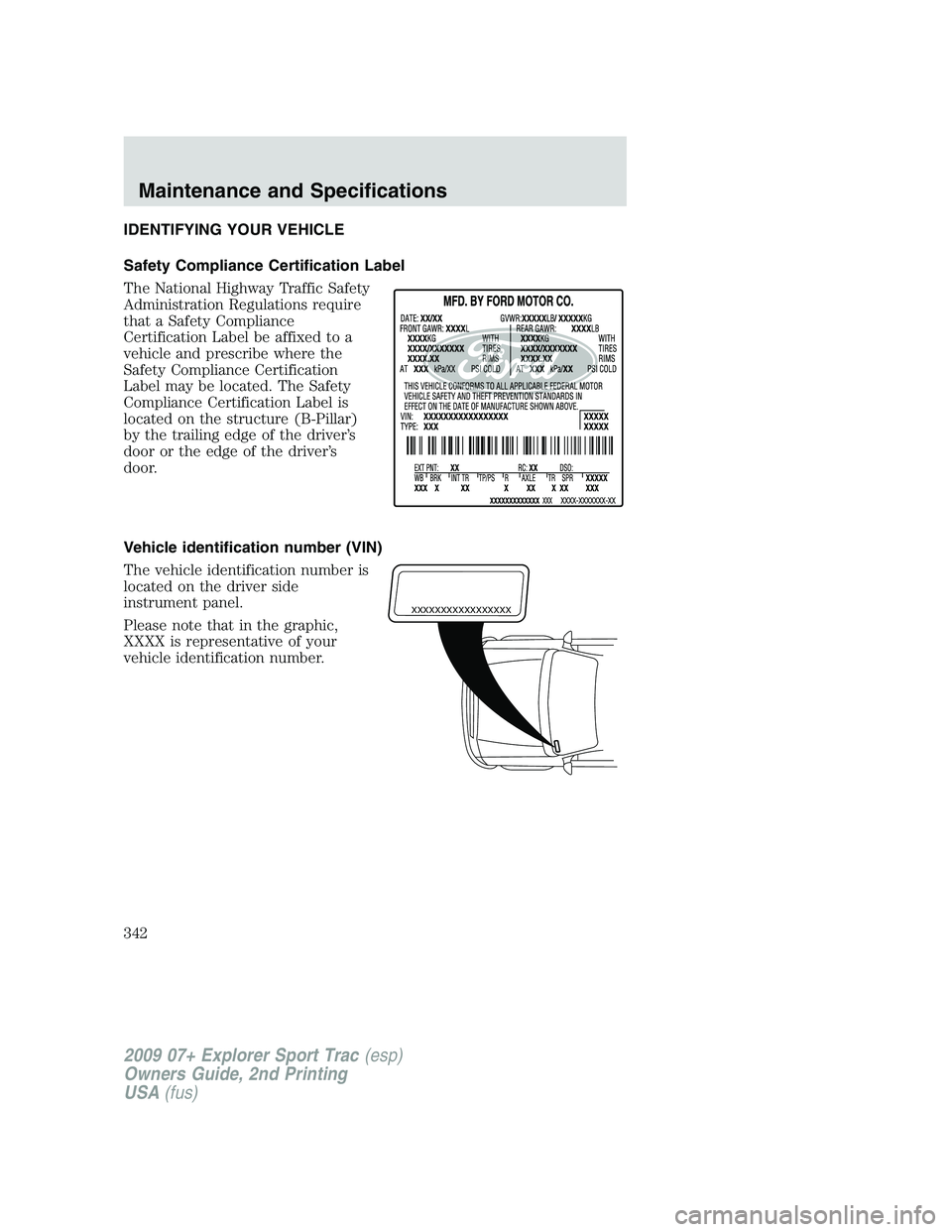

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
342

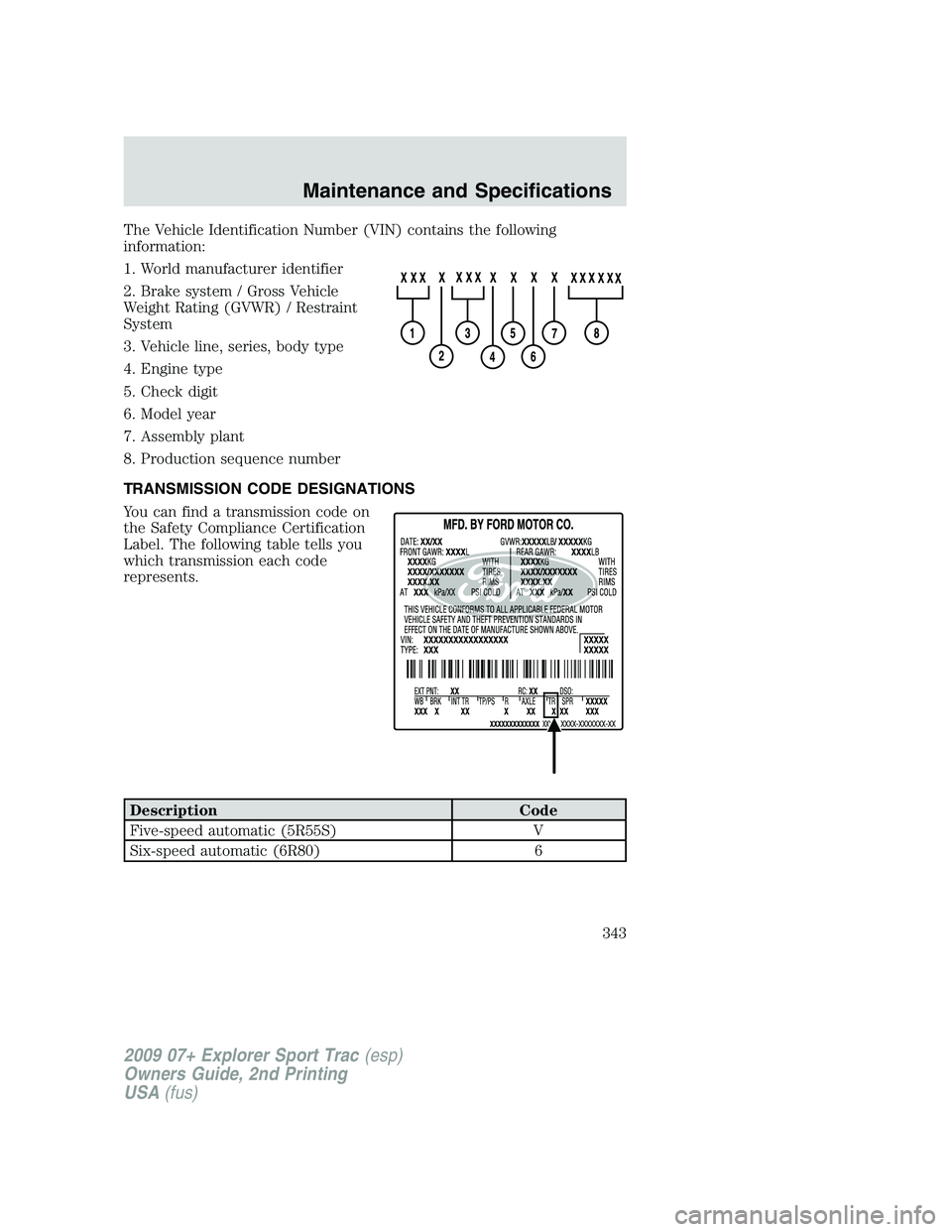

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Five-speed automatic (5R55S) V
Six-speed automatic (6R80) 6
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
343

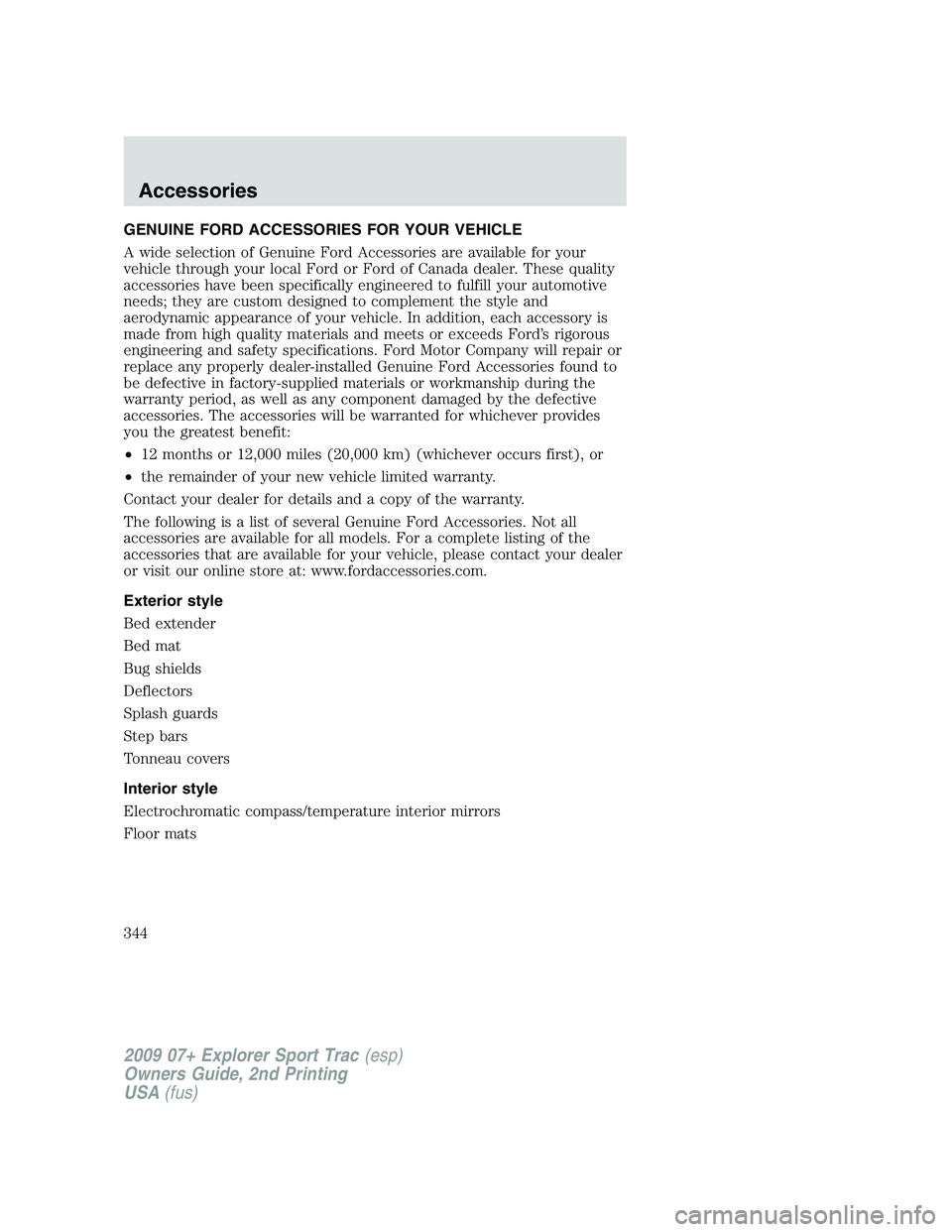

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bed extender
Bed mat
Bug shields
Deflectors
Splash guards
Step bars
Tonneau covers
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
