2009 FORD E-250 Owners Manual

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item Capacity Ford part nameFord part number /
Ford specification
Brake fluidBetween MIN
and MAX on
reservoirMotorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Door weatherstrips —Silicone Spray
LubricantXL-6 /
ESR-M13P4-A
Hinges, latches, Striker plates,
fuel filler door hinge, and seat
tracks—Motorcraft
Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Lock cylinders —Motorcraft
Penetrating and Lock
LubricantXL-1 /
None
Engine coolant 4.6L engine23.8 quarts
(22.6L)
Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
1
VC-7-B /
WSS-M97B51-A1 Engine coolant 4.6L engine with
aux rear heat26.0 quarts
(24.6L)
Engine coolant 5.4L engine28.8 quarts
(27.2L)
Engine coolant 5.4L engine with
aux rear heat30.8 quarts
(29.1L)
Engine coolant 6.8L engine30.4 quarts
(28.8L)
Engine coolant 6.8L engine with
aux rear heat32.6 quarts
(30.8L)
Engine coolant-diesel engine
1
Refer to the6.0L and 6.4L Power Stroke Direct Injection
Turbo Diesel Owner’s Guide Supplement.
2009 Econoline(eco)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
305
ProCarManuals.com

Item Capacity Ford part nameFord part number /
Ford specification
Cooling system stop leak pellets —Motorcraft Cooling
System Stop Leak
PelletsVC-6 /
WSS-M99B37-B6
Engine oil 6.0 quarts (5.7L)Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor Oil
(Canada)
2
XO-5W20-QSP (US)
CXO-5W20- LSP12
(Canada) /
WSS-M2C930-A with
API Certification Mark
Engine oil-diesel engineRefer to the6.0L and 6.4L Power Stroke Direct Injection
Turbo Diesel Owner’s Guide Supplement.
Power steering fluidKeep in FULL
range on dipstickMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Automatic transmission fluid
(4R75E)13.9 quarts
(13.1L)
3
Motorcraft
MERCONLV AT F
4
XT-10-QLV /
MERCONLV
Automatic transmission fluid
TorqShift (5–speed)18.8 quarts
(17.7L)
3
Motorcraft
MERCONLV AT F
4
XT-10-QLV /
MERCONLV
Limited Slip axle fluid
M60 (M248)
E-350 with 4.10 axle ratio5.9 pints
(2.8L)
5,7
SAE 75W-140
Synthetic Rear Axle
Lubricant
6
XY-75W140-QL /
WSL-M2C192-A
2009 Econoline(eco)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
306
ProCarManuals.com

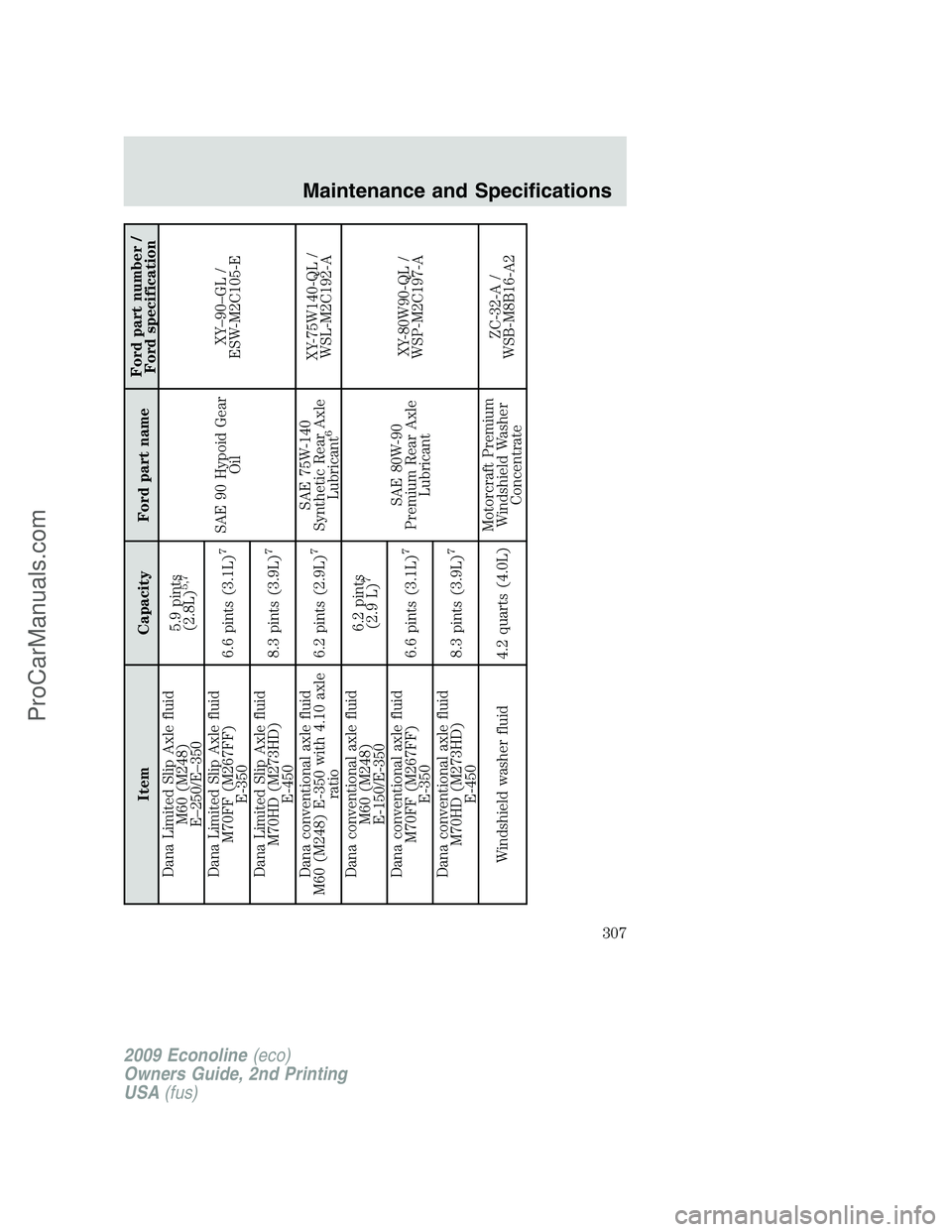

Item Capacity Ford part nameFord part number /
Ford specification
Dana Limited Slip Axle fluid
M60 (M248)
E–250/E–3505.9 pints
(2.8L)
5,7
SAE 90 Hypoid Gear
OilXY–90–GL /
ESW-M2C105-E Dana Limited Slip Axle fluid
M70FF (M267FF)
E-3506.6 pints (3.1L)
7
Dana Limited Slip Axle fluid
M70HD (M273HD)
E-4508.3 pints (3.9L)
7
Dana conventional axle fluid
M60 (M248) E-350 with 4.10 axle
ratio6.2 pints (2.9L)
7
SAE 75W-140
Synthetic Rear Axle
Lubricant
6
XY-75W140-QL /
WSL-M2C192-A
Dana conventional axle fluid
M60 (M248)
E-150/E-3506.2 pints
(2.9 L)
7
SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197-A Dana conventional axle fluid
M70FF (M267FF)
E-3506.6 pints (3.1L)
7
Dana conventional axle fluid
M70HD (M273HD)
E-4508.3 pints (3.9L)
7
Windshield washer fluid 4.2 quarts (4.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
2009 Econoline(eco)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
307
ProCarManuals.com

Item Capacity Ford part nameFord part number /
Ford specification
Fuel tank–all regular and
extended length vans and wagons35.0 gallons
(132.4L)
—— Fuel tank–138 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
Fuel tank–158 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–176 inch wheelbase
(except E-Super Duty)40.0 gallons
(151.0L)
8
Fuel tank–158 inch and 176 inch
wheelbase (E-Super Duty)55.0 gallons
(208.0L)1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size, if
equipped with an in-tank cooler, if equipped with an oil to air cooler and if equipped with a remote
filter assembly. The amount of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.4Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.5Dana limited-slip axle (M60) requires 8 oz. (228 ml) of Additive Friction Modifier XL-3 or
equivalent meeting Ford specification EST-M2C118-A.6If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it is considered lubricated
for life. These lubricants do not need to be checked or changed unless a leak is suspected, service
is required or the axle assembly has been submerged in water. The axle lubricant should be
changed any time the rear axle has been submerged in water.7Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.8Optional fuel tank 55.0 gallons (208.0L).
2009 Econoline(eco)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
308
ProCarManuals.com

ENGINE DATA
Engine14.6L V8 engine 5.4L V8 engine 6.8L V10 engine
Cubic inches 281 330 415
Required fuel87 octane or
(E-85)
287 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Ignition system Coil on plug Coil on plug Coil on plug
Spark plug gap0.052–0.056 inch
(1.32–1.42mm)0.051–0.057 inch
(1.29–1.45mm)0.052–0.056 inch
(1.32–1.42mm)
Compression
ratio9.4:1 9.0:1 9.0:1
1Refer to the6.0 and 6.4 Liter Power Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplementfor diesel engine information.
24.6L V8 FFV engines only.
Engine drivebelt routing
•4.6L V8, 5.4L V8 and 6.8L V10 engines without A/C
2009 Econoline(eco)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
309
ProCarManuals.com

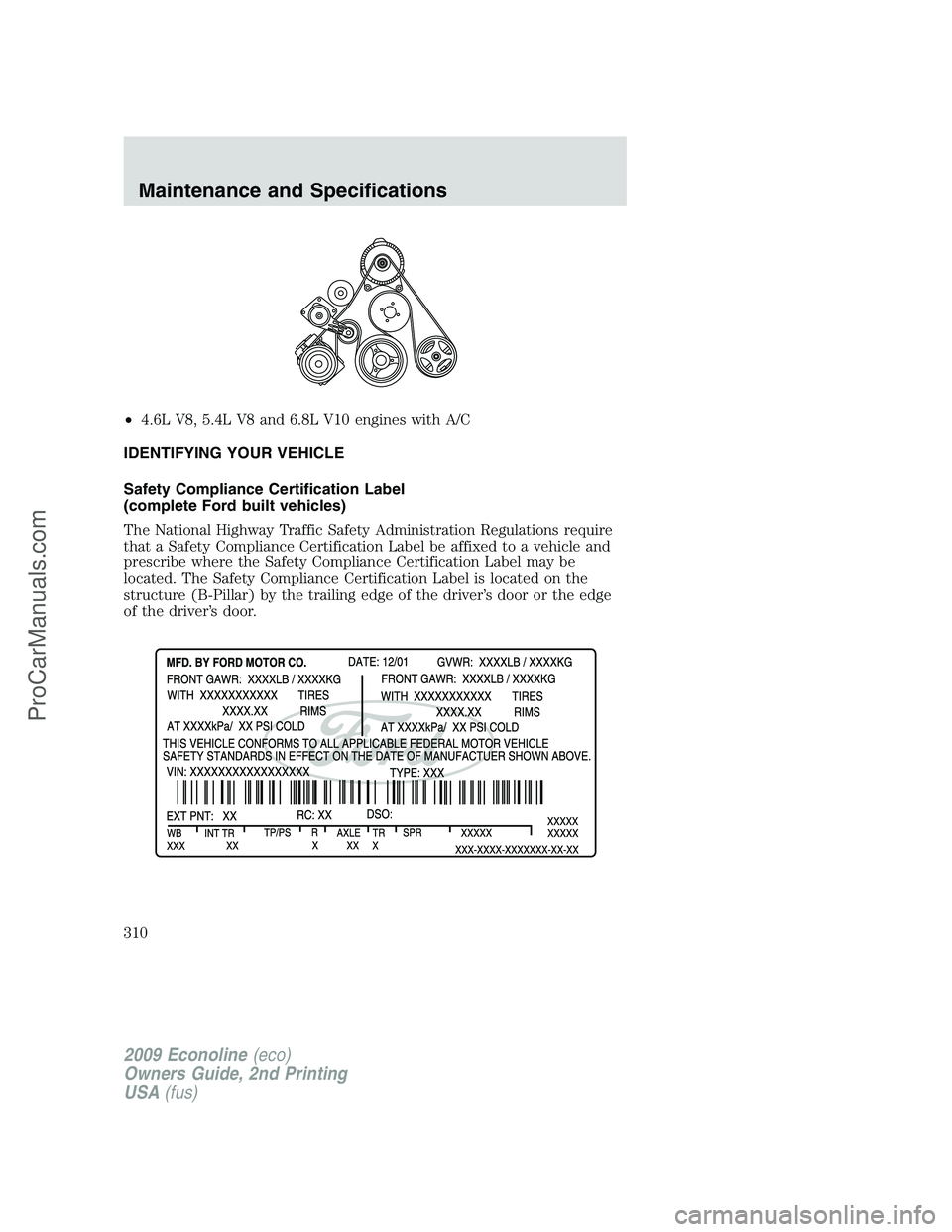

•4.6L V8, 5.4L V8 and 6.8L V10 engines with A/C
IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
(complete Ford built vehicles)
The National Highway Traffic Safety Administration Regulations require
that a Safety Compliance Certification Label be affixed to a vehicle and
prescribe where the Safety Compliance Certification Label may be
located. The Safety Compliance Certification Label is located on the
structure (B-Pillar) by the trailing edge of the driver’s door or the edge
of the driver’s door.
2009 Econoline(eco)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
310
ProCarManuals.com

Vehicle identification number (VIN)
The VIN is located on the driver side instrument panel or on the
certification label. It contains the following information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Certification label for incomplete vehicles
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.
2009 Econoline(eco)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
311
ProCarManuals.com

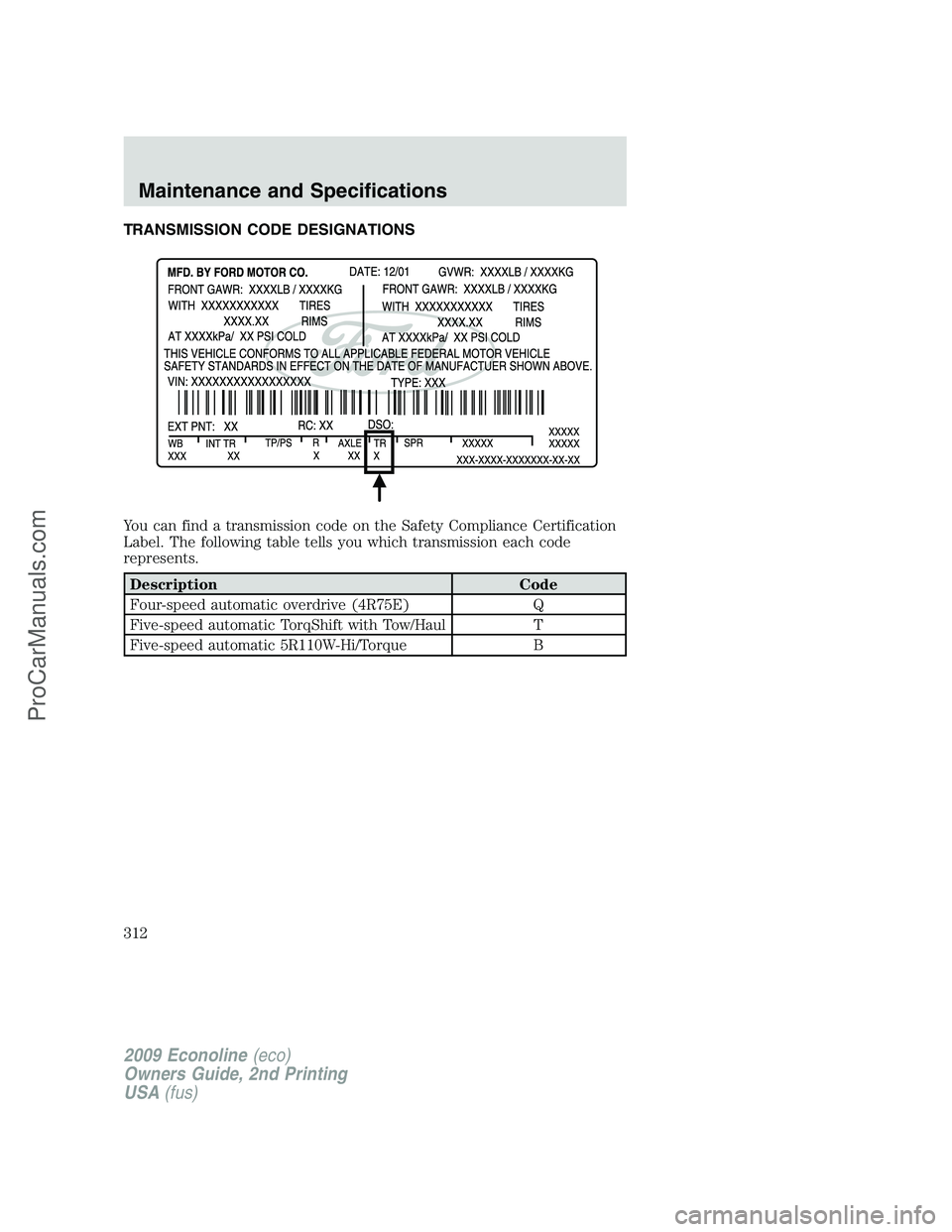

TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on the Safety Compliance Certification
Label. The following table tells you which transmission each code
represents.
Description Code
Four-speed automatic overdrive (4R75E) Q
Five-speed automatic TorqShift with Tow/Haul T
Five-speed automatic 5R110W-Hi/Torque B
2009 Econoline(eco)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
312
