2009 FIAT PUNTO EVO change wheel

“FOLLOW ME HOME” DEVICE
This will light up the space in front of the vehicle for
a certain period of time.
Activation
With the key turned to STOP or removed, pull the left-
hand stalk towards the steering wheel within 2 minutes
from when the engine is turned off.
Each time the stalk is moved, the lights stay on for an ex-
tra 30 seconds up to a maximum of 210 seconds; then the
lights are switched off automatically.
The warning light
3on the instrument panel will light up
and the corresponding message will appear in the display
(see “Warning lights and messages”) for as long as the func-
tion is activated. The light comes on when the stalk is first
moved and stays on until the function is automatically de-
activated. Each movement of the stalk increases only the
amount of time the lights stay on.
Deactivation
Keep the stalk pulled towards the steering wheel for more
than 2 seconds.
fig. 50F0U0043m
62
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
DIRECTION INDICATORS fig. 50
Put the stalk in the permanent position:
up (position
1): activates the right direction indicator;
down (position
2): activates the left direction indicator.
Lights
¥or Îwill blink on the instrument panel. The in-
dicators switch off automatically when the steering wheel
is straightened.
Lane change function
If you wish to signal a lane change, put the left stalk in the
temporary position for less than half a second. The direc-
tion indicator on the selected side flashes three times and
then switches off automatically.
037-081 PUNTO FL EN 3ed 9-12-2009 13:39 Pagina 62

107
❒if only one of the drive wheels skids, the system inter-
venes by automatically braking the wheel that is
skidding.
The action of the ASR system is especially useful in the fol-
lowing conditions:
❒slipping of the inner wheel when cornering due to the
effect of dynamic load changes or excessive accelera-
tion;
❒too much power transmitted to the wheels also in re-
lation to the conditions of the road surface;
❒acceleration on slippery, snowy or icy surfaces;
❒in the case of loss of grip on a wet surface (aquaplaning). Failure indications
System failure is indicated by warning light *lighting up
on the instrument panel with digital display and warning
light álighting up on the instrument panel with multi-
function display (where provided) (see section “Warn-
ing lights and messages”).
IMPORTANT The Hill Holder system is not a parking
brake; therefore, never leave the vehicle without having
engaged the handbrake, turned the engine off and select-
ed first gear.KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
For the correct operation of the ESP and
ASR systems, the tyres must be the same
make and type on all wheels, in perfect condition
and, above all, of the type, make and size recom-
mended.
WARNING
For the correct operation of the ESP and
ASR systems, the tyres must absolutely be
the same make and type on all wheels, in perfect
condition and, above all, of the type, make and
size specified.
WARNING
ASR SYSTEM (Anti-slip Regulator)
This function controls car drive and cuts in automatically
every time one or both driving wheels skid.
Depending on how skiddy the road is, two different con-
trol systems are activated:
❒if both drive wheels skid, the ASR function intervenes
by reducing the power transmitted by the engine;
082-128 PUNTO FL EN 3ed 9-12-2009 13:43 Pagina 107

112
IMPORTANT NOTES ABOUT THE TPMS
SYSTEM
The fault indications are not stored and will therefore not
be displayed after the engine has been switched off and
then on again. If the fault conditions persist, the control
unit will send the relative indications to the instrument
panel only after the vehicle has been in motion for a short
time.
WARNING Particularly strong radio frequency interference
may cause the TPMS system to function incorrectly. This
condition is indicated to the driver by a message on the dis-
play. The warning message will go off automatically as soon
as the interference stops disturbing the system.
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
The presence of TPMS does not exoner-
ate the driver from regularly checking the
pressure of the tyres and the spare wheel (see
“Wheels” in the “Maintenance and care” section).
WARNING
The TPMS is not able to warn you of sud-
den tyre pressure losses (for example when
a tyre bursts). In this case, stop the car, braking
with care and avoiding sharp steering actions.
WARNING
Replacing the normal tyres with winter
tyres and vice versa requires an inspection
of the TPMS, which should be carried out only
by a Fiat Dealership.
WARNING
The TPMS requires the use of specific
equipment. Contact a Fiat Dealership to
find out which accessories are compatible with the
system (wheels, hub caps etc.). Using other ac-
cessories may hinder the normal operation of the
system.
WARNING
Changes in outside temperature may
cause tyre pressures to vary. The TPMS
system may temporarily indicate insufficient pres-
sure. In this case, check the tyre pressures with the
tyres cold and, if necessary, pump them up.
WARNING
082-128 PUNTO FL EN 3ed 9-12-2009 13:43 Pagina 112

114
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
In order to use the system properly, refer to the following table when you have to change wheels/tyres:
Operation Sensor Failure warning Fiat Dealership
intervention
–
Replacing a wheel with the spare wheel
Replacing wheels
with snow tyres
Replacing wheels
with snow tyres
Replacing wheels with
others of a different size (*)
Switching wheels(front/rear) (**)
(*) Given as an alternative in the Owner’s Handbook and available at Lineaccessori Fiat.
(**) Not cross-swapped (tyres must stay on the same side).–
NO
NO
YES
YES
YESYES
YES
YES
NO
NO
NOContact a Fiat
Dealership
Repair the damaged
wheel
Contact a Fiat
Dealership
–
–
–
082-128 PUNTO FL EN 3ed 9-12-2009 13:43 Pagina 114

159
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
SNOW TYRES
Use snow tyres of the same size as the normal tyres pro-
vided with the car.
A Fiat Dealership will be happy to provide advice con-
cerning the most suitable type of tyre for the customer’s
requirements.
For the type, pressures and specifications of the snow tyre
to be used, follow carefully the instructions given in the
“Wheels” paragraph of the “Technical specifications” sec-
tion.
The performance of these tyres is considerably reduced
when the tread depth is less than 4 mm. If this is the case,
replace them.
Due to their specific features, the performance of snow
tyres is much lower than that of standard tyres in normal
conditions or on long motorway stretches. You should
therefore use them only in the conditions for which they
were designed.
IMPORTANT When using snow tyres with a maximum
speed index below the one that can be reached by the
car (increased by 5%), place a notice in the passenger com-
partment, plainly in view, which states the maximum speed
allowed by the snow tyres (as per EC Directive).
All four tyres should be the same (brand and profile) to
ensure greater safety when driving and braking as well as
making the car more responsive.
Remember that you should not change the rotation di-
rection of the tyres.
SNOW CHAINS
The use of snow chains should be in compliance with lo-
cal regulations. Snow chains may be fitted only to the front
wheel tyres (drive wheels). Use of Lineaccessori Fiat snow
chains is recommended. Check the tension of the chains
after the first few metres have been driven.
IMPORTANT When the snow chains are on, use the ac-
celerator with extreme care to prevent, or to limit as much
as possible, the driving wheels from skidding. This could
cause the chains to break, resulting in damage to the ve-
hicle body or mechanical components.
IMPORTANT Snow chains can only be fitted on 15”
tyres. Use compact 9-mm snow chains.
The maximum speed for snow tyres
marked “Q” is 160 km/h, while it is 190
km/h for “T” tyres and 210 km/h for “H” tyres.
You should, however, always stick to the speed
limits of the highway code.
WARNING
149-160 PUNTO FL EN 3ed 9-12-2009 13:41 Pagina 159

164
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
Degraded engine oil should be replaced as
soon as possible after the warning light
comes on, and never more than 500 km after it
first comes on.
Failure to change the oil within the first 1000 km
may result in severe damage to the engine and in-
validate the warranty. Remember that when the
warning light comes on, it does not mean that the
level of engine oil is low, so if the light flashes you
do not need to top up the engine oil.
WARNING
DOOR/BOOT/BONNET OPEN (red)
On certain versions, the warning light turns on
when one or more doors or the boot are not
properly closed.
A specific message is displayed on certain versions. You
will hear a warning sound if a door is open and the car is
moving.
´
DUALDRIVE ELECTRIC POWER
STEERING FAILURE (red)
(for versions/markets where provided)
This warning light comes on when the ignition key
is turned to MAR, but it should go off after a few sec-
onds.
If the warning light stays on, you will not get the benefit
from the electric power steering and the effort needed
to turn the wheel will be greatly increased, although it will
still be possible to steer the car. Contact a Fiat Dealership.
On some versions the display shows the associated mes-
sage.
g
Note that engine oil degrades faster under the following
circumstances:
– use of the vehicle mainly for city driving, requiring more
frequent regeneration of the DPF
– use of the vehicle for short drives, in which the engine
does not have time to reach its regular operating tem-
perature
– repeated interruption of the regeneration process, sig-
nalled by the DPF warning light coming on.
161-174 PUNTO FL EN 3ed 9-12-2009 13:40 Pagina 164

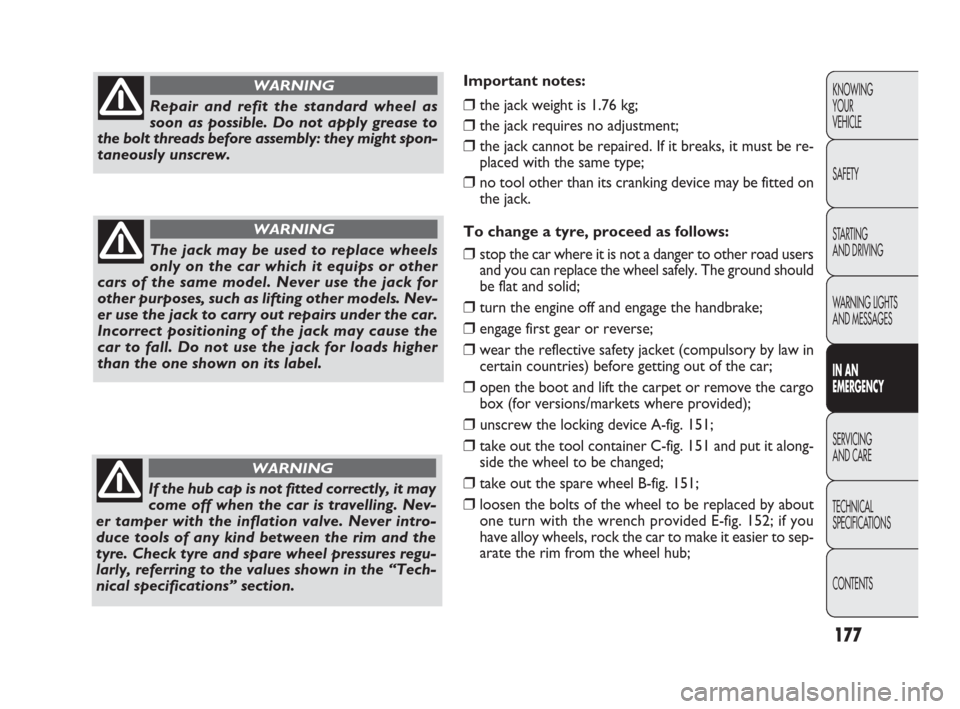

Use your hazard lights, warning triangle,
etc to show that your car is stationary.
Passengers should get out of the car, particularly
if it is heavily loaded, and wait for the wheel to be
changed away from the traffic. Apply the hand-
brake.
WARNING
The spare wheel provided is specifically for
your vehicle. Therefore, it must not be
used on different models and you should not use
spare wheels from other models on your vehicle.
The wheel bolts are specific for your vehicle: do
not use them on different models and do not use
bolts from other models on your car.
WARNING
IMPORTANT Do not directly connect the negative ter-
minals of the two batteries: sparks could ignite explosive
gas released from the battery. If the auxiliary battery is
installed on another vehicle, prevent accidental contact be-
tween metallic parts of the two vehicles.
BUMP STARTING
Never bump start the engine by pushing, towing or driving
downhill. This could cause fuel to flow into the catalytic
converter and damage it beyond repair.
IMPORTANT Remember that the brake booster and the
power steering system are not active until the engine is
started, so you will need to apply much more force to
the brake pedal or steering wheel.CHANGING A TYRE
GENERAL INSTRUCTIONS
Wheel changing and correct use of the jack and spare
wheel call for some precautions, as listed below.
176
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
175-210 PUNTO FL EN 3ed 9-12-2009 13:41 Pagina 176

Repair and refit the standard wheel as
soon as possible. Do not apply grease to
the bolt threads before assembly: they might spon-
taneously unscrew.
WARNING
The jack may be used to replace wheels
only on the car which it equips or other
cars of the same model. Never use the jack for
other purposes, such as lifting other models. Nev-
er use the jack to carry out repairs under the car.
Incorrect positioning of the jack may cause the
car to fall. Do not use the jack for loads higher
than the one shown on its label.
WARNING
If the hub cap is not fitted correctly, it may
come off when the car is travelling. Nev-
er tamper with the inflation valve. Never intro-
duce tools of any kind between the rim and the
tyre. Check tyre and spare wheel pressures regu-
larly, referring to the values shown in the “Tech-
nical specifications” section.
WARNING
Important notes:
❒the jack weight is 1.76 kg;
❒the jack requires no adjustment;
❒the jack cannot be repaired. If it breaks, it must be re-
placed with the same type;
❒no tool other than its cranking device may be fitted on
the jack.
To change a tyre, proceed as follows:
❒stop the car where it is not a danger to other road users
and you can replace the wheel safely. The ground should
be flat and solid;
❒turn the engine off and engage the handbrake;
❒engage first gear or reverse;
❒wear the reflective safety jacket (compulsory by law in
certain countries) before getting out of the car;
❒open the boot and lift the carpet or remove the cargo
box (for versions/markets where provided);
❒ unscrew the locking device A-fig. 151;
❒take out the tool container C-fig. 151 and put it along-
side the wheel to be changed;
❒take out the spare wheel B-fig. 151;
❒loosen the bolts of the wheel to be replaced by about
one turn with the wrench provided E-fig. 152; if you
have alloy wheels, rock the car to make it easier to sep-
arate the rim from the wheel hub;
177
KNOWING
YOUR
VEHICLE
SAFETY
STARTING
AND DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING
AND CARE
TECHNICAL
SPECIFICATIONS
CONTENTS
175-210 PUNTO FL EN 3ed 9-12-2009 13:41 Pagina 177
