EON FUNCTION
(Enhanced Other Network)
In some countries, there are circuits that
group multiple broadcasters that are en-
abled to transmit traffic information to-
gether. In this case, the programme of the
station that is being listened to will be tem-
porarily interrupted to:
❒receive traffic information (only with
the TA function on);
❒listen to regional transmissions each
time they are transmitted by one of the
broadcasters in the same circuit. EMERGENCY ALARM
RECEPTION
The radio can receive emergency alerts in
RDS mode in exceptional circumstances
where dangerous situations are threat-
ened (earthquakes, floods, etc.) if these are
being transmitted by the broadcaster
tuned into.
This function is activated automatically and
cannot be turned off.
The wording “ALARM” will be shown on
the display during the transmission of an
emergency alert. The volume of the ra-
dio will change during this announcement
in the same way as during a traffic news.STEREOPHONIC
BROADCASTERS
If the incoming signal is weak, the repro-
duction is automatically switched from
Stereo to Mono.
603_97_418 Radio PANDA MY09 EN 9-10-2009 14:26 Pagina 24

25
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE
INTRODUCTION
This chapter describes the variants re-
garding the operation of the CD player: as
far as the operation of the radio is con-
cerned, refer to the description in the
“Functions and Adjustments” chapter.CD PLAYER SELECTION
To activate the CD player built into the
equipment, proceed as follows:
❒load a CD with the equipment switched
on: the first track will start to play;
or
❒if a CD has already been loaded, turn
on the car radio and then press briefly
the button CD to select the “CD” func-
tion mode: the last track listened to will
start to play.
It is advisable to use original CDs to en-
sure optimal playing. If CD-R/RWs are
used, we recommend using good quality
media that are burned at the slowest
speed possible.CD LOADING/EJECTION
To load the CD, insert it gently into the
slot to activate the motorised loading sys-
tem, which will position it correctly.
The CD can be loaded with radio off and
the ignition key turned to MAR: in this case
the radio will remain off. When the radio
is turned on, the last source listened to be-
fore being switched off, will be activated.
When a CD is inserted the display will
show the symbol “CD-IN” and the word-
ing “CD Reading”. They will remain dis-
played for the whole time required for the
radio to read the CD. When this time has
elapsed the radio will automatically start
playing the first track.
C C
D D
P P
L L
A A
Y Y
E E
R R
603_97_418 Radio PANDA MY09 EN 9-10-2009 14:26 Pagina 25

26
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE
Press the button ˚, with the radio turned
on, to activate the motorised CD ejection
system. After ejection, the last audio
source listened to before playing the CD
will be heard.
If the CD is not removed from the radio,
it will automatically be reloaded about 20
seconds later and the Tuner mode will be
tuned into (Radio).
The CD cannot be ejected if the radio
is off.
If the ejected CD is loaded without hav-
ing removed it completely from the slot,
the radio will not switch to the CD source.Possible error messages
If the CD loaded cannot be read (e.g. a CD
ROM has been inserted or the CD is in-
serted the wrong way round or there is
reading error) the display will show the
wording “CD Disc error”.
The CD will then be ejected and the au-
dio source activated before the CD mode
selection will be heard.
With outside audio source on (“TA”,
“ALARM” and “Phone”) the CD which
cannot be read will not be ejected until
these functions are over. At the end, with
the CD mode activated, the display will
show the wording “CD Disc error” for a
few seconds and then the CD will be
ejected.DISPLAY INFORMATION
When the CD player is operating, on the
display will appear the information with
the following meaning:
❒“CD Track 5”: indicates the CD track
number;
❒“03:42”: indicates the time elapsed since
the start of the track (if the relevant
Menu function is activated).
603_97_418 Radio PANDA MY09 EN 9-10-2009 14:26 Pagina 26

27
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE
TRACK SELECTION
(forward/backward)
Briefly press the button ÷to play the
previous CD track and the button ˜to
play the next track. The tracks are se-
lected cyclically: the first track is selected
after the last track and vice versa.
If the track has been played for more than
3 seconds, pressing the button ˜the
track starts again from the beginning. In
this case, if you want to play the previous
track, press the button twice consecu-
tively.TRACK FAST
FORWARD/REWIND
Keep the button ˜pressed down to
fast forward the selected track and keep
the button ¯pressed down to fast
rewind the track. The fast forward/rewind
will stop once the button is released.PAUSE FUNCTION
To pause the CD player, press the button
MUTE. The wording “CD Pause” will be
shown on the display.
To resume listening to the track, press the
button MUTE again.
If another audio source is selected, the
pause function is deactivated.
603_97_418 Radio PANDA MY09 EN 9-10-2009 14:26 Pagina 27

28
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYERQUICK
GUIDE
INTRODUCTION
This chapter describes the variants re-
garding the operation of the CD/MP3 play-
er: as far as the operation of the radio is
concerned, refer to the description in the
chapters “4” and “6”.
NOTE MPEG LAYER-3 audio decoding
technology licensed from Fraunhofer IIS
and Thomson multimedia.MP3 MODE
In addition to playing regular audio CDs,
the radio is also enabled to play CD-
ROMs on which audio files have been
recorded in an MP3 format. The radio will
work according to the modes described
in chapter “5” when an ordinary audio CD
is loaded.
To guarantee optimal reproduction it is
advisable to use good quality CDs burned
at the lowest possible speed.
The files on an MP3 CD are structured in
folders that create lists of all the folders
containing MP3 tracks (folders or sub-
folders are all on the same level); the fold-
ers that do not contain MP3 tracks cannot
be selected.The specifications and operating conditions
for playing MP3 files are the following:
❒the CD-ROMs used should be burned
in accordance with ISO standard 9660;
❒the music files should have extension
“.mp3”: files with a different extension
will not be reproduced;
❒The sampling frequencies that can be
reproduced are: 44.1 kHz, stereo (from
96 to 320 kbit/s) - 22.05 kHz, mono or
stereo (from 32 to 80 kbit/s);
❒tracks with a variable bit-rate can be re-
produced.
IMPORTANT The track names must not
include the following characters: spaces,
‘ (apostrophes), ( and ) (open and close
brackets). During the burning of a MP3
CD, make sure that the names of the files
do not contain these characters; if not, the
radio will not be able to play the tracks in-
volved.
C C
D D
/ /
M M
P P
3 3
P P
L L
A A
Y Y
E E
R R
603_97_418 Radio PANDA MY09 EN 9-10-2009 14:26 Pagina 28

29
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER QUICK
GUIDE
SELECTING MP3 SESSIONS
WITH HYBRID DISCS
If a hybrid disc is inserted (Mixed Mode,
Enhanced, CD-Extra) also containing MP3
files, the radio automatically starts play-
ing the audio session. It is possible to move
to the MP3 session whilst playing by keep-
ing the button CD pressed for more than
2 seconds.
IMPORTANT When the function is acti-
vated the radio may take a few seconds to
start playing. Whilst checking the disc the
display will show “CD READING”. If no
MP3 files are detected, the radio will re-
sume playing the audio session from the
point where it was interrupted.
DISPLAY INFORMATION
Id3-tag information display
In addition to the information relating to
the time elapsed, folder name and file
name, the radio is also capable of display-
ing ID3_TAG information relating to Ti-
tle track, Artist and Author.The name of the MP3 folder shown on the
display will correspond to the name used
to store the folder on the CD, followed
by an asterisk.
Example of a complete MP3 folder name:
BEST OF *.
When one of the ID3-TAG pieces of in-
formation is chosen to be displayed (Title,
Artist, Album) and this information has
not been recorded for the track played,
the information will be replaced by that
relating to the name of the file.
SELECTION OF
NEXT/PREVIOUS FOLDER
Press the button ▲to select a next fold-
er or the button ▼to select the previ-
ous folder. The display will show the num-
ber and the name of the folder (e.g. “DIR
2 XXXXXX”).
XXXXXX: name of the folder (the display
will only show the first 8 characters).
The folders are selected cyclically: the first
folder is selected after the last folder and
vice versa. If no other folder/track is selected in the
next 2 seconds, the first track on the new
folder will be played.
If the last track in the folder at that mo-
ment selected is played, the next folder
will be played.
STRUCTURE OF THE FOLDERS
The radio with MP3 player:
❒recognises only the folders that effec-
tively contain MP3 format files;
❒if the MP3 files on a CD-ROM are
structured in “sub-folders”, their struc-
ture is compressed to a single level
structure, where the “sub-folders” are
taken to the level of the main folders.
603_97_418 Radio PANDA MY09 EN 9-10-2009 14:26 Pagina 29

30
INTRODUCTION
FUNCTIONS
AND
ADJUSTMENTS
RADIO
CD PLAYER
CD MP3
PLAYER
CD CHANGER
(CDC) PLAYER
QUICK
GUIDE

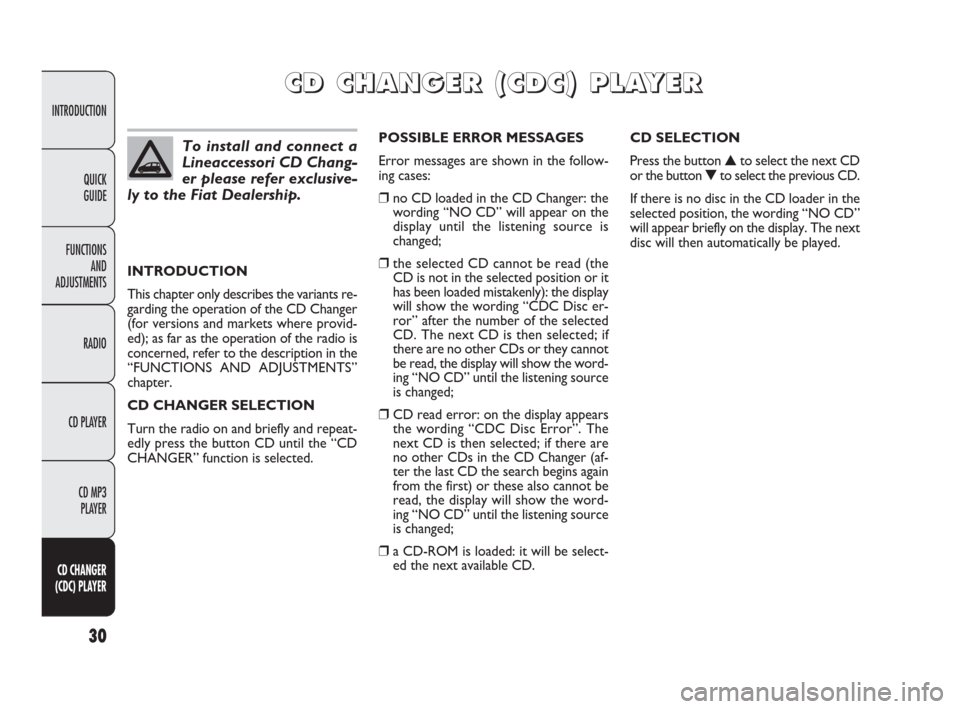

INTRODUCTION
This chapter only describes the variants re-
garding the operation of the CD Changer
(for versions and markets where provid-
ed); as far as the operation of the radio is
concerned, refer to the description in the
“FUNCTIONS AND ADJUSTMENTS”
chapter.
CD CHANGER SELECTION
Turn the radio on and briefly and repeat-
edly press the button CD until the “CD
CHANGER” function is selected.CD SELECTION
Press the button ▲to select the next CD
or the button ▼to select the previous CD.
If there is no disc in the CD loader in the
selected position, the wording “NO CD”
will appear briefly on the display. The next
disc will then automatically be played. POSSIBLE ERROR MESSAGES
Error messages are shown in the follow-
ing cases:
❒no CD loaded in the CD Changer: the
wording “NO CD” will appear on the
display until the listening source is
changed;
❒the selected CD cannot be read (the
CD is not in the selected position or it
has been loaded mistakenly): the display
will show the wording “CDC Disc er-
ror” after the number of the selected
CD. The next CD is then selected; if
there are no other CDs or they cannot
be read, the display will show the word-
ing “NO CD” until the listening source
is changed;
❒CD read error: on the display appears
the wording “CDC Disc Error”. The
next CD is then selected; if there are
no other CDs in the CD Changer (af-
ter the last CD the search begins again
from the first) or these also cannot be
read, the display will show the word-
ing “NO CD” until the listening source
is changed;
❒a CD-ROM is loaded: it will be select-
ed the next available CD.
C C
D D
C C
H H
A A
N N
G G
E E
R R
( (
C C
D D
C C
) )
P P
L L
A A
Y Y
E E
R R
To install and connect a
Lineaccessori CD Chang-
er please refer exclusive-
ly to the Fiat Dealership.
603_97_418 Radio PANDA MY09 EN 9-10-2009 14:26 Pagina 30

GENERAL
Sound volume low
The Fader function should be adjusted to
the values “F” (front) only to prevent the
reduction in radio output power and the
cancelling of the volume if the Fader level
adjustment is R+9.
Source cannot be selected.
Nothing has been loaded. Load the CD or
the MP3 CD to listened to.CD PLAYER
The CD does not play
The CD is dirty. Clean the CD.
The CD is scratched. Try using another CD.
The CD cannot be loaded
A CD is already loaded. Press the button
˚and remove the CD.MP3 FILE READING
Skips tracks whilst playing mp3 files
The CD is scratched or dirty. Clean the
CD, referring to what is described in the
paragraph “CD” in the chapter “PRESEN-
TATION”.
The duration of the mp3 tracks
is not correctly displayed
In some cases (due to the recording
mode) the duration of the MP3 tracks can
be displayed incorrectly.
T T
R R
O O
U U
B B
L L
E E
S S
H H
O O
O O
T T
I I
N N
G G
603_97_418 Radio PANDA MY09 EN 9-10-2009 14:26 Pagina 31
