2009 FIAT PANDA Diagram

114
KNOW YOUR
VEHICLE
SAFETYCORRECT USE
OF THE CARWARNING LIGHTS
AND MESSAGESI
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
F0Z0060m
fig. 117
USING THE MANUAL GEARBOXTo engage the gears, press the clutch pedal fully and shift
the gearshifting lever into one of the required positions
(the diagram for gear engagement is shown on the knob,
fig. 117).
IMPORTANT The car can only be put into reverse gear
when it has stopped moving completely. With the engine
running, wait for at least 2 seconds with the clutch pedal
fully pressed before engaging reverse to prevent damage
to the gears and grating.
To engage reverse R from neutral, lift the sliding ring A un-
der the knob and shift the lever to the right and back. Four or five clicks are generally enough when the car is on
level ground while nine or ten may be required if the car
is on a steep slope or laden.
IMPORTANT If this is not the case, contact a Fiat
Dealership to have the handbrake adjusted.
When the handbrake lever is pulled up and the ignition key
is at MAR, the instrument panel warning light
x
will
turn on.
Proceed as follows to release the handbrake:
❒
slightly lift the handbrake and press the release button
A;
❒
keep button A pressed and lower the lever. The warn-
ing light
x
on the instrument panel will turn off.
Press the brake pedal when carrying out this operation
to prevent the car from moving accidentally.
111-122 PANDA EN 7-10-2009 15:01 Pagina 114

119KNOW
YOUR VEHICLE
SAFETYCORRECT USE
OF THE CARWARNING LIGHTS
AND MESSAGES
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

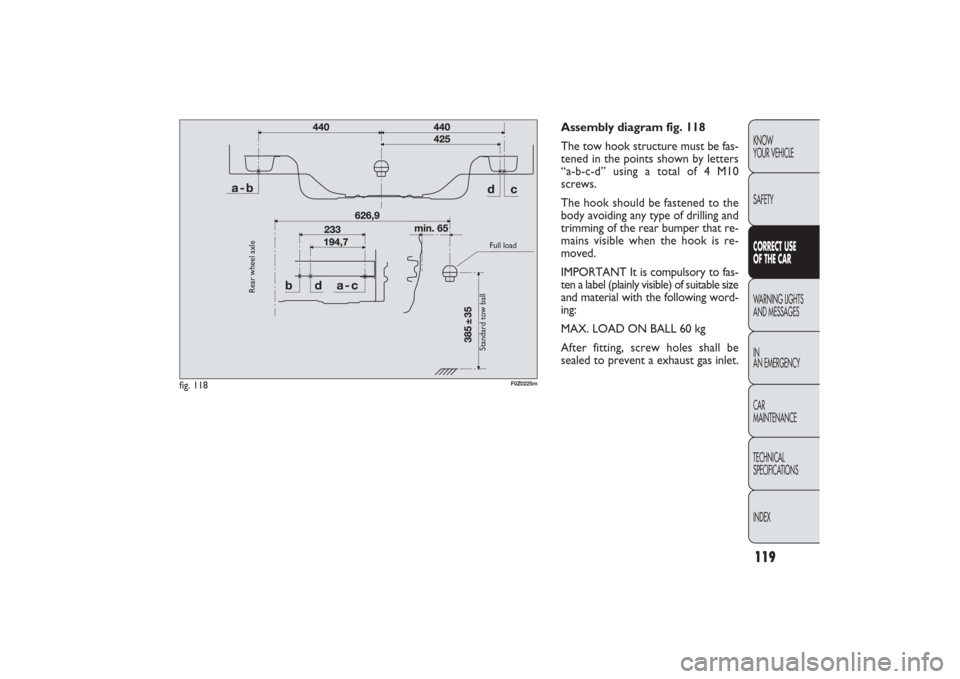

Assembly diagram fig. 118
The tow hook structure must be fas-
tened in the points shown by letters
“a-b-c-d” using a total of 4 M10
screws.
The hook should be fastened to the
body avoiding any type of drilling and
trimming of the rear bumper that re-
mains visible when the hook is re-
moved.
IMPORTANT It is compulsory to fas-
ten a label (plainly visible) of suitable size
and material with the following word-
ing:
MAX. LOAD ON BALL 60 kg
After fitting, screw holes shall be
sealed to prevent a exhaust gas inlet.
fig. 118
F0Z0225m
Rear wheel axle
Standard tow ball
Full load
111-122 PANDA EN 7-10-2009 15:01 Pagina 119

120
KNOW YOUR
VEHICLE
SAFETYCORRECT USE
OF THE CARWARNING LIGHTS
AND MESSAGESI
IN
AN EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Assembly diagram fig. 119
The tow hook structure must be fas-
tened in the points shown by the sym-
bol
Ø
using a total of 4 M8 screws and
2 M12 screws.
The internal counterplates 1 are to be
at least 6-mm thick. The hook should
be fastened to the body avoiding any
type of drilling and trimming of the
rear bumper that remains visible when
the hook is removed.
IMPORTANT It is compulsory to fas-
ten a label (plainly visible) of suitable size
and material with the following word-
ing:
MAX. LOAD ON BALL 60 kg
After fitting, screw holes shall be
sealed to prevent a exhaust gas inlet.
fig. 119
F0Z0226m
Existing hole
Existing hole
Existing hole Existing hole
Standard ballExisting screw
Existing screw
111-122 PANDA EN 7-10-2009 15:01 Pagina 120
