2009 FIAT GRANDE PUNTO Radio CD MP3 Manual

QUICK
GUIDE
24
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
CD
CHANGER
INTRODUCTION
MP3 CD
PLAYER

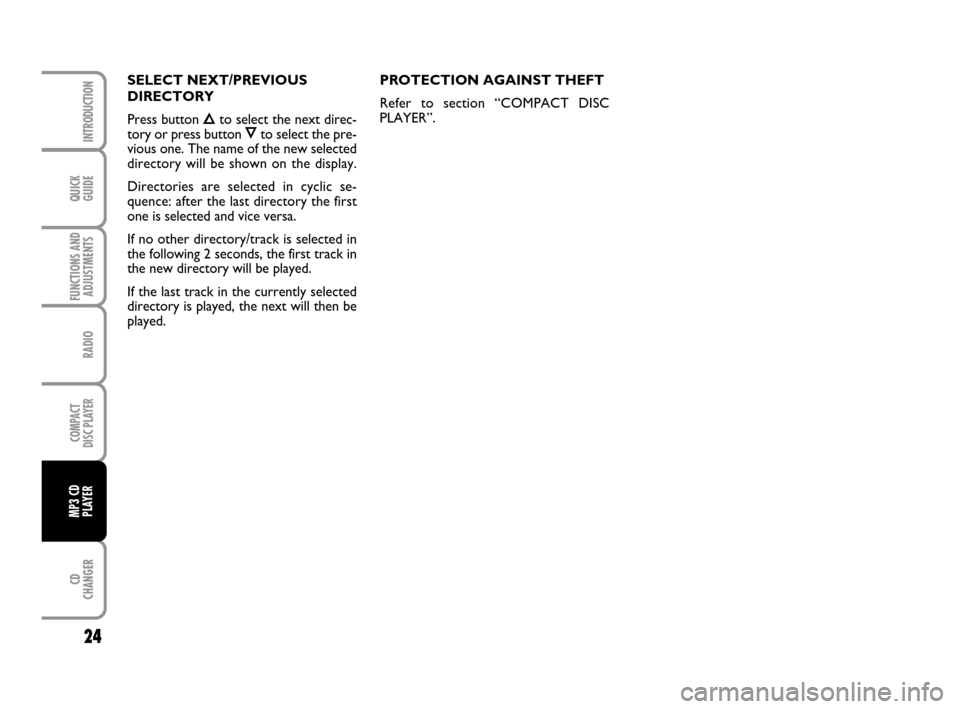

PROTECTION AGAINST THEFT
Refer to section “COMPACT DISC
PLAYER”. SELECT NEXT/PREVIOUS
DIRECTORY
Press button
Õto select the next direc-
tory or press button Ôto select the pre-
vious one. The name of the new selected
directory will be shown on the display.
Directories are selected in cyclic se-
quence: after the last directory the first
one is selected and vice versa.
If no other directory/track is selected in
the following 2 seconds, the first track in
the new directory will be played.
If the last track in the currently selected
directory is played, the next will then be
played.
603_97_273 Radio Punto Actual GB 13-11-2009 8:54 Pagina 24

25
QUICK
GUIDE
FUNCTIONS AND
ADJUSTMENTS
RADIO
COMPACT
DISC PLAYER
MP3 CD
PLAYER
CD
CHANGER
INTRODUCTION
INTRODUCTION
This section only describes CD Changer
(for versions/markets, where provided)
operation variants: as concerns sound sys-
tem operation, refer to section “FUNC-
TIONS AND ADJUSTMENTS”.
SELECTING THE CD CHANGER
Turn on the set, then press briefly and re-
peatedly button CD until selecting
“CHANGER”.POSSIBLE ERROR MESSAGES
Error messages will be displayed in the fol-
lowing cases:
❒no CD in the CD Changer: the display
will show “NO CD” until changing the
sound source;
❒selected CD is illegible (CD not in the
selected position or CD not inserted
properly): the display shows “CD ER-
ROR” after the number of the selected
CD. The next CD will be selected; if
there are no other CDs or if they are
also illegible the display will show the
wording “NO CD” until the sound
source is changed;
❒error in CD reading: the display shows
“CD ERROR”. The next CD will be se-
lected; if there are no other CDs in the
CD Changer (after the last CD search
will restart from the first one) or if they
are also illegible the display will show
the wording “NO CD” until the sound
source is changed;
❒a CD-ROM is inserted: next CD will be
selected.
C C
D D

C C
H H
A A
N N
G G
E E
R R

( (
C C
D D
C C
) )
Installation and connection of
a Lineaccessori CD Changer
shall only be performed by Fi-
at Dealership.SELECTING THE CD
Press button
Õto select the next CD and
button Ôto select the previous CD.
If the loader does not contain a disc in the
position selected, the display briefly shows
the wording “NO CD”, and the next CD
is played automatically.
603_97_273 Radio Punto Actual GB 13-11-2009 8:54 Pagina 25

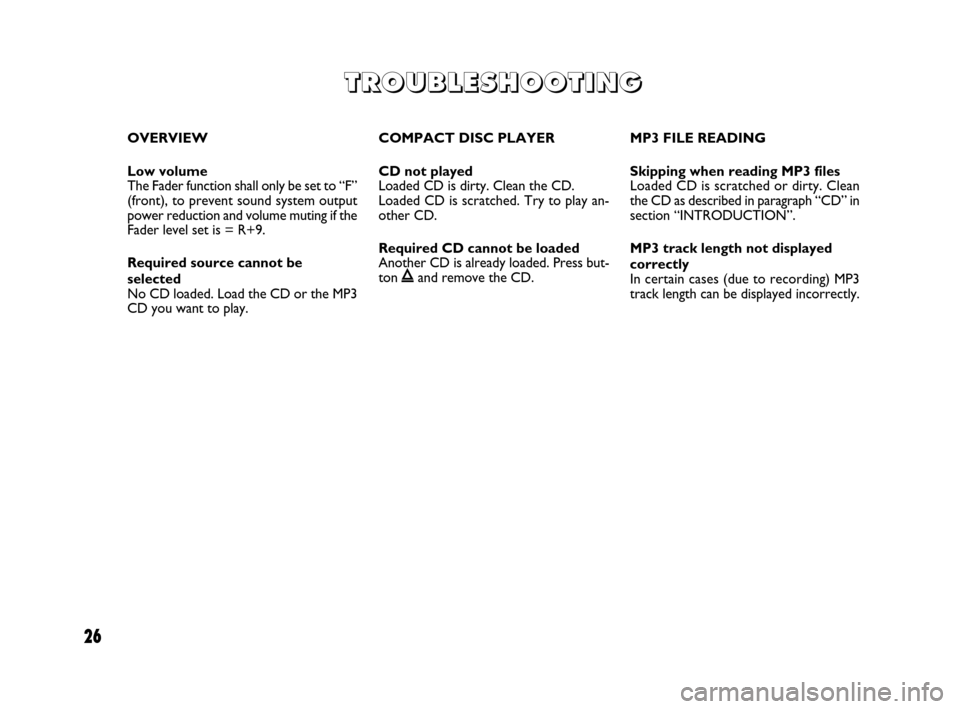

26
OVERVIEW
Low volume
The Fader function shall only be set to “F”
(front), to prevent sound system output
power reduction and volume muting if the
Fader level set is = R+9.
Required source cannot be
selected
No CD loaded. Load the CD or the MP3
CD you want to play.
T T
R R
O O
U U
B B
L L
E E
S S
H H
O O
O O
T T
I I
N N
G G
COMPACT DISC PLAYER
CD not played
Loaded CD is dirty. Clean the CD.
Loaded CD is scratched. Try to play an-
other CD.
Required CD cannot be loaded
Another CD is already loaded. Press but-
ton
ıand remove the CD.MP3 FILE READING
Skipping when reading MP3 files
Loaded CD is scratched or dirty. Clean
the CD as described in paragraph “CD” in
section “INTRODUCTION”.
MP3 track length not displayed
correctly
In certain cases (due to recording) MP3
track length can be displayed incorrectly.
603_97_273 Radio Punto Actual GB 13-11-2009 8:54 Pagina 26

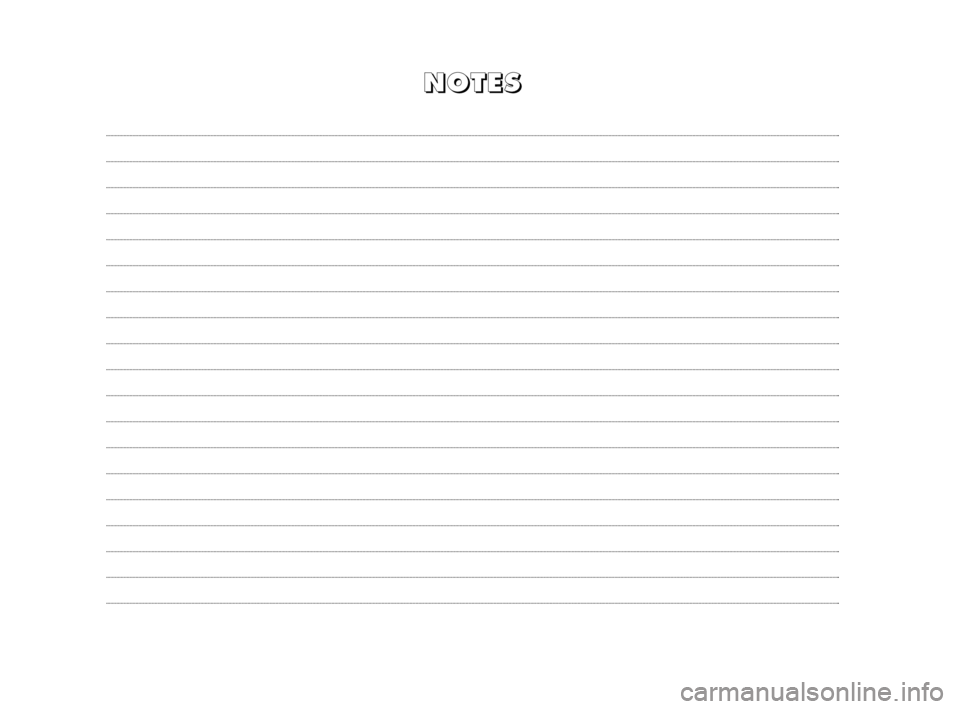

N N
O O
T T
E E
S S
