2009 FIAT GRANDE PUNTO ESP

149
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
CHANGING A FUSE
GENERAL INFORMATION
The fuse is a protective device for the
electric system: it comes into action if
there is a fault or improper action on the
system.
Check the state of the corresponding fuse
when a device does not work: the filament
A-fig. 34must be intact. If it is not, re-
place the blown fuse with a new one of the
same amperage (same colour).
B undamaged fuse fig. 34
Cfuse with damaged filament fig. 34.
fig. 34F0M0236m
Do not replace one fuse with
another of greater amper-
age; FIRE HAZARD.
WARNING
Never replace a damaged fuse
with metal wires or other
recycled material.
If a general protection fuse
(MEGA-FUSE, MIDI-FUSE,
MAXI-FUSE) is activated, contact
a Fiat Dealership.
WARNING
If the same fuse blows again,
contact a Fiat Dealership.
WARNING
Remove the key from the ig-
nition and switch off or dis-
connect all devices before replacing
a fuse.
WARNING
129-160 ACTUAL 1ed EN 28-08-2009 13:47 Pagina 149

159
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
TOWING THE CAR
The tow ring provided with the car is
housed in the tool box under the carpet
in the boot.FASTENING THE TOW RING
fig. 42-43
Proceed as follows:
❒release the cap A;
❒take the tow ring Bfrom its support;
❒screw the ring onto the rear or front
threaded pin.
The brake booster and pow-
er steering will not work
while the vehicle is being towed. You
will therefore need to apply more
force to the brake pedal and steering
wheel. Do not use bendy cables for
towing and avoid jerking. Make sure
not to damage parts in contact with
the car while towing. Respect the
rules of the highway code when tow-
ing the car, specifically in relation to
the towing device and road conduct.
WARNING
fig. 42F0M0243m
fig. 43F0M0238m
129-160 ACTUAL 1ed EN 28-08-2009 13:47 Pagina 159

160
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
IN AN
EMERGENCY
Do not start the engine while
the car is being towed.
WARNING
Clean the threaded housing
carefully before fastening
the ring. Make sure that the ring is se-
curely fastened before towing the car.
WARNING
Release the steering wheel
lock before towing (see “Ig-
nition device” in “Dashboard and
controls”). The brake booster and
power steering will not work while the
vehicle is being towed. You will there-
fore need to apply more force to the
brake pedal and steering wheel. Do
not use bendy cables for towing and
avoid jerking. Make sure not to dam-
age parts in contact with the car
while towing. Respect the rules of the
highway code when towing the car,
specifically in relation to the towing
device and road conduct.
WARNING
The front and rear tow
hooks should be used only
for emergencies on the road. You are
allowed to tow the car for short dis-
tances using an appropriate device in
accordance with the highway code
(a rigid bar), to move the vehicle on
the road in readiness for towing or
transporting via a breakdown vehicle.
Tow hooks MUST NOT be used to
tow vehicles off the road or where
there are obstacles and/or for tow-
ing operations using cables or other
non-rigid devices.
Respecting the above conditions,
towing must take place with two ve-
hicles (one towing, the other towed)
aligned as much as possible along the
same centre line.
WARNING
129-160 ACTUAL 1ed EN 28-08-2009 13:47 Pagina 160

185
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
ENGINE
INFORMATION
Type code
Cycle
Number and layout of cylinders
Piston bore and stroke mm
Total capacity cm3
Compression ratio
Max power (EEC) kW
HP
corresponding speed rpm
Max torque (EEC) Nm
kgm
corresponding speed rpm
Spark plugs
Fuel
(Õ) For versions/markets where provided
1.3 Multijet 75 HP
199A2000
199B2000 (Õ)
Diesel
4 in line
69.6 × 82
1248
17,6:1
55
75/70 (
Õ)
4000
190
19,4
1750
–
Diesel for
motor vehicles
(EN590 specifications)
1.4
350A1000
199A7000 (Õ)
Otto
4 in line
72 × 84
1368
11,1:1
57
77/75 (
Õ)
6000
115
11,7
3000
NGK
ZKR7A-10
Unleaded petrol
95 RON
(Specification EN228)
1.2
199A4000
Otto
4 in line
70.8 × 78.86
1242
11,1:1
48
65
5500
102
10,4
3000
NGK
ZKR7A-10
Unleaded petrol
95 RON
(Specification EN228)
181-197 ACTUAL 1ed EN 31-08-2009 12:02 Pagina 185

189
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
READING RIM MARKINGS fig. 4
Example: 6J × 15 ET43
6 = rim width in inches 1.
J = rim drop centre outline (side
projection where the tyre bead
rests) 2.
15 = rim nominal diameter in inches
(corresponds to diameter of the
tyre to be fitted) 3= Ø.
ET43 = wheel camber (distance between
the disc/rim support plane and
the wheel rim centre line). Load index
70= 335 kg 81= 462 kg
71= 345 kg 82= 475 kg
72= 355 kg 83= 487 kg
73= 365 kg 84= 500 kg
74= 375 kg 85= 515 kg
75= 387 kg 86= 530 kg
76= 400 kg 87= 545 kg
77= 412 kg 88= 560 kg
78= 425 kg 89= 580 kg
79= 437 kg 90= 600 kg
80= 450 kg 91= 615 kg Maximum speed index
Q= up to 160 km/h.
R= up to 170 km/h.
S= up to 180 km/h.
T= up to 190 km/h.
U= up to 200 km/h.
H= up to 210 km/h.
V= up to 240 km/h.
Maximum speed index
for snow tyres
QM + S= up to 160 km/h.
TM + S= up to 190 km/h.
HM + S= up to 210 km/h.
181-197 ACTUAL 1ed EN 31-08-2009 12:02 Pagina 189

193
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
INDEX
CONTROLS
AND DEVICES
TECHNICAL
SPECIFICATIONS
3 doors
5 seats
1015
560
850
850
1575
900
400
50
60
5 doors
4 seats
1030
480
850
850
1590
900
400
50
60
5 doors
5 seats
1030
560
850
850
1590
900
400
50
60
3 doors
4 seats
1025
480
850
850
1505
1000
400
50
60
3 doors
5 seats
1025
560
850
850
1585
1000
400
50
60
5 doors
4 seats
1040
480
850
850
1600
1000
400
50
60
5 doors
5 seats
1040
560
850
850
1600
1000
400
50
60
3 doors
4 seats
1090
480
950
850
1570
1000
400
50
60
3 doors
5 seats
1090
560
950
850
1650
1000
400
50
60
5 doors
4 seats
1105
480
950
850
1665
1000
400
50
60
5 doors
5 seats
1105
560
950
850
1665
1000
400
50
60
3 doors
4 seats
1015
480
850
850
1495
900
400
50
60
WEIGHTS
Petrol versions 1.2 1.4 1.3 Multijet
Weights (kg)
Unladen weight (with all fluids,
fuel tank filled to 90% and
without optional equipment):
Payload (*) including the driver:
Maximum permitted loads (**)
– front axle:
– rear axle:
– total:
Towable loads:
– braked trailer:
– non-braked trailer:
Maximum load on roof:
Maximum load on the
ball joint (braked trailer):
(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload with
respect to the maximum permitted load.
(**) Loads that must not be exceeded. The driver is responsible for arranging the goods in the boot and/or on the load carrying platform
within the maximum permitted loads.
181-197 ACTUAL 1ed EN 31-08-2009 12:02 Pagina 193

199
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES

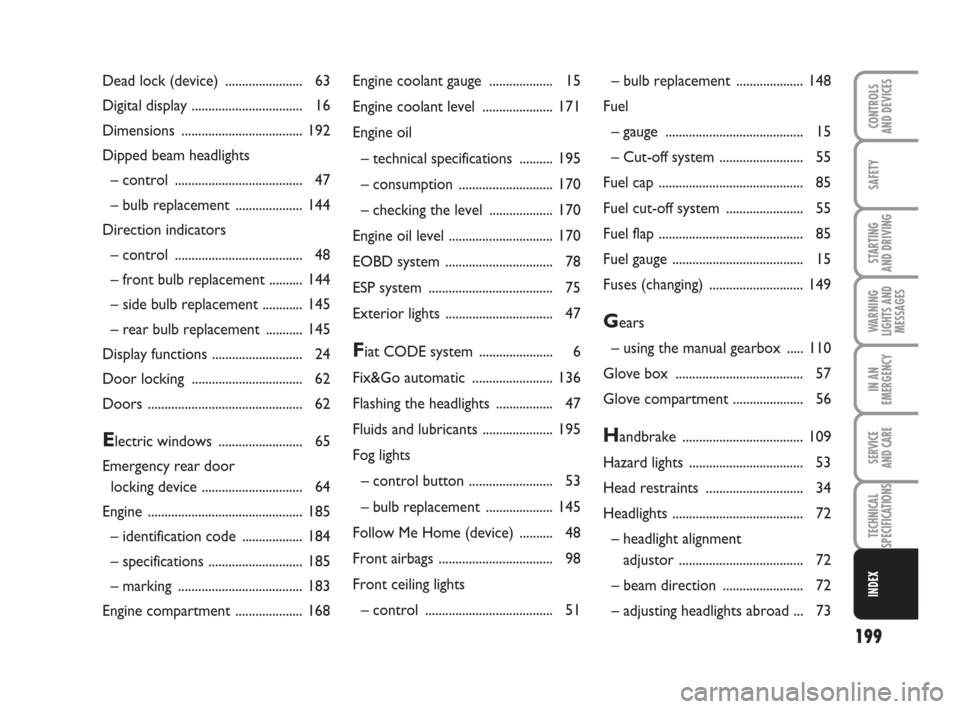

Engine coolant gauge ................... 15
Engine coolant level ..................... 171
Engine oil
– technical specifications .......... 195
– consumption ............................ 170
– checking the level ................... 170
Engine oil level ............................... 170
EOBD system ................................ 78
ESP system ..................................... 75
Exterior lights ................................ 47
Fiat CODE system ...................... 6
Fix&Go automatic ........................ 136
Flashing the headlights ................. 47
Fluids and lubricants ..................... 195
Fog lights
– control button ......................... 53
– bulb replacement .................... 145
Follow Me Home (device) .......... 48
Front airbags .................................. 98
Front ceiling lights
– control ...................................... 51– bulb replacement .................... 148
Fuel
– gauge ......................................... 15
– Cut-off system ......................... 55
Fuel cap ........................................... 85
Fuel cut-off system ....................... 55
Fuel flap ........................................... 85
Fuel gauge ....................................... 15
Fuses (changing) ............................ 149
Gears
– using the manual gearbox ..... 110
Glove box ...................................... 57
Glove compartment ..................... 56
Handbrake .................................... 109
Hazard lights .................................. 53
Head restraints ............................. 34
Headlights ....................................... 72
– headlight alignment
adjustor ..................................... 72
– beam direction ........................ 72
– adjusting headlights abroad ... 73 Dead lock (device) ....................... 63
Digital display ................................. 16
Dimensions .................................... 192
Dipped beam headlights
– control ...................................... 47
– bulb replacement .................... 144
Direction indicators
– control ...................................... 48
– front bulb replacement .......... 144
– side bulb replacement ............ 145
– rear bulb replacement ........... 145
Display functions ........................... 24
Door locking ................................. 62
Doors .............................................. 62Electric windows ......................... 65
Emergency rear door
locking device .............................. 64
Engine .............................................. 185
– identification code .................. 184
– specifications ............................ 185
– marking ..................................... 183
Engine compartment .................... 168
198-208 ACTUAL 1ed EN 31-08-2009 12:12 Pagina 199

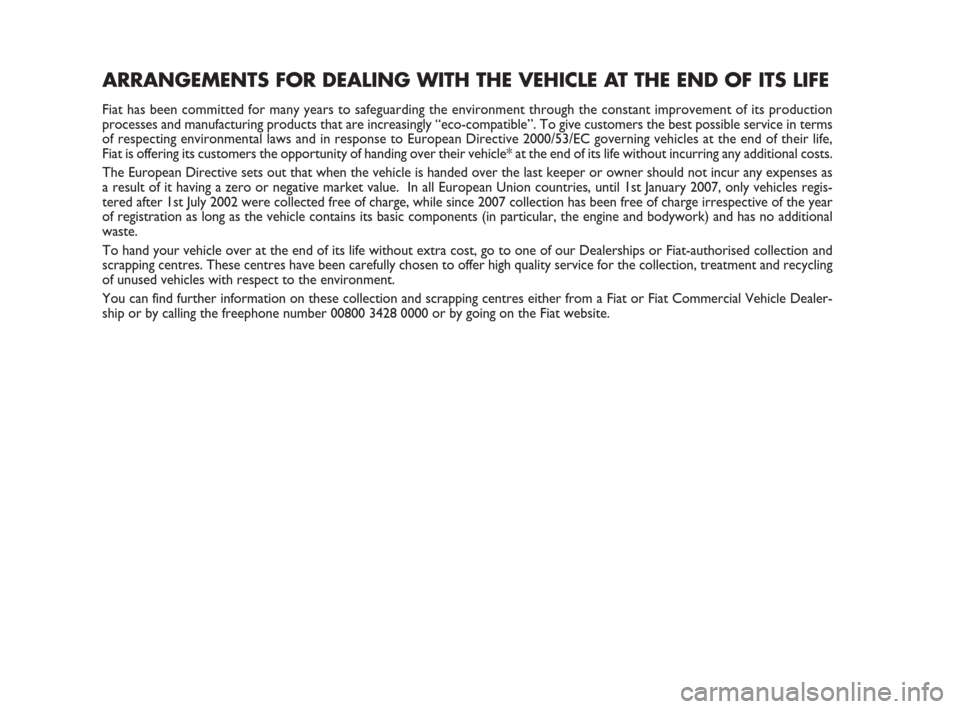

ARRANGEMENTS FOR DEALING WITH THE VEHICLE AT THE END OF ITS LIFE
Fiat has been committed for many years to safeguarding the environment through the constant improvement of its production
processes and manufacturing products that are increasingly “eco-compatible”. To give customers the best possible service in terms
of respecting environmental laws and in response to European Directive 2000/53/EC governing vehicles at the end of their life,
Fiat is offering its customers the opportunity of handing over their vehicle* at the end of its life without incurring any additional costs.
The European Directive sets out that when the vehicle is handed over the last keeper or owner should not incur any expenses as
a result of it having a zero or negative market value. In all European Union countries, until 1st January 2007, only vehicles regis-
tered after 1st July 2002 were collected free of charge, while since 2007 collection has been free of charge irrespective of the year
of registration as long as the vehicle contains its basic components (in particular, the engine and bodywork) and has no additional
waste.
To hand your vehicle over at the end of its life without extra cost, go to one of our Dealerships or Fiat-authorised collection and
scrapping centres. These centres have been carefully chosen to offer high quality service for the collection, treatment and recycling
of unused vehicles with respect to the environment.
You can find further information on these collection and scrapping centres either from a Fiat or Fiat Commercial Vehicle Dealer-
ship or by calling the freephone number 00800 3428 0000 or by going on the Fiat website.
198-208 ACTUAL 1ed EN 31-08-2009 12:12 Pagina 203
