92
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY

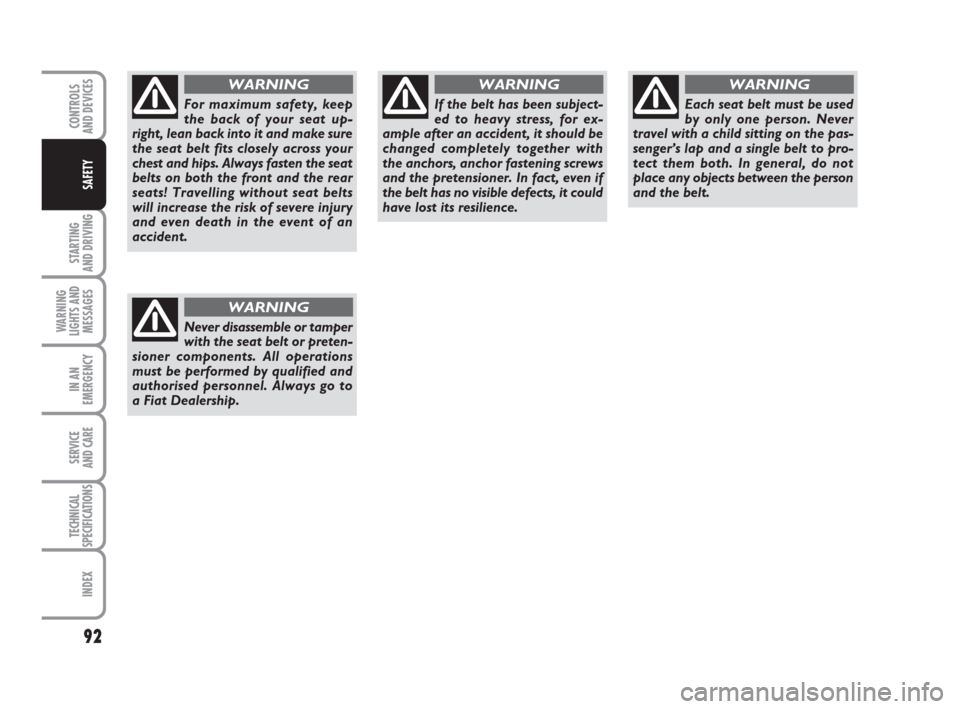

For maximum safety, keep
the back of your seat up-
right, lean back into it and make sure
the seat belt fits closely across your
chest and hips. Always fasten the seat
belts on both the front and the rear
seats! Travelling without seat belts
will increase the risk of severe injury
and even death in the event of an
accident.
WARNING
Never disassemble or tamper
with the seat belt or preten-
sioner components. All operations
must be performed by qualified and
authorised personnel. Always go to
a Fiat Dealership.
WARNING
If the belt has been subject-
ed to heavy stress, for ex-
ample after an accident, it should be
changed completely together with
the anchors, anchor fastening screws
and the pretensioner. In fact, even if
the belt has no visible defects, it could
have lost its resilience.
WARNING
Each seat belt must be used
by only one person. Never
travel with a child sitting on the pas-
senger’s lap and a single belt to pro-
tect them both. In general, do not
place any objects between the person
and the belt.
WARNING
087-104 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 92

HOW TO KEEP THE SEAT
BELTS EFFECTIVE
Observe the following precautions for
correct seat belt maintenance:
❒always use the belt with the tap well
stretched and never twisted; make sure
that it is free to run without obstruc-
tions;
❒replace the belt after a serious accident,
even if it does not appear damaged.
Always replace the seat belt if the pre-
tensioners were deployed;
❒To clean the belt, wash by hand with
water and mild soap, rinse and leave to
dry in the shade. Do not use strong de-
tergents, bleach, paints or any other
chemicals which could damage the belt
fibres;
❒prevent the reels from getting wet:
their correct operation is guaranteed
only if water does not get inside;
❒replace the seat belt when it shows
signs of significant wear or cuts.For optimum protection in the event of
a crash, all passengers must be seated and
wearing adequate restraint systems.
This is even more important for children.
This prescription is compulsory in all
EU countries pursuant to Directive
2003/20/EC.
A child’s head is larger and heavier than an
adult’s in proportion to its body, while its
muscular and bone structures are not ful-
ly developed. For this reason, they require
restraint systems which are different from
those used by adults to protect them in
the event of an accident. The research re-
sults in relation to the best protection for
children are illustrated in the European
Regulation EEC-R44, which divides the re-
straint systems into five groups in addition
to making their use compulsory:Group 0 – 0-10 kg in weight
Group 0+ – 0-13 kg
Group 1 – 9-18 kg
Group 2 – 15-25 kg
Group 3 – 22-36 kg
As you can see, the groups overlap part-
ly and, in fact, there are devices on sale
that cover more than one weight group.
All child restraint devices must bear the
certification data, together with the con-
trol brand, on a solidly fixed to the seat
label which must never be removed.
93
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
CARRYING CHILDREN SAFELY
087-104 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 93

94
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
Do not place a child seat
facing backwards on the
front seat if the passenger side airbag
is enabled. Deployment of the airbag
in an accident could cause fatal in-
juries to the baby regardless of the
severity of the collision. It is advisable
to carry children in dedicated child
seats on the rear seat, which is the
most protected position in the event
of an accident.
WARNING
WARNING Should it be ab-
solutely necessary to carry
a child on the front seat in
a backwards-facing child
seat, the passenger’s front
and side airbags chest/pelvis
protection should be deactivated
through the setup menu. Deactiva-
tion can be verified by checking the
warning light on the instrument pan-
el. Also, the passenger seat should be
as far back as possible to avoid con-
tact between the child seat and the
dashboard.
WARNINGWhen over 1.50 m in height, from the
point of view of restraint systems, children
are considered as adults and have to wear
the standard seat belts.
Lineaccessori Fiat has child seats for each
weight group. These devices are recom-
mended, having been specifically designed
for Fiat cars.
087-104 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 94

95
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
GROUPS 0 and 0+
Babies up to 13 kg must be carried facing
backwards on a cradle seat, which, sup-
porting the head, does not induce stress on
the neck in the event of sharp deceleration.
The cradle is held in place by the car seat
belts fig. 8and in turn it must restrain
the child with its own belts.
fig. 8F0M0046m
The diagrams are indicative and provided for assembly purposes only.
For assembly, refer to the instructions supplied with the child seat.
WARNING
fig. 9F0M0504mfig. 10F0M0048m
GROUP 2
Children from 15 to 25 kg may be held in
directly by the car seat belts fig. 10. The
child seat is needed only to position the
child correctly with respect to the belts so
that the diagonal section crosses the child’s
chest and never the neck, and the lower
part is snug on the hips not the abdomen. GROUP 1
From 9 kg to 18 kg of weight, children may
be carried facing forwards.
The diagram is indicative
and for assembly purposes
only. For assembly, refer to the in-
structions supplied with the child seat
by low.
WARNING
087-104 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 95

GROUP 3
For children between 22 kg and 36 kg,
there are boosters allowing the seatbelt
to fit correctly.
Fig. 11shows proper child seat posi-
tioning on the rear seat.
Children over 1.50 m in height can wear
seat belts like adults.SUITABILITY OF PASSENGER SEATS FOR CHILD SEAT USE
The car complies with the new European Directive 2000/3/EC which governs the
arrangement possibilities for child seats on the various seats of the car as shown in
the following table:
96
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
fig. 11F0M0049m
The diagram is indicative
and for assembly purposes
only. For assembly, refer to the in-
structions supplied with the child
seat.
WARNING
Group Weight Front Rear Central rearrange passenger passenger passenger
Groups 0, 0+ up to 13 kg U (▼)U *
Group 1 9-18 kg U (▼)U *
Group 2 15-25 kg U (▼)U *
Group 3 22-36 kg U (▼)U *
Key:
U = suitable for child restraint systems in the “Universal” category, according to
European Standard EEC-R44 for the specified “Groups”.
(
▼) on cars whose passenger seat is not adjustable in height, the seat back must be
perfectly upright.
* Never put any type of child seat on the central rear seat.
087-104 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 96

Below is a summary of the safety
rules to be followed
when carrying children:
1) The recommended position for in-
stalling child seats is on the rear seat, as
it is the most protected area in the event
of a crash.
2) When disengaging the passenger
airbag, always check the amber warning
light on the instrument panel is perma-
nently on to make sure that the airbag has
actually been deactivated.
3) Carefully follow the instructions that
came with the child seat, which the man-
ufacturer must supply by law. Keep the
instructions in the car along with the oth-
er documents and this handbook. Do not
use second hand child seats without
instructions.
4) Always check the seat belt is well fas-
tened by pulling on it.
5) Only one child is to be strapped into
each retaining system; never carry two
children using one child seat.
6) Always check the seat belts do not
rest on the child’s neck.
7) While travelling, do not let the child
sit incorrectly or release the belts.
8) Never carry children on your lap, even
newborns. No one, however strong, can
hold a child in the event of an accident.
9) In the event of an accident, replace the
child seat with a new one.
97
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
Do not place a child seat
facing backwards on the
front seat if the passenger side airbag
is enabled. Deployment of the airbag
in an accident could cause fatal in-
juries to the baby regardless of the
severity of the collision. It is advisable
to always carry children in a child seat
on the rear seat, which is the most
protected position in the event of
a collision.
WARNING
087-104 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 97

98
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
FRONT AIRBAGS
The car is fitted with front airbags for the
driver and the passenger, and with a knee
bag on the driver’s side (for versions/mar -
kets where provided).
The front driver/passenger airbags and the
driver’s knee bag (for versions/markets
where provided) have been designed to
protect the occupants of the front seats
in the event of head-on crashes of medi-
um/high severity, by placing the bag be-
tween the occupant and the steering
wheel or dashboard.
Non-activation in other types of crash
(side-on collisions, rear shunts, roll-overs,
etc.) is therefore not a sign of system mal-
function.In the event of an impact, someone not
wearing a seat belt will move forward and
come into contact with the bag which is
still in the opening stage. The protection
offered by the bag is reduced in such
a case.
Front airbags may not be activated in the
following situations:
❒in collisions against highly strainable ob-
jects that do not affect the front surface
of the car (e.g. bumper collision against
guard rail, piles of gravel etc.);
❒jamming of the car underneath other
vehicles or protective barriers (e.g. un-
derneath a truck or a guard rail); in this
case, the bags would offer no addition-
al protection with respect to the seat
belt and their deployment is unneces-
sary. In these cases, non-deployment of
the airbag does not necessarily indicate
a system malfunction. An electronic control unit causes the bag
to inflate in the event of a head-on crash.
The bag will inflate instantaneously, placing
itself between the front occupant’s body
and the structures which could cause in-
jury. It will deflate immediately afterwards.
The front driver/passenger airbags and the
driver’s knee bag (for versions/markets
where provided) are not a replacement
for, but rather complement the use of,
seat belts, which should always be worn,
as specified by law in Europe and most
non-European countries.
The volume of the front airbags at maxi-
mum inflation fills most of the space
between the steering wheel and the dri-
ver and between the dashboard and the
passenger.
087-104 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 98

99
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
SERVICE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
CONTROLS
AND DEVICES
SAFETY
FRONT AIRBAG ON
PASSENGER’S SIDE fig. 13
This consists of an instant-inflating bag
contained in a special compartment in the
dashboard: this bag has a larger volume
than that of the driver’s.
fig. 12F0M0360mfig. 13F0M0053m
FRONT AIRBAG ON DRIVER’S
SIDE fig. 12
This consists of an instant-inflating bag
contained in a special compartment in the
centre of the steering wheel.
Do not apply stickers or oth-
er objects on the steering
wheel, passenger side airbag cover or
upper side upholstery. Do not place
objects (e.g. mobile phones) on the
passenger side dashboard because
these could interfere with the correct
opening of the airbag and cause se-
vere injury to occupants.
WARNING
The airbags are not deployed in the event
of minor collisions (for which the with-
holding action of the seat belts is suffi-
cient). For this reason, the seat belt must
be worn at all times. In the case of side-
on collisions, the seat belts hold occupants
in the correct position and prevent them
from being thrown out of the car by a very
violent collision.
087-104 ACTUAL 1ed EN 28-08-2009 8:55 Pagina 99
