2009 FIAT BRAVO LPG Supplement Manual

17
FIAT BRAVO LPG

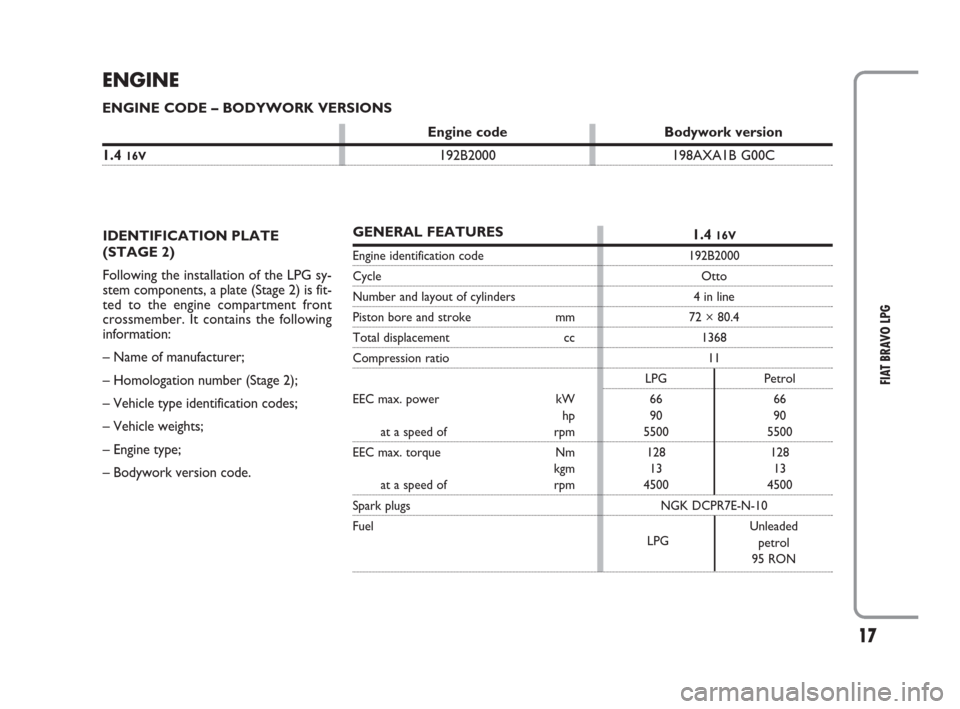

ENGINE
ENGINE CODE – BODYWORK VERSIONS
Engine code Bodywork version
1.4 16V192B2000 198AXA1B G00C
IDENTIFICATION PLATE
(STAGE 2)
Following the installation of the LPG sy-
stem components, a plate (Stage 2) is fit-
ted to the engine compartment front
crossmember. It contains the following
information:
– Name of manufacturer;
– Homologation number (Stage 2);
– Vehicle type identification codes;
– Vehicle weights;
– Engine type;
– Bodywork version code.
GENERAL FEATURES
1.4 16V
Engine identification code 192B2000
Cycle Otto
Number and layout of cylinders 4 in line
Piston bore and stroke mm 72 × 80.4
Total displacement cc 1368
Compression ratio 11
LPG Petrol
EEC max. power kW 66 66
hp 90 90
at a speed of rpm 5500 5500
EEC max. torque Nm 128 128
kgm 13 13
at a speed of rpm 4500 4500
Spark plugs NGK DCPR7E-N-10
Fuel
LPGUnleaded
petrol
95 RON
603_97_467 BRAVO GPL EN 24-11-2009 12:29 Pagina 17

18
FIAT BRAVO LPG
IGNITION
Static advance, electronic, integrated with
the injection. LPG FUEL SYSTEM
Electronic injection with special LPG
injectors.
Type: timed sequential Multipoint.
Stoichiometric metering of the air/gas
mixture.
Engine idle speed:
750 ±50 rpm
The LPG injection system is controlled by
a dedicated control unit (connected to the
petrol unit) using the sensors already on
the car.
Modifications or repairs to
the fuel feed system that are
not carried out properly or do not
take the system technical specifica-
tions into account can cause mal-
functions leading to a risk of fire.
IMPORTANT
603_97_467 BRAVO GPL EN 24-11-2009 12:29 Pagina 18

19
FIAT BRAVO LPG
WEIGHTS
(1) If special equipment is fitted (sun roof, tow hook, etc.) the unladen weight increases, thus reducing the payload in relation to
the maximum permitted loads.
(2) Loads that must not be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load carrying
platform within the maximum permitted loads.
(3) Lineaccessori Fiat range roof rack bars, maximum capacity: 50 kg.
Weights (kg)
Unladen weight (with all fluids, fuel tank
filled to 90% and without optional equipment):
Payload including the driver (1):
Maximum permitted loads (2)
– front axle:
– rear axle:
– total:
Towable loads
– braked trailer:
– unbraked trailer:
Maximum permitted load on the roof (3):
Maximum load on the ball joint
(braked trailer):1.4
16V
1205
510
1000
860
1715
1000
500
80
60
603_97_467 BRAVO GPL EN 24-11-2009 12:29 Pagina 19

20
FIAT BRAVO LPG
F0Q0003m

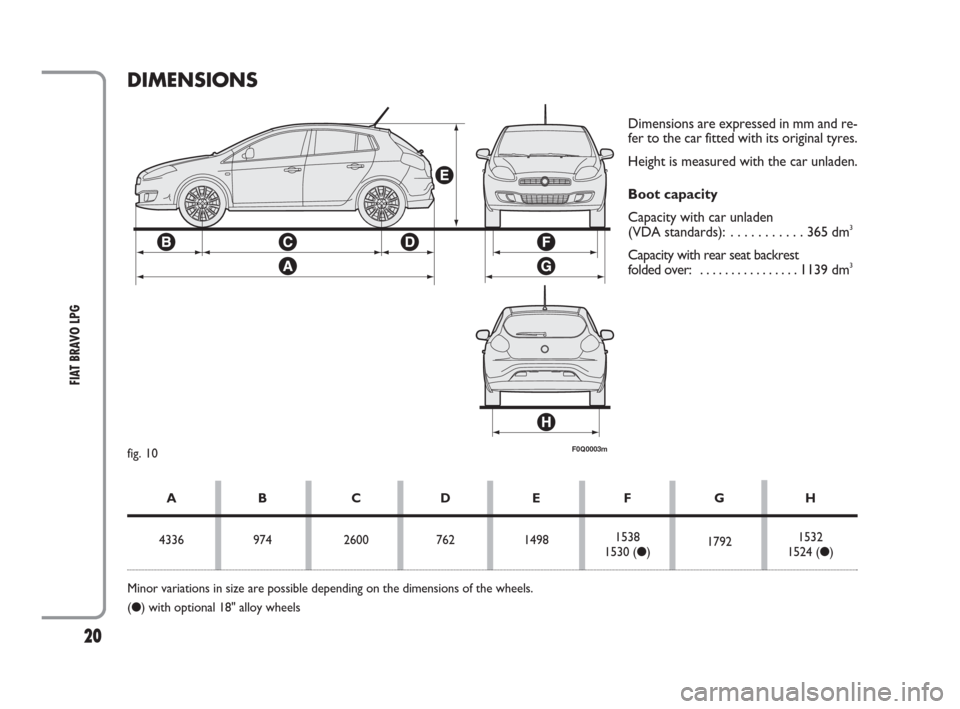

DIMENSIONS
fig. 10
AB CDE F GH
4336 974 2600 762 14981538
179215321530 (●) 1524 (●)
Minor variations in size are possible depending on the dimensions of the wheels.
(●) with optional 18" alloy wheels
Dimensions are expressed in mm and re-
fer to the car fitted with its original tyres.
Height is measured with the car unladen.
Boot capacity
Capacity with car unladen
(VDA standards): . . . . . . . . . . . 365 dm
3
Capacity with rear seat backrest
folded over: . . . . . . . . . . . . . . . . 1139 dm3
603_97_467 BRAVO GPL EN 24-11-2009 12:29 Pagina 20

21
FIAT BRAVO LPG
CAPACITIES
Petrol
Petrol . . . . . . . . . . . . . . . . . litres 57
– including a reserve of . . . litres 8÷10
LPG
– maximum refuelling
capacity (*) . . . . . . . . . . . . . litres 41
(*) The figure already takes into account
the 80% tank filling limit and the residual
fluid required for the pump and the maxi-
mum permitted capacity. In addition,
said figure may vary slightly in diffe-
rent capacities owing to: differences
between network pump supply pres-
sures, pumps with different sup-
ply/stop specifications, tank not com-
pletely in reserve conditions.It should be remembered that when using
a fuel like LPG, the range is very variable
because, in addition to the driving and
maintenance conditions of the car, it also
depends on the different composition of
the gas which may vary, not only seaso-
nally, but also from supplier to supplier.
LPG is, in effect, a composition of gas (bu-
tane and propane) mixed in a way that
may not be standardized.
The Trip Computer’s range is indicative
and refers to petrol operation only.
During LPG operation, the “Instant con-
sumption” and “Average consumption”
readings are not significant, but all other
functions remain valid.
IMPORTANT Only use LPG for mo-
tor vehicles.If, when refuelling with LPG,
the tank is filled with more
than 41litres (with a toleran-
ce of 2 litres in excess), seek as-
sistance immediately from a Fiat Dea-
lership. Periodically (at least once every
six months), it is advisable to let the
LPG in the tank run out and, at the fir-
st refuelling, check that it does not ex-
ceed the maximum capacity.
Engine cooling system
Mixture of 50% demineralised water and
50% PARAFLU
UP........................ litres 6.3
NOTE In particularly harsh climate con-
ditions, a mixture of 60% PARAFLU
UPand
40% demineralised water is recommen-
ded.
The LPG supply system is
equipped with a “consump-
tion” function linked to the
LED display of LPG level on
the switch; this function activates only
after a consistent variation in fuel level
has been detected. You are therefore
advised to fill up with fuel at the first
LPG refuelling to obtain a more preci-
se indication of the level
603_97_467 BRAVO GPL EN 24-11-2009 12:29 Pagina 21

22
FIAT BRAVO LPG
For petrol engines running on LPG, we recommend using the original product formulated specifically for this type of use.
The use of products with specifications below ACEA C3 – SAE 5W-40 could cause damage to the engine not covered by the war-
ranty.SAE 5W-40 ACEA C3 grade wholly synthetic lubricant.
FIAT 9.55535-T2certification.SELENIA
MULTIPOWER
GAS 5W-40
Contractual Technical
Reference No. F603.C07According to
annual maintenance
and inspection
schedule Lubricants
for petrol/LPG
engines

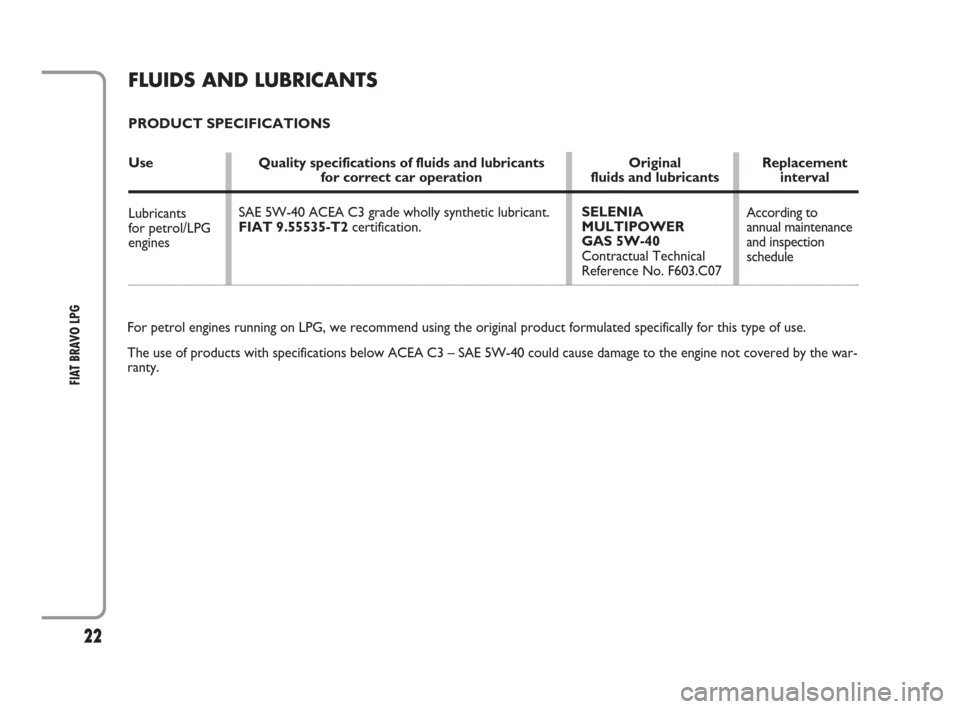

FLUIDS AND LUBRICANTS
PRODUCT SPECIFICATIONS
Use Quality specifications of fluids and lubricants Original Replacement
for correct car operation fluids and lubricants interval
603_97_467 BRAVO GPL EN 24-11-2009 12:29 Pagina 22

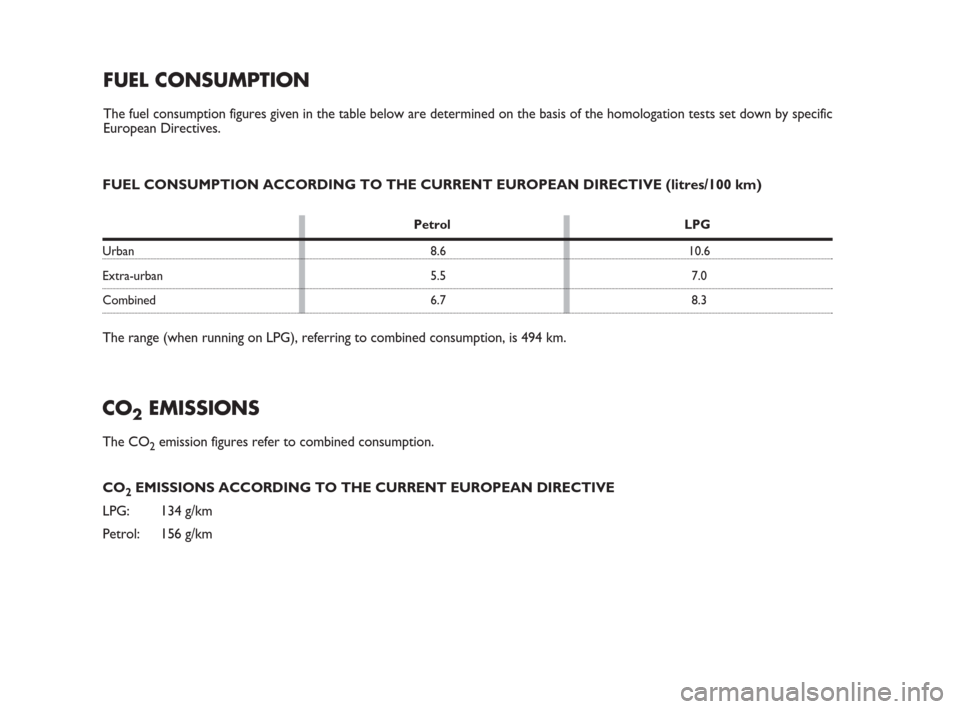

FUEL CONSUMPTION
The fuel consumption figures given in the table below are determined on the basis of the homologation tests set down by specific
European Directives.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE (litres/100 km)
CO2EMISSIONS
The CO2emission figures refer to combined consumption.
CO
2EMISSIONS ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
LPG: 134 g/km
Petrol: 156 g/km
Petrol LPG
Urban 8.6 10.6
Extra-urban 5.5 7.0
Combined 6.7 8.3
The range (when running on LPG), referring to combined consumption, is 494 km.
603_97_467 BRAVO GPL EN 24-11-2009 12:29 Pagina 23

Fiat Group Automobiles S.p.A. – Customer Services – Technical Services – Service Engineering
Largo Senatore G. Agnelli, 5 – 10040 Volvera – Torino (Italia)
Print No. 603.97.467 – 11/2009 – 1 Edition
