2009 DODGE RAM 4500 CHASSIS CAB bulb

REPLACEMENT LIGHT BULBS
LIGHT BULBS — InsideBulb No.
Overhead Console Lights ............... TS212-2
Dome Light ............................ 7679
NOTE: For lighted switches, see your authorized dealer
for replacement instructions.
All of the inside bulbs are brass or glass-wedge base.
Aluminum base bulbs are not approved.
LIGHT BULBS — Exterior Bulb No.
Backup ............................... 1156
Fog Light ........................... 9006LL
Headlight (Halogen) ...................... H13
Side Marker, Park & Turn Signal .............1157
Rear License Plate Lamp ................... 1157
Rear Cargo Light ......................... 912
Tail & Stop ............................ 1157
BULB REPLACEMENT
Headlight (Halogen)/Front Park and Turn Lights
CAUTION!
This is a halogen bulb. Avoid touching the glass with
your fingers. Reduced bulb life will result.
370 MAINTAINING YOUR VEHICLE

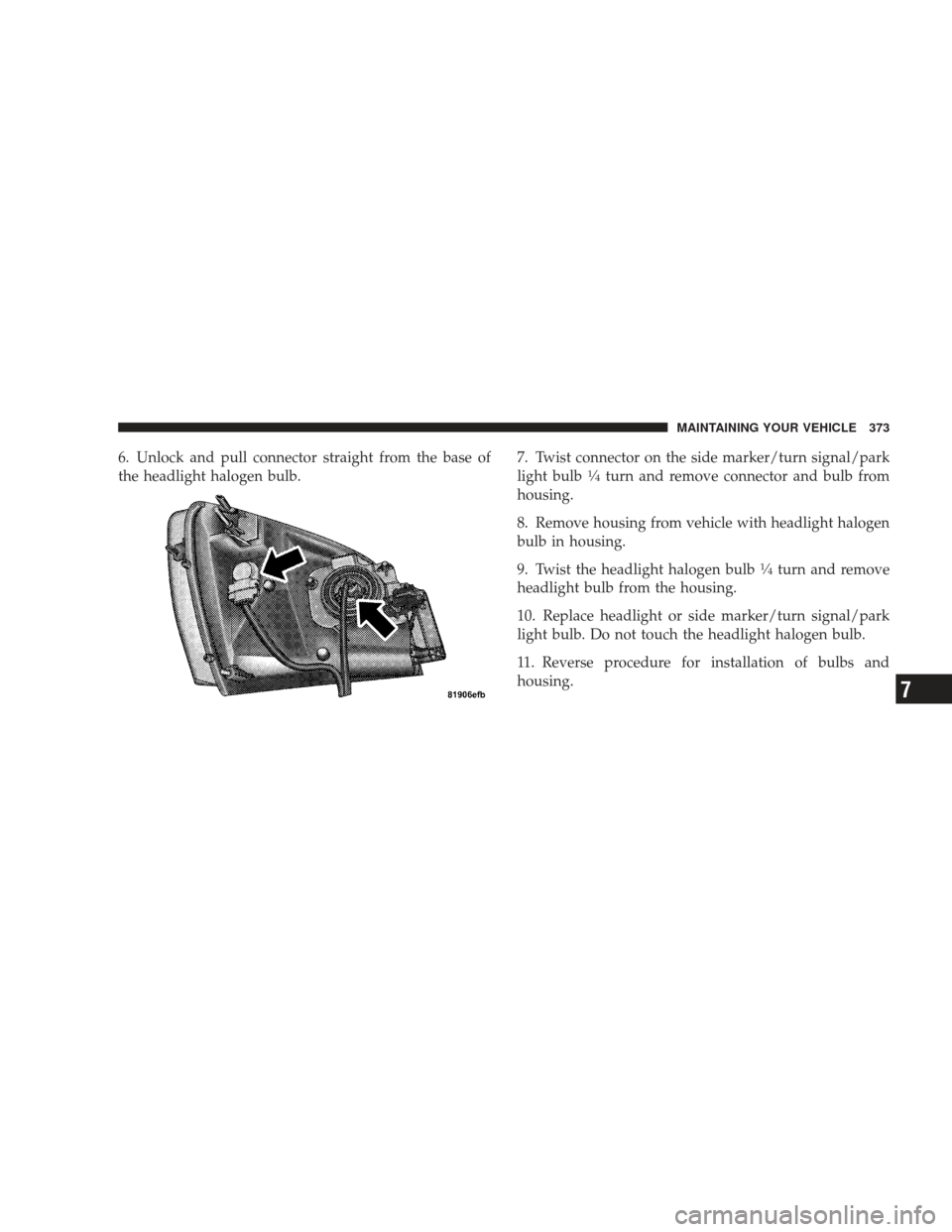

6. Unlock and pull connector straight from the base of
the headlight halogen bulb.7. Twist connector on the side marker/turn signal/park
light bulb14turn and remove connector and bulb from
housing.
8. Remove housing from vehicle with headlight halogen
bulb in housing.
9. Twist the headlight halogen bulb
14turn and remove
headlight bulb from the housing.
10. Replace headlight or side marker/turn signal/park
light bulb. Do not touch the headlight halogen bulb.
11. Reverse procedure for installation of bulbs and
housing.
MAINTAINING YOUR VEHICLE 373
7

Fog Lights
1. Reach under the vehicle, unlock and twist connector
counterclockwise14turn and remove connector and bulb
from housing.
2. Pull bulb straight from the connector. 3. Reverse procedure for installation of bulbs and
housing.
374 MAINTAINING YOUR VEHICLE

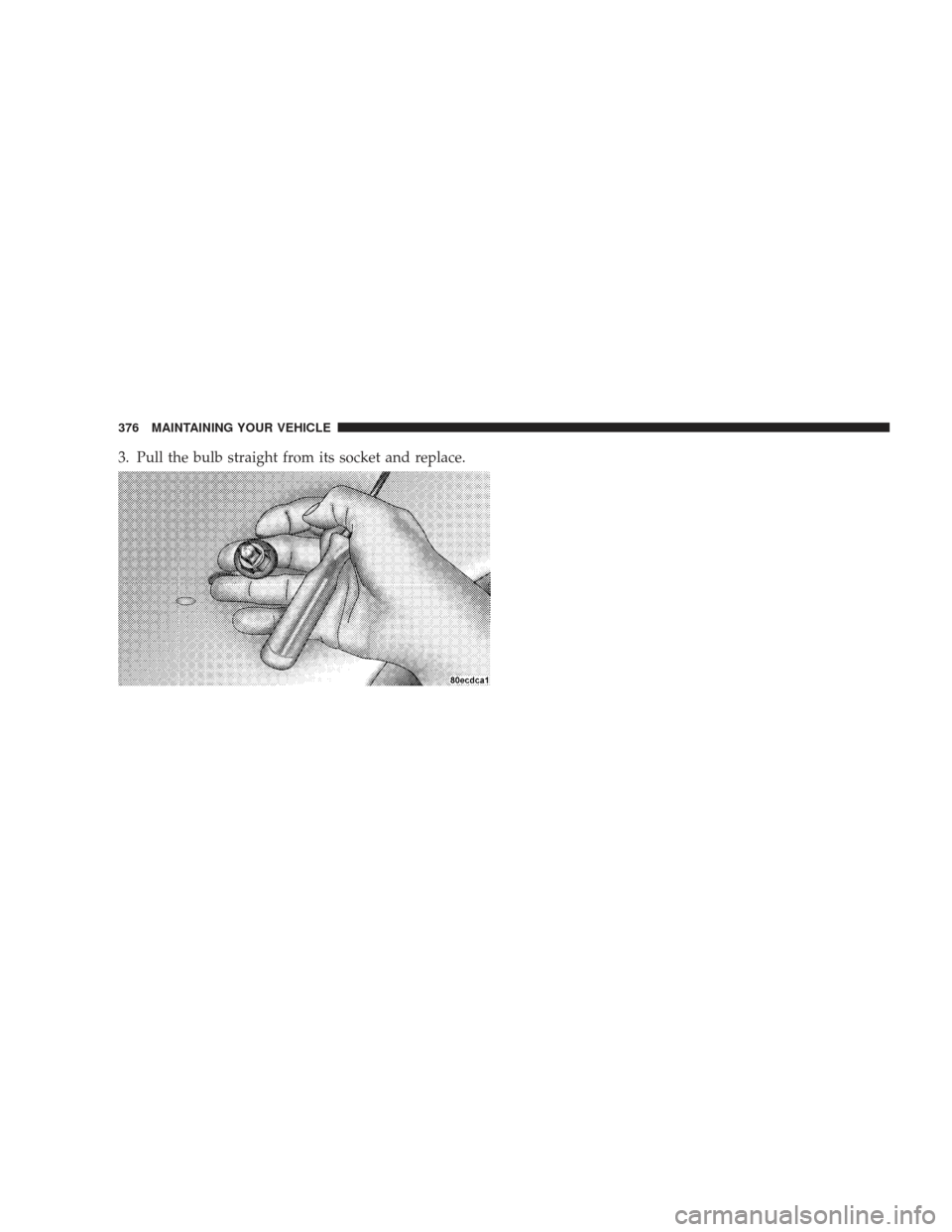

3. Pull the bulb straight from its socket and replace.
376 MAINTAINING YOUR VEHICLE
