2009 DODGE RAM 4500 CHASSIS CAB fog light bulb

▫Transfer Case — If Equipped ............ 356
▫ Automatic Transmission ............... 356
▫ Appearance Care And Protection From
Corrosion .......................... 359
 Fuses .............................. 364
▫ Integrated Power Module .............. 364
 Vehicle Storage ....................... 369
 Replacement Light Bulbs ................ 370
Bulb Replacement ..................... 370
▫ Headlight (Halogen)/Front Park And Turn
Lights ............................ 370
▫ Fog Lights ......................... 374
▫ Cab Top Clearance Lights — If Equipped . . . 375
 Fluid And Capacities ................... 377
 Fluids, Lubricants And Genuine Parts ....... 378
▫ Engine ............................ 378
▫ Chassis ........................... 379
334 MAINTAINING YOUR VEHICLE

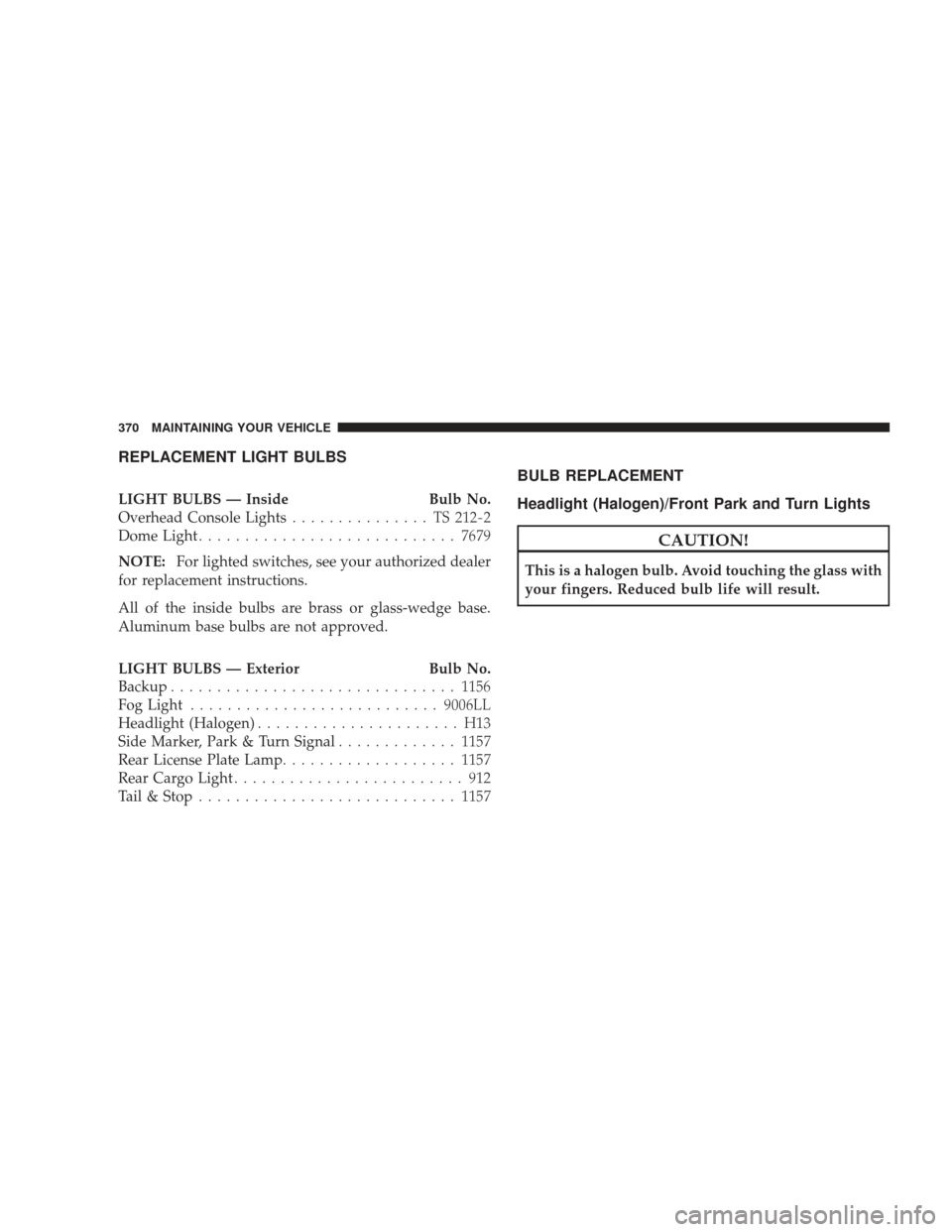

REPLACEMENT LIGHT BULBS
LIGHT BULBS — InsideBulb No.
Overhead Console Lights ............... TS212-2
Dome Light ............................ 7679
NOTE: For lighted switches, see your authorized dealer
for replacement instructions.
All of the inside bulbs are brass or glass-wedge base.
Aluminum base bulbs are not approved.
LIGHT BULBS — Exterior Bulb No.
Backup ............................... 1156
Fog Light ........................... 9006LL
Headlight (Halogen) ...................... H13
Side Marker, Park & Turn Signal .............1157
Rear License Plate Lamp ................... 1157
Rear Cargo Light ......................... 912
Tail & Stop ............................ 1157
BULB REPLACEMENT
Headlight (Halogen)/Front Park and Turn Lights
CAUTION!
This is a halogen bulb. Avoid touching the glass with
your fingers. Reduced bulb life will result.
370 MAINTAINING YOUR VEHICLE

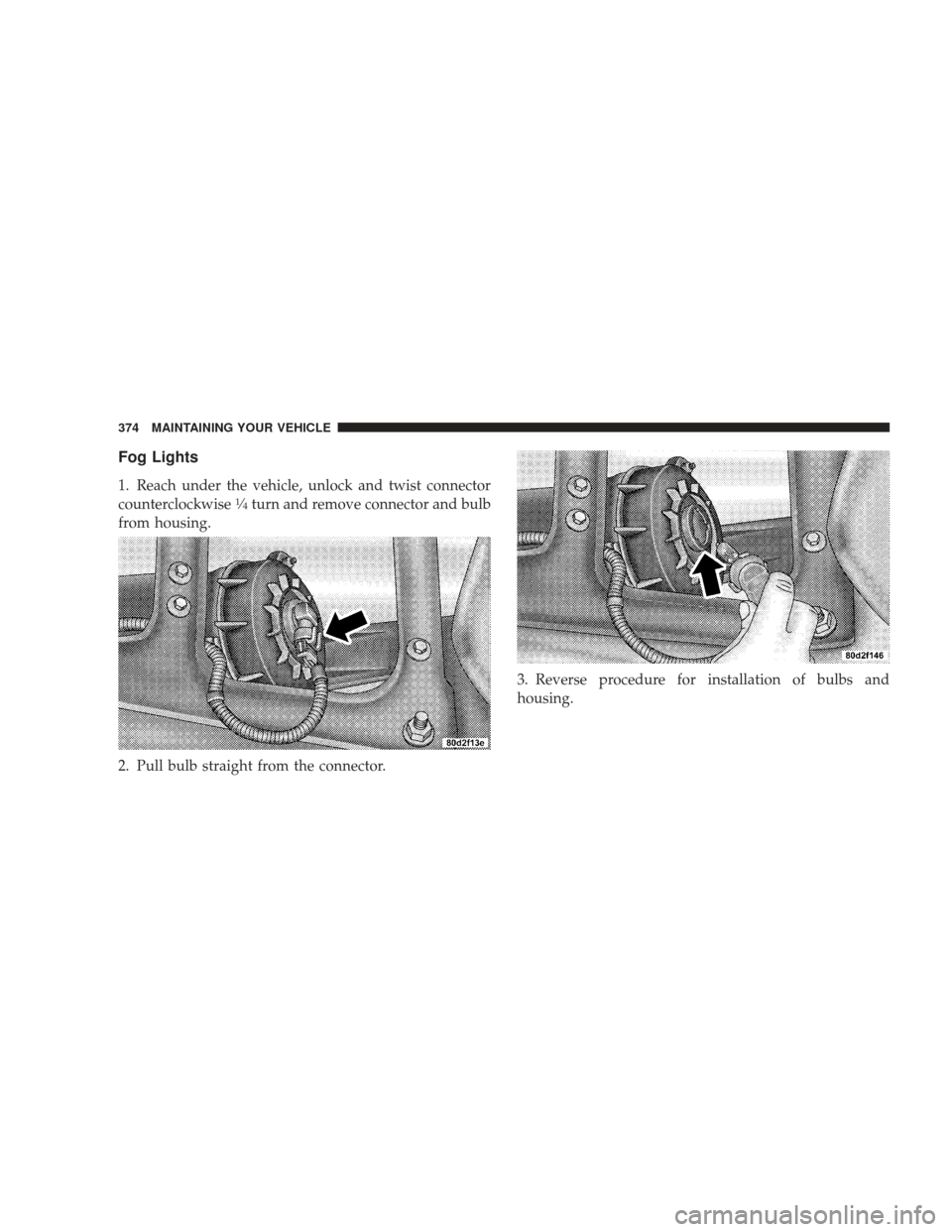

Fog Lights
1. Reach under the vehicle, unlock and twist connector
counterclockwise14turn and remove connector and bulb
from housing.
2. Pull bulb straight from the connector. 3. Reverse procedure for installation of bulbs and
housing.
374 MAINTAINING YOUR VEHICLE

Lights.............................. 75,123
Airbag ............................ 57,163
Alarm .............................. 165
Anti-Lock ........................... 170
Anti-Lock Warning ..................... 257
Brake Warning ........................ 168
Bulb Replacement ...................... 370
Cap Top Clearance ..................... 375
Check Engine (Malfunction Indicator) ........ 168
Cruise .............................. 172
Daytime Running ...................... 126
Fog .......................... 126,167,374
Four-Wheel Drive Indicator ............... 234
Hazard Warning Flasher ................. 314
Headlights ........................... 125
High Beam ........................ 128,163
High Beam Indicator .................... 163
High Beam/Low Beam Select ............. 128
Illuminated Entry ....................... 20 Instrument Cluster
..................... 162
Interior ............................. 123
Lights On Reminder .................... 126
Passing ............................. 128
Seat Belt Reminder ..................... 163
Security Alarm (Theft Alarm) .............. 165
Service ............................. 370
Theft Alarm (Security Alarm) .............. 165
Transfer Case ......................... 234
Transmission Warning ................... 171
Turn Signal ..................... 127,162,370
Warning (Instrument Cluster Description) ..... 162
Limited-Slip Differential ................249,356
Loading Vehicle ......................... 287
Tires ............................... 262
Locks ................................. 27
Child Protection ........................ 30
Door ................................ 27
Keys ................................ 12
INDEX 417
