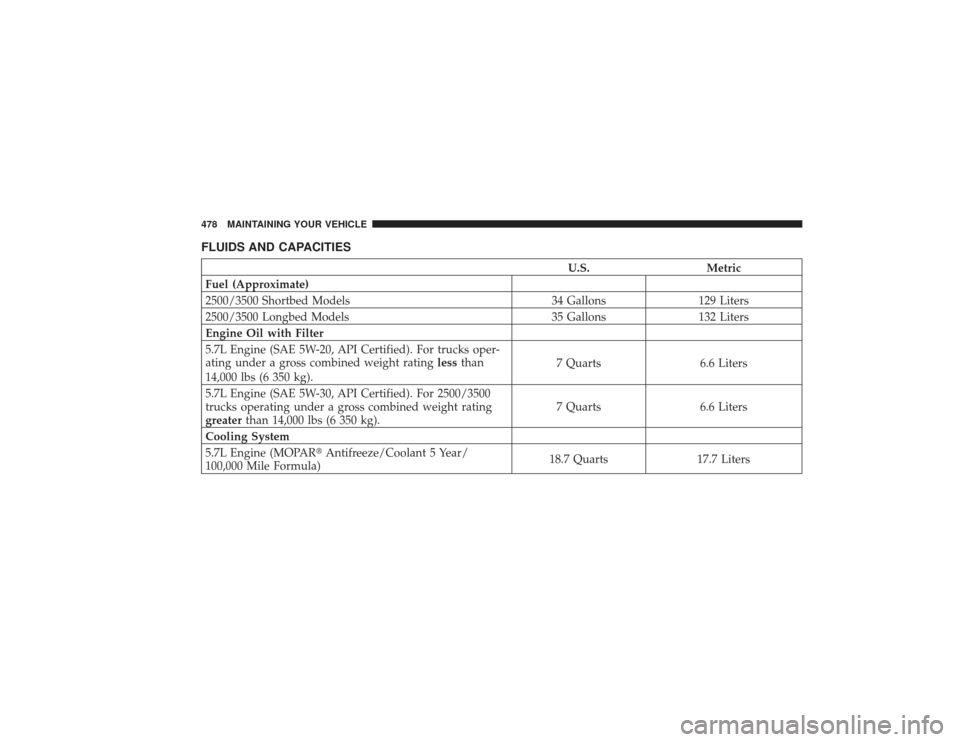

FLUIDS AND CAPACITIES
U.S.Metric
Fuel (Approximate)
2500/3500 Shortbed Models 34 Gallons129 Liters
2500/3500 Longbed Models 35 Gallons132 Liters
Engine Oil with Filter
5.7L Engine (SAE 5W-20, API Certified). For trucks oper-
ating under a gross combined weight rating lessthan
14,000 lbs (6 350 kg). 7 Quarts
6.6 Liters
5.7L Engine (SAE 5W-30, API Certified). For 2500/3500
trucks operating under a gross combined weight rating
greater than 14,000 lbs (6 350 kg). 7 Quarts
6.6 Liters
Cooling System
5.7L Engine (MOPAR Antifreeze/Coolant 5 Year/
100,000 Mile Formula) 18.7 Quarts
17.7 Liters
478 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS AND GENUINE PARTS
EngineComponentFluid, Lubricant, or Genuine Part
Engine Coolant MOPARAntifreeze/Coolant 5 Year/100,000 Mile Formula HOAT (Hybrid
Organic Additive Technology)
Engine Oil — 5.7L Engine (For
trucks operating under a gross com-
bined weight rating lessthan
14,000 lbs/(6,350 kg.) Use API Certified SAE 5W-20 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil — 5.7L Engine (For
2500/3500 trucks operating under a
gross combined weight rating
greater than 14,000 lbs/(6,350 kg.) Use API Certified SAE 5W-30 Engine Oil, meeting the requirements of
Chrysler Material Standard MS-6395. Refer to your engine oil filler cap for
correct SAE grade.
Engine Oil Filter MOPAREngine Oil Filter (P/N 04884899AB) or equivalent
Spark Plugs (5.7L Engine) LZFR5C–11 (Gap 0.043 in [1.09 mm])
Fuel Selection (5.7L Engine) 87 Octane Acceptable - 89 Octane Recommended
MAINTAINING YOUR VEHICLE 479
7

At Each Stop for Fuel•
Check the engine oil level about 5 minutes after a fully
warmed engine is shut off. Checking the oil level while
the vehicle is on level ground will improve the accu-
racy of the oil level reading. Add oil only when the
level is at or below the ADD or MIN mark.
•
Check the windshield washer solvent and add if
required.
Once a Month
•
Check tire pressure and look for unusual wear or
damage.
•
Inspect the battery, clean and tighten the terminals as
required.
•
Check the fluid levels of the coolant reservoir, brake
master cylinder, power steering and transmission and
add as needed.
•
Check all lights and other electrical items for correct
operation.
At Each Oil Change
•
Change the engine oil filter.
•
Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance items
may result in damage to the vehicle.Required Maintenance IntervalsRefer to the Maintenance Schedules on the following
pages for the required maintenance intervals.
484 MAINTENANCE SCHEDULES
8M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

54,000 Miles (90,000 km) or
54 Months Maintenance
Service Schedule❏Change the engine oil and engine oil
filter.
❏ Rotate tires.
❏ Lube front drive shaft fitting (2500/3500
(4x4) models only).
❏ Inspect the front & rear axle fluid.
Change if using your vehicle for police,
taxi, fleet, off-road or frequent trailer
towing.Odometer Reading DateRepair Order #Dealer CodeSignature Authorized Chrysler Dealer
60,000 Miles (100,000 km) or 60 Months Maintenance Service
Schedule❏Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ Replace the engine air cleaner filter.
❏ Replace the spark plugs (5.7L engine).
❏ Inspect the brake linings, replace if necessary.
❏ Lube front drive shaft fitting (2500/3500 (4x4) models only).
❏ Change the automatic transmission fluid & filter(s) if using your vehicle for any of the
following: police, taxi, fleet or frequent trailer towing.
❏ Inspect the transfer case fluid.
❏ Flush and replace the engine coolant at 60 months if not done at 102,000 miles
(170 000 km).
Odometer Reading DateRepair Order #Dealer CodeSignature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 489
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

96,000 Miles (160,000 km) or 96 Months Maintenance Service
Schedule❏Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ If using your vehicle for any of the following: Dusty or off-road conditions. Inspect the
engine air cleaner filter, replace if necessary.
❏ Inspect the brake linings, replace if necessary.
❏ Inspect the front suspension, tie rod ends, and boot seals, replace if necessary.
❏ Lube front drive shaft fitting (2500/3500 (4x4) models only).
❏ Inspect the CV Joints.
❏ Inspect exhaust system.
Odometer Reading DateRepair Order #Dealer CodeSignature Authorized Chrysler Dealer
102,000 Miles (170,000 km) or
102 Months Maintenance
Service Schedule❏Change the engine oil and engine oil
filter.
❏ Rotate tires.
❏ Lube front drive shaft fitting (2500/3500
(4x4) models only).
❏ Flush and replace the power steering
fluid.
❏ Flush and replace the engine coolant if
not done at 60 months.Odometer Reading DateRepair Order #Dealer CodeSignature Authorized Chrysler Dealer
MAINTENANCE SCHEDULES 493
8M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S

Adding Fuel........................... 379
Adjustable Pedals ....................... 141
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 434
Air Conditioner Maintenance ............... 435
Air Conditioning Refrigerant .............435,436
Air Conditioning System ................237,435
Air Conditioning System, Zone Control ........ 240
Air Pressure, Tires .................... 355,360
Airbag ............................ 34,47,54
Airbag Light ....................... 58,75,189
Airbag On/Off Switch ..................... 54
Alarm Light ........................... 191
Alarm (Security Alarm) .................... 18
Alarm System (Security Alarm) ............... 18
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 230
Antifreeze (Engine Coolant) ...........442,443,478
Disposal ............................ 445
Anti-Lock Brake System (ABS) .............. 333Anti-Lock Warning Light
...............196,332
Anti-Theft Security Alarm (Theft Alarm) ........ 18
Anti-Theft System ........................ 18
Appearance Care ........................ 452
Ashtray ............................... 164
Assistance Towing ....................... 101
Automatic Dimming Mirror ................. 82
Automatic Transaxle ...................... 12
Interlock System ....................... 14
Automatic Transmission Adding Fluid ......................... 451
Fluid and Filter Changes ................. 452
Fluid Level Check ................... 449,450
Fluid Type ........................ 449,480
Shifting ............................. 255
Special Additives ...................... 452
Axle Fluid .......................... 448,480
Axle Lubrication (Axle Fluid) ............... 448510 INDEX

Bar, Stabilizer/Sway System................ 282
Battery ............................... 434
Emergency Starting ..................... 419
Saving Feature (Protection) ............... 133
Belts, Seat ............................ 35,75
Body Builders Guide ....................... 6
Body Mechanism Lubrication ............... 437
B-Pillar Location ........................ 350
Brake Assist System ...................... 335
Brake Control System, Electronic ............. 333
Brake Fluid ......................... 447,480
Brake System ........................ 330,447
Anti-Lock (ABS) .................... 331,333
Fluid Check .......................... 447
Master Cylinder ....................... 447
Parking ............................. 329
Warning Light ........................ 194
Break-In Recommendations, New Vehicle ........ 73
Bulb Replacement ....................... 465 Bulbs, Light
.......................... 76,464
Cab Top Clearance Lights .................. 473
Calibration, Compass ..................... 151
Camper ............................... 178
Capacities, Fluid ........................ 478
Caps, Filler Oil (Engine) .......................... 432
Power Steering ........................ 328
Radiator (Coolant Pressure) ............... 444
Car Washes ............................ 453
Carbon Monoxide Warning ............74,179,379
Cargo Light ............................ 135
CD (Compact Disc) Player ...............202,216
Cellular Phone .......................... 86
Center High Mounted Stop Light ............ 472
Center Lap Belts ......................... 44
Center Seat Storage Compartment .........167,169
Certification Label ....................... 381
INDEX 511
10

Chart, Tire Sizing........................ 347
Check Engine Light
(Malfunction Indicator Light) .............194,429
Checking Your Vehicle For Safety ............. 74
Checks, Safety ........................... 74
Child Restraint ........................ 60,61
Child Restraint Tether Anchors .............64,68
Child Seat ............................ 61,67
Cigar Lighter ........................... 164
Cleaning Wheels ............................. 454
Climate Control ......................... 234
Clock ........................ 201,204,218,224
Compact Disc (CD) Maintenance ............. 232
Compass ........................... 150,151
Compass Calibration ..................... 151
Compass Variance ....................... 152
Computer, Trip/Travel .................... 146
Console, Overhead ....................... 145 Contract, Service
........................ 503
Coolant Pressure Cap (Radiator Cap) .......... 444
Cooling System ......................... 441
Adding Coolant (Antifreeze) .............. 443
Coolant Capacity ...................... 478
Coolant Level ...................... 441,445
Disposal of Used Coolant ................ 445
Drain, Flush, and Refill .................. 442
Inspection ........................... 445
Points to Remember .................... 446
Pressure Cap ......................... 444
Radiator Cap ......................... 444
Selection of Coolant (Antifreeze) ......442,478,479
Cruise Control (Speed Control) .............. 142
Cupholders ............................ 165
Customer Assistance ..................... 501
Data Recorder, Event ...................... 58
Daytime Running Lights ................... 134512 INDEX
